/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/P-Base/00158ET3E145HP-W22 WEG 1.5HP P-Base Pump Electric Motor, 1800RPM

Product ID: 00158ET3E145HP-W22

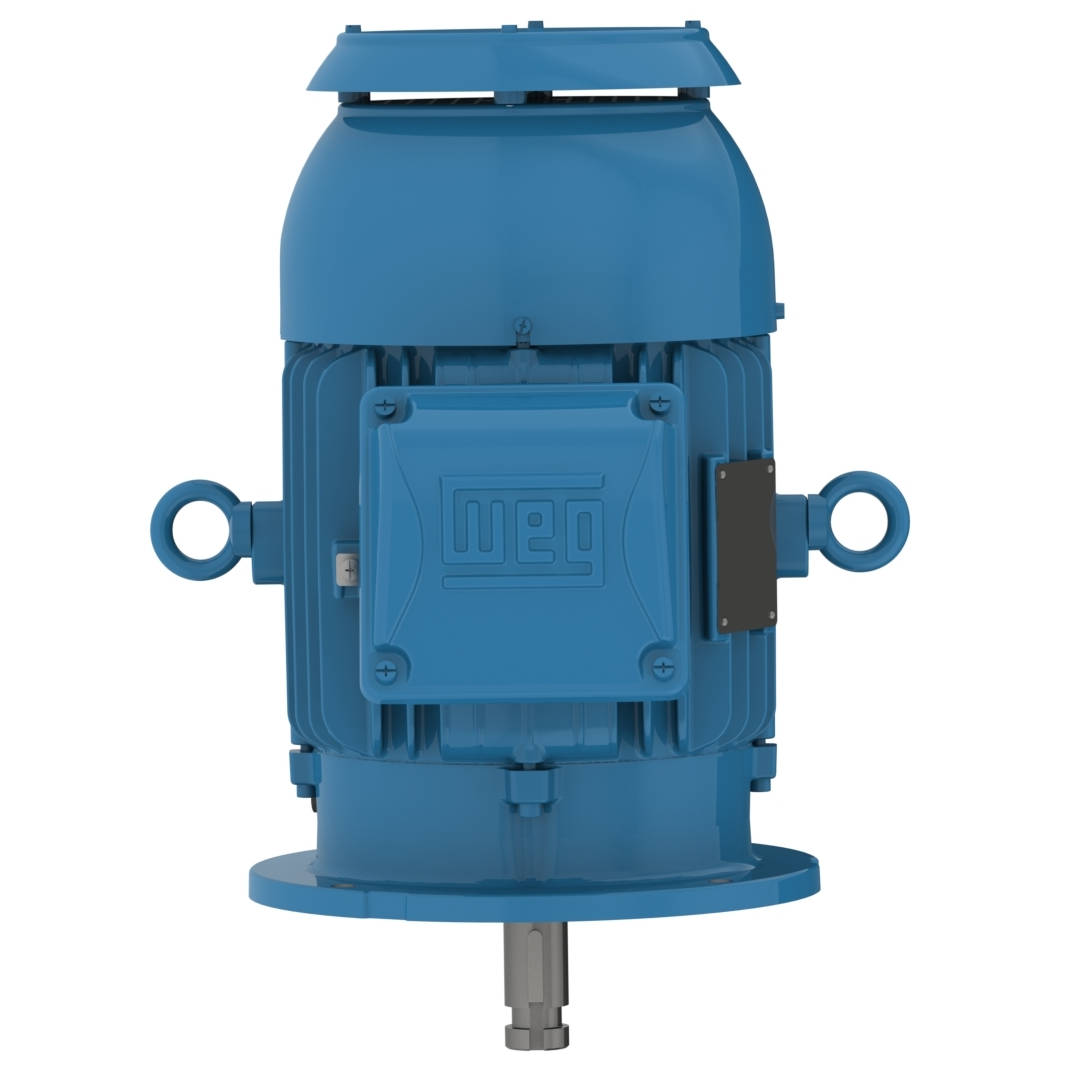

00158ET3E145HP-W22 WEG 1.5HP P-Base Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ET3E145HP-W22

Selected accessories will also be added to cart

$497.25 / Each

Quantity:

IC411 - TEFC, IP55, 145HP Frame, 230/460/380VAC 50/60Hz 3 Phase, 13016466, NEMA Premium Efficiency, Footless, Cast Iron Frame, 7/8" Shaft

Details
Purchase Components

Electric Motors

Frame	145HP
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1755 rpm
Slip	2.50 %
Rated voltage	230/460 V
Rated current	4.04/2.02 A
L. R. Amperes	33.9/17.0 A
LRC	8.4x(Code L)
No load current	2.20/1.10 A
Rated torque	4.49 ft.lb
Locked rotor torque	290 %
Breakdown torque	350 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.1431 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	58.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	85.5	86.5

Power factor

50%	75%	100%
0.60	0.70	0.79

Frame	145HP
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1440 rpm
Slip	4.00 %
Rated voltage	380 V
Rated current	2.42 A
L. R. Amperes	15.5 A
LRC	6.4x(Code H)
No load current	1.10 A
Rated torque	5.47 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.1431 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	58.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	84.0	84.1

Power factor

50%	75%	100%
0.67	0.76	0.82

Frame	145HP
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	400 V
Rated current	2.33 A
L. R. Amperes	16.3 A
LRC	7.0x(Code J)
No load current	1.20 A
Rated torque	5.45 ft.lb
Locked rotor torque	250 %
Breakdown torque	290 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.1431 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	58.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	84.0	84.1

Power factor

50%	75%	100%
0.63	0.74	0.81

Frame	145HP
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	415 V
Rated current	2.30 A
L. R. Amperes	17.0 A
LRC	7.4x(Code K)
No load current	1.30 A
Rated torque	5.43 ft.lb
Locked rotor torque	280 %
Breakdown torque	320 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.1431 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	58.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.0	84.0	84.1

Power factor

50%	75%	100%
0.60	0.70	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Circlip Ring
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
