/Products/Electric Motors/Single Phase/WEG/General Purpose, TEFC, W22/JM Close-Coupled Pump/00158ES1E145JM-W22 WEG 1.5HP JM Close Coupled Pump Electric Motor, 1800RPM

Product ID: 00158ES1E145JM-W22

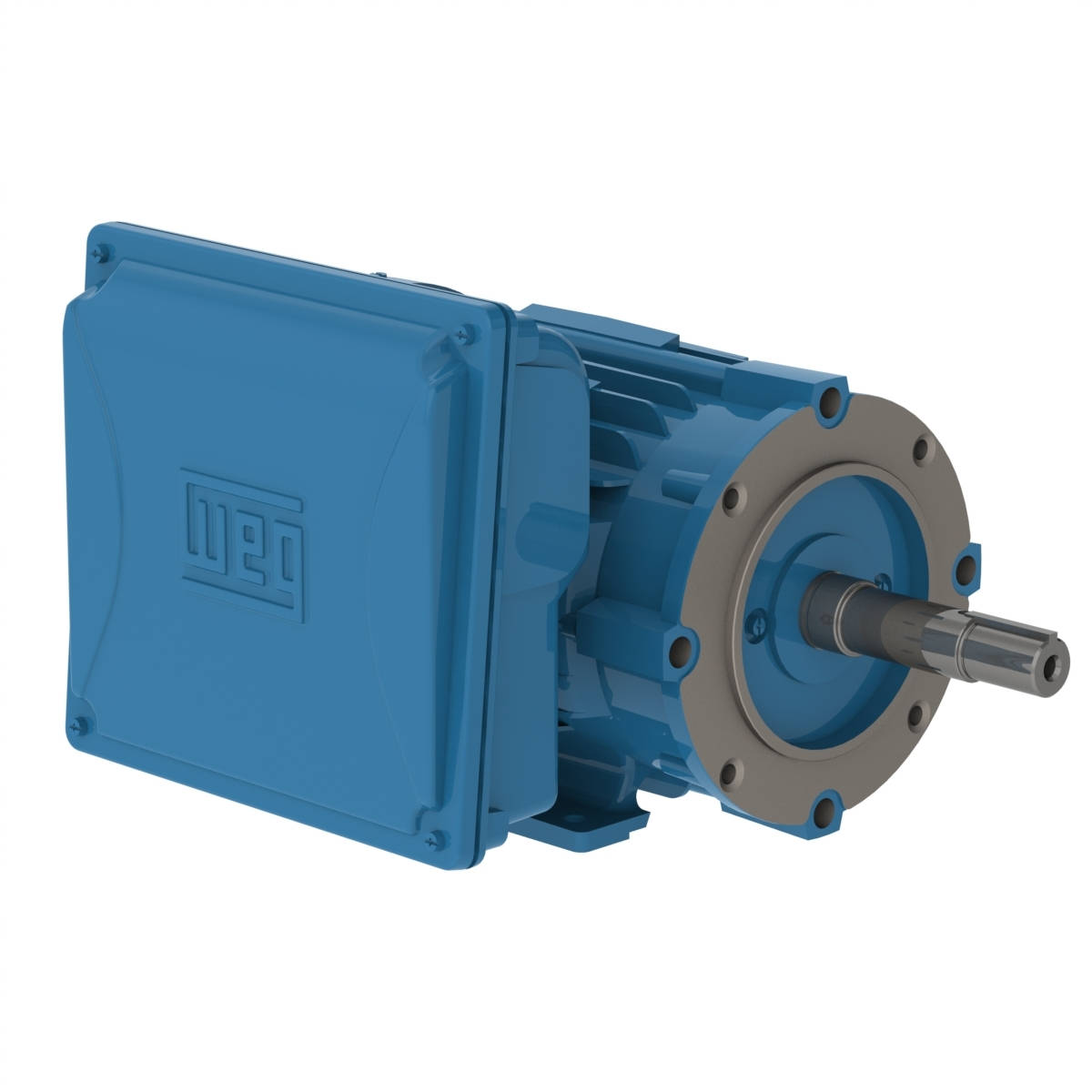

00158ES1E145JM-W22 WEG 1.5HP JM Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ES1E145JM-W22

Selected accessories will also be added to cart

$565.50 / Each

Quantity:

IC411 - TEFC, IP55, 143JM/145JM Frame, 208-230/460VAC 60Hz Single Phase, 14183485, Foot Mounted, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	143/5JM
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1755 rpm
Slip	2.50 %
Rated voltage	208-230/460 V
Rated current	7.00-6.76/3.38 A
L. R. Amperes	56.0-54.1/27.0 A
LRC	8.0x(Code K)
No load current	1.98-2.30/1.15 A
Rated torque	4.49 ft.lb
Locked rotor torque	260 %
Breakdown torque	229 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.1628 sq.ft.lb
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	68.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
65.0	73.0	77.0

Power factor

50%	75%	100%
0.90	0.92	0.92

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
