/Products/Electric Motors/Single Phase/WEG/Farm Duty - Poultry Fan/00158AS1BRBPF56-S WEG 1.5HP Farm Duty Poultry Fan Electric Motor, 1800RPM

Product ID: 00158AS1BRBPF56-S

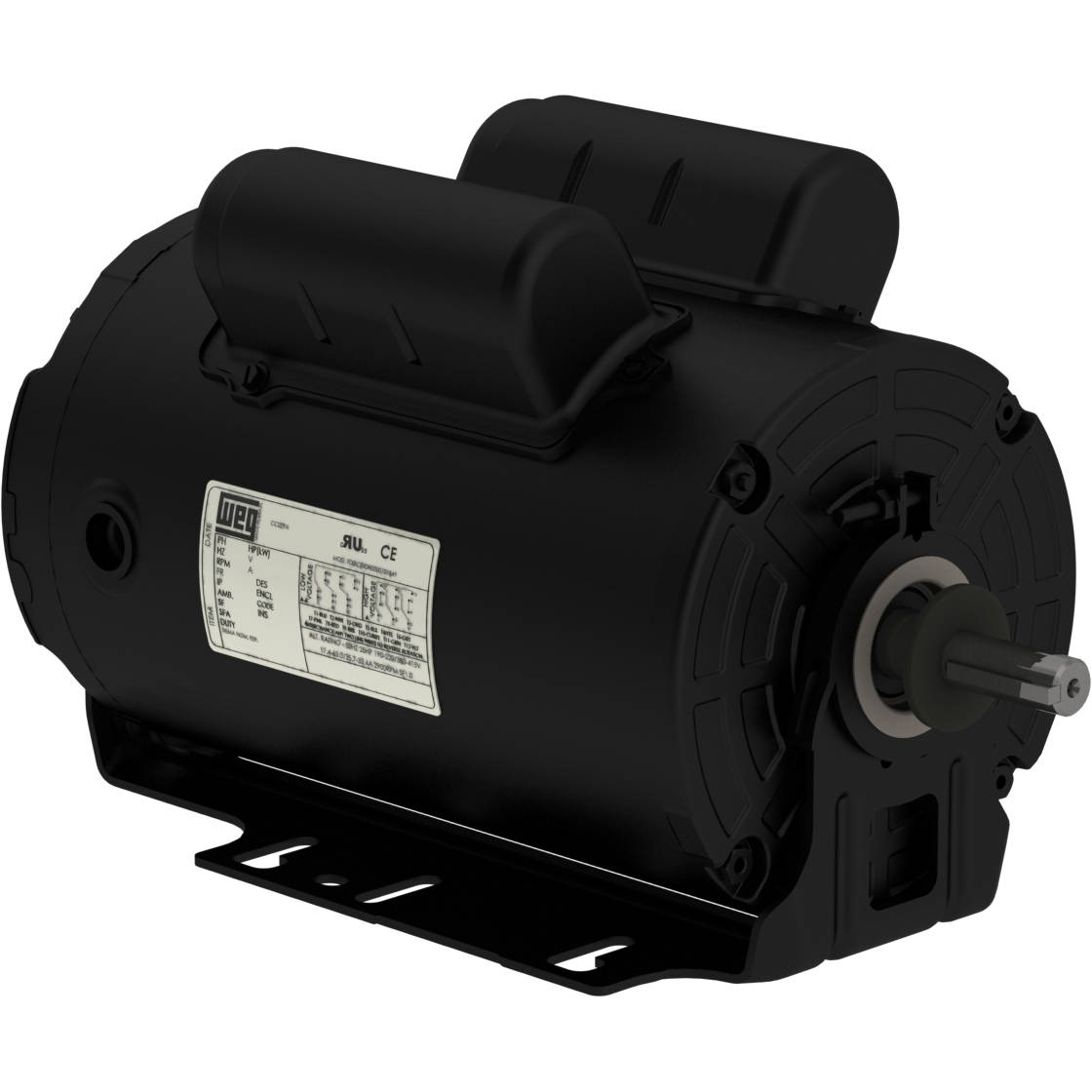

00158AS1BRBPF56-S WEG 1.5HP Farm Duty Poultry Fan Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158AS1BRBPF56-S

Selected accessories will also be added to cart

$357.75 / Each

Quantity:

IC410 - TEAO, IP55, 56H Frame, 115/208-230VAC 60Hz Single Phase, 15443640, Rolled Steel, Foot Mounted, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56H
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1745 rpm
Slip	3.06 %
Rated voltage	115/208-230 V
Rated current	15.0/8.27-7.48 A
L. R. Amperes	120/66.2-59.8 A
LRC	8.0x(Code L)
No load current	7.80/3.36-3.90 A
Rated torque	4.51 ft.lb
Locked rotor torque	250 %
Breakdown torque	270 %

Locked rotor time	14s (cold) 8s (hot)
Design	L
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	43.0 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
69.0	75.0	77.0

Power factor

50%	75%	100%
0.68	0.78	0.83

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	With
Overload protector (phenolic)	Automatic
