/Products/Electric Motors/3 Phase Explosion Proof/WEG/Foot Mount/00156XT3H143T WEG 1.5HP Explosion Proof Electric Motor, 3600RPM

Product ID: 00156XT3H143T

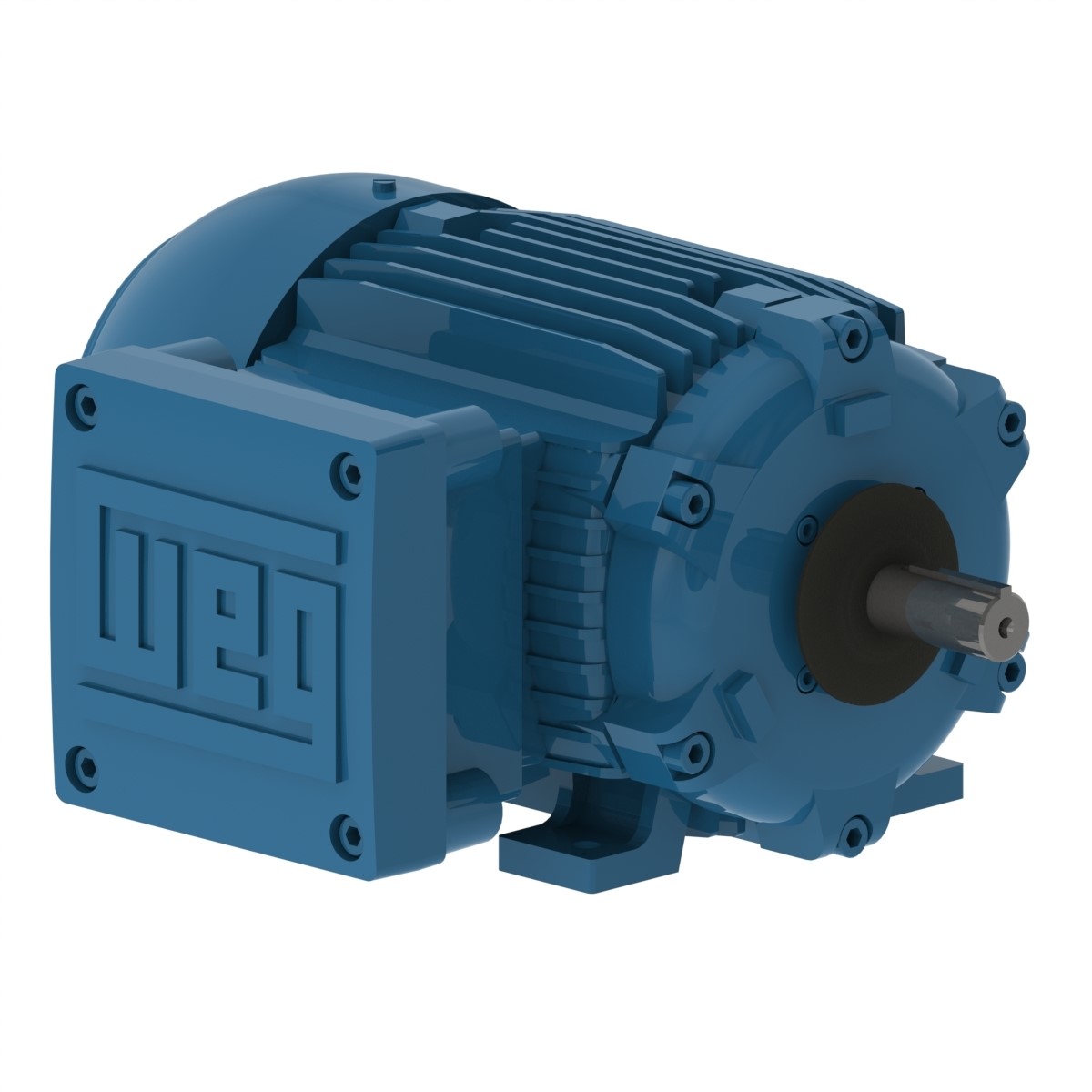

00156XT3H143T WEG 1.5HP Explosion Proof Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156XT3H143T

Selected accessories will also be added to cart

$687.00 / Each

Quantity:

IC411 - TEFC, IP55, 143T/145T Frame, 575VAC 60Hz 3 Phase, 14495395, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	143/5T
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	575 V
Rated current	1.64 A
L. R. Amperes	15.1 A
LRC	9.2x(Code M)
No load current	0.800 A
Rated torque	2.25 ft.lb
Locked rotor torque	340 %
Breakdown torque	440 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.0413 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	69.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
78.5	82.5	84.0

Power factor

50%	75%	100%
0.62	0.73	0.80

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
