/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/Foot Mount/00156OT3E56-S WEG 1.5HP General Purpose Electric Motor, 3600RPM

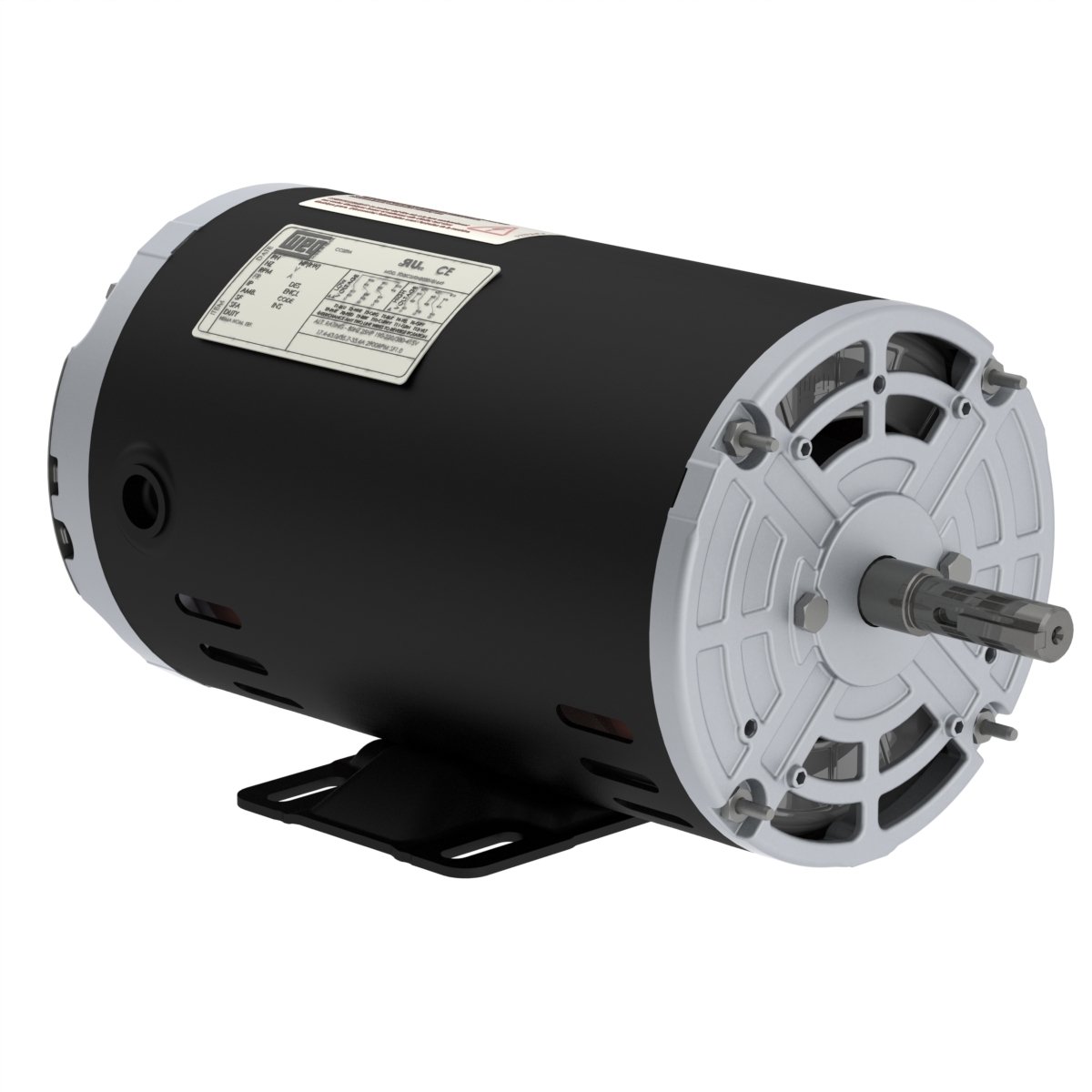

00156OT3E56-S WEG 1.5HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00156OT3E56-S

00156OT3E56-S WEG 1.5HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156OT3E56-S

Selected accessories will also be added to cart
$285.00 / Each
Quantity:
IC01 - ODP, 56 Frame, 208-230/460VAC 3 Phase 50/60Hz, 12812388, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame 56
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 4.09-3.70/1.85 A
L. R. Amperes 35.2-31.8/15.9 A
LRC 8.6x(Code K)
No load current 1.40-1.62/0.809 A
Rated torque 2.21 ft.lb
Locked rotor torque 210 %
Breakdown torque 330 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.0835 sq.ft.lb
Design A
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 27.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.5  84.0  84.0

Power factor

50% 75% 100%
0.73  0.83  0.89
Frame 56
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2890 rpm
Slip 3.67 %
Rated voltage 190/380 V
Rated current 4.42/2.21 A
L. R. Amperes 29.6/14.8 A
LRC 6.7x(Code H)
No load current 1.59/0.796 A
Rated torque 2.69 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.0835 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 27.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.7  83.6  82.3

Power factor

50% 75% 100%
0.79  0.88  0.92
Frame 56
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 220/415 V
Rated current 3.94/2.09 A
L. R. Amperes 30.8/16.3 A
LRC 7.8x(Code J)
No load current 1.84/0.977 A
Rated torque 2.67 ft.lb
Locked rotor torque 220 %
Breakdown torque 300 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.0835 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 27.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.0  83.3  83.2

Power factor

50% 75% 100%
0.71  0.83  0.88

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
