/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Resilient Base/00156OT1BRBO56-S WEG 1.5HP Fan & Exhaust Electric Motor, 3600RPM

Product ID: 00156OT1BRBO56-S

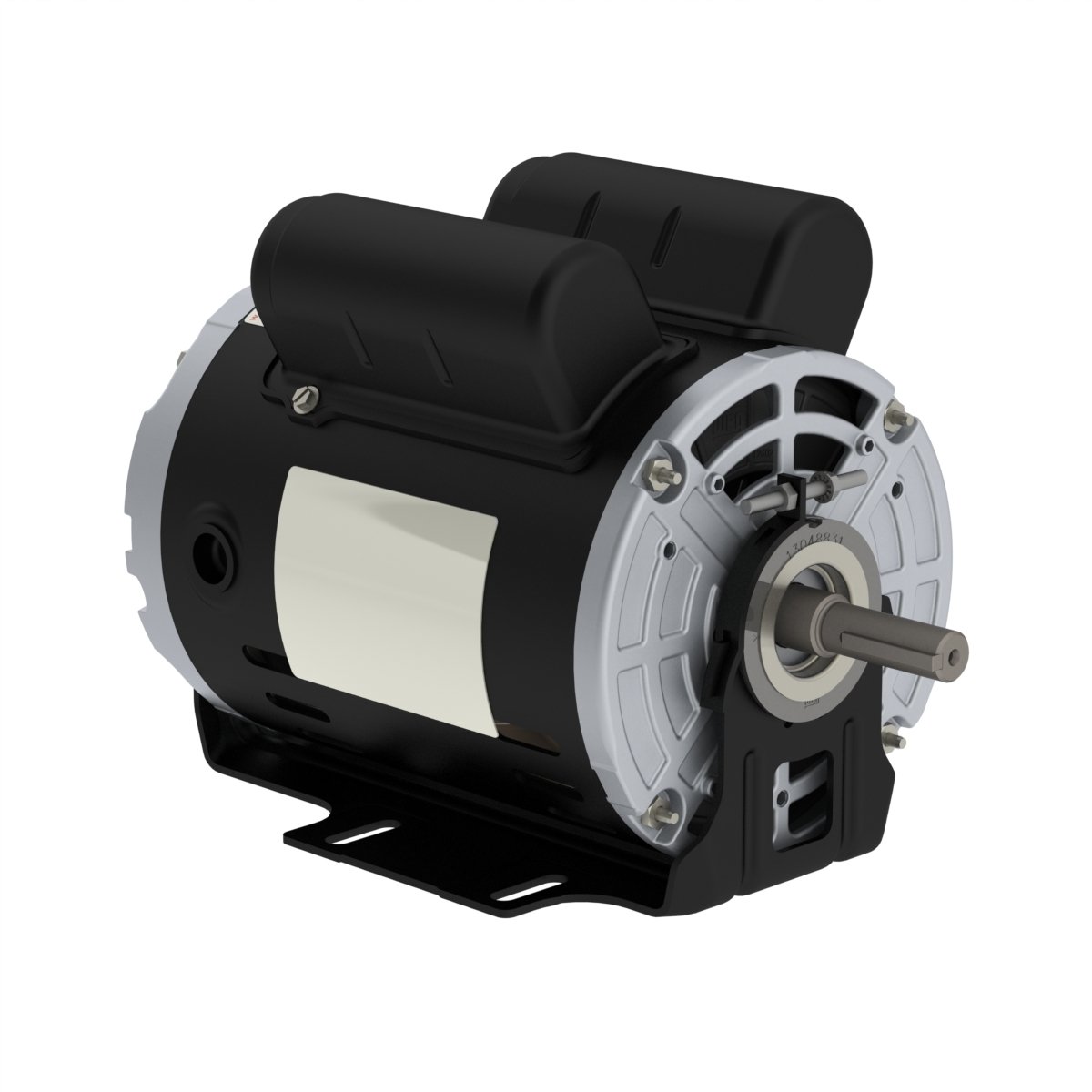

00156OT1BRBO56-S WEG 1.5HP Fan & Exhaust Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156OT1BRBO56-S

Selected accessories will also be added to cart

$337.50 / Each

Quantity:

IC01 - ODP, 56 Frame, 115/208-230VAC Single Phase 60Hz, 13769894, Resilient Base, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	115/208-230 V
Rated current	13.3/6.90-6.65 A
L. R. Amperes	102/53.1-51.2 A
LRC	7.7x(Code J)
No load current	3.20/1.38-1.60 A
Rated torque	2.22 ft.lb
Locked rotor torque	260 %
Breakdown torque	270 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	0.0629 sq.ft.lb
Design	L
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	37.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
73.0	79.0	81.5

Power factor

50%	75%	100%
0.88	0.89	0.89

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
