/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Foot Mount/00156OT1B56-S WEG 1.5HP General Purpose Electric Motor, 3600RPM

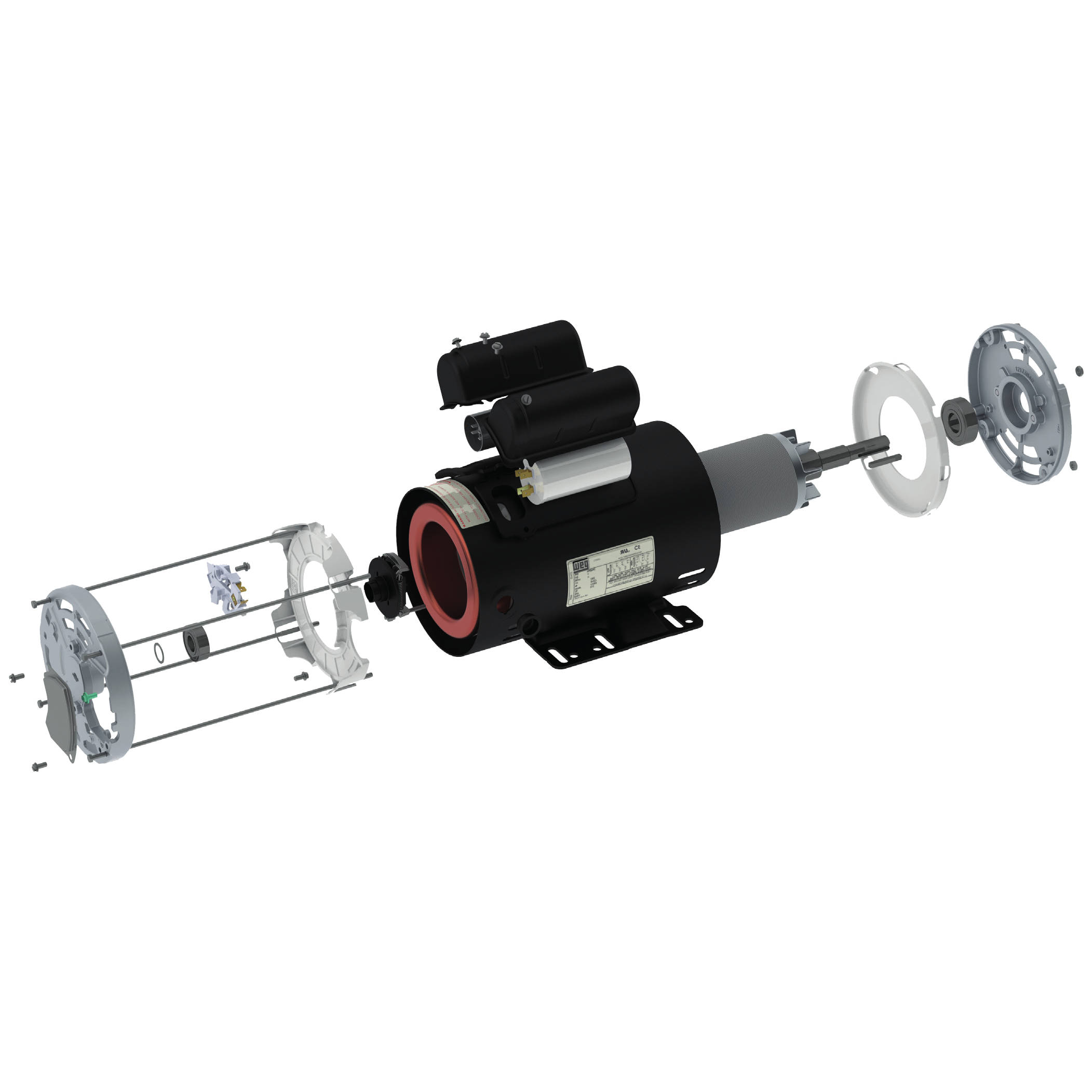

Click Image to Expand

Product ID: 00156OT1B56-S

00156OT1B56-S WEG 1.5HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156OT1B56-S

Selected accessories will also be added to cart
$294.75 / Each
Quantity:
IC01 - ODP, 56 Frame, 115/208-230VAC Single Phase 60Hz, 13209421, Foot Mount, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 13.3/6.90-6.65 A
L. R. Amperes 102/53.1-51.2 A
LRC 7.7x(Code J)
No load current 3.20/1.38-1.60 A
Rated torque 2.22 ft.lb
Locked rotor torque 260 %
Breakdown torque 270 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0629 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 35.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
73.0  79.0  81.5

Power factor

50% 75% 100%
0.88  0.89  0.89

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
