/Products/Electric Motors/Single Phase/WEG/Compressor Duty/00156OS1BCD56-S WEG 1.5HP Compressor Duty Electric Motor, 3600RPM

Product ID: 00156OS1BCD56-S

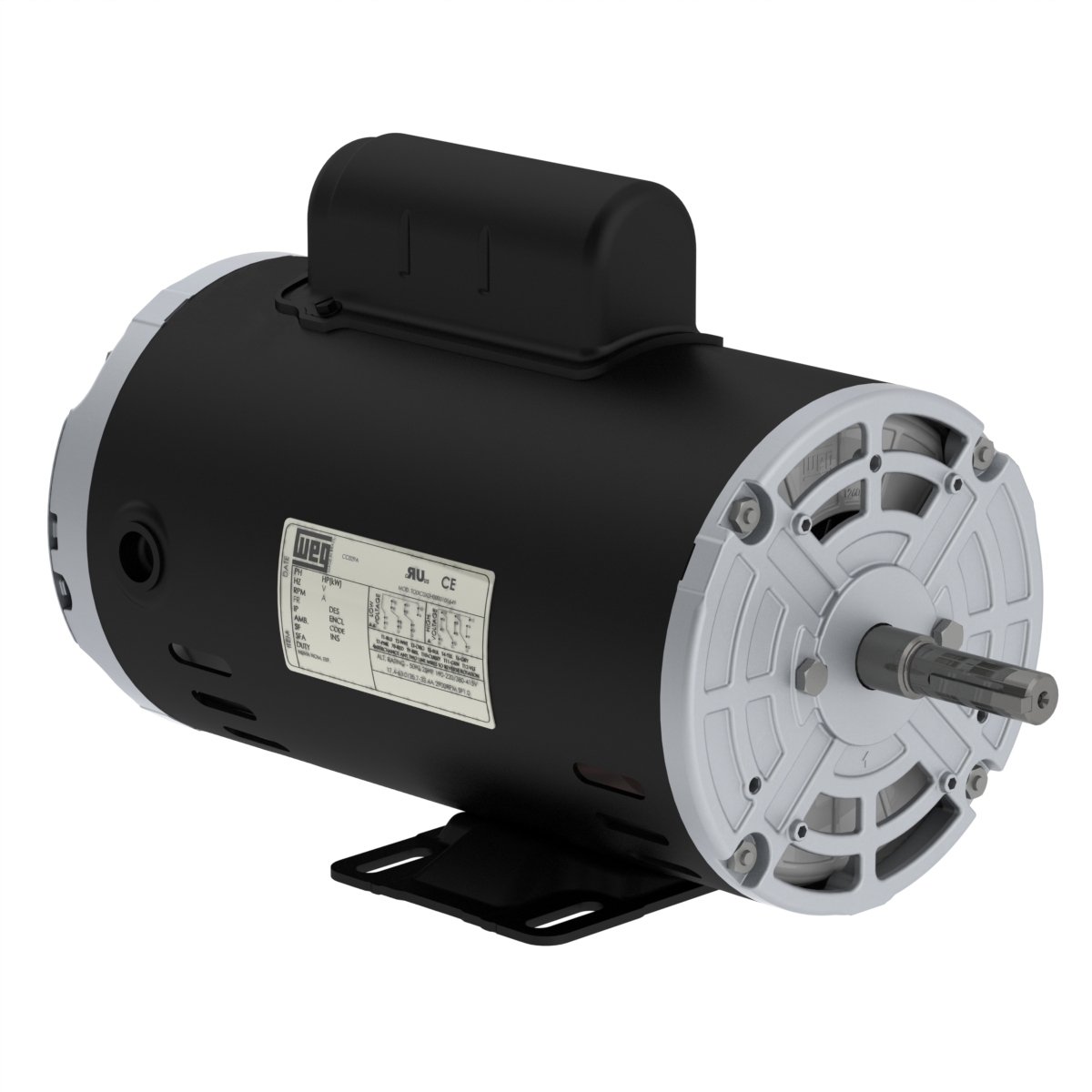

00156OS1BCD56-S WEG 1.5HP Compressor Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156OS1BCD56-S

Selected accessories will also be added to cart

$233.25 / Each

Quantity:

IC01 - ODP, 56 Frame, 115/208-230VAC Single Phase 60Hz, 13589373, Rolled Steel, Foot Mount, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3490 rpm
Slip	3.06 %
Rated voltage	115/208-230 V
Rated current	17.4/8.80-8.70 A
L. R. Amperes	97.4/49.3-48.7 A
LRC	5.6x(Code J)
No load current	10.6/4.57-5.30 A
Rated torque	2.23 ft.lb
Locked rotor torque	170 %
Breakdown torque	250 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.0510 sq.ft.lb
Design	L
Insulation Class	F
Temperature rise	80 K
Service factor	1.00 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	28.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
66.5	71.8	72.0

Power factor

50%	75%	100%
0.58	0.70	0.76

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
