/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/JP, TEFC/00156ET3E143JP-S WEG 1.5HP JP Close Coupled Pump Electric Motor, 3600RPM

Product ID: 00156ET3E143JP-S

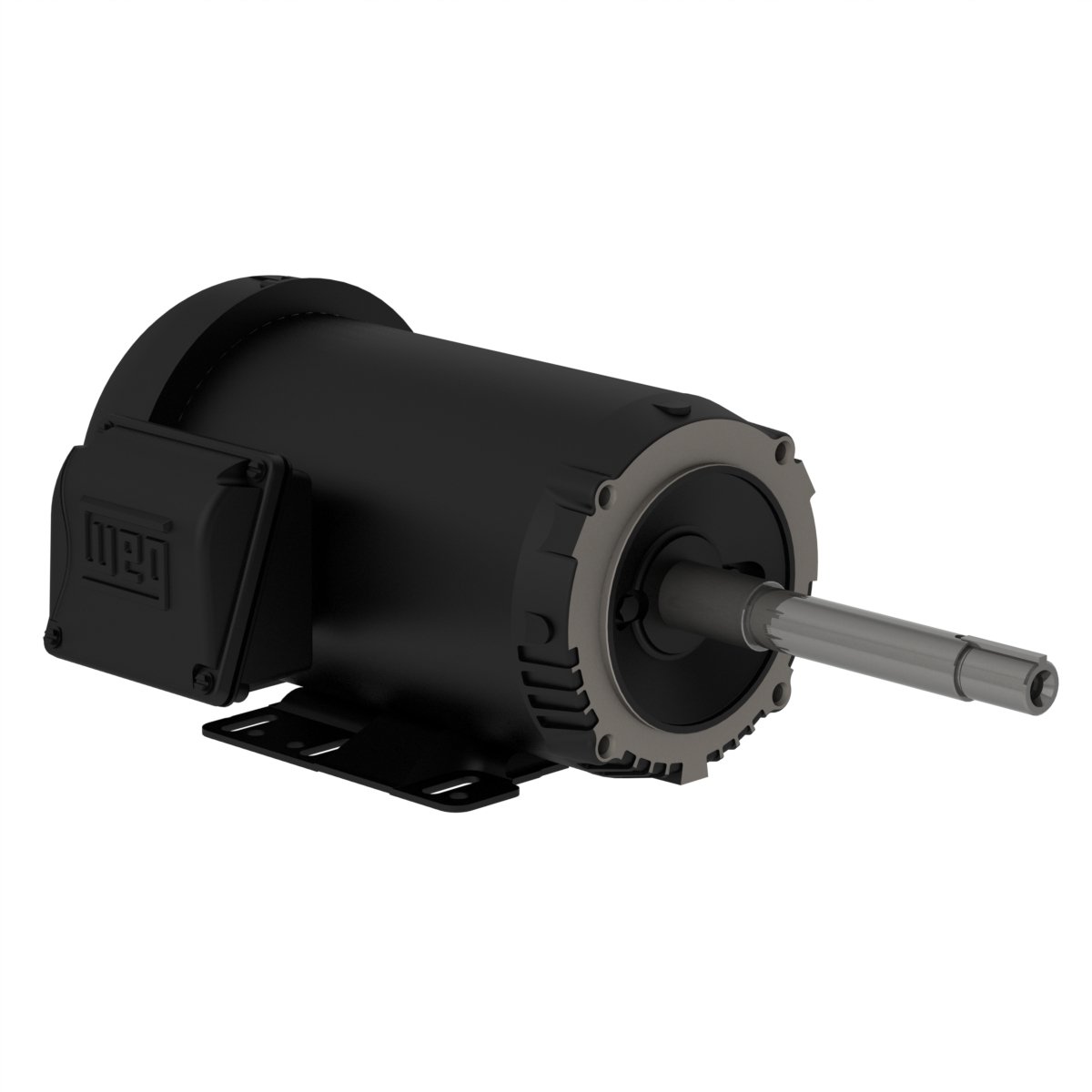

00156ET3E143JP-S WEG 1.5HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156ET3E143JP-S

Selected accessories will also be added to cart

$486.75 / Each

Quantity:

IC411 - TEFC, IP55, 143JP/145JP Frame, 208-230/460VAC 3-Phase 50/60Hz, 14328035, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	143/5JP
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3520 rpm
Slip	2.22 %
Rated voltage	208-230/460 V
Rated current	4.13-3.74/1.87 A
L. R. Amperes	37.6-34.0/17.0 A
LRC	9.1x(Code L)
No load current	1.48-1.72/0.859 A
Rated torque	2.21 ft.lb
Locked rotor torque	229 %
Breakdown torque	300 %
Locked rotor time	30s (cold) 17s (hot)
Moment of inertia (J)	0.1023 sq.ft.lb

Design	B
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	34.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	82.5	84.0

Power factor

50%	75%	100%
0.71	0.82	0.88

Frame	143/5JP
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2895 rpm
Slip	3.50 %
Rated voltage	190/380 V
Rated current	4.44/2.22 A
L. R. Amperes	32.0/16.0 A
LRC	7.2x(Code H)
No load current	1.69/0.845 A
Rated torque	2.68 ft.lb
Locked rotor torque	190 %
Breakdown torque	280 %
Locked rotor time	0s (cold) 0s (hot)
Moment of inertia (J)	0.1023 sq.ft.lb

Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	65.0 dB(A)
Approx. weight³	34.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.6	83.8	82.9

Power factor

50%	75%	100%
0.77	0.87	0.91

Frame	143/5JP
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2915 rpm
Slip	2.83 %
Rated voltage	220/415 V
Rated current	3.90/2.07 A
L. R. Amperes	33.2/17.6 A
LRC	8.5x(Code K)
No load current	1.83/0.971 A
Rated torque	2.67 ft.lb
Locked rotor torque	240 %
Breakdown torque	330 %
Locked rotor time	0s (cold) 0s (hot)
Moment of inertia (J)	0.1023 sq.ft.lb

Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	65.0 dB(A)
Approx. weight³	34.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.7	84.0	83.9

Power factor

50%	75%	100%
0.70	0.82	0.88

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
