/Products/Electric Motors/Single Phase/WEG/Rolled Steel, TEFC/Foot Mount/00156ES1BOL56-S WEG 1.5HP General Purpose Electric Motor, 3600RPM

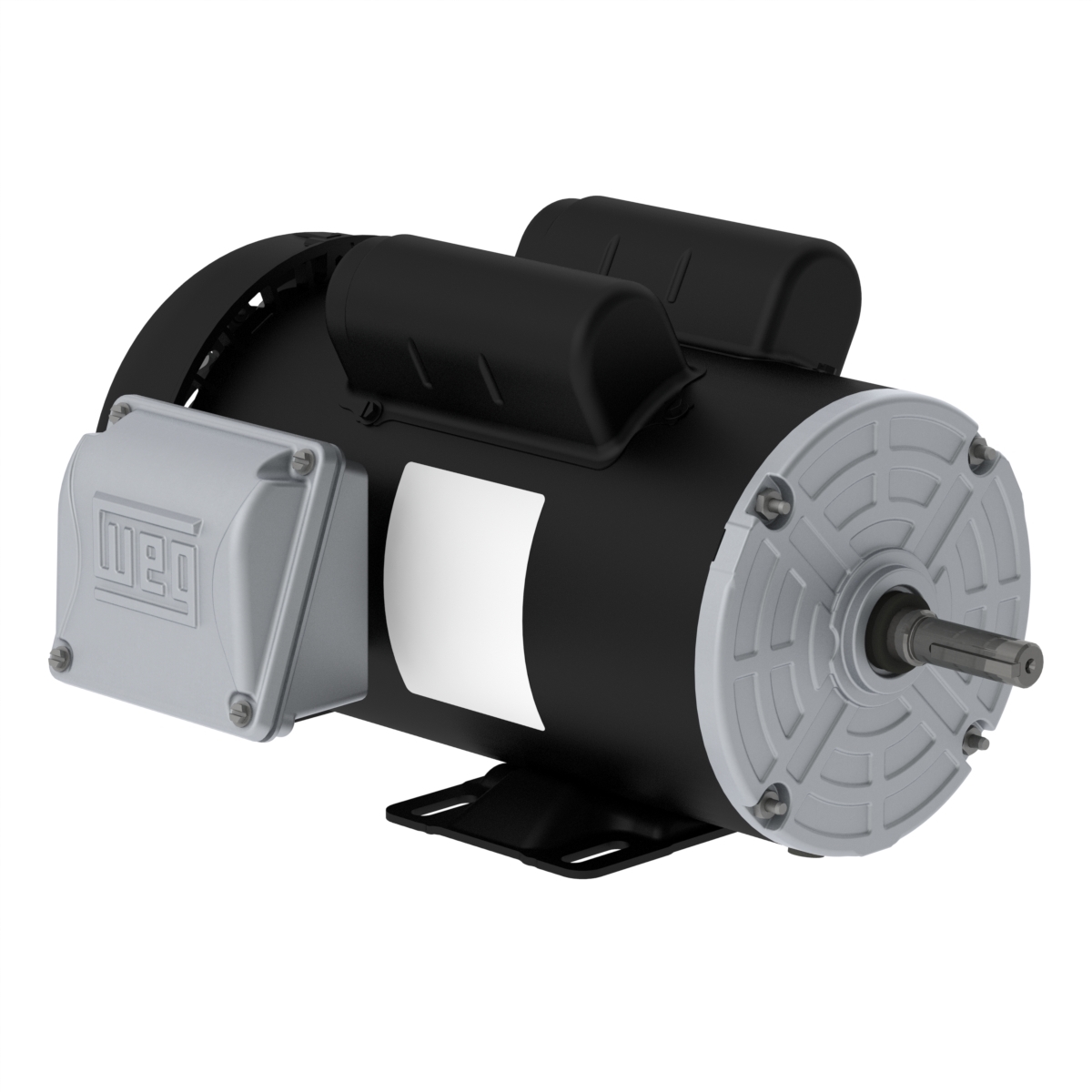

00156ES1BOL56-S WEG 1.5HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00156ES1BOL56-S

00156ES1BOL56-S WEG 1.5HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156ES1BOL56-S

Available Stock: 1
Selected accessories will also be added to cart
$347.25 / Each
Quantity:
IC411 - TEFC, IP55, 56 Frame, 115/208-230VAC 60Hz Single Phase, 13604572, 14824200, Rolled Steel, Foot Mounted, Standard Efficiency, F-1/B3R(D)

Electric Motors

Frame 56
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 13.2/7.30-6.60 A
L. R. Amperes 106/58.4-52.8 A
LRC 8.0x(Code K)
No load current 4.00/0.000-2.00 A
Rated torque 2.22 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 12s (cold) 7s (hot)
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 36.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
66.0  73.0  75.0

Power factor

50% 75% 100%
0.92  0.95  0.97

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6204 ZZ   6202 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
36 lb  72 lb
