Product ID: 00156ES1B56CFL-S

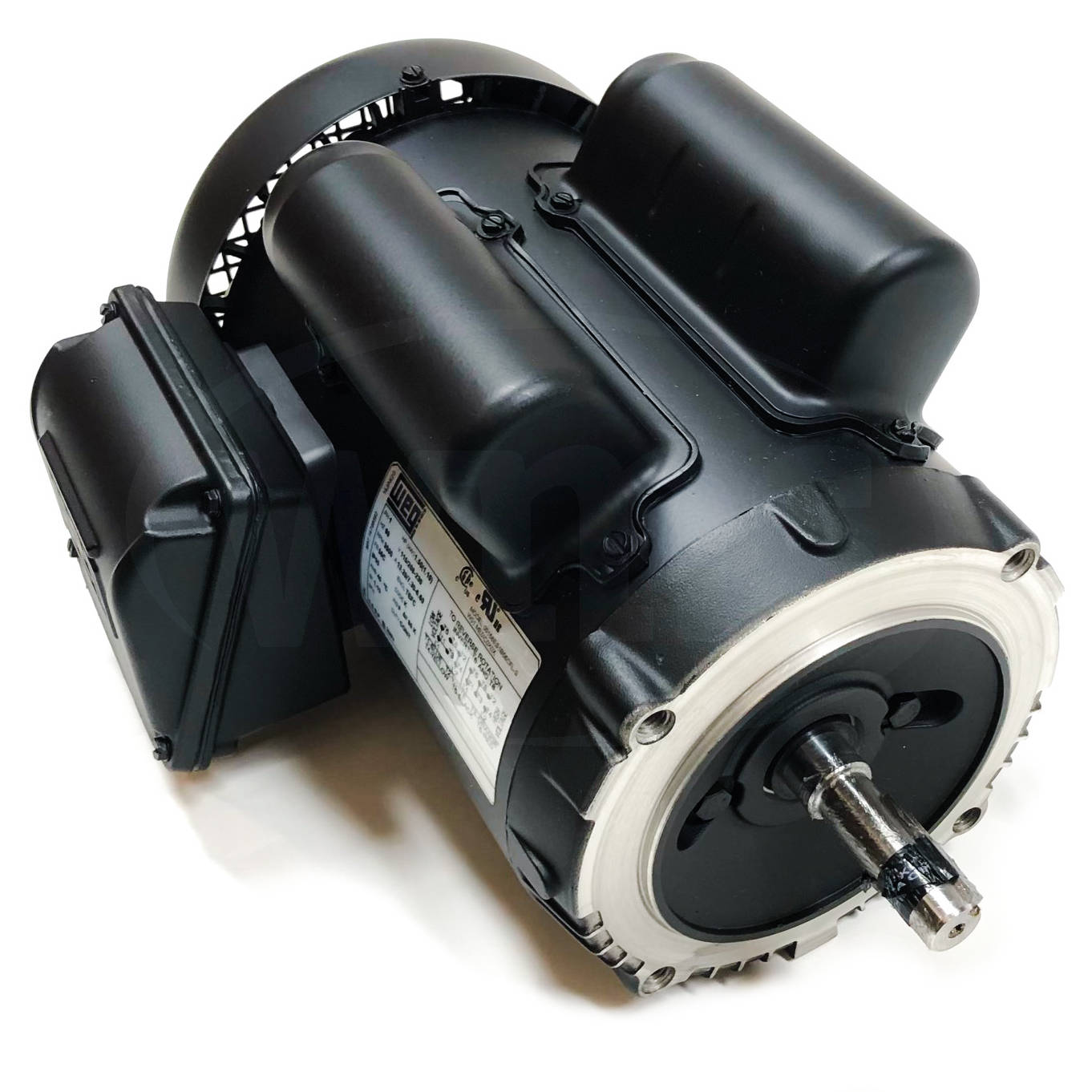

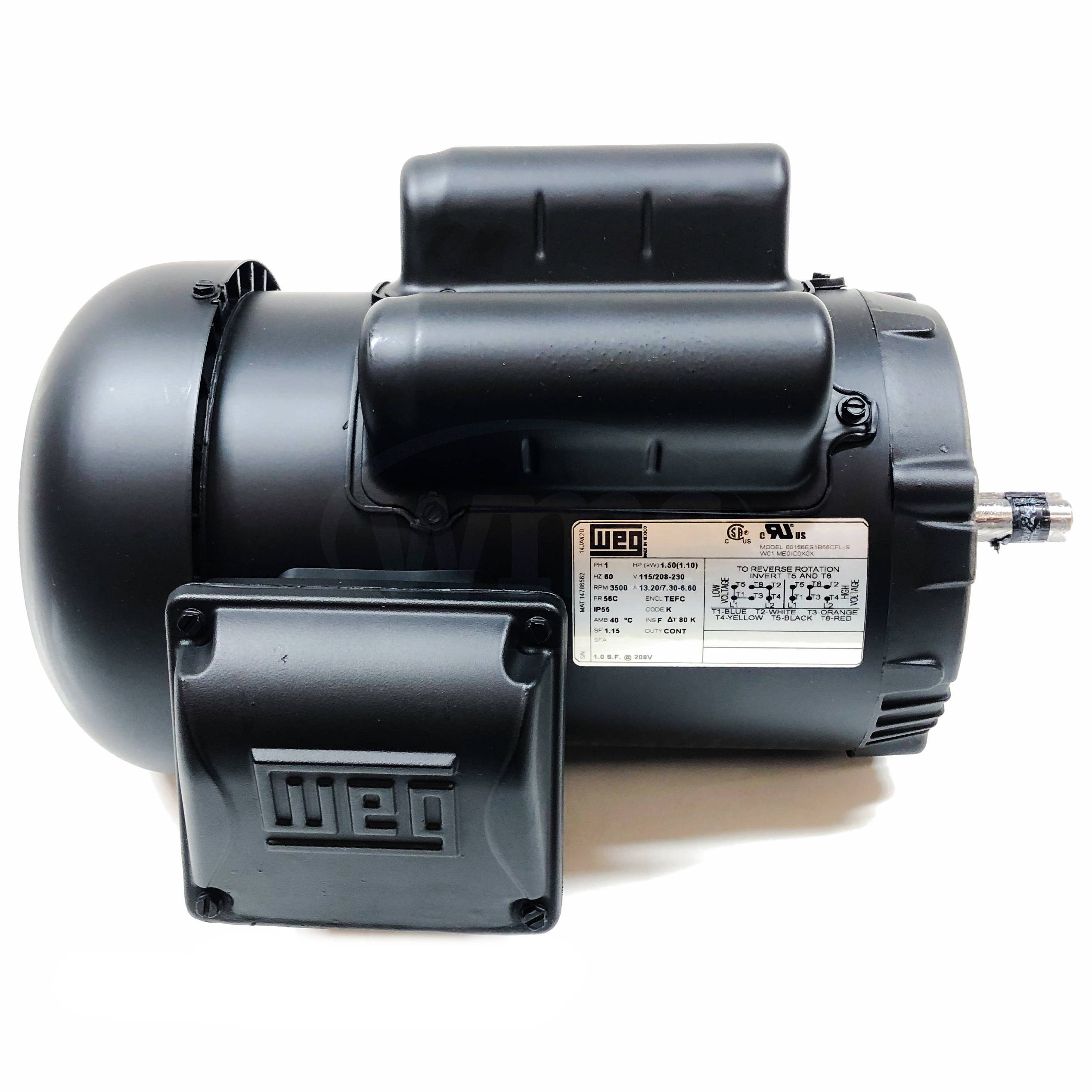

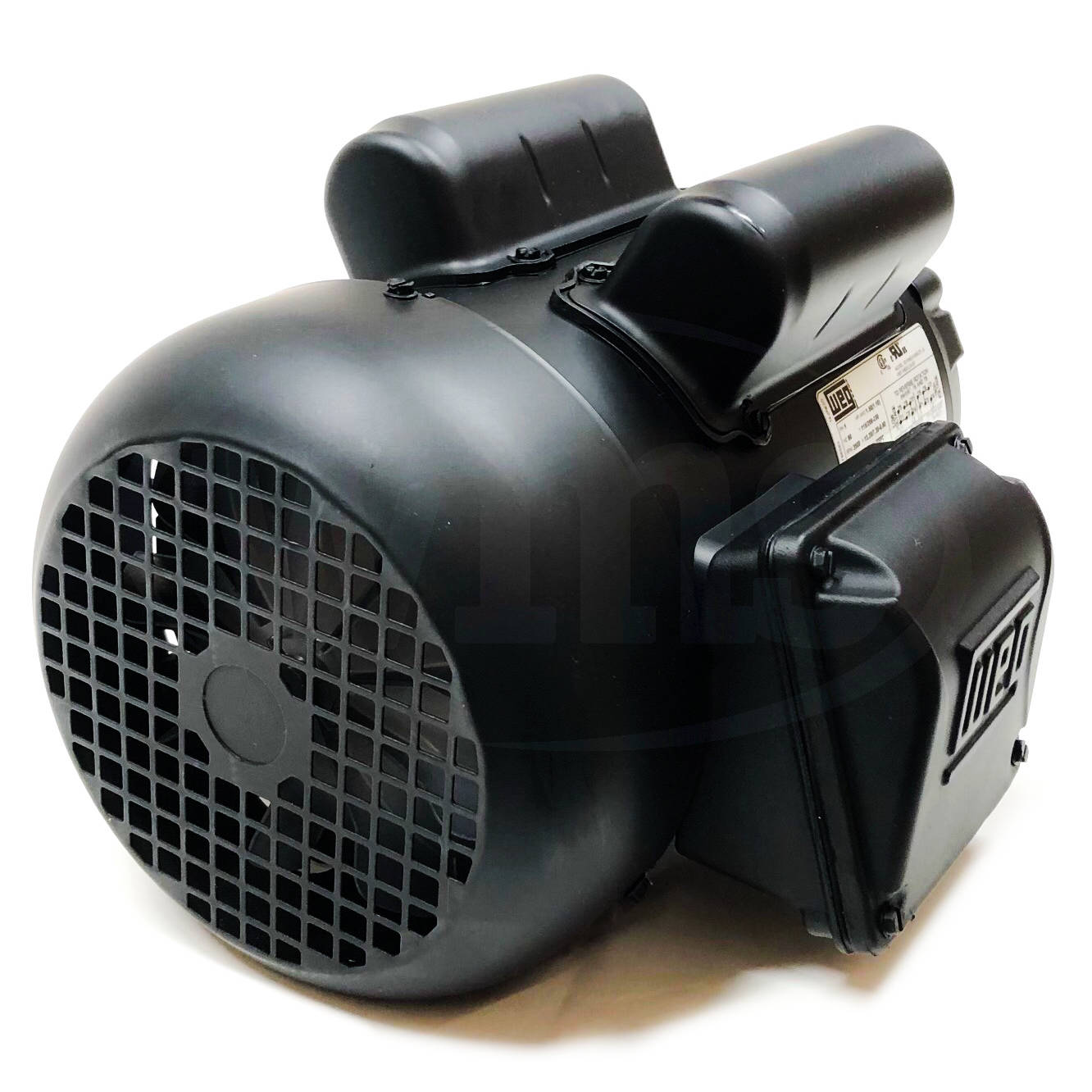

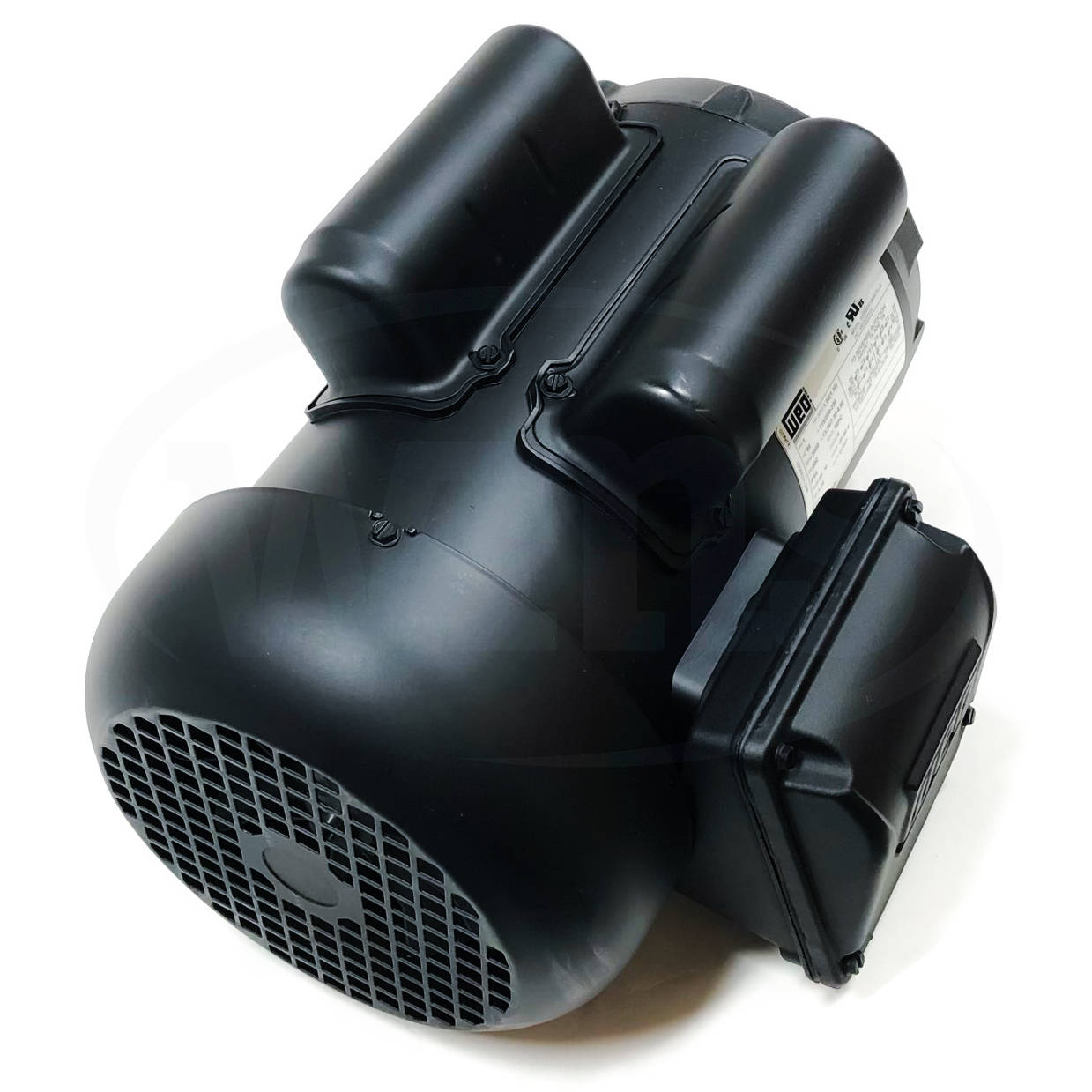

00156ES1B56CFL-S WEG 1.5HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156ES1B56CFL-S

Available Stock: 2

Selected accessories will also be added to cart

$340.50 / Each

Quantity:

TEFC, IP55, 56C Frame, 115/208-230VAC Single Phase 60Hz, 14786562, C-Face, Footless, Rolled Steel, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56C
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	115/208-230 V
Rated current	13.2/7.30-6.60 A
L. R. Amperes	106/58.4-52.8 A
LRC	8.0x(Code K)
No load current	4.60/1.98-2.30 A
Rated torque	2.22 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.0589 sq.ft.lb
Design	L
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	35.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
66.0	73.0	75.0

Power factor

50%	75%	100%
0.92	0.95	0.97

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
