/Products/Electric Motors/Single Phase/WEG/Farm Duty - Aeration Fan/00156AS1RAF143TZ-S WEG 1.5HP Aeration Fan Electric Motor, 3600RPM

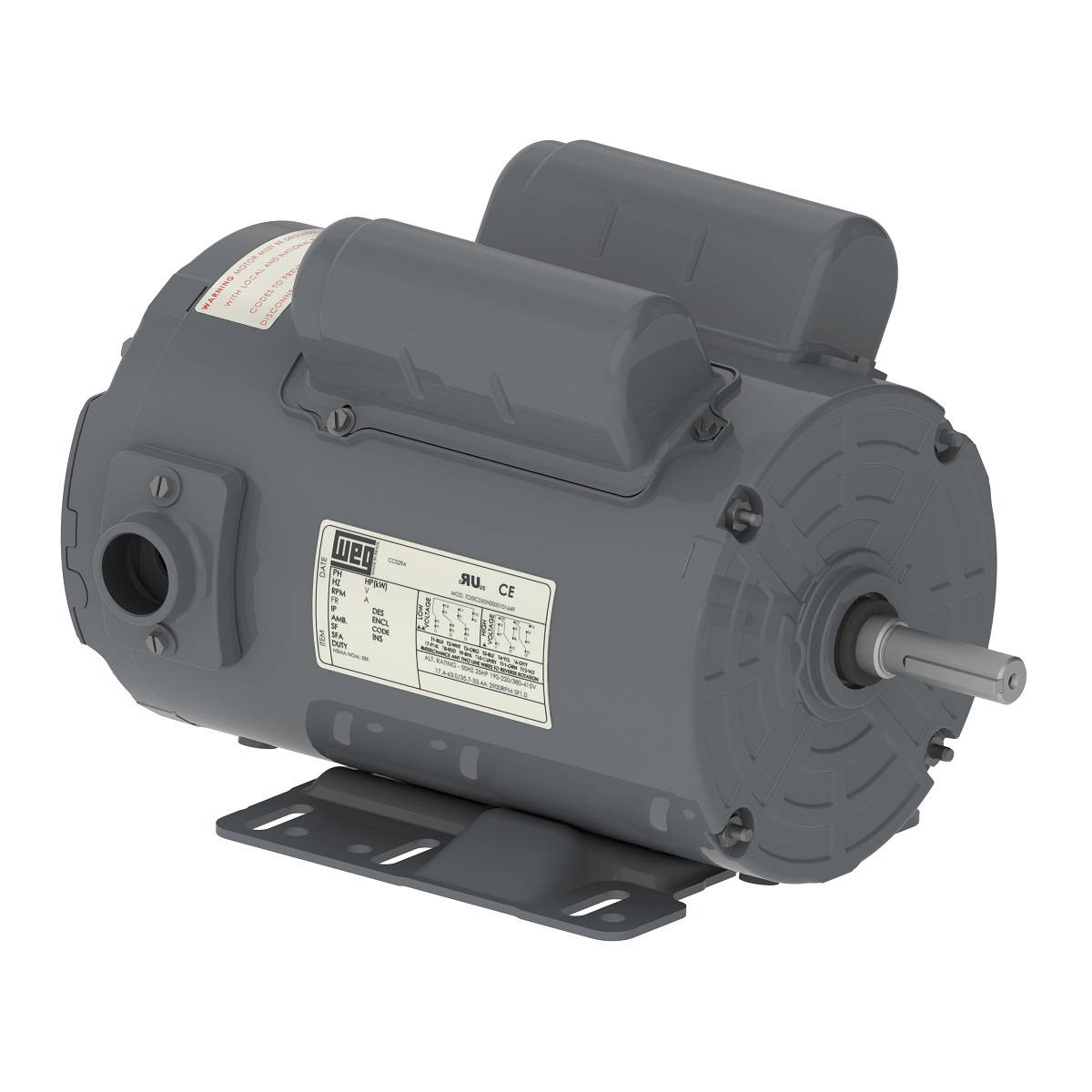

00156AS1RAF143TZ-S WEG 1.5HP Aeration Fan Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00156AS1RAF143TZ-S

00156AS1RAF143TZ-S WEG 1.5HP Aeration Fan Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156AS1RAF143TZ-S

Selected accessories will also be added to cart
$482.25 / Each
Quantity:
Farm Duty, 143TZ/145TZ Frame, 115/208-230VAC 60Hz Single Phase, IC410-TEAO, 13256035, Foot Mounted, Rolled Steel

Electric Motors

Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 13.2/7.30-6.60 A
L. R. Amperes 106/58.4-52.8 A
LRC 8.0x(Code K)
No load current 4.00/0.000-2.00 A
Rated torque 2.22 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 12s (cold) 7s (hot)
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 38.5 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
66.0  73.0  75.0

Power factor

50% 75% 100%
0.92  0.95  0.97

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6205 ZZ   6202 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
29 lb  67 lb
