/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Jet Pump, Foot Mount/00136ET3HJPW56J-S WEG 1HP Jet Pump Electric Motor, 3600RPM

Product ID: 00136ET3HJPW56J-S

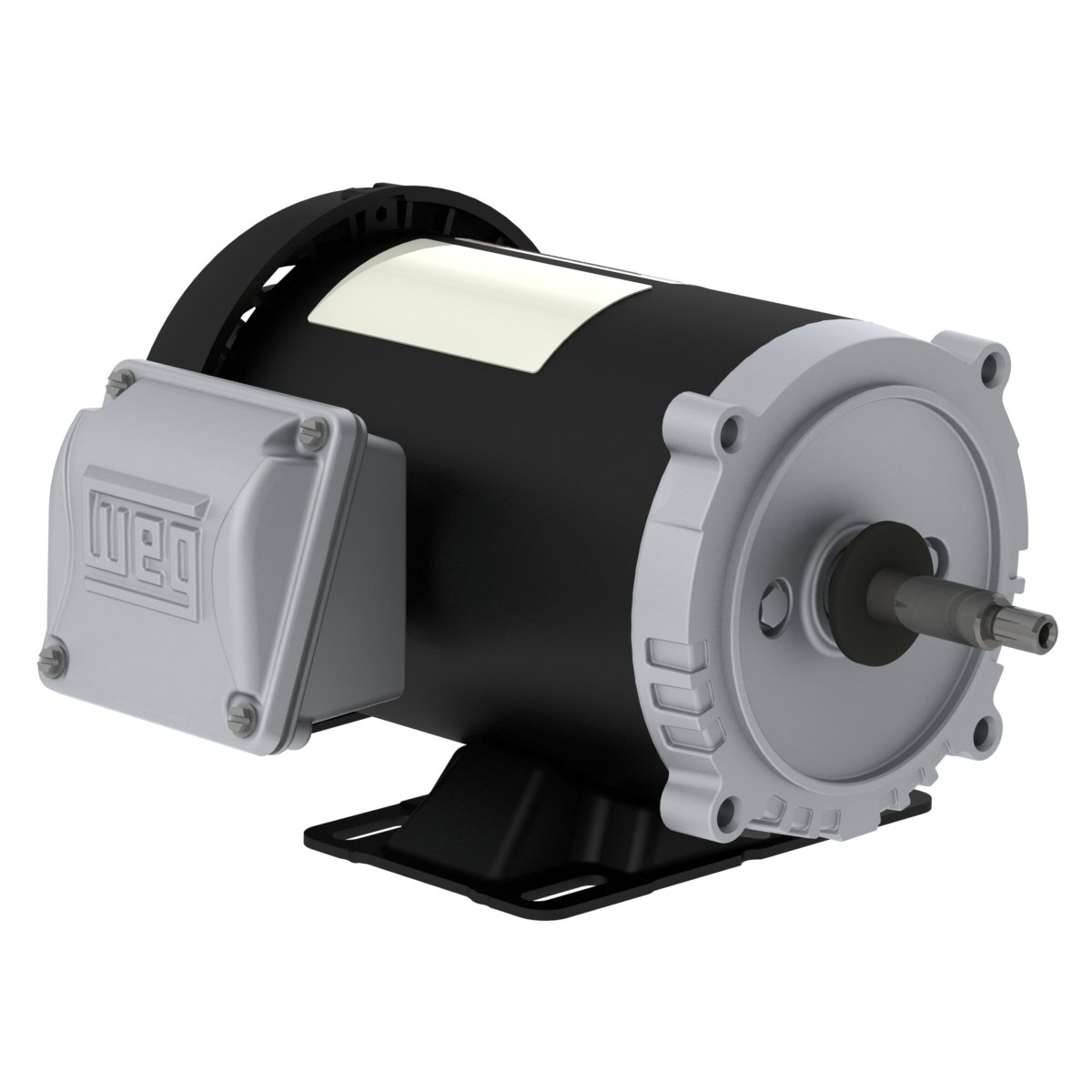

00136ET3HJPW56J-S WEG 1HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00136ET3HJPW56J-S

Selected accessories will also be added to cart

$325.50 / Each

Quantity:

IC411 - TEFC, IP55, W56J Frame, 575VAC 3-Phase 60Hz, 13483267, J-Type, Rolled Steel, Foot Mount

Details
Purchase Components

Electric Motors

Frame	W56J
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3435 rpm
Slip	4.58 %
Rated voltage	575 V
Rated current	1.20 A
L. R. Amperes	10.6 A
LRC	8.8x(Code M)
No load current	0.638 A
Rated torque	1.51 ft.lb
Locked rotor torque	360 %
Breakdown torque	380 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	0.0254 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	CCW
Noise level²	65.0 dB(A)
Approx. weight³	21.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.0	77.0	78.5

Power factor

50%	75%	100%
0.63	0.75	0.80

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	AISI 304 Stainless Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Not Balanced
Drip Cover	Without
Resilient Base	Without
