/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/C-Face, Foot Mount/00136ET3EW56C-S WEG 1HP General Purpose Electric Motor, 3600RPM

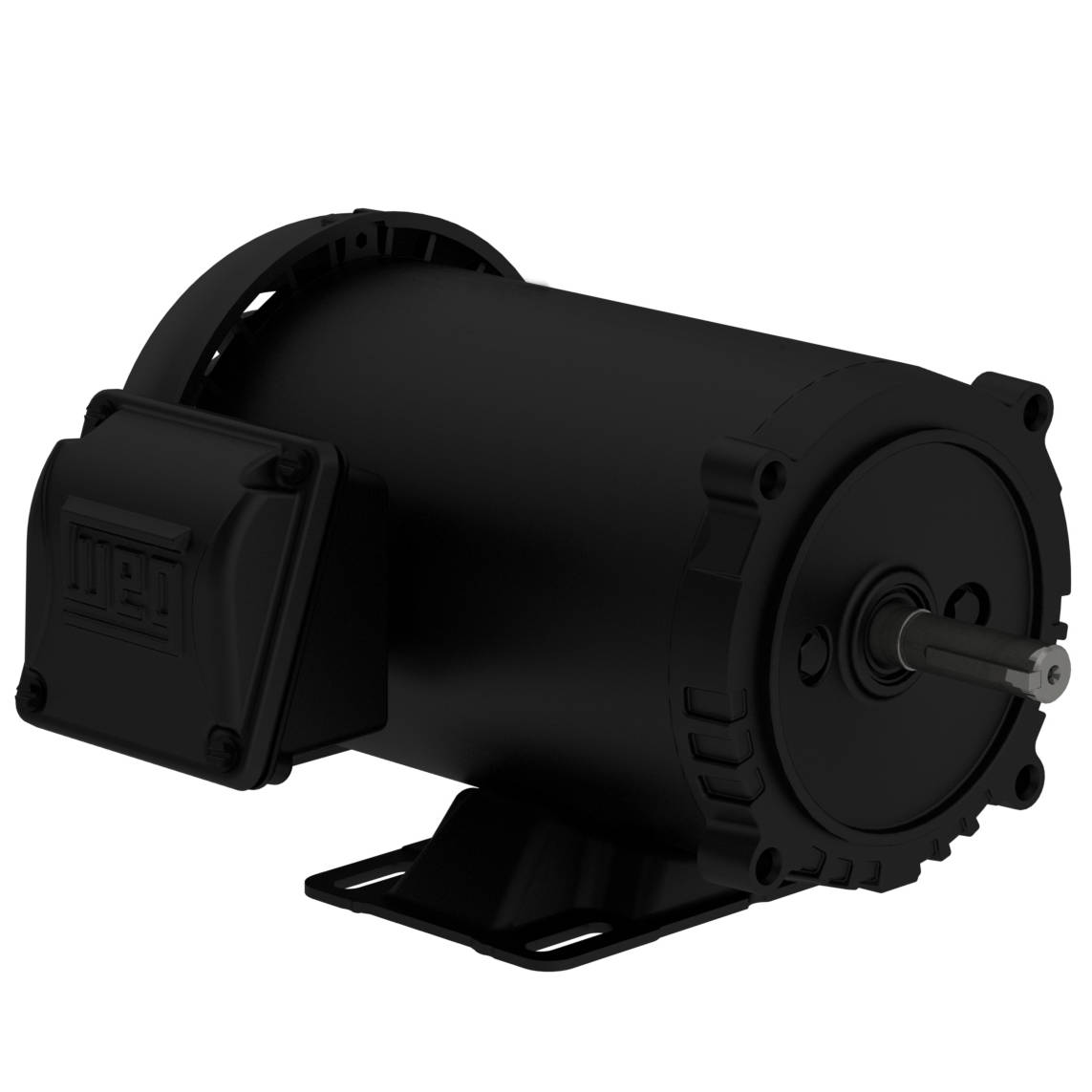

00136ET3EW56C-S WEG 1HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00136ET3EW56C-S

00136ET3EW56C-S WEG 1HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00136ET3EW56C-S

Selected accessories will also be added to cart
$315.00 / Each
Quantity:
IC411 - TEFC, IP55, W56C Frame, 230/460/190-220/380-415VAC 60Hz 3 Phase, 13483260, C-Face, Foot Mount, Rolled Steel, NEMA Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame W56C
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3435 rpm
Slip 4.58 %
Rated voltage 230/460 V
Rated current 3.00/1.50 A
L. R. Amperes 26.4/13.2 A
LRC 8.8x(Code M)
No load current 1.60/0.798 A
Rated torque 1.53 ft.lb
Locked rotor torque 360 %
Breakdown torque 380 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.0254 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 22.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
74.0  77.0  78.5

Power factor

50% 75% 100%
0.63  0.75  0.80
Frame W56C
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2770 rpm
Slip 7.67 %
Rated voltage 190/380 V
Rated current 3.40/1.70 A
L. R. Amperes 22.1/11.0 A
LRC 6.5x(Code J)
No load current 1.56/0.781 A
Rated torque 1.90 ft.lb
Locked rotor torque 280 %
Breakdown torque 250 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.0254 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 22.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
77.8  79.2  77.8

Power factor

50% 75% 100%
0.70  0.81  0.86
Frame W56C
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2800 rpm
Slip 6.67 %
Rated voltage 220/415 V
Rated current 3.13/1.66 A
L. R. Amperes 22.2/11.8 A
LRC 7.1x(Code K)
No load current 1.64/0.869 A
Rated torque 1.88 ft.lb
Locked rotor torque 310 %
Breakdown torque 280 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.0254 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 22.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
76.9  79.2  78.7

Power factor

50% 75% 100%
0.65  0.78  0.83

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method Not Balanced
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
