/Products/Electric Motors/Single Phase/WEG/Rolled Steel, TEFC/Jet Pump/00136ES1BJP56C-S WEG 1HP Jet Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: 00136ES1BJP56C-S

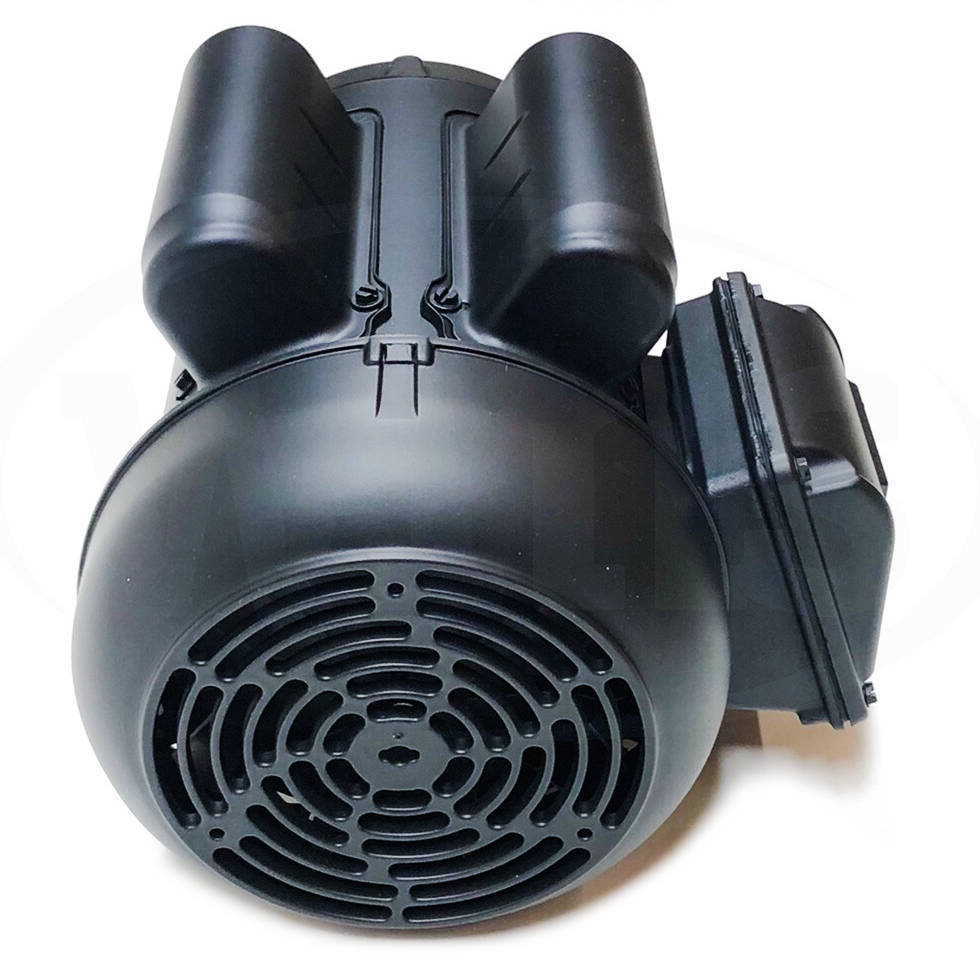

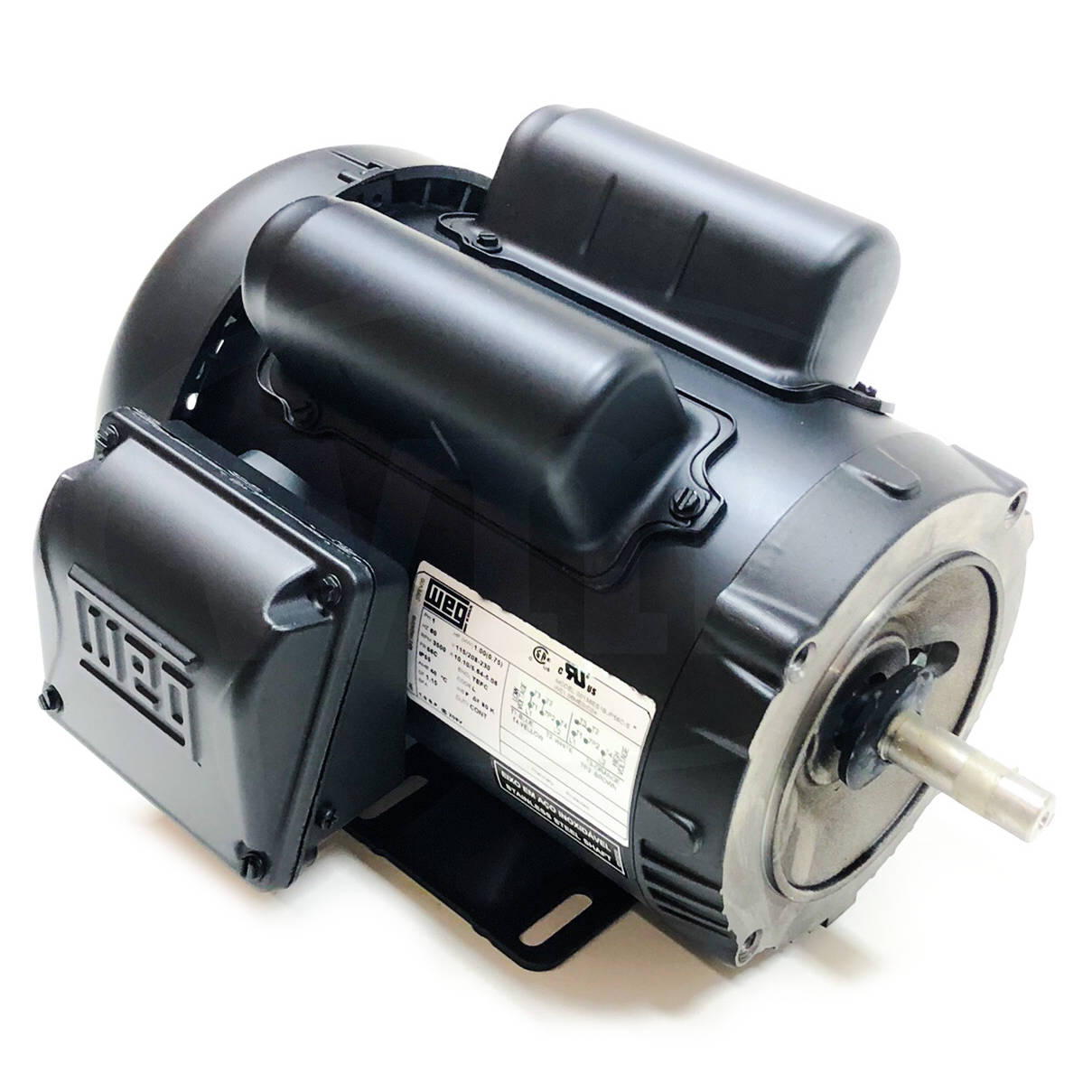

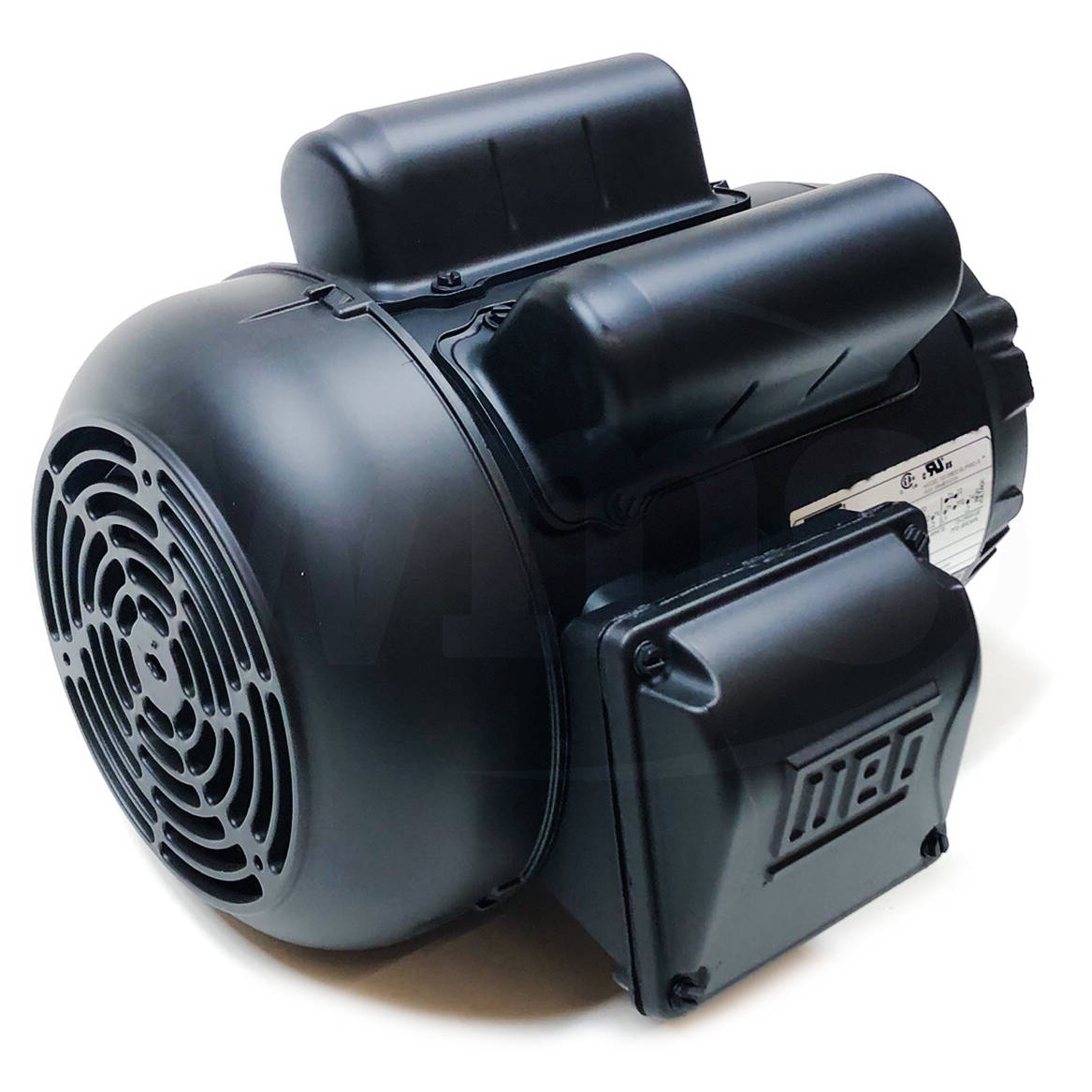

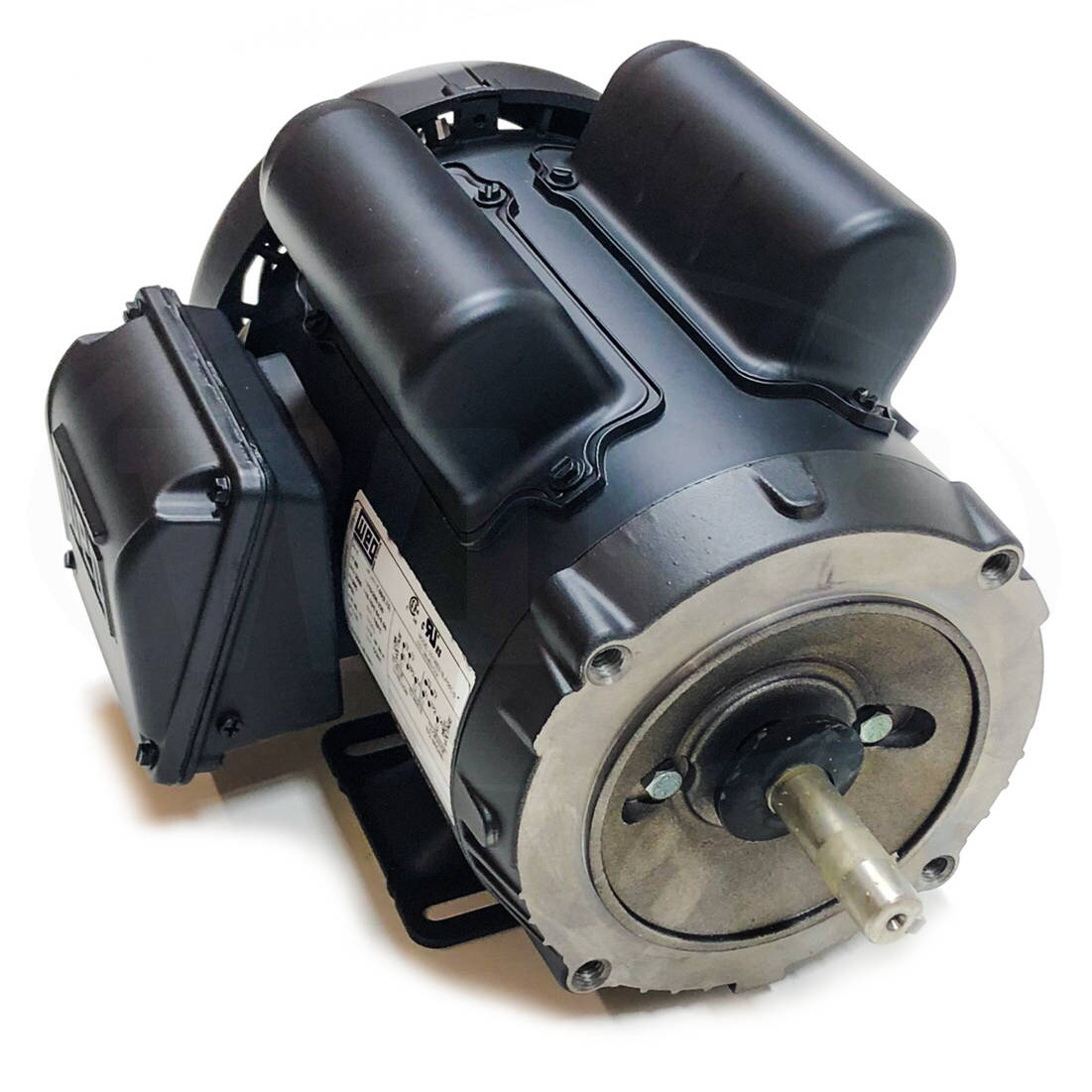

00136ES1BJP56C-S WEG 1HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00136ES1BJP56C-S

Selected accessories will also be added to cart
$258.00 / Each
Quantity:
IC411 - TEFC, 56C Frame, 115/208-230VAC Single Phase 60Hz, 14034310, Foot Mounted, C-Face, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame 56C
Output 1 HP (0.75 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 10.1/5.64-5.06 A
L. R. Amperes 85.0/47.4-42.5 A
LRC 8.4x(Code L)
No load current 5.50/2.37-2.75 A
Rated torque 1.48 ft.lb
Locked rotor torque 280 %
Breakdown torque 280 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.0472 sq.ft.lb
Design N
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ CCW
Noise level² 68.0 dB(A)
Approx. weight³ 29.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
55.0  64.0  70.0

Power factor

50% 75% 100%
0.82  0.88  0.92

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material AISI 304 Stainless Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
