/Products/Electric Motors/3 Phase Explosion Proof/WEG/C-Face, Foot Mount/00118XT3E143TC WEG 1HP Explosion Proof Electric Motor, 1800RPM

Product ID: 00118XT3E143TC

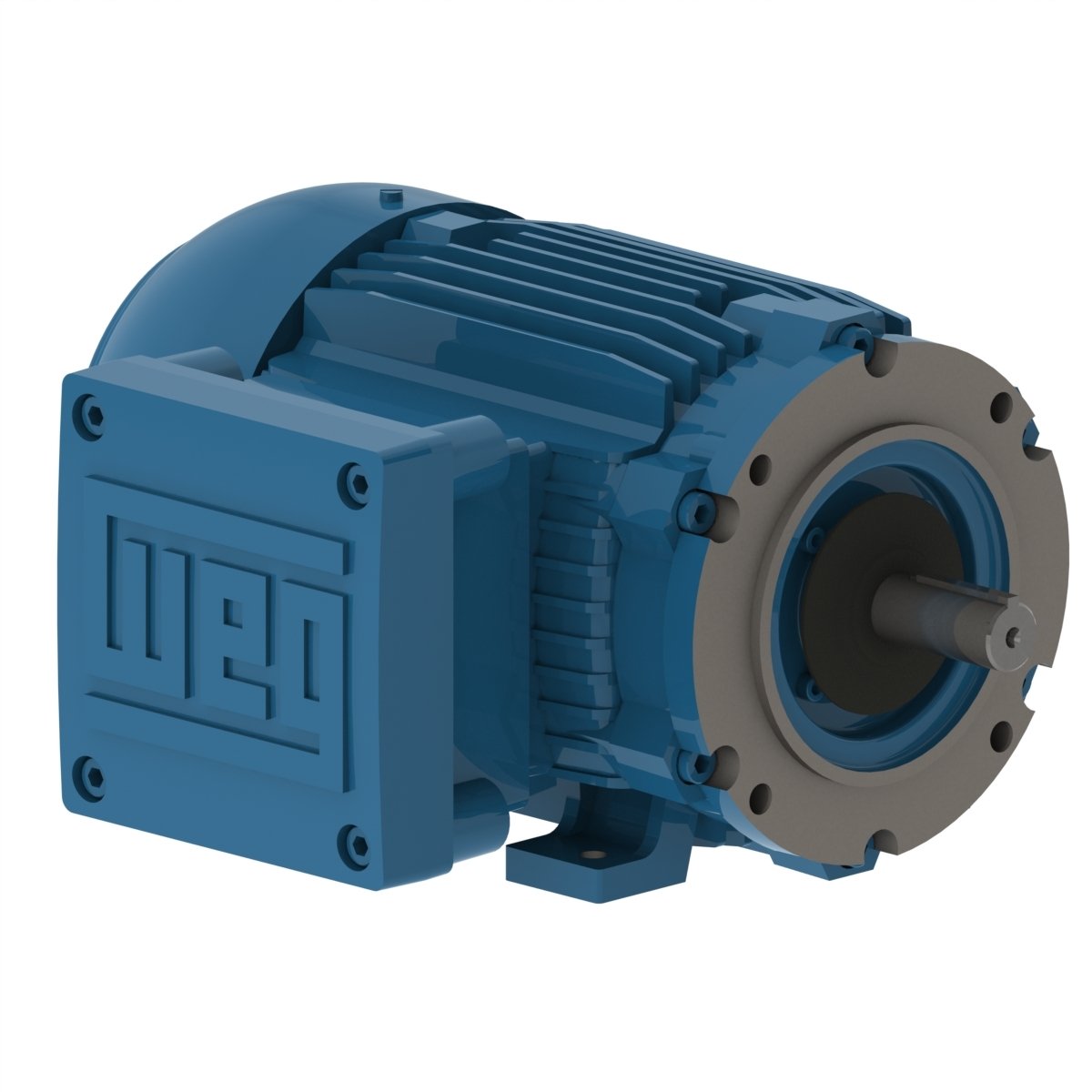

00118XT3E143TC WEG 1HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118XT3E143TC

Selected accessories will also be added to cart

$790.50 / Each

Quantity:

IC411 - TEFC, IP55, 143TC/145TC Frame, 208-230/460VAC 3-Phase 60Hz, 14343086, Foot Mount, C-Face, NEMA Premium Efficiency, Cast Iron Frame, 7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	143/5TC
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	208-230/460 V
Rated current	3.16-2.86/1.43 A
L. R. Amperes	27.2-24.6/12.3 A
LRC	8.6x(Code L)
No load current	1.61-1.87/0.935 A
Rated torque	2.94 ft.lb
Locked rotor torque	290 %
Breakdown torque	370 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.0975 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	51.0 dB(A)
Approx. weight³	69.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	82.5	85.5

Power factor

50%	75%	100%
0.57	0.70	0.77

Frame	143/5TC
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1440 rpm
Slip	4.00 %
Rated voltage	380 V
Rated current	1.68 A
L. R. Amperes	11.3 A
LRC	6.7x(Code J)
No load current	0.924 A
Rated torque	3.60 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.0975 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	69.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.5	82.5	82.5

Power factor

50%	75%	100%
0.65	0.77	0.82

Frame	143/5TC
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	1.64 A
L. R. Amperes	12.1 A
LRC	7.4x(Code K)
No load current	0.990 A
Rated torque	3.57 ft.lb
Locked rotor torque	250 %
Breakdown torque	280 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.0975 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	69.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.0	82.5	82.5

Power factor

50%	75%	100%
0.61	0.74	0.80

Frame	143/5TC
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	415 V
Rated current	1.59 A
L. R. Amperes	12.6 A
LRC	7.9x(Code L)
No load current	1.06 A
Rated torque	3.57 ft.lb
Locked rotor torque	280 %
Breakdown torque	310 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.0975 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	49.0 dB(A)
Approx. weight³	69.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	82.5	84.0

Power factor

50%	75%	100%
0.58	0.72	0.78

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155°C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
