/Products/Electric Motors/Single Phase/WEG/Rolled Steel, ODP/Resilient Base/00118OT1BRBO56-S WEG 1HP Fan & Exhaust Electric Motor, 1800RPM

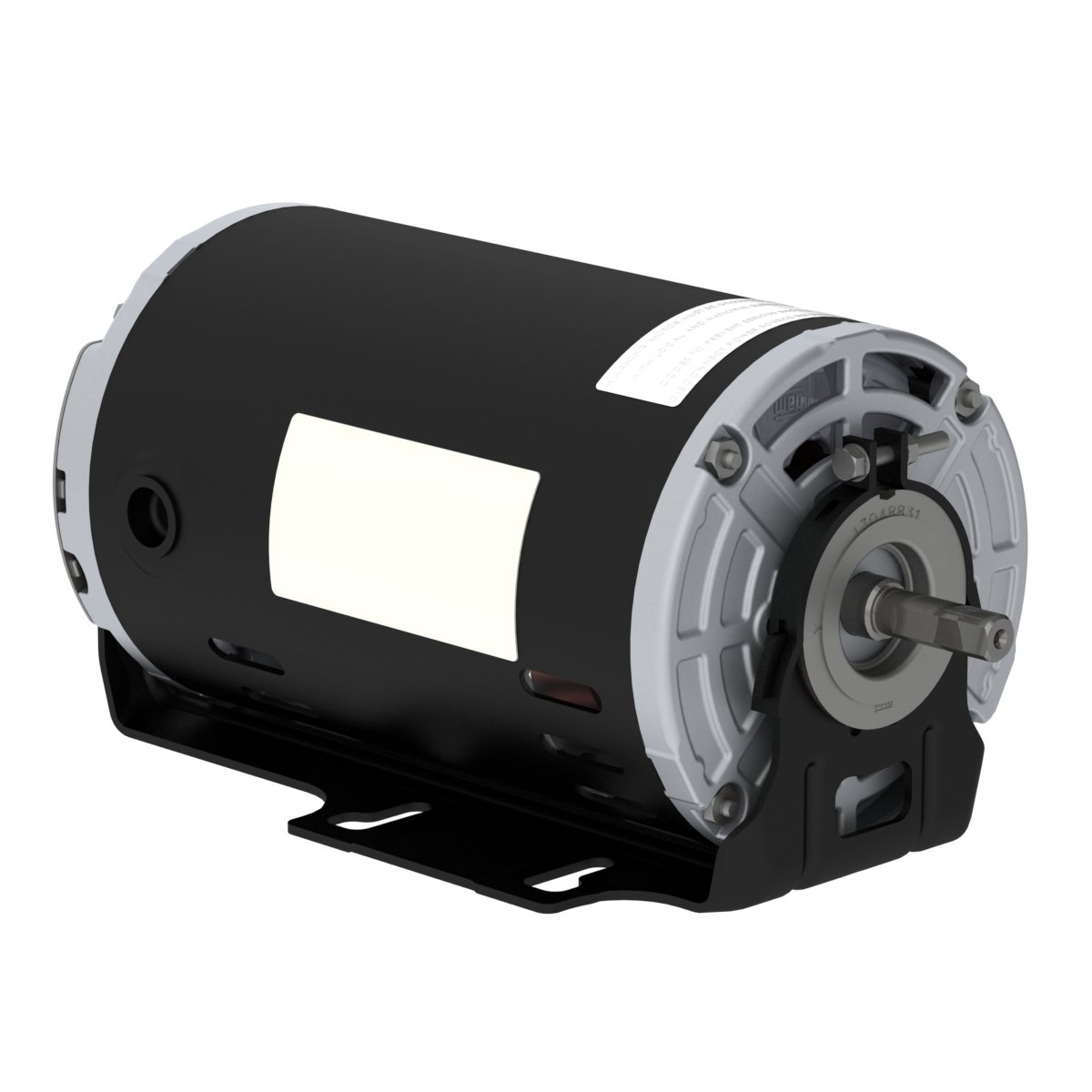

00118OT1BRBO56-S WEG 1HP Fan & Exhaust Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00118OT1BRBO56-S

00118OT1BRBO56-S WEG 1HP Fan & Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118OT1BRBO56-S

Available Stock: 2
Selected accessories will also be added to cart
$351.00 / Each
Quantity:
IC01 - ODP, 56H Frame, 115/208-230V Single Phase 60Hz, Rolled Steel, Resilient Foot Mount, 13283821

Electric Motors

Frame 56H
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 115/208-230 V
Rated current 9.00/4.98-4.50 A
L. R. Amperes 75.6/41.8-37.8 A
LRC 8.4x(Code K)
No load current 3.40/1.47-1.70 A
Rated torque 2.96 ft.lb
Locked rotor torque 260 %
Breakdown torque 250 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.1232 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 40.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
75.0  80.0  82.6

Power factor

50% 75% 100%
0.75  0.83  0.87

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6204 ZZ   6202 ZZ
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
52 lb  93 lb
