/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/Foot Mount/00118ET3E56-S WEG 1HP General Purpose Electric Motor, 1800RPM

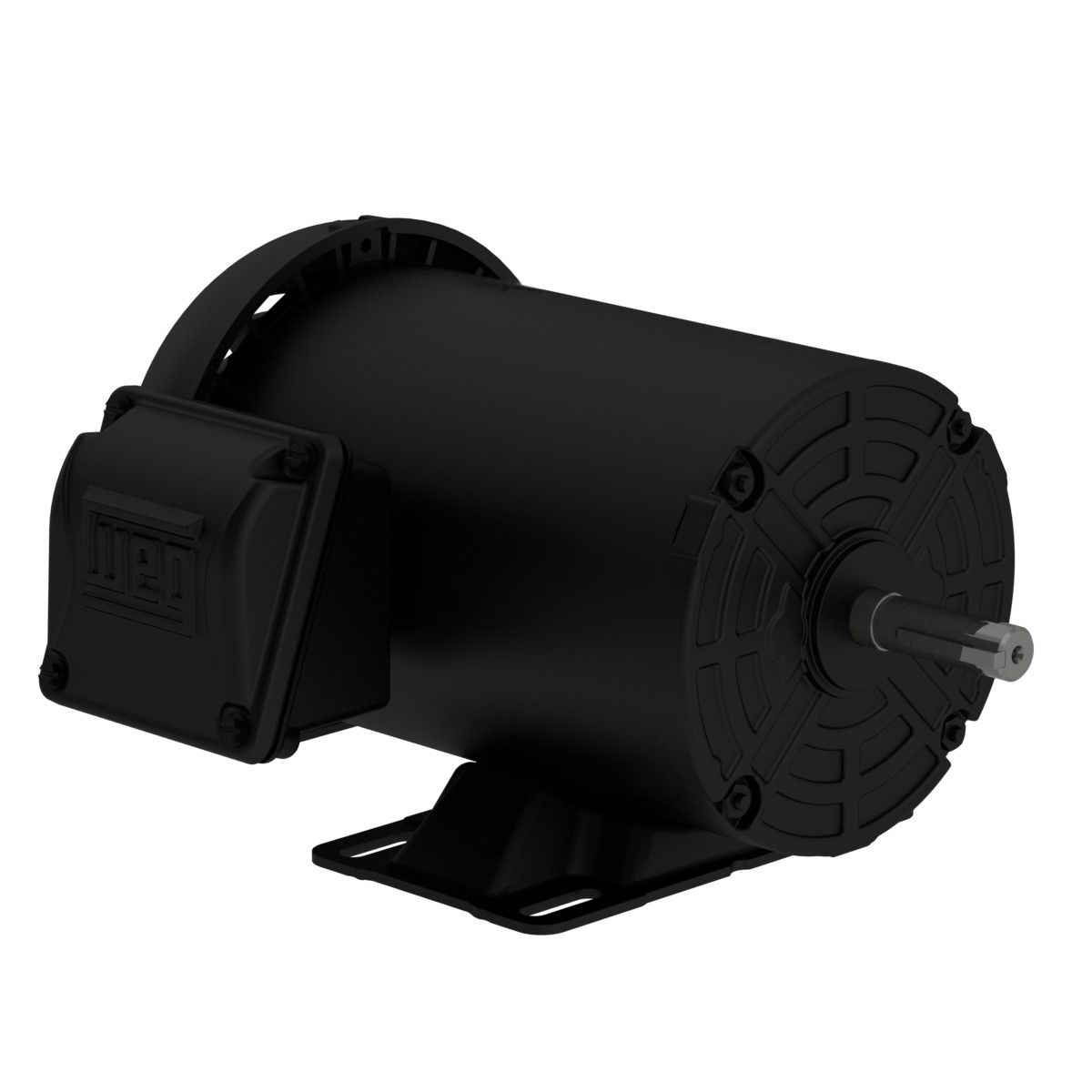

00118ET3E56-S WEG 1HP General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00118ET3E56-S

00118ET3E56-S WEG 1HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ET3E56-S

Available Stock: 2
Selected accessories will also be added to cart
$284.25 / Each
Quantity:
IC411 - TEFC, 56 Frame, 208-230/460VAC 3-Phase 60Hz, 13484267, 14797787, Foot Mount, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 3.25-2.94/1.47 A
L. R. Amperes 28.0-25.3/12.6 A
LRC 8.6x(Code M)
No load current 1.53-1.78/0.890 A
Rated torque 2.94 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.1232 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 36.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  84.0  85.5

Power factor

50% 75% 100%
0.52  0.66  0.75
Frame 56
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 190/380 V
Rated current 3.40/1.70 A
L. R. Amperes 22.1/11.0 A
LRC 6.5x(Code J)
No load current 1.76/0.879 A
Rated torque 3.57 ft.lb
Locked rotor torque 200 %
Breakdown torque 270 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.1232 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 36.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.2  83.7  82.9

Power factor

50% 75% 100%
0.62  0.74  0.81
Frame 56
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 220/415 V
Rated current 3.06/1.62 A
L. R. Amperes 22.9/12.2 A
LRC 7.5x(Code K)
No load current 1.86/0.988 A
Rated torque 3.55 ft.lb
Locked rotor torque 250 %
Breakdown torque 330 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.1232 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 36.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.9  83.5  83.7

Power factor

50% 75% 100%
0.55  0.68  0.77

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
