/Products/Electric Motors/Single Phase/WEG/Farm Duty - Auger Drive/00118ES1RAD56N WEG 1HP Farm Duty Auger Electric Motor, 1800RPM
Click Image to Expand

Product ID: 00118ES1RAD56N

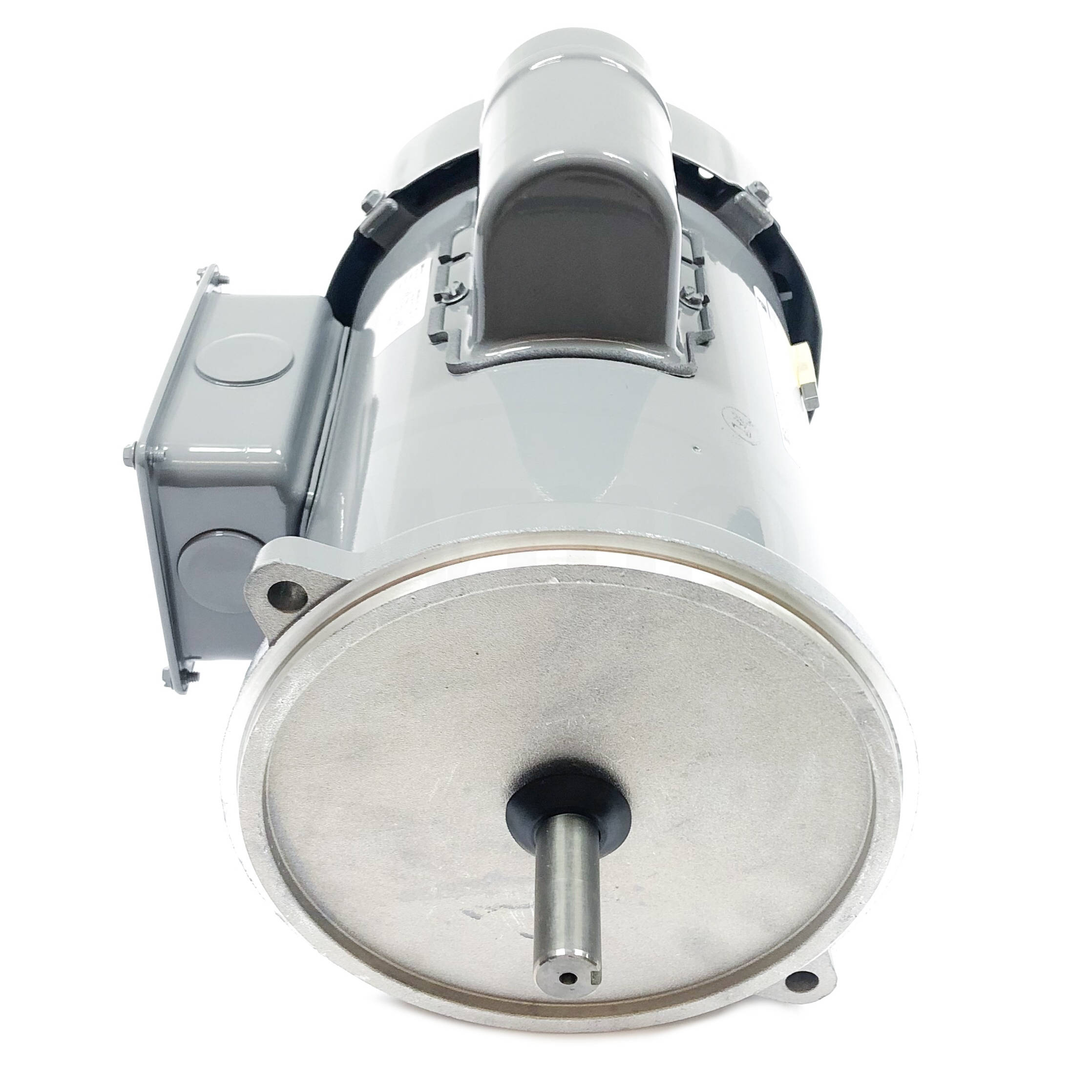

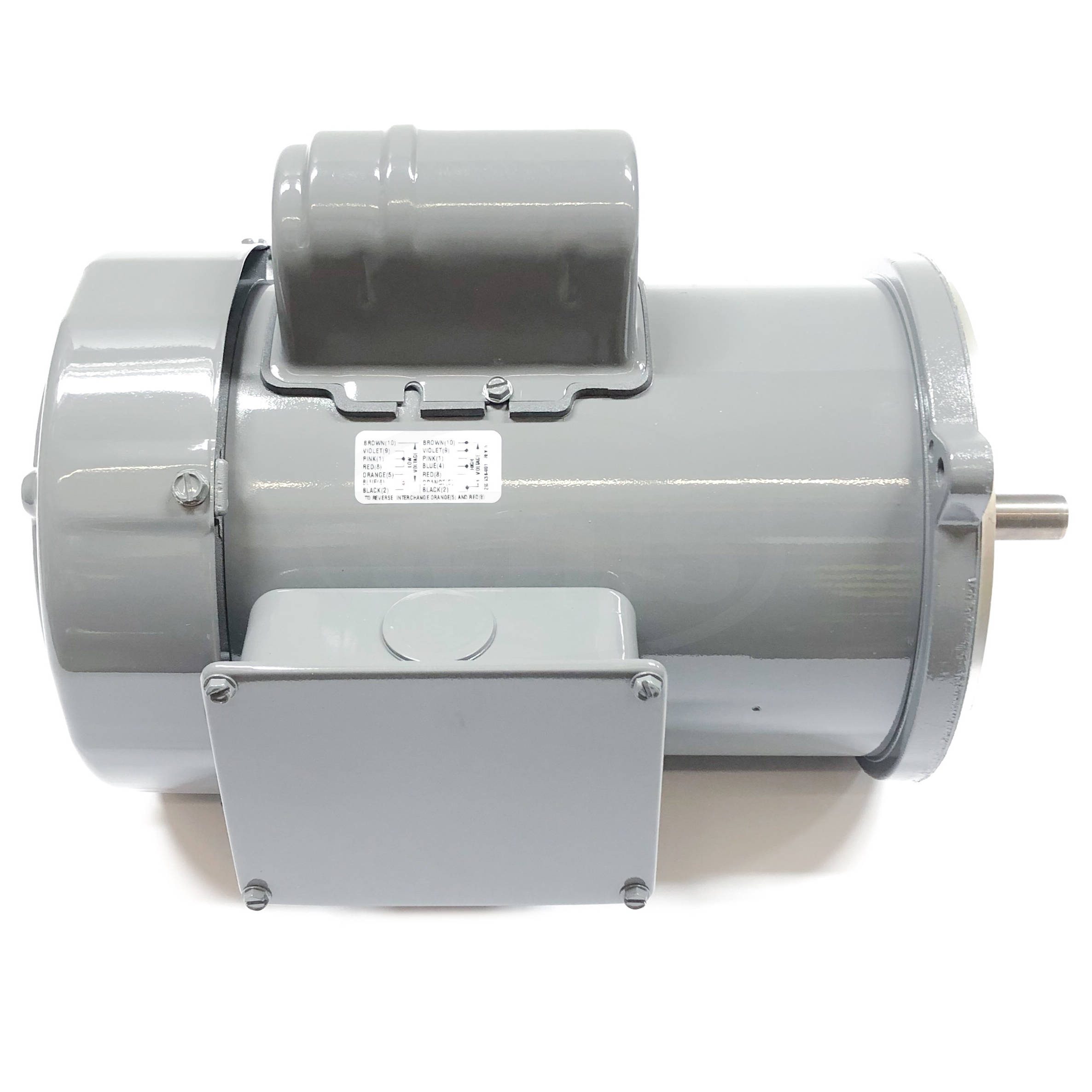

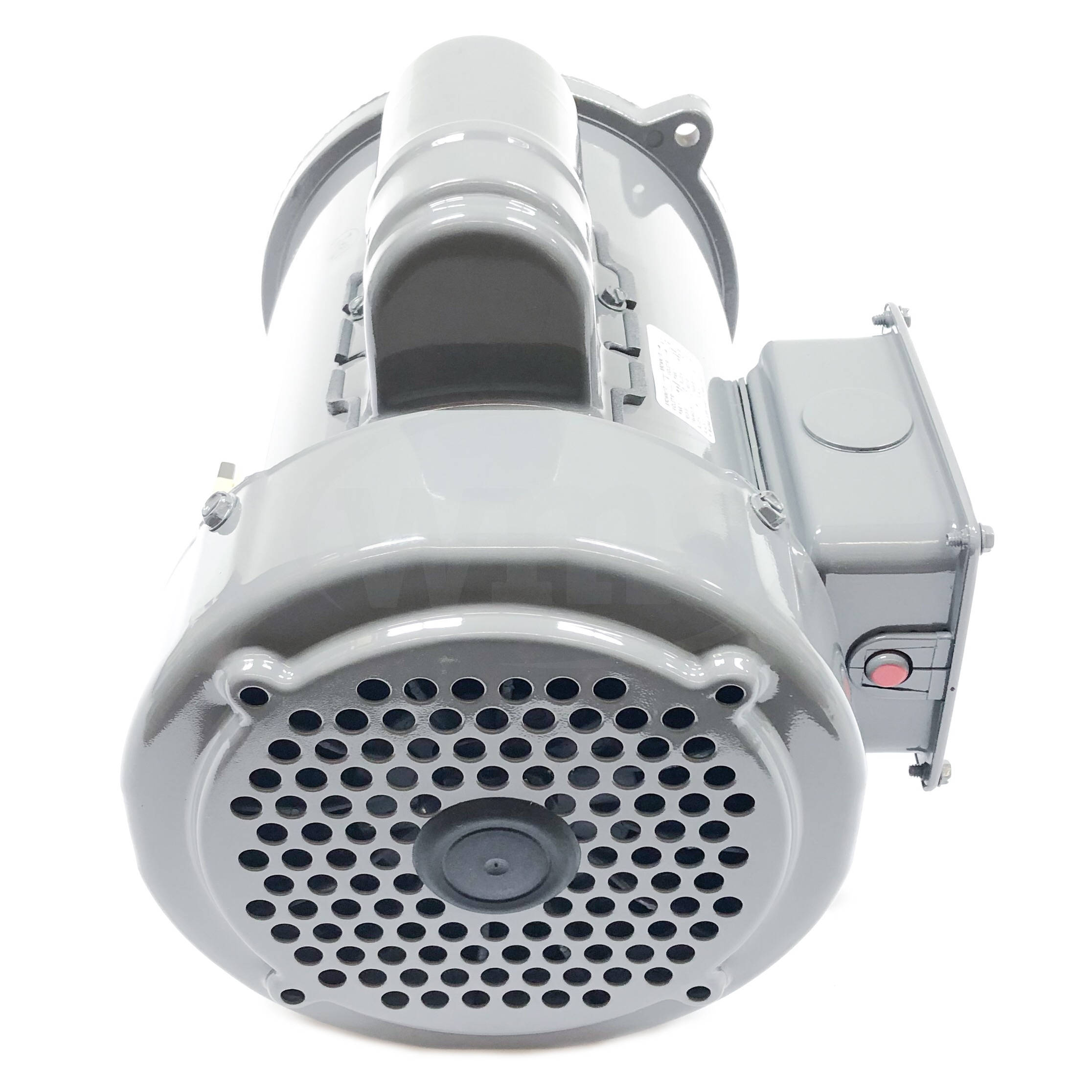

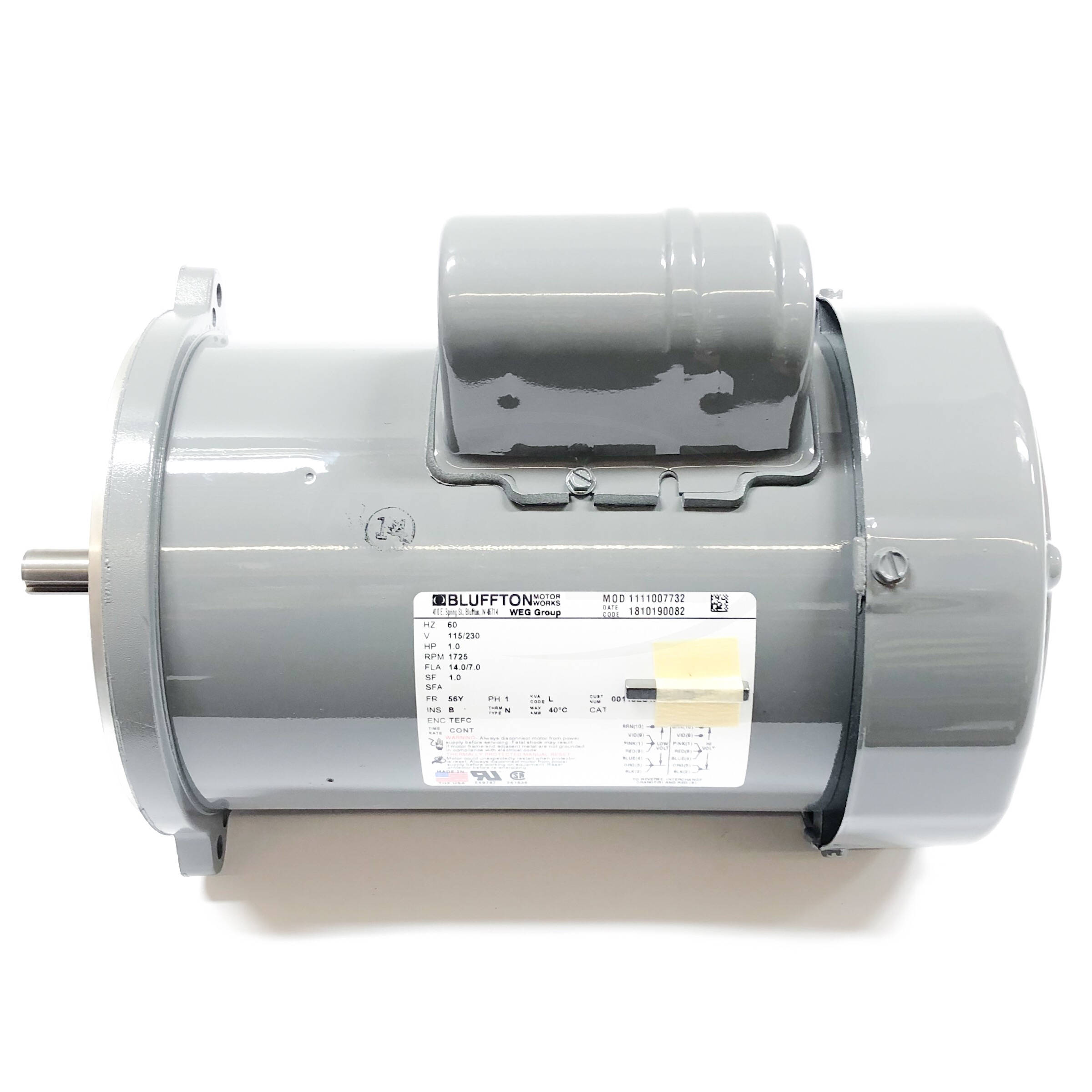

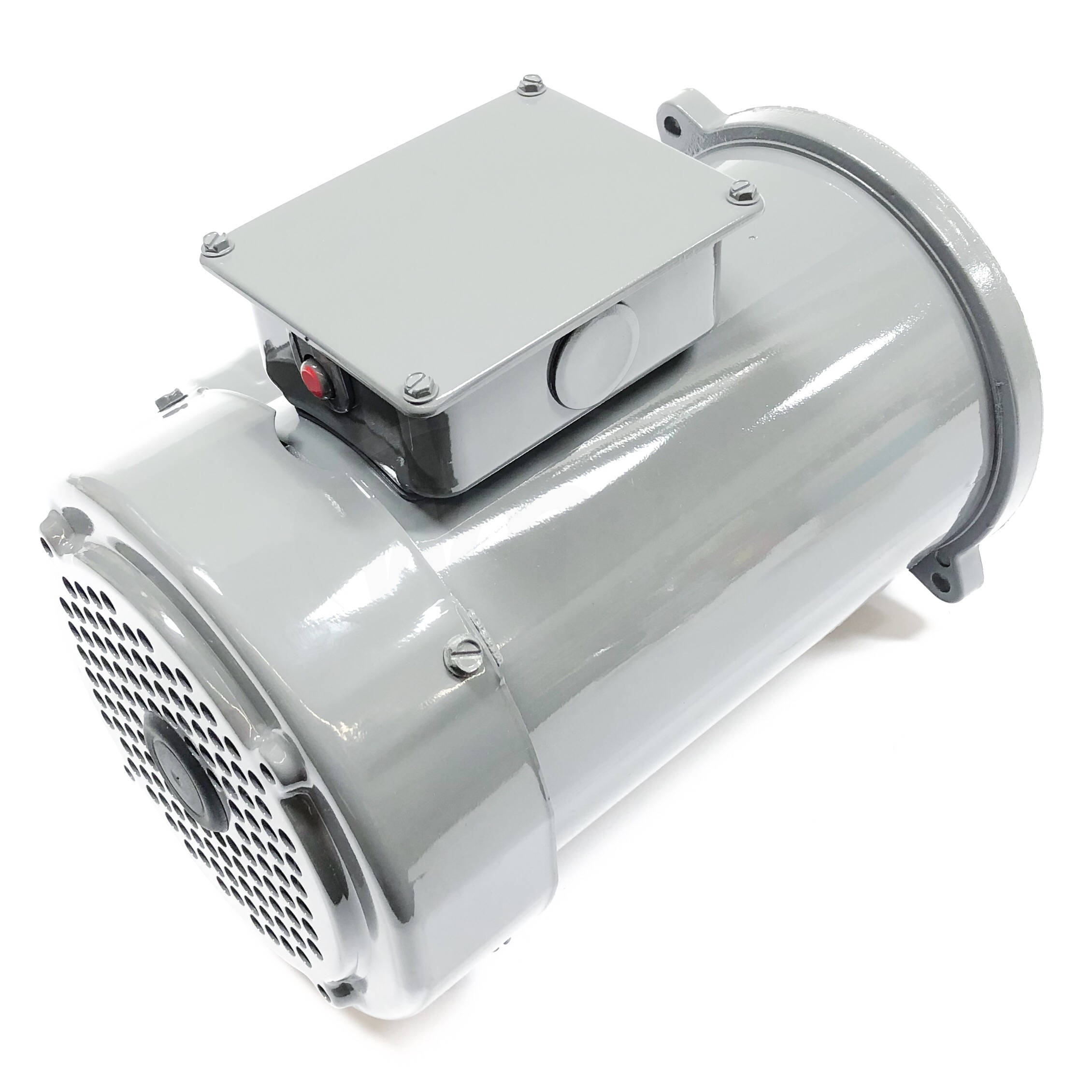

00118ES1RAD56N WEG 1HP Farm Duty Auger Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ES1RAD56N

Available Stock: 14
Selected accessories will also be added to cart
$360.75 / Each
Quantity:
Farm Duty-Auger, D56N Frame, 115/230V, IC411-TEFC, 14177096, Footless, Rolled Steel, 5/8" Shaft

Electric Motors

FrameD56N
Output1 HP (0.75 kW)
Number of Poles4
Frequency60 Hz
Rated speed1750 rpm
Slip2.78 %
Rated voltage115/230 V
Rated current14.0/7.00 A
L. R. Amperes91.0/45.5 A
LRC6.5x(Code M)
No load current11.5/5.75 A
Rated torque2.96 ft.lb
Locked rotor torque320 %
Breakdown torque270 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.1338 sq.ft.lb
Insulation ClassB
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²55.0 dB(A)
Approx. weight³36.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
60.0  67.0  70.3

Power factor

50%75%100%
0.45  0.56  0.65

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole2xNPT 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
Painting

Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Resilient BaseWithout

 Loading...

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6203 ZZ  6203 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM
