/Products/Electric Motors/Single Phase/WEG/Farm Duty - Poultry Fan/00118ES1BPFD56 WEG 1HP Farm Duty Poultry Fan Electric Motor, 1800RPM

Product ID: 00118ES1BPFD56

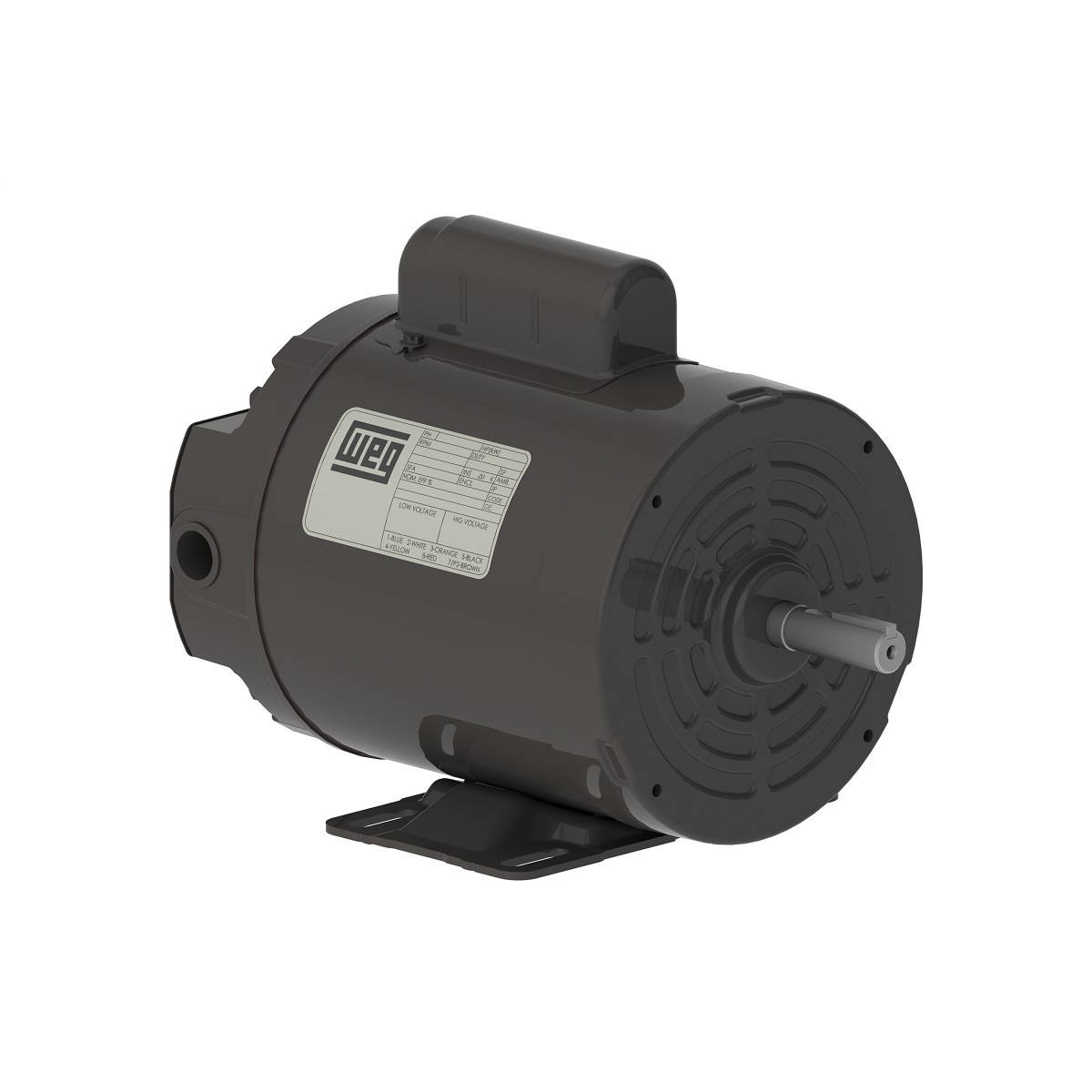

00118ES1BPFD56 WEG 1HP Farm Duty Poultry Fan Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ES1BPFD56

Selected accessories will also be added to cart

$307.50 / Each

Quantity:

IC410 - TEAO, IP55, D56 Frame, 115/208-230V, 60 Hz, Single Phase

Details
Purchase Components

Electric Motors

Frame	D56
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	115/208-230 V
Rated current	14.0/6.70-7.00 A
L. R. Amperes	93.8/44.9-46.9 A
LRC	6.7x(Code M)
No load current	11.0/4.74-5.50 A
Rated torque	2.94 ft.lb
Locked rotor torque	330 %
Breakdown torque	280 %

Locked rotor time	10s (cold) 6s (hot)
Moment of inertia (J)	0.1329 sq.ft.lb
Insulation Class	B
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP44
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	35.6 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
62.0	69.0	72.0

Power factor

50%	75%	100%
0.46	0.57	0.65

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting
Grounding Lugs	Single
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Shaft End	Key
Resilient Base	Without
