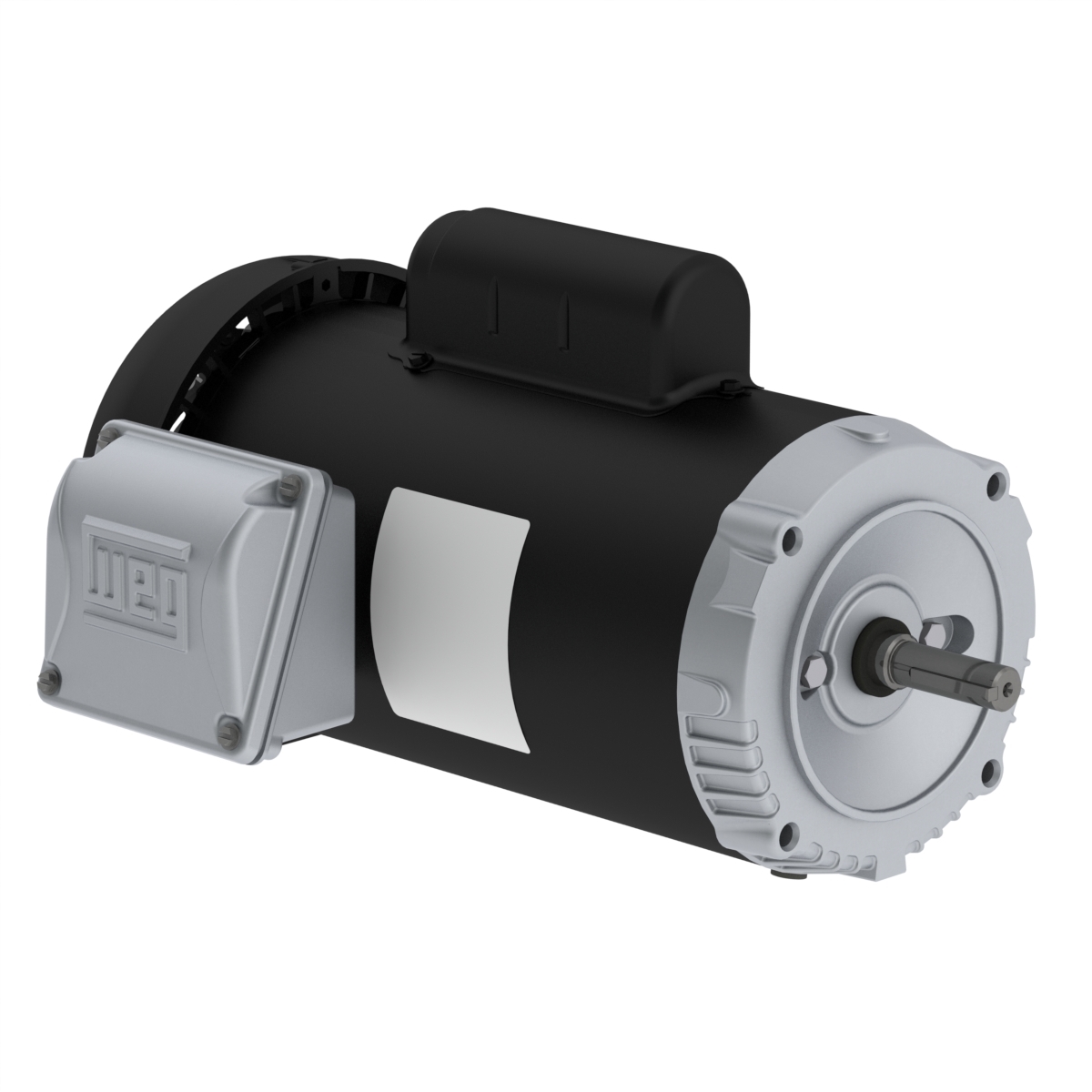

00118ES1B56CFL-S WEG 1HP Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00118ES1B56CFL-S

00118ES1B56CFL-S WEG 1HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ES1B56CFL-S

Selected accessories will also be added to cart
$318.00 / Each
Quantity:
IC411 - TEFC, IP55, 56C Frame, 115/208-230V Single Phase 60Hz, 13244996, C-Face, Footless, Rolled Steel, 5/8" Keyed Shaft

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 1 HP
Mounting Footless
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Electric Motors

Frame 56C
Output 1 HP (0.75 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1745 rpm
Slip 3.06 %
Rated voltage 115/208-230 V
Rated current 13.6/7.52-6.80 A
L. R. Amperes 91.1/50.4-45.6 A
LRC 6.7x(Code M)
No load current 9.60/4.14-4.80 A
Rated torque 2.97 ft.lb
Locked rotor torque 280 %
Breakdown torque 270 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.1037 sq.ft.lb
Design L
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 35.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
62.0  68.0  71.0

Power factor

50% 75% 100%
0.48  0.60  0.68

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 0.881"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Plastic
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6204 ZZ   6202 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
60 lb  96 lb
