/Products/Electric Motors/Single Phase/WEG/Farm Duty - Poultry Fan/00118AS1BRBPF56-S WEG 1HP Farm Duty Poultry Fan Electric Motor, 1800RPM

Product ID: 00118AS1BRBPF56-S

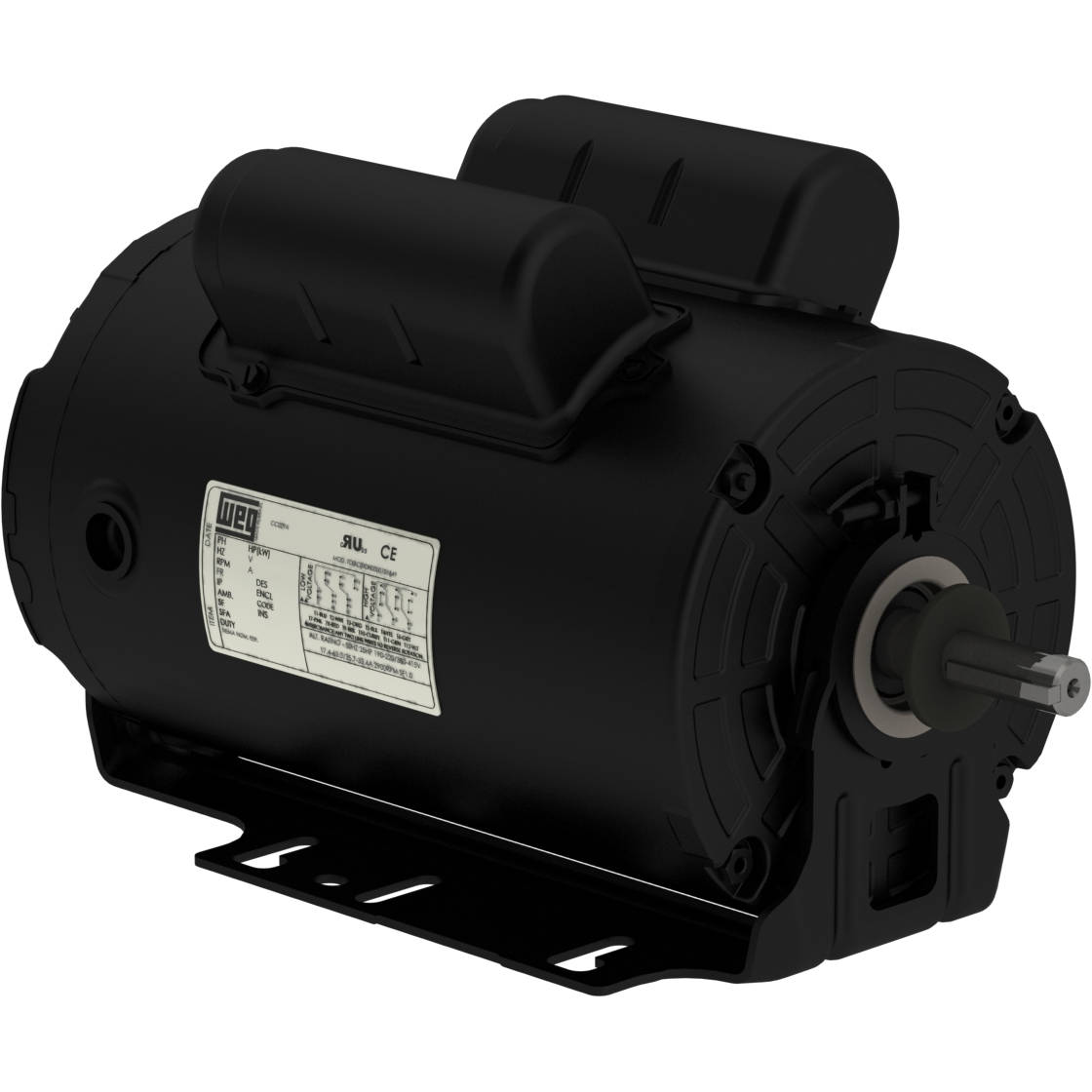

00118AS1BRBPF56-S WEG 1HP Farm Duty Poultry Fan Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118AS1BRBPF56-S

Available Stock: 1

Selected accessories will also be added to cart

$326.25 / Each

Quantity:

IC410 - TEAO, IP55, 56 Frame, 115/208-230VAC 60Hz Single Phase, 15412616, Rolled Steel, Foot Mounted, 5/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	56
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1730 rpm
Slip	3.89 %
Rated voltage	115/208-230 V
Rated current	13.7/7.52-6.85 A
L. R. Amperes	91.8/50.4-45.9 A
LRC	6.7x(Code M)
No load current	9.60/4.14-4.80 A
Rated torque	3.04 ft.lb
Locked rotor torque	280 %
Breakdown torque	270 %

Locked rotor time	14s (cold) 8s (hot)
Design	L
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
Rotation¹	Both (CW and CCW)
Approx. weight³	33.1 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
62.0	68.0	70.0

Power factor

50%	75%	100%
0.48	0.60	0.68

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	With
Overload protector (phenolic)	Automatic
