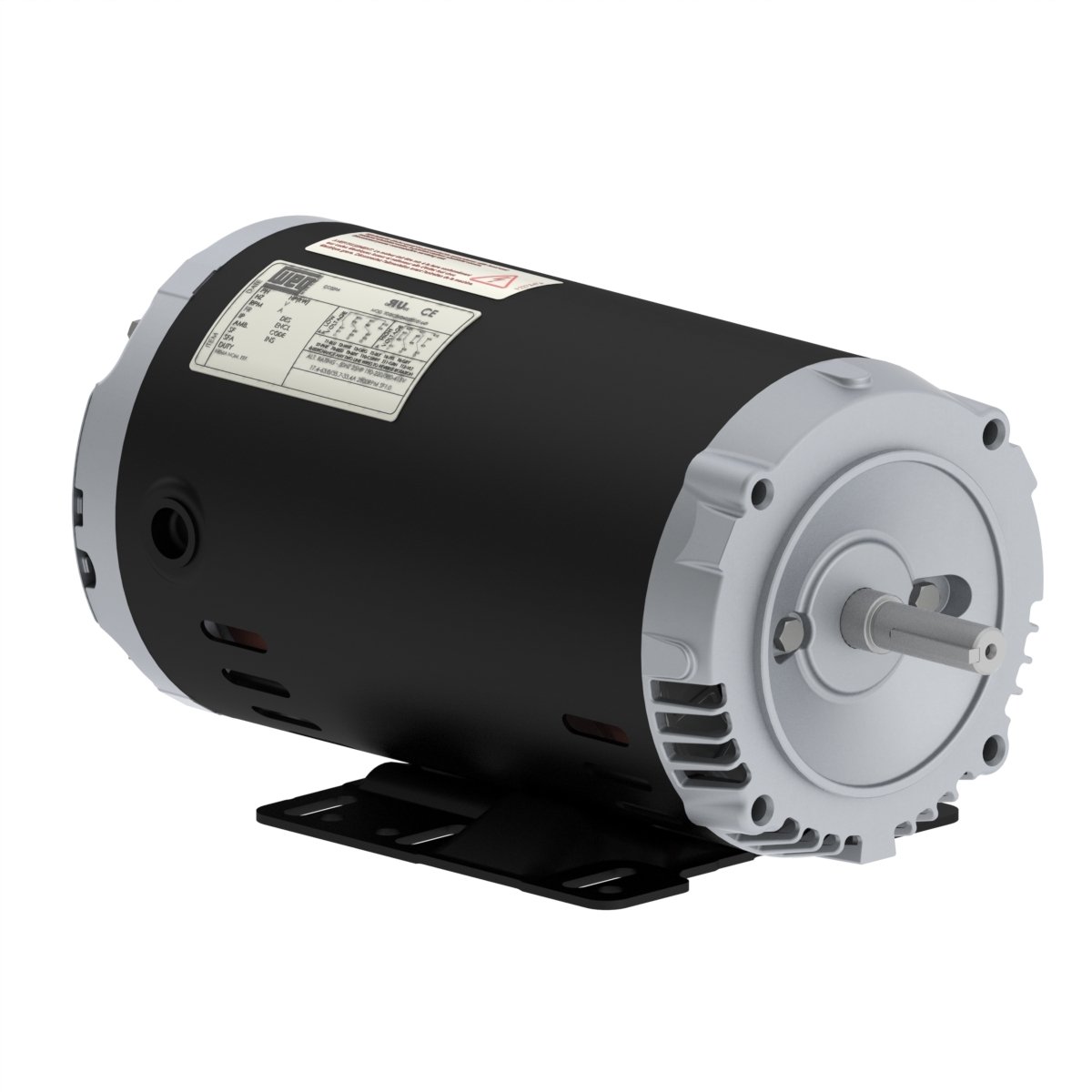

00112OT3E56C-S WEG 1HP General Purpose Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00112OT3E56C-S

00112OT3E56C-S WEG 1HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112OT3E56C-S

Selected accessories will also be added to cart
$364.50 / Each
Quantity:
IC01 - ODP, 56HC Frame, 208-230/460VAC 3-Phase 50/60Hz, 12809606, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame 56HC
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1160 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 3.71-3.36/1.68 A
L. R. Amperes 23.0-20.8/10.4 A
LRC 6.2x(Code K)
No load current 2.07-2.40/1.20 A
Rated torque 4.47 ft.lb
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 0.1951 sq.ft.lb
Design A
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 40.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
77.0  81.5  82.5

Power factor

50% 75% 100%
0.45  0.58  0.68
Frame 56HC
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 940 rpm
Slip 6.00 %
Rated voltage 190/380 V
Rated current 3.82/1.91 A
L. R. Amperes 18.3/9.17 A
LRC 4.8x(Code G)
No load current 2.34/1.17 A
Rated torque 5.51 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 0.1951 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 40.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
78.2  79.6  78.3

Power factor

50% 75% 100%
0.53  0.67  0.76
Frame 56HC
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 950 rpm
Slip 5.00 %
Rated voltage 220/415 V
Rated current 3.55/1.88 A
L. R. Amperes 19.9/10.5 A
LRC 5.6x(Code J)
No load current 2.49/1.32 A
Rated torque 5.45 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.1951 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 40.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
76.1  79.2  79.3

Power factor

50% 75% 100%
0.47  0.61  0.70

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
