/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/JM Close-Coupled Pump/00112ET3E145JM-W22 WEG 1HP JM Close Coupled Pump Electric Motor, 1200RPM

Product ID: 00112ET3E145JM-W22

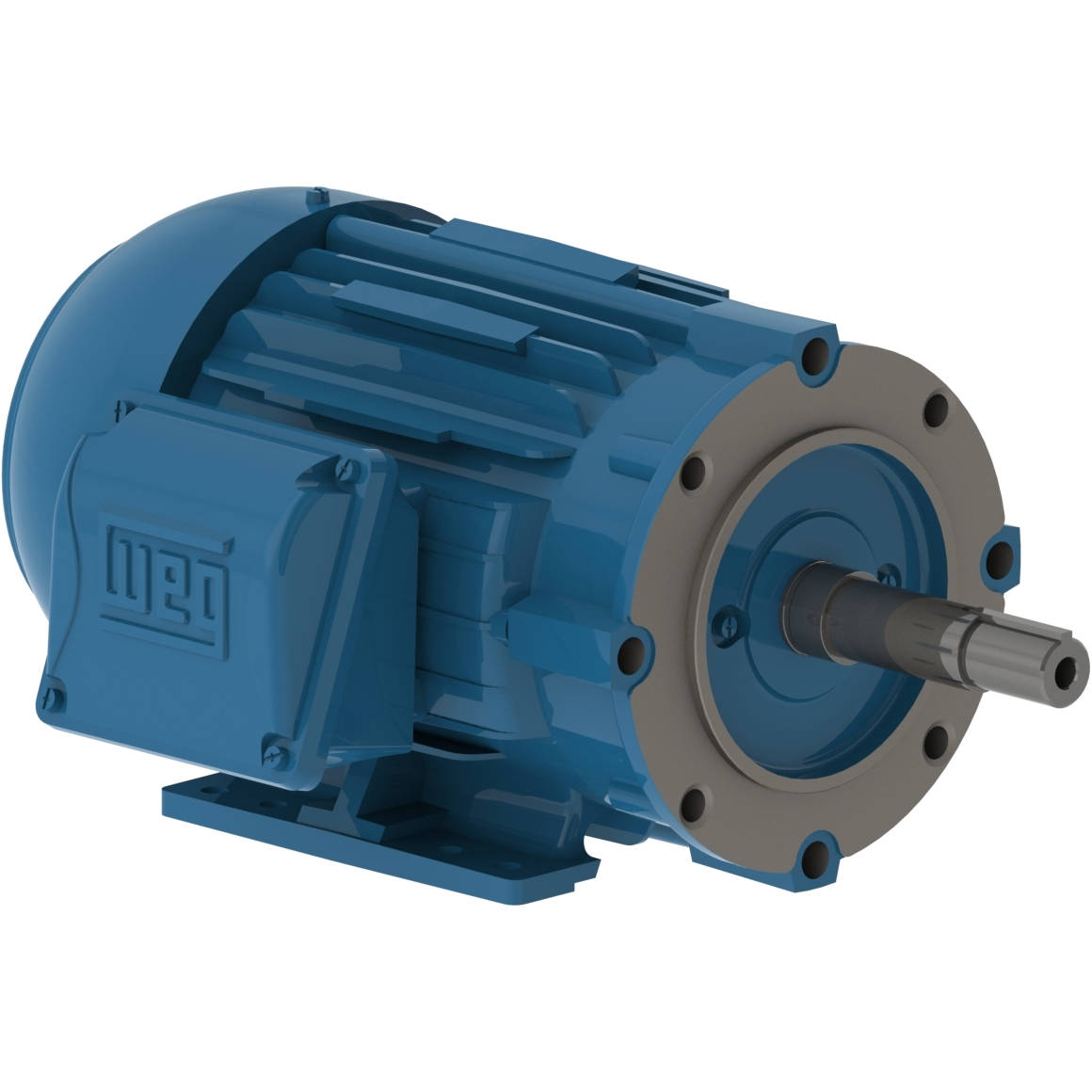

00112ET3E145JM-W22 WEG 1HP JM Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112ET3E145JM-W22

Selected accessories will also be added to cart

$525.00 / Each

Quantity:

IC411 - TEFC, IP55, 143JM/145JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 12553985, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Details
Purchase Components

Electric Motors

Frame	143/5JM
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1160 rpm
Slip	3.33 %
Rated voltage	230/460 V
Rated current	3.46/1.73 A
L. R. Amperes	21.5/10.7 A
LRC	6.2x(Code K)
No load current	2.39/1.20 A
Rated torque	4.53 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	58.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	82.0	82.5

Power factor

50%	75%	100%
0.45	0.57	0.66

Frame	143/5JM
Output	0.75 HP (0.550 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	960 rpm
Slip	4.00 %
Rated voltage	380 V
Rated current	1.60 A
L. R. Amperes	9.28 A
LRC	5.8x(Code K)
No load current	1.18 A
Rated torque	4.10 ft.lb
Locked rotor torque	280 %
Breakdown torque	310 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	45.0 dB(A)
Approx. weight³	58.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.8	78.4	79.3

Power factor

50%	75%	100%
0.44	0.57	0.66

Frame	143/5JM
Output	0.75 HP (0.550 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	400 V
Rated current	1.62 A
L. R. Amperes	9.88 A
LRC	6.1x(Code L)
No load current	1.28 A
Rated torque	4.06 ft.lb
Locked rotor torque	300 %
Breakdown torque	330 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	45.0 dB(A)
Approx. weight³	58.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
73.2	77.5	78.9

Power factor

50%	75%	100%
0.41	0.53	0.62

Frame	143/5JM
Output	0.75 HP (0.550 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	415 V
Rated current	1.66 A
L. R. Amperes	10.5 A
LRC	6.3x(Code M)
No load current	1.36 A
Rated torque	4.06 ft.lb
Locked rotor torque	320 %
Breakdown torque	340 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	45.0 dB(A)
Approx. weight³	58.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
70.7	75.8	77.9

Power factor

50%	75%	100%
0.38	0.50	0.59

Frame	143/5JM
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	940 rpm
Slip	6.00 %
Rated voltage	380 V
Rated current	1.96 A
L. R. Amperes	9.41 A
LRC	4.8x(Code G)
No load current	1.18 A
Rated torque	5.59 ft.lb
Locked rotor torque	200 %
Breakdown torque	220 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	45.0 dB(A)
Approx. weight³	58.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	80.0	78.5

Power factor

50%	75%	100%
0.53	0.66	0.74

Frame	143/5JM
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	950 rpm
Slip	5.00 %
Rated voltage	400 V
Rated current	1.94 A
L. R. Amperes	10.1 A
LRC	5.2x(Code H)
No load current	1.28 A
Rated torque	5.53 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	45.0 dB(A)
Approx. weight³	58.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
75.5	80.0	78.5

Power factor

50%	75%	100%
0.49	0.62	0.71

Frame	143/5JM
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	950 rpm
Slip	5.00 %
Rated voltage	415 V
Rated current	1.95 A
L. R. Amperes	10.7 A
LRC	5.5x(Code J)
No load current	1.36 A
Rated torque	5.53 ft.lb
Locked rotor torque	250 %
Breakdown torque	280 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	45.0 dB(A)
Approx. weight³	58.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.0	78.5	78.5

Power factor

50%	75%	100%
0.46	0.59	0.68

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Pump Seal	Mechanical Seal
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
