/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/JM, TEFC/00112ET3E145JM-S WEG 1HP JM Close Coupled Pump Electric Motor, 1200RPM

Product ID: 00112ET3E145JM-S

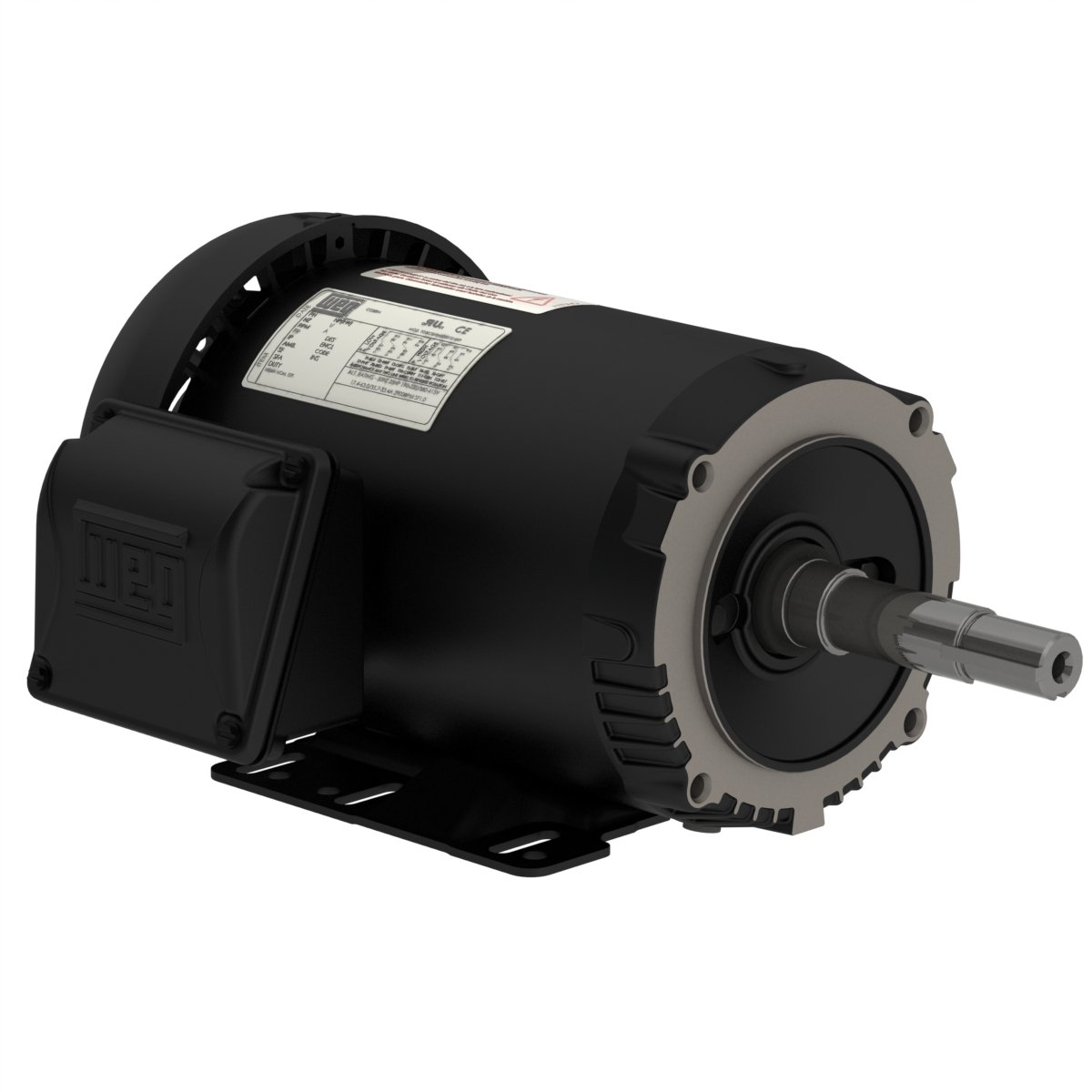

00112ET3E145JM-S WEG 1HP JM Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112ET3E145JM-S

Selected accessories will also be added to cart

$525.00 / Each

Quantity:

IC411 - TEFC, IP55, 143JM/145JM Frame, 208-230/460VAC 3-Phase 50/60Hz, 13440217, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	143/5JM
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1145 rpm
Slip	4.58 %
Rated voltage	208-230/460 V
Rated current	3.49-3.16/1.58 A
L. R. Amperes	20.3-18.3/9.16 A
LRC	5.8x(Code J)
No load current	1.75-2.03/1.01 A
Rated torque	4.52 ft.lb
Locked rotor torque	229 %
Breakdown torque	280 %
Locked rotor time	55s (cold) 31s (hot)
Moment of inertia (J)	0.1597 sq.ft.lb

Design	B
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	40.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	82.5	82.5

Power factor

50%	75%	100%
0.50	0.63	0.72

Frame	143/5JM
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	915 rpm
Slip	8.50 %
Rated voltage	190/380 V
Rated current	3.74/1.87 A
L. R. Amperes	16.5/8.23 A
LRC	4.4x(Code F)
No load current	2.00/1.00 A
Rated torque	5.66 ft.lb
Locked rotor torque	170 %
Breakdown torque	200 %
Locked rotor time	0s (cold) 0s (hot)
Moment of inertia (J)	0.1597 sq.ft.lb

Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	47.0 dB(A)
Approx. weight³	40.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.1	80.1	77.3

Power factor

50%	75%	100%
0.58	0.71	0.79

Frame	143/5JM
Output	1 HP (0.75 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	935 rpm
Slip	6.50 %
Rated voltage	220/415 V
Rated current	3.36/1.78 A
L. R. Amperes	17.5/9.26 A
LRC	5.2x(Code H)
No load current	2.14/1.13 A
Rated torque	5.54 ft.lb
Locked rotor torque	229 %
Breakdown torque	250 %
Locked rotor time	0s (cold) 0s (hot)
Moment of inertia (J)	0.1597 sq.ft.lb

Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	47.0 dB(A)
Approx. weight³	40.8 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
78.6	80.3	79.3

Power factor

50%	75%	100%
0.51	0.65	0.74

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
