/Products/Surplus Industrial/Switches/Pushbuttons/ZBVG6 Telemechanique Blue LED Light Block, 120V
Click Image to Expand

Product ID: ZBVG6

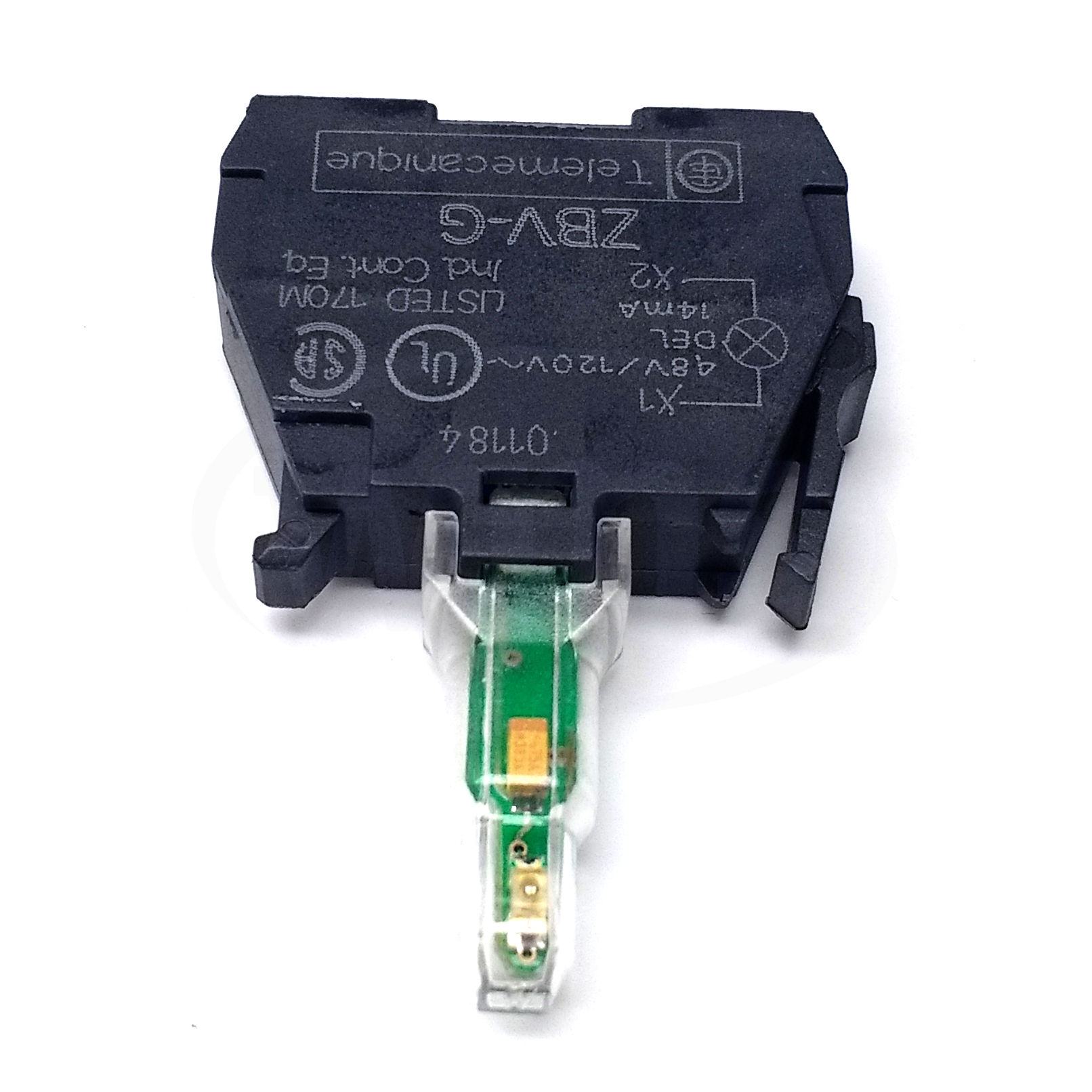

ZBVG6 Telemechanique Blue LED Light Block, 120V

MFG: Telemecanique (Schneider Electric)
MFG Part Number: ZBVG6

Available Stock: 1
Selected accessories will also be added to cart
$38.97 / Each
Quantity:
New, Surplus Stock. For 22mm Pushbuttons
Main
range of product
Harmony XB4
Harmony XB5
product or component type
Light block
device short name
ZBV
sale per indivisible qty
5
connections - terminals
Screw clamp terminals: <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
Screw clamp terminals: >= 1 x 0.22 mm² without cable end conforming to EN 60947-1
signalling type
Steady
light source
Protected LED
bulb base
Integral LED
light block supply
Direct
light source colour
Blue
Us rated supply voltage
110...120 V AC, 50/60 Hz
Complementary
product weight
0.04 lb(US) (0.017 kg)
tightening torque
7.08...10.62 lbf.in (0.8...1.2 N.m) conforming to EN 60947-1
shape of screw head
Cross head compatible with Philips no 1 screwdriver
Cross head compatible with pozidriv No 1 screwdriver
Slotted head compatible with flat Ø 4 mm screwdriver
Slotted head compatible with flat Ø 5.5 mm screwdriver
current consumption
14 mA
service life
100000 h at rated voltage and 25 °C
surge withstand
1 kV conforming to IEC 61000-4-5
mounting of block
Front mounting
electrical composition code
M1
M2
M3
M4
M5
M6
M10
MF1
P1
P2
PF1
compatibility code
ZBV
Environment
protective treatment
TH
ambient air temperature for storage
-40...158 °F (-40...70 °C)
ambient air temperature for operation
-40...158 °F (-40...70 °C)
IP degree of protection
IP20 conforming to IEC 60529
standards
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508
CSA C22.2 No 14
product certifications
CSA
UL listed
resistance to fast transients
2 kV conforming to IEC 61000-4-4
resistance to electromagnetic fields
9.14 V/yd (10 V/m) conforming to IEC 61000-4-3
resist electrostatic dischrg
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
electromagnetic emission
Class B conforming to IEC 55011
Ordering and shipping details
Category
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW
Discount Schedule
CS2
GTIN
00785901355472
Nbr. of units in pkg.
5
Package weight(Lbs)
0.02
Returnability
Y
Country of origin
France
