/Products/Surplus Industrial/Switches/ZBE101 Telemecanique Single Contact Block, NO
Click Image to Expand

Product ID: ZBE101

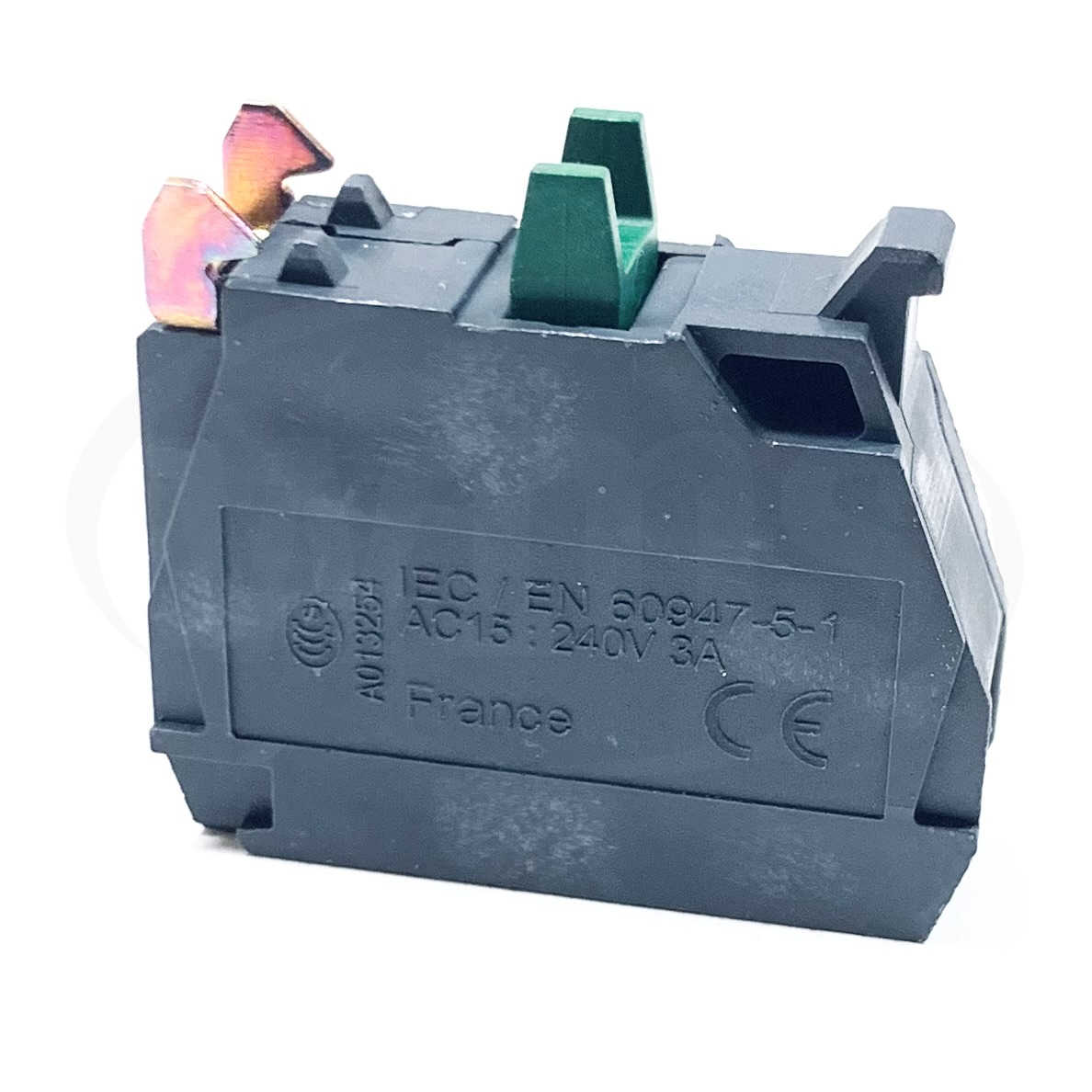

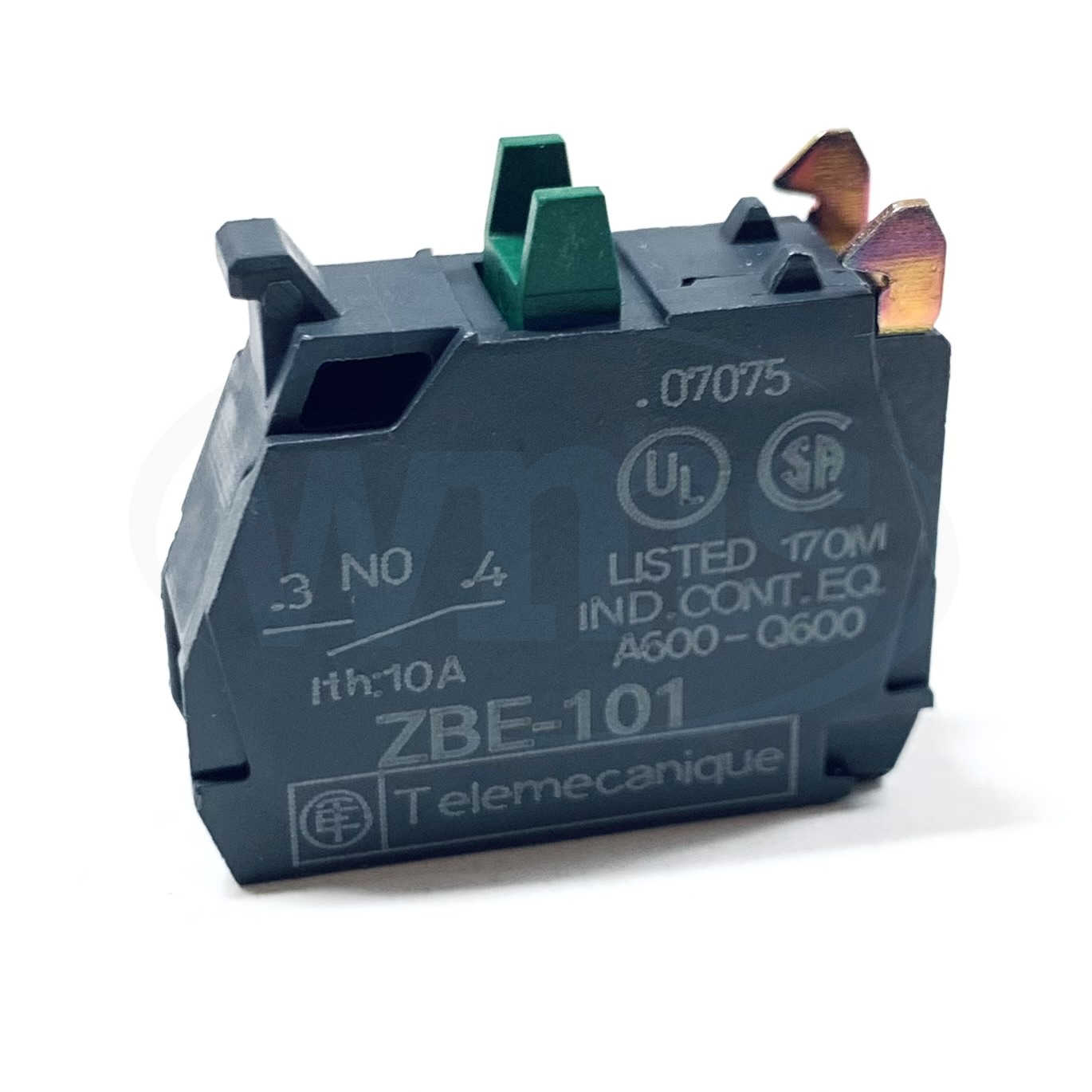

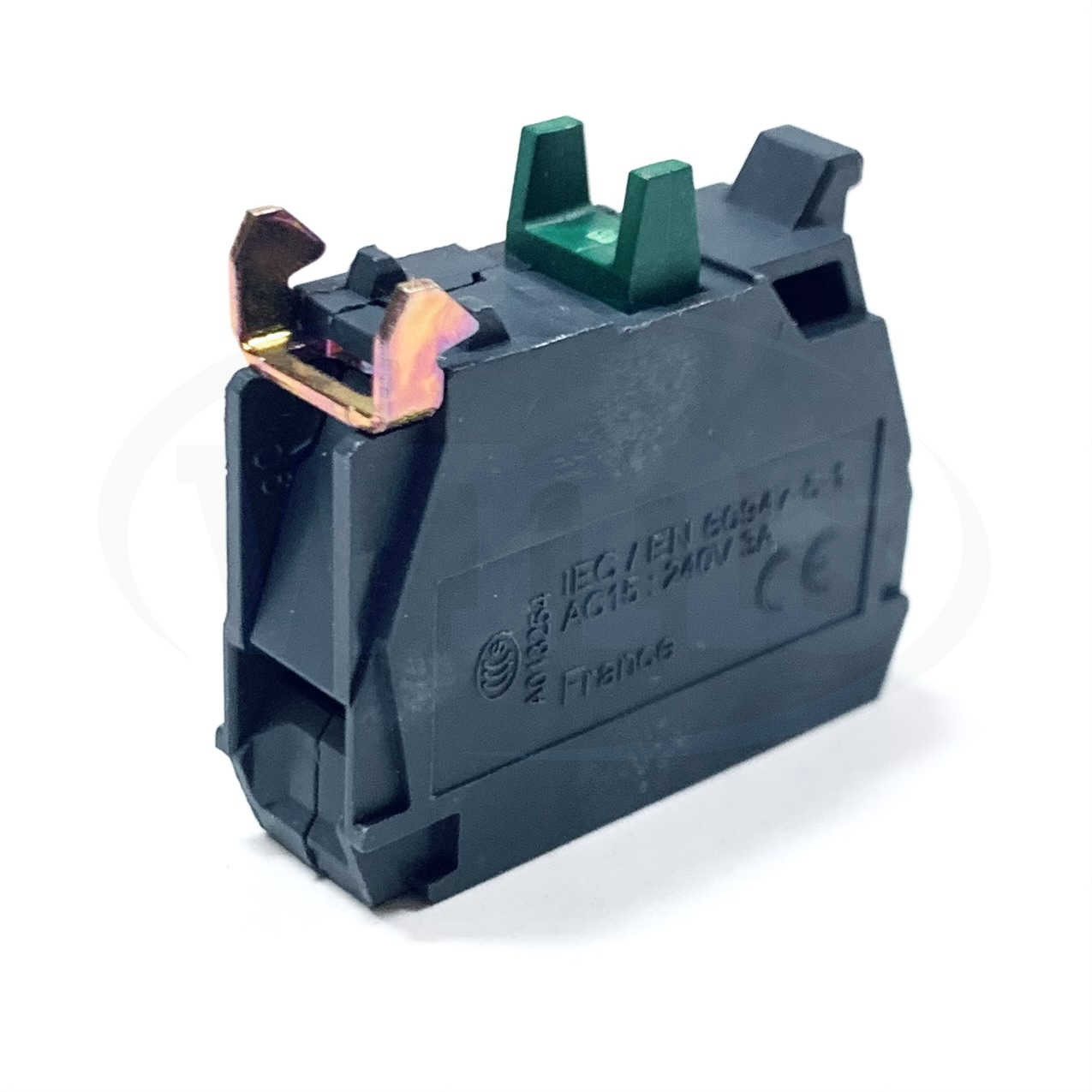

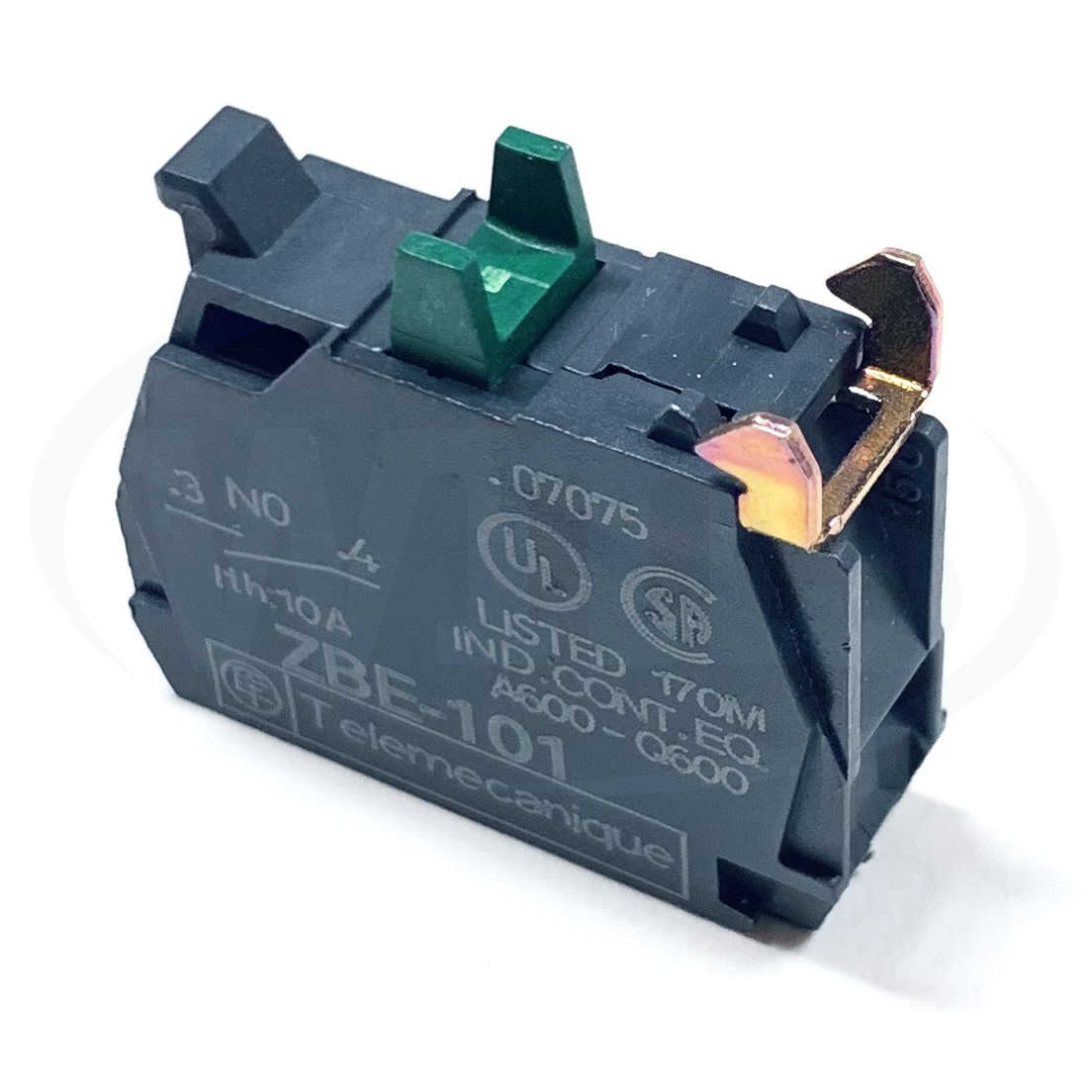

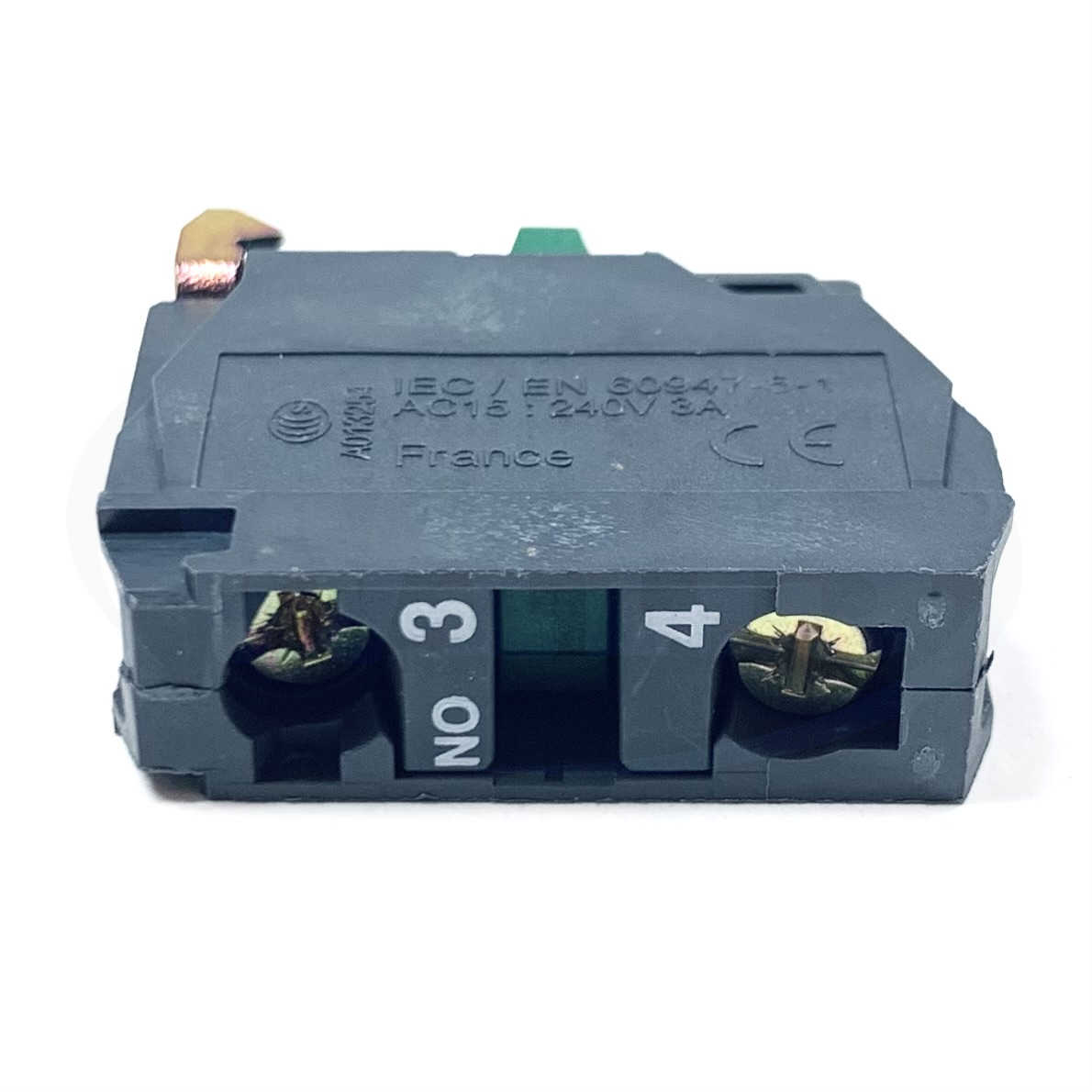

ZBE101 Telemecanique Single Contact Block, NO

MFG: Telemecanique (Schneider Electric)
MFG Part Number: ZBE101

Available Stock: 2
Selected accessories will also be added to cart
$9.97 / Each
Quantity:
New, Surplus Stock
Main
range of product
Harmony XB4
Harmony XB5
product or component type
Contact block
device short name
ZBE
IP degree of protection
IP20 IEC 60529
contacts type and composition
1 NO
contacts operation
Slow-break
contact block type
Single
contacts usage
Standard contacts
connections - terminals
Screw clamp terminals <= 2 x 1.5 mm² with cable end EN 60947-1
Screw clamp terminals >= 1 x 0.22 mm² without cable end EN 60947-1
Complementary
product weight
0.02 lb(US) (0.011 kg)
positive opening
Without
operating travel
0.1 in (2.6 mm) NO changing electrical state
0.17 in (4.3 mm) total travel
operating force
2.3 N NO changing electrical state
mechanical durability
10000000 cycles
tightening torque
7.08...10.62 lbf.in (0.8...1.2 N.m) EN 60947-1
shape of screw head
Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
contacts material
Silver alloy (Ag/Ni)
short-circuit protection
10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current
10 A EN/IEC 60947-5-1
Ui rated insulation voltage
600 V 3 EN 60947-1
[Uimp] rated impulse withstand voltage
6 kV EN 60947-1
[Ie] rated operational current
1.2 A 600 V AC-15 A600 EN/IEC 60947-5-1
0.27 A 250 V DC-13 Q600 EN/IEC 60947-5-1
0.1 A 600 V DC-13 Q600 EN/IEC 60947-5-1
3 A 240 V AC-15 A600 EN/IEC 60947-5-1
0.55 A 125 V DC-13 Q600 EN/IEC 60947-5-1
6 A 120 V AC-15 A600 EN/IEC 60947-5-1
electrical durability
1000000 cycles AC-15 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles DC-13 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles AC-15 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles AC-15 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles DC-13 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability
? < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
? < 10exp(-7) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
mounting of block
Front mounting
condition of use
Mounting on push-button collar
electrical composition code
C1 <= 9
C2 <= 7
C3 <= 6
C4 <= 4
C5 <= 5
C6 <= 3
C7 <= 4
C8 <= 2
C9 <= 3
C12 <= 6
M1 <= 6
M2 <= 4
M3 <= 4
M5 <= 2
M6 <= 2
M7 <= 6
M8 <= 4
M9 <= 2
SF1 <= 3
SF2 <= 2
MF1 <= 2
MF2 <= 2
C10 <= 2
M4 <= 2
C13 <= 1
compatibility code
ZBE
Environment
protective treatment
TH
ambient air temperature for storage
-40...158 °F (-40...70 °C)
ambient air temperature for operation
-40...158 °F (-40...70 °C)
standards
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
UL 508
CSA C22.2 No 14
product certifications
BV
CCC
CSA
DNV
GL
GOST
LROS (Lloyds register of shipping)
RINA
UL
vibration resistance
5 gn 2...500 Hz IEC 60068-2-6
shock resistance
30 gn 18 ms half sine wave acceleration IEC 60068-2-27
50 gn 11 ms half sine wave acceleration IEC 60068-2-27
Ordering and shipping details
Category
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW
Discount Schedule
CS2
GTIN
00785901355632
Package weight(Lbs)
0.02
Country of origin
France
