/Products/Surplus Industrial/Switches/Pushbuttons/ZB4BVB3 Telemecanique Green LED Light Block
Click Image to Expand

Product ID: ZB4BVB3

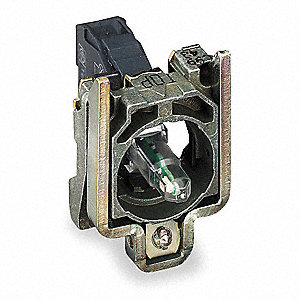

ZB4BVB3 Telemecanique Green LED Light Block

MFG: Telemecanique (Schneider Electric)
MFG Part Number: ZB4BVB3

Available Stock: 1
Selected accessories will also be added to cart
$54.97 / Each
Quantity:
New, Surplus Stock.
Main
range of product
Harmony XB4
product or component type
Complete body/light block assembly
device short name
ZB4
fixing collar material
Zamak
sale per indivisible qty
1
connections - terminals
Screw clamp terminals: <= 2 x 1.5 mm² with cable end
Screw clamp terminals: >= 1 x 0.22 mm² without cable end
light source
Protected LED
bulb base
Integral LED
light source colour
Green
Us rated supply voltage
24 V AC/DC, 50/60 Hz
Complementary
CAD overall width
1.18 in (30 mm)
CAD overall height
1.85 in (47 mm)
CAD overall depth
1.46 in (37 mm)
terminals description ISO n°1
(X1-X2)PL
product weight
0.12 lb(US) (0.054 kg)
tightening torque
7.08...10.62 lbf.in (0.8...1.2 N.m) conforming to EN 60947-1
shape of screw head
Cross head compatible with Philips no 1 screwdriver
Cross head compatible with pozidriv No 1 screwdriver
Slotted head compatible with flat Ø 4 mm screwdriver
Slotted head compatible with flat Ø 5.5 mm screwdriver
Ui rated insulation voltage
600 V (degree of pollution: 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage
6 kV conforming to EN 60947-1
signalling type
Steady
supply voltage limits
19.2...30 V DC
21.6...26.4 V AC
current consumption
18 mA
service life
100000 h at rated voltage and 25 °C
surge withstand
1 kV conforming to IEC 61000-4-5
Environment
protective treatment
TH
ambient air temperature for storage
-40...158 °F (-40...70 °C)
ambient air temperature for operation
-40...158 °F (-40...70 °C)
class of prot agnst elec shock
Class I conforming to IEC 60536
standards
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508
CSA C22.2 No 14
product certifications
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL listed
vibration resistance
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
resistance to fast transients
2 kV conforming to IEC 61000-4-4
resistance to electromagnetic fields
9.14 V/yd (10 V/m) conforming to IEC 61000-4-3
resist electrostatic dischrg
6 kV on contact (on metal parts) conforming to IEC 61000-2-6
8 kV in free air (in insulating parts) conforming to IEC 61000-2-6
electromagnetic emission
Class B conforming to IEC 55011
Ordering and shipping details
Category
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW
Discount Schedule
CS2
GTIN
00785901258438
Nbr. of units in pkg.
1
Package weight(Lbs)
0.12
Returnability
Y
Country of origin
FR
