/Products/Surplus Industrial/Indicator Lights/ZB4BV043 Telemecanique Pilot Light Lens, Red
Click Image to Expand

Product ID: ZB4BV043

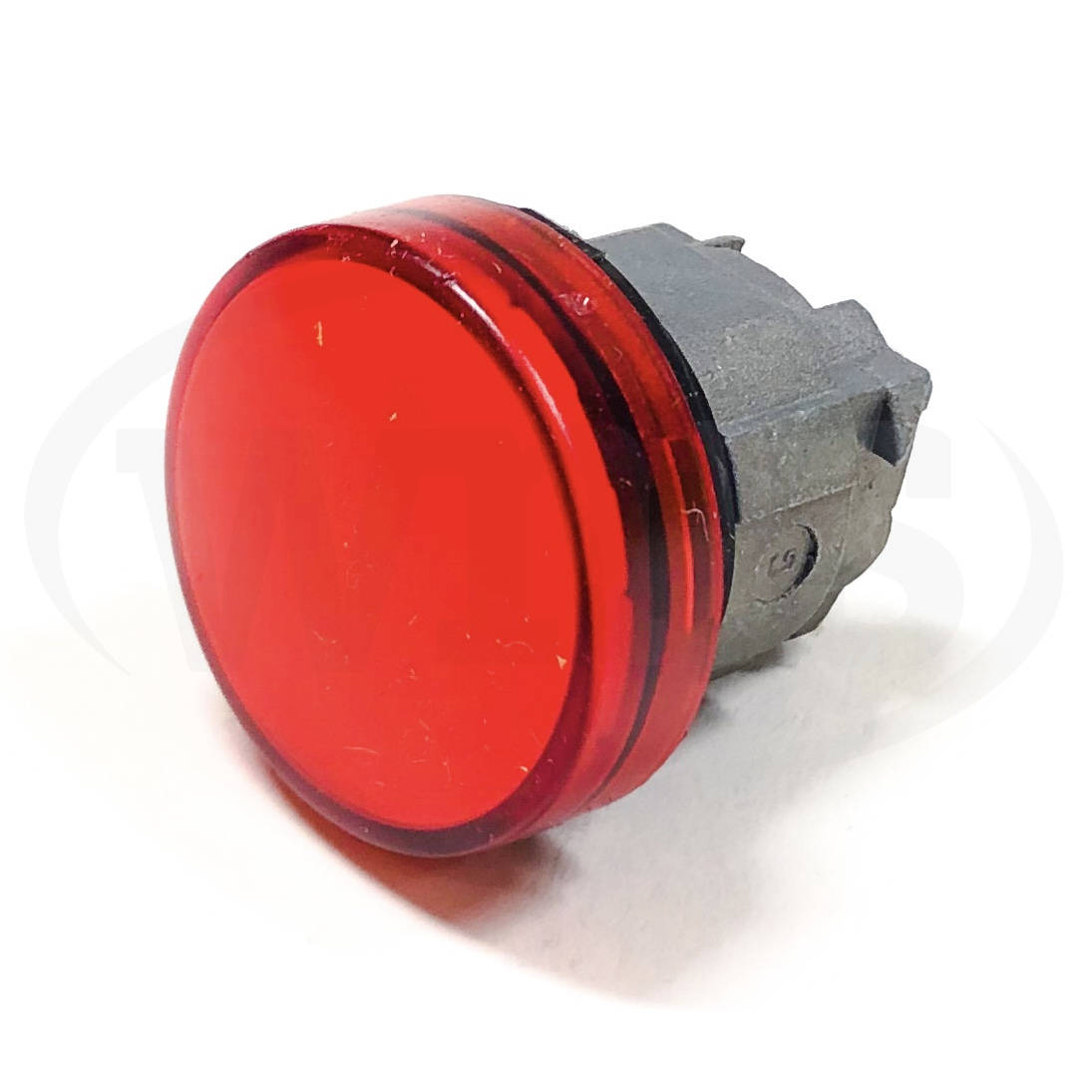

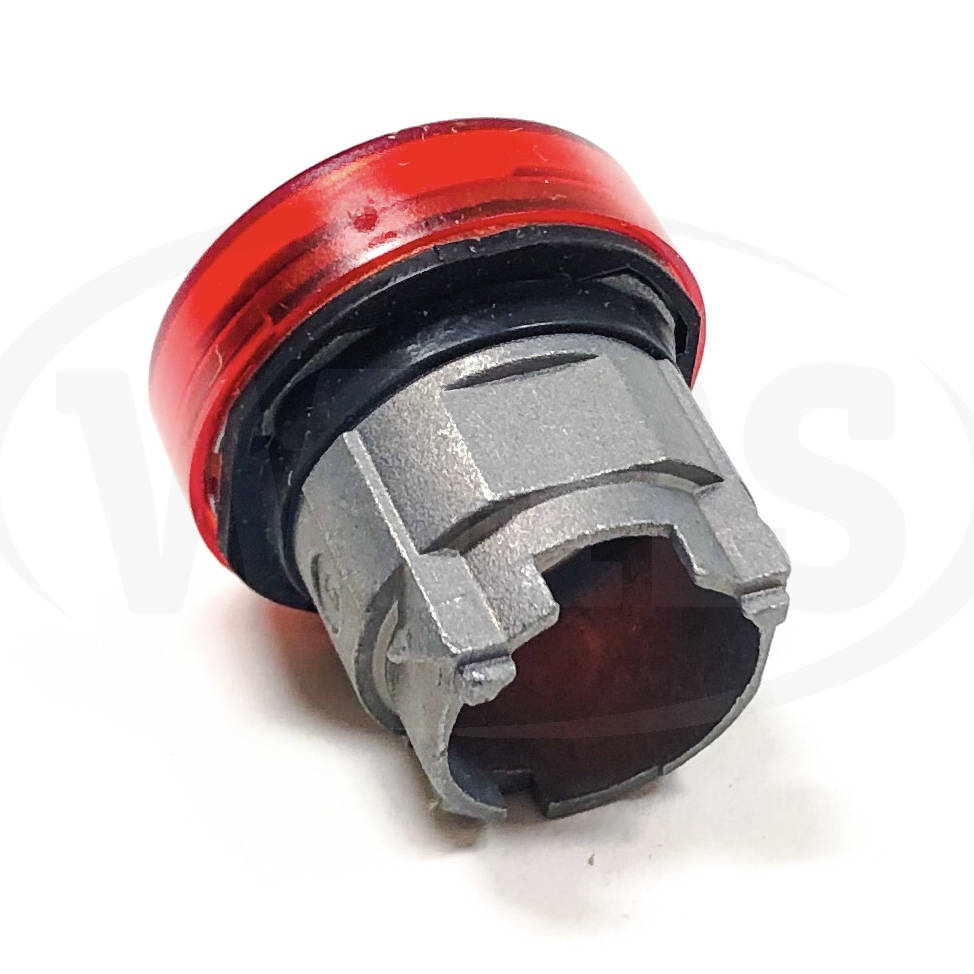

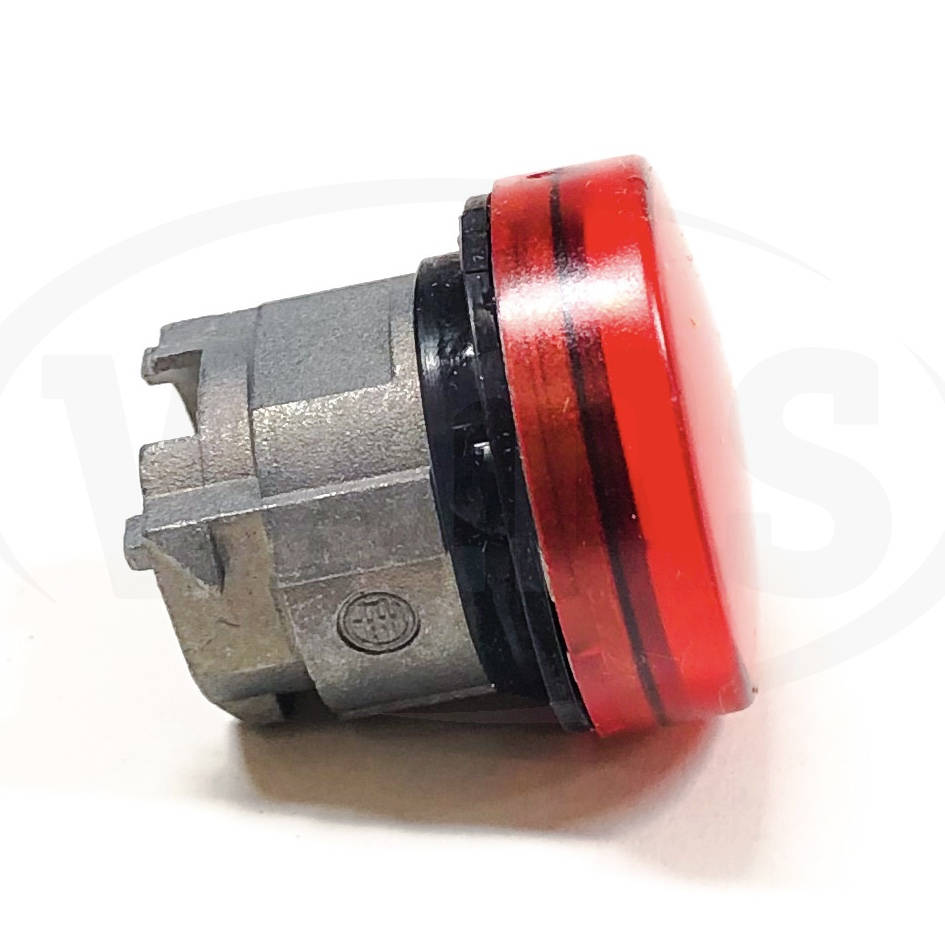

ZB4BV043 Telemecanique Pilot Light Lens, Red

MFG: Schneider Electric (Square D)
MFG Part Number: ZB4BV043

Available Stock: 7
Selected accessories will also be added to cart
$5.25 / Each
Quantity:
New, Surplus Stock. 22mm
Main
range of product
Harmony XB4
product or component type
Head for pilot light
product compatibility
Integral LED
device short name
ZB4
bezel material
Chromium plated metal
mounting diameter
0.87 in (22 mm)
sale per indivisible qty
1
head type
Standard
shape of signaling unit head
Round
cap/operator or lens colour
Red
operator additional information
With plain lens
Complementary
CAD overall width
1.14 in (29 mm)
CAD overall height
1.14 in (29 mm)
CAD overall depth
1.18 in (30 mm)
product weight
0.06 lb(US) (0.026 kg)
resistance to high pressure washer
1015.26 psi (7000000 Pa) at 131 °F (55 °C),distance: 0.1 m
electrical composition code
P1 in front mounting with integral LED
P2 in front mounting with integral LED and transformer
Environment
protective treatment
TH
ambient air temperature for storage
-40...158 °F (-40...70 °C)
ambient air temperature for operation
-40...158 °F (-40...70 °C)
overvoltage category
Class I conforming to IEC 60536
IP degree of protection
IP69
IP67
IP66 conforming to IEC 60529
IP69K
NEMA degree of protection
NEMA 13
NEMA 4X
IK degree of protection
IK06 conforming to IEC 50102
standards
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508
CSA C22.2 No 14
vibration resistance
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
Ordering and shipping details
Category
22468 - PUSHBUTTONS,22MM(METAL) NEW
Discount Schedule
CS2
GTIN
00785901354154
Nbr. of units in pkg.
1
Package weight(Lbs)
5.9999999999999998E-2
Returnability
Y
Country of origin
France
