/Products/Power Tools/Makita/LXT 18V/XTR01Z Makita 18V. LXT Compact Router
Click Image to Expand

Product ID: XTR01Z

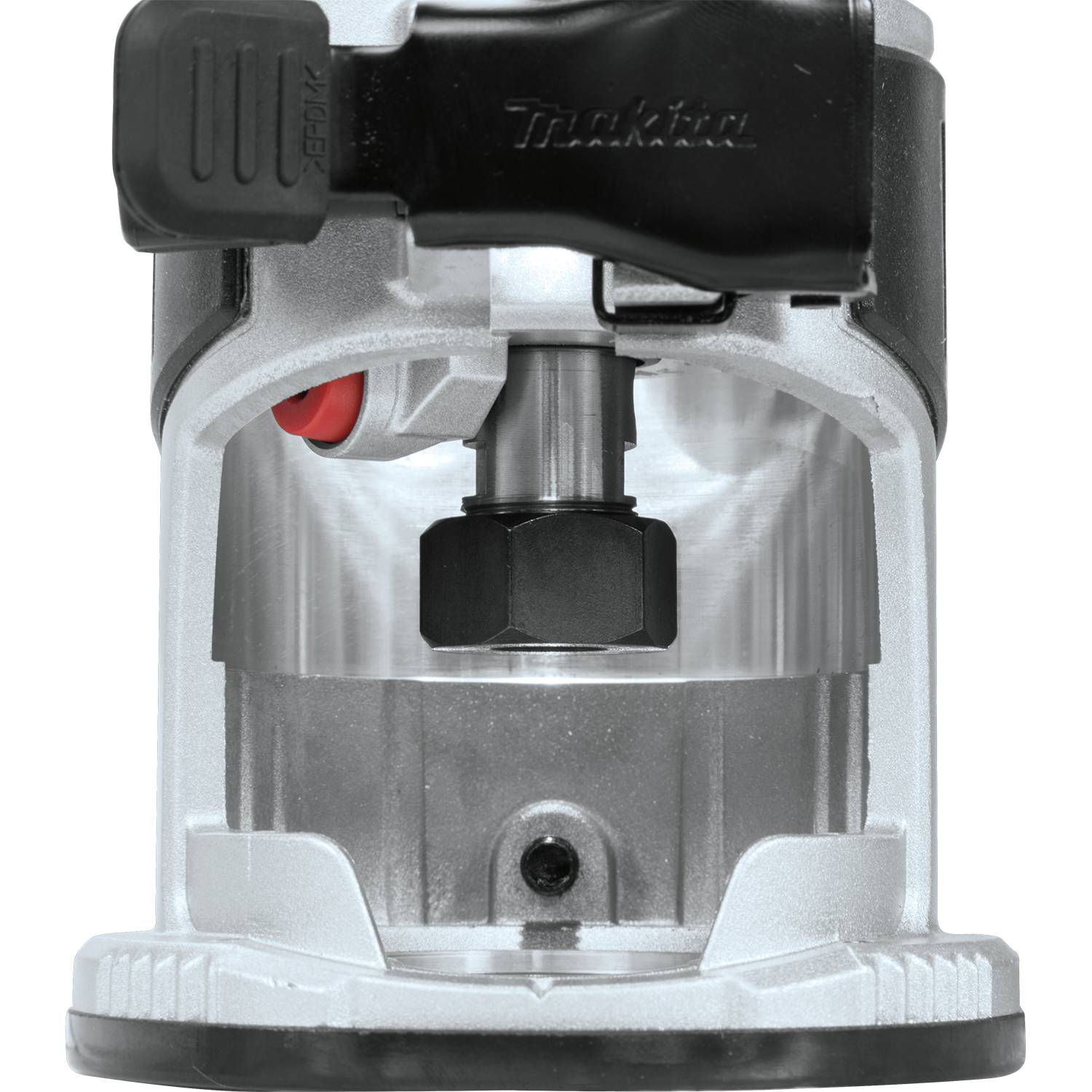

XTR01Z Makita 18V. LXT Compact Router

MFG: Makita USA, Inc
MFG Part Number: XTR01Z

Available Stock: 1
Selected accessories will also be added to cart
$199.00 / Each
Quantity:
  • POWER : Variable speed control dial (10,000 - 30,000 RPM) to match the speed to the application

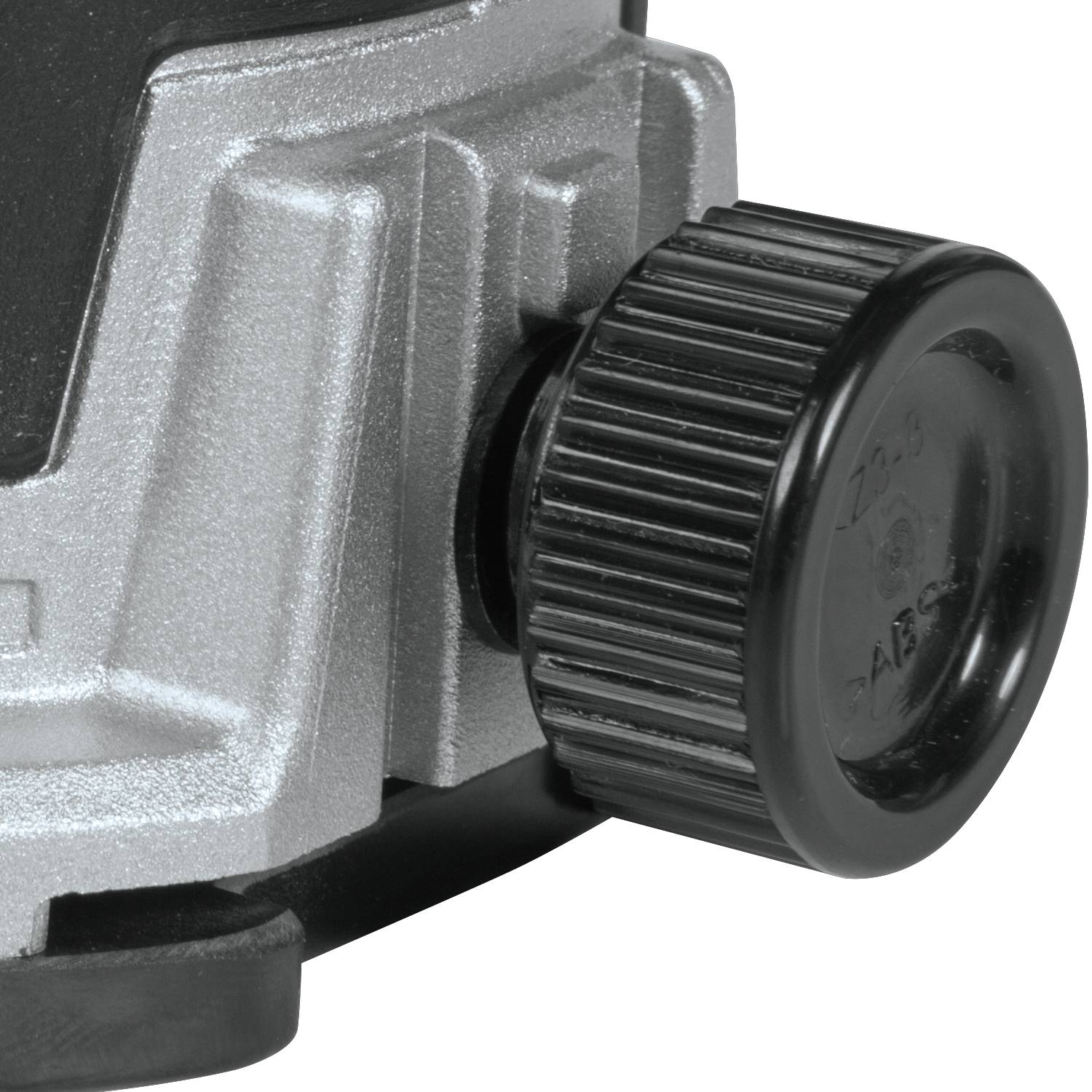

  • ACCURACY : Smooth rack-and-pinion fine depth adjustment system for more precise settings
  • DURABILITY : Aluminum housing and base for increased durability and accuracy
  • DESIGN : Dual L.E.D. lights illuminate the work area
  • INCLUDES : 1/4" collet, straight guide, wrenches (battery and charger not included)

About Model

Corded power meets cordless convenience with the 18V LXT Brushless Compact Router (model XTR01Z, tool only, batteries and charger sold separately). The 18V LXT Router has an efficient Makita BL™ Brushless Motor for up to 50% longer run time, increased power and speed, and longer tool life. It is compatible with Makita 18V LXT Lithium-Ion batteries (sold separately).

The XTR01Z is engineered for a full range of cabinetry and woodworking applications. It has a variable speed control dial (10,000 – 30,000) RPM) to match the speed to the application, with electronic speed control to maintain constant speed under load and soft start feature for smoother start-ups and better accuracy. Convenience features include the smooth rack-and-pinion fine depth adjustment system for more precise settings, dual L.E.D. lights to illuminate the work surface, and a quick release cam lock system for convenient depth adjustments and base removal/installation. Additional bases and attachments are available (sold separately). For users of corded Makita Compact Routers (models RT0700C, RT0701C), the bases used with these corded routers are fully compatible with the XTR01Z. In addition, the XTR01Z easily connects to Makita vacuum cleaners with the optional dust nozzle for improved dust extraction.

It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.

Features

  • Makita-built brushless motor delivers faster and more accurate cuts in a variety of materials
  • The electronically-controlled BL™ Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application

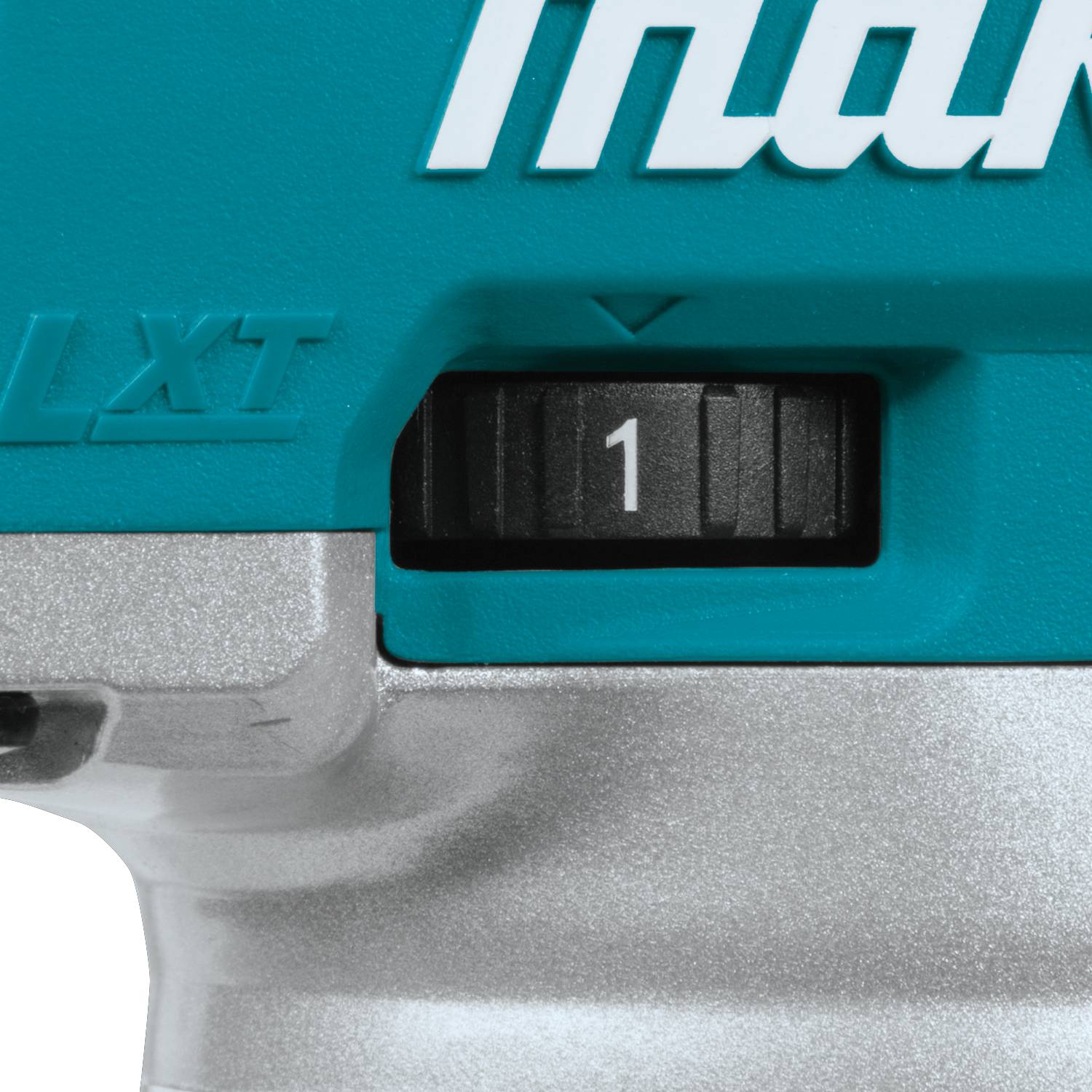

  • Variable speed control dial (10,000 - 30,000 RPM) to match the speed to the application
  • Electronic speed control maintains constant speed under load

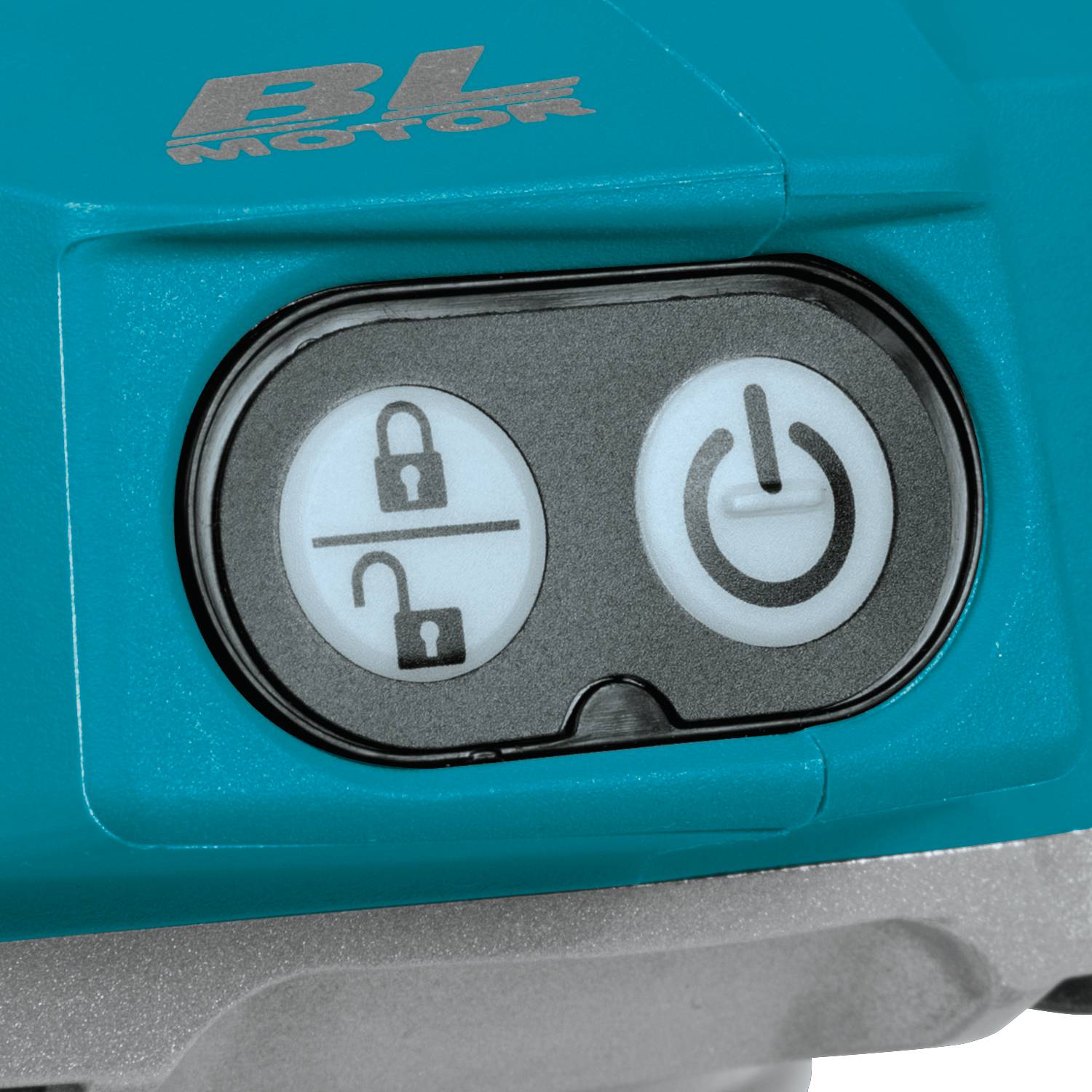

  • On/Off button with separate lock button helps prevent accidental start-up of the tool for user and workpiece protection
  • Soft start feature for smoother start-ups and better accuracy

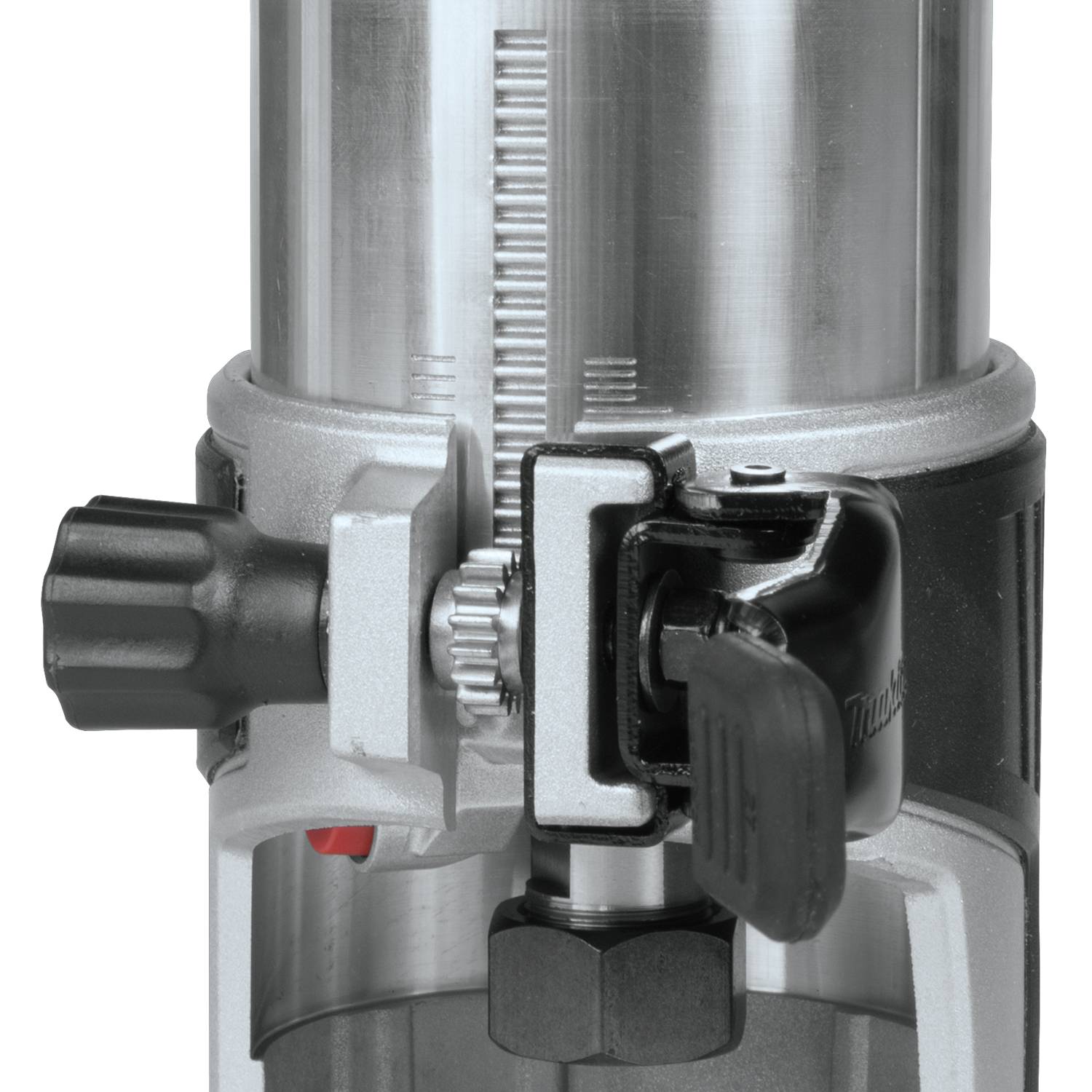

  • Smooth rack-and-pinion fine depth adjustment system for more precise settings
  • Slim and ergonomically designed body with rubberized grip for increased comfort and control
  • Aluminum housing and base for increased durability and accuracy

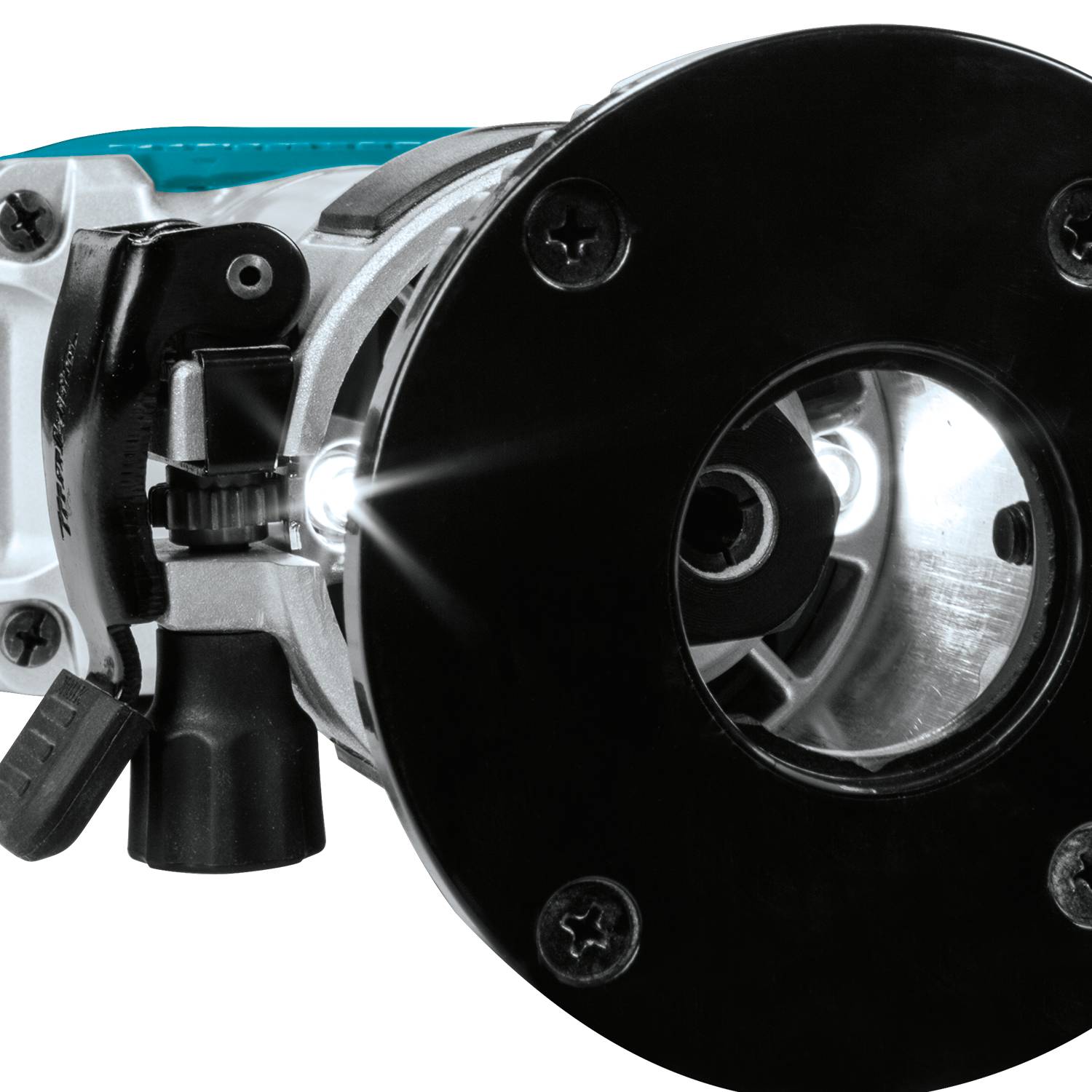

  • Dual L.E.D. lights illuminate the work area
  • Quick release cam lock system for convenient depth adjustments and base removal/installation
  • Accepts industry standard template guides
  • High visibility base design for improved handling and performance
  • Available in various combinations for added versatility (additional bases and attachments sold separately)
  • Base can be removed quickly to install other bases
  • Plunge capacity of 0 - 1-3/8" with plunge base attached and 0 - 1-9/16" with trimmer base attached (bases sold separately)
  • Non-marring high-durability base insert for increased work piece protection
  • Shaft lock for quick and easy bit changes

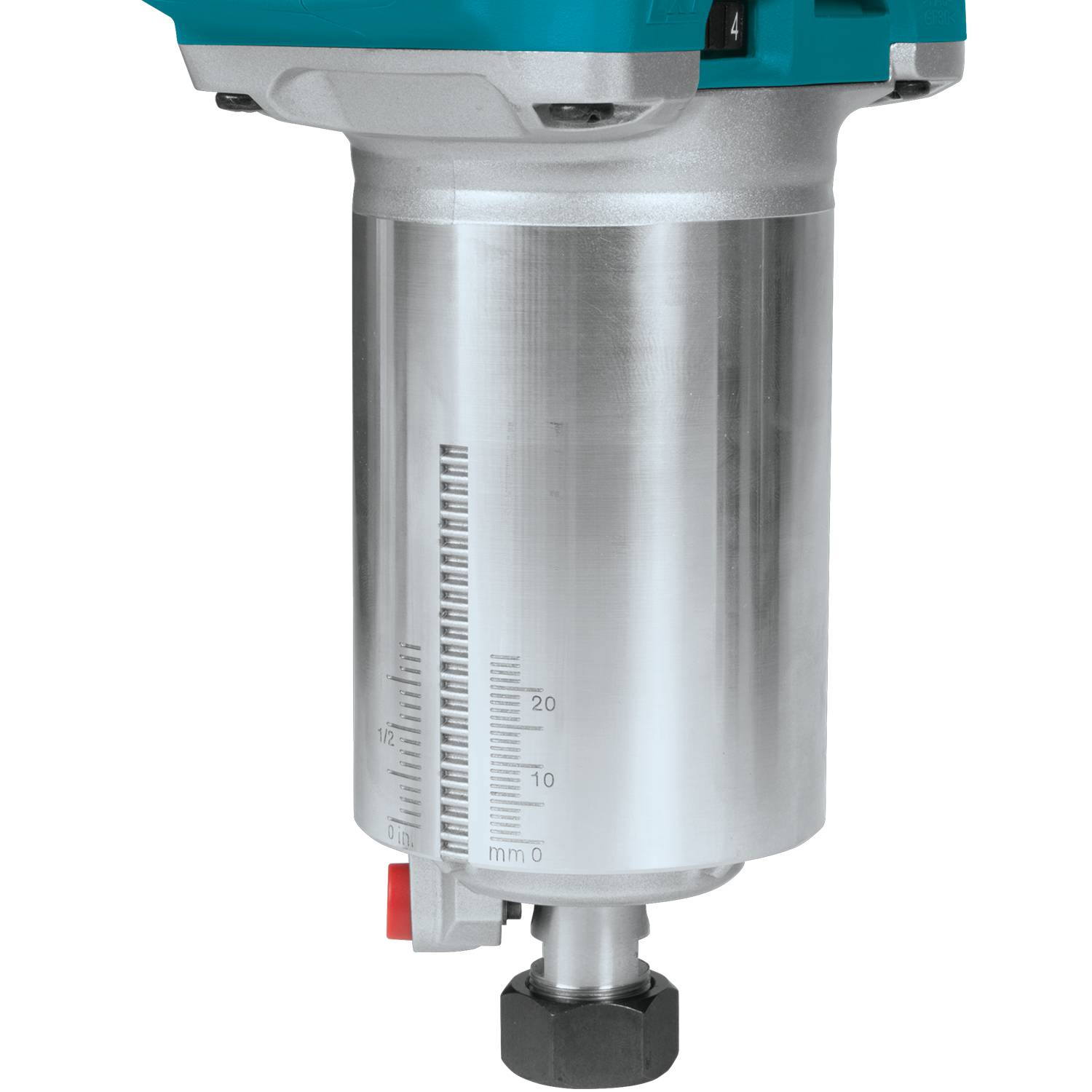

  • Easy-to-read depth scales
  • Uses 1/4" shank routers bits
  • Compact and ergonomic design at 8-7/8" tall; weighs only 4.6 lbs. with battery (battery not included) for reduced operator fatigue
  • Connects to Makita vacuum cleaners with optional dust nozzle for a cleaner work environment
  • Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
  • Rapid Optimum Charger and Dual Port Rapid Optimum Chargers communicate with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and chargers sold separately)
  • Rapid Optimum Charger and Dual Port Rapid Optimum Chargers have a built-in fan to cool the battery for faster, more efficient charging (battery and charger sold separately)
  • Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
  • Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (batteries sold separately)
  • 3-year limited warranty

Includes

  • (1) Spanner Wrench (781011-1)
  • (1) Spanner Wrench (781039-9)
  • (1) 1/4" Collet (763637-1)
  • (1) Straight Guide (122965-7)

Specs

  • Collet : 1/4"
  • No Load Speed (variable speed) : 10,000 - 30,000 RPM
  • Brushless Motor : Yes
  • Battery : 18V LXT® Lithium-Ion
  • Overall Length : 5-1/4"
  • Net Weight : 4.6 lbs.
  • Base : Fixed
  • Variable speed control dial : Yes
  • LED light : Yes
  • Constant speed control : Yes
  • Shipping Weight : 5.3 lbs.
  • UPC Code : 088381-844420
