/Products/Power Tools/Makita/LXT 18V/XRH01Z 18V LXT® Brushless 1" SDS+ Rotary Hammer
Click Image to Expand

Product ID: XRH01Z

XRH01Z 18V LXT® Brushless 1" SDS+ Rotary Hammer

MFG: Makita USA, Inc
MFG Part Number: XRH01Z

Available Stock: 1
Selected accessories will also be added to cart
$379.00 / Tool Only
Quantity:
Bare Tool
  • DURABILITY : Torque Limiting Clutch prevents gear damage by automatically disengaging gears if the bit binds
  • VERSATILITY : Multiple Chisel Positions has 40 different positions to align tool more comfortably with the app.
  • COMFORT : Weighs only 7.2 lbs. with battery (battery not included) for reduced operator fatigue
  • CONTROL : Variable speed trigger enables user to match the speed to application for greater versatility
  • INCLUDES : Includes tool only (battery and charger not included)

About Model

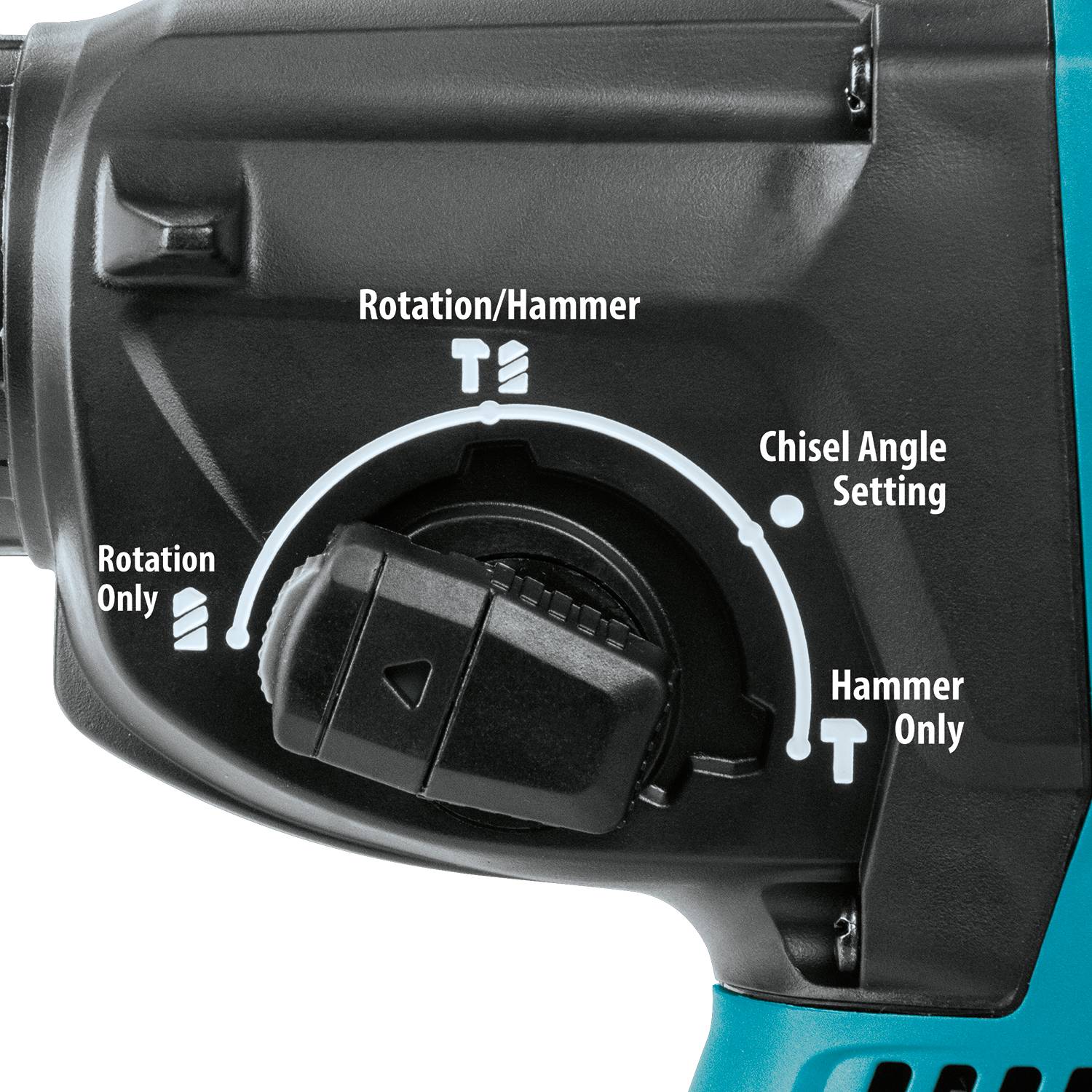

The 18V LXT® Lithium-Ion Brushless 1” Rotary Hammer (model XRH01Z, tool only, batteries and charger sold separately) is a cordless concrete drilling solution powered by an efficient Makita BL™ Brushless Motor for up to 50% longer run time, increased power and speed, and longer tool life. The XRH01Z delivers 0-950 RPM, 4,700 BPM, and 2.0 Joules of impact energy. Ease-of-use and efficiency features include 3-mode operation (rotation only, hammering with rotation and hammer only), a large 2-finger trigger for more convenience and greater comfort, and a depth adjustment guide for increased drilling depth accuracy.

The XRH01Z is compatible with the optional HEPA Dust Extraction Vacuum Attachment (model DX01, sold separately) for improved dust extraction without the cord.

It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.

Features

  • Efficient BL™ Brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
  • The BL™ Brushless Motor eliminates carbon brushes, enabling the BL™ Motor to run cooler and more efficiently for longer life
  • Compact and ergonomic design at only 12-7/8" long
  • Weighs only 7.2 lbs. with battery (battery not included) for reduced operator fatigue
  • Variable speed trigger enables user to match the speed to application for greater versatility
  • Multiple Chisel Positions has 40 different positions to align tool more comfortably with the application
  • Torque Limiting Clutch prevents gear damage by automatically disengaging gears if the bit binds
  • Sequential Impact Timing provides timed hammering during rotation to minimize overlapping bit impacts resulting in up to 50% faster drilling
  • Job Site tested shock absorbent handle protect the battery housing for extra durability
  • Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
  • Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature (battery and charger sold separately)
  • Rapid Optimum Charger has a built-in fan to cool the battery for faster, more efficient charging (battery and charger sold separately)
  • Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger (battery and charger sold separately)
  • Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
  • 3-year limited warranty
  • Battery and charger sold separately
  • Only use genuine Makita batteries and chargers
Read More...

Includes

  • (1) Side Handle (158057-6)
  • (1) Depth Gauge (234219-0)

    Specs

    • Max. Capacity (concrete drilling) : 1"
    • No Load Speed (variable speed) : 0 - 950 RPM
    • Blows Per Minute (variable speed) : 0 - 4,700 BPM
    • Impact Energy (Joules) : 2.4 J
    • Impact Energy (ft.lbs.) : 1.7
    • Bit Type : Accepts SDS-PLUS
    • Battery : 18V LXT® Lithium-Ion
    • Overall Length : 12-7/8"
    • Net Weight (with battery) : 7.2 lbs.
    • Power Type : Cordless
    • Vibration (m/s²) : 13.5
    • Shipping Weight : 7.1 lbs.
    • UPC Code : 088381-654333
