/Products/Electric Motors/Single Phase/Marathon/Pedestal Fan/X925 Marathon 1/2HP Pedestal Fan Electric Motor, 1140RPM
Click Image to Expand

Product ID: 048A11T2026

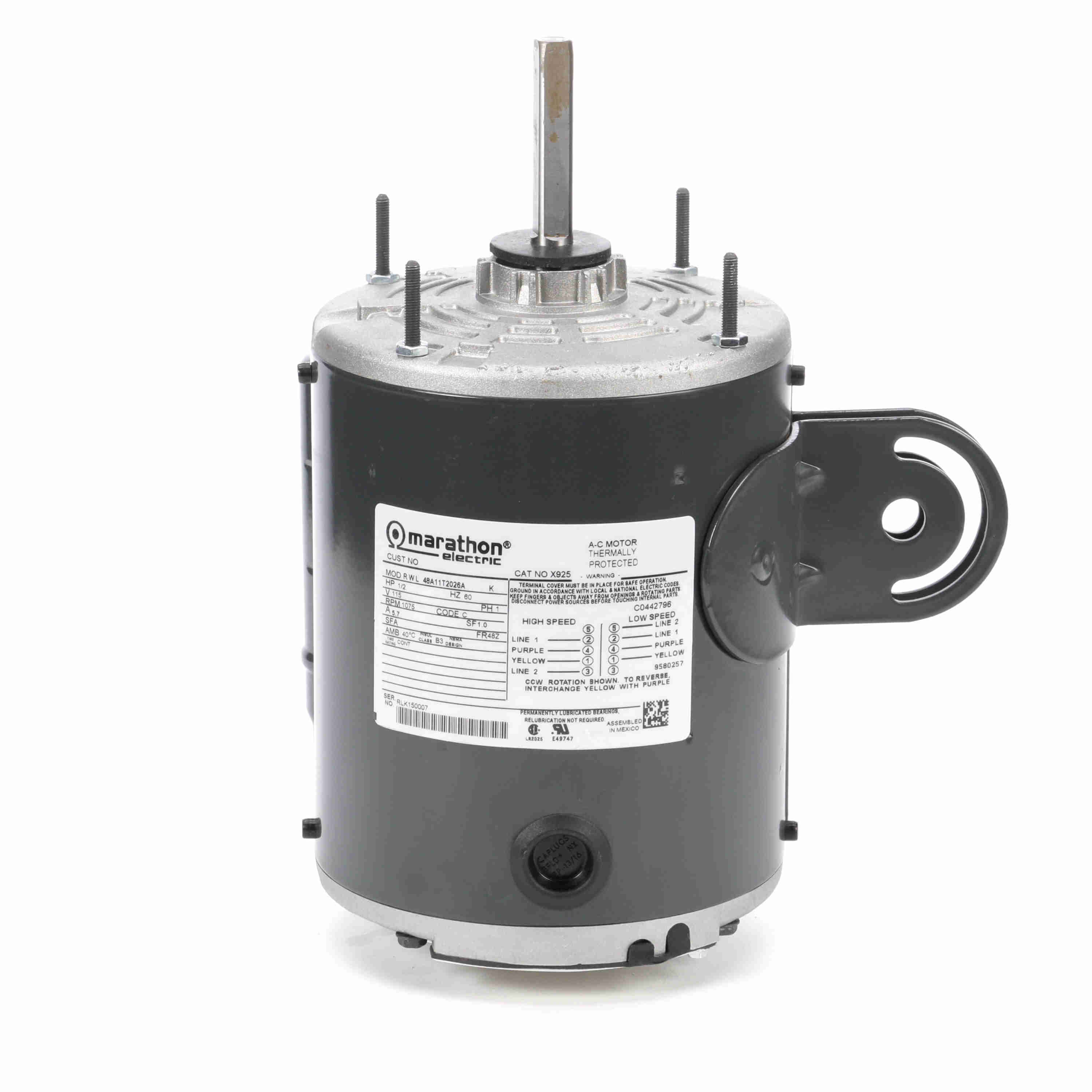

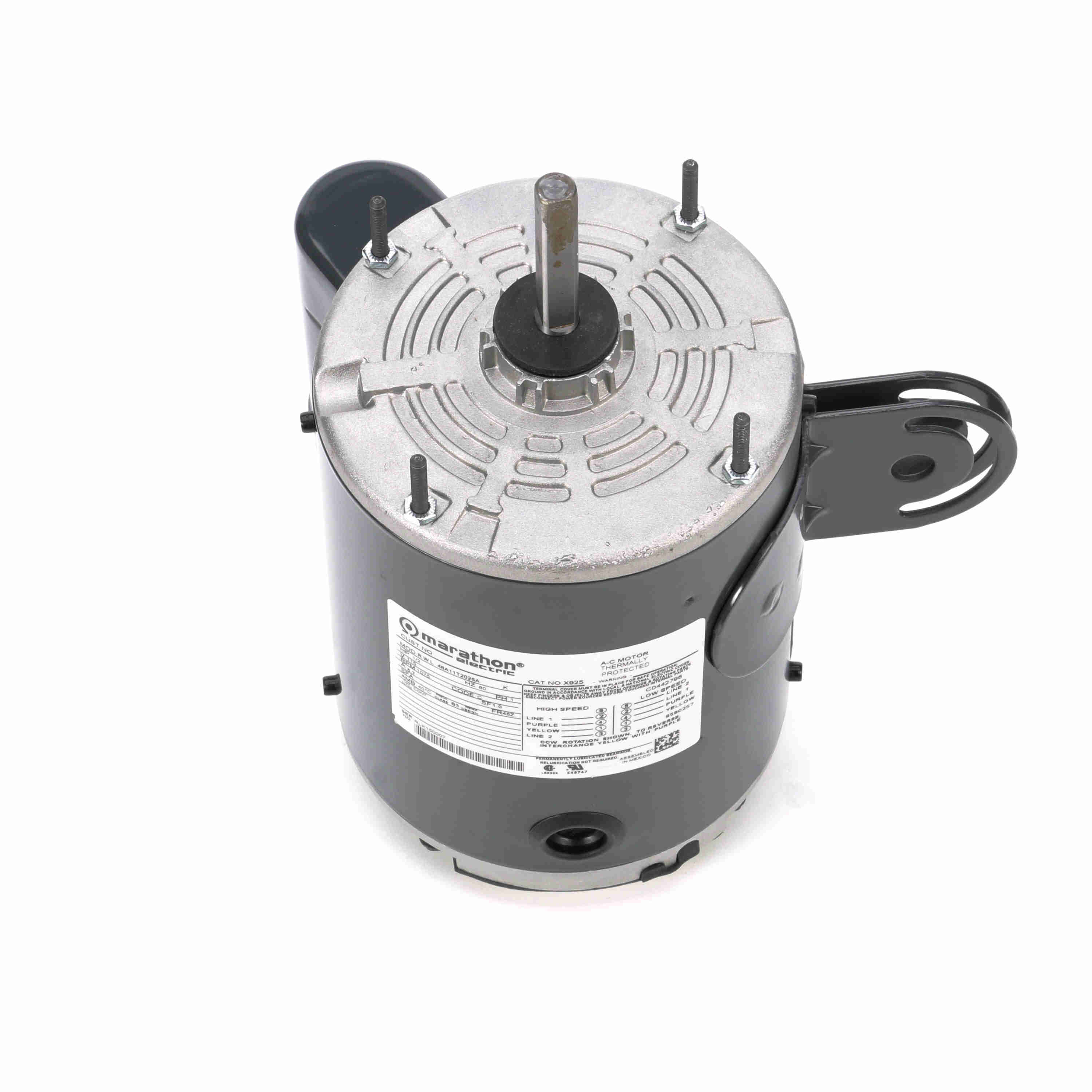

X925 Marathon 1/2HP Pedestal Fan Electric Motor, 1140RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 048A11T2026

Selected accessories will also be added to cart
$469.97 / Each
Quantity:
TEAO, 48Z Frame, 115V Single Phase 60Hz, 048A11T2026

Features

Features
  • Heavy gauge steel frame and yoke fan shroud mounted by four 7/8” extended stud bolts on 5-1/8” bolt circle
  • Multi-speed model
  • Automatic reset thermal protector
  • 1/2” x 2-1/2” long shaft with two flats, 90° apart
  • Capacitor included

General Specifications

General Specifications
Model :048A11T2026 Catalog No :X925
Part Description :1/2,1140,TEAO,48Y,1/60/115 Category :Pedestal Fan
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :115 V
Current :5.7 A Speed :1075 rpm
Service Factor :1 Phase :1
Efficiency :64 % Duty :Continuous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :C Frame :48Z
Enclosure :Totally Enclosed Air Over Overload Protector :Automatic Lock Rotor Only
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :6 Rotation :Selective Counterclockwise
Mounting :Round - Swing Arm Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :10.81 in Frame Length :6.25 in
Shaft Diameter :0.500 in Shaft Extension :2.56 in
Assembly/Box Mounting :F1 Only UPC :722856042170
Weight :25.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up17.10300.015.0041.0311.5377.80.50
Locked-Rotor17.00298.00.000.001.5378.20.50
Full Load5.70100.037.00100.011,3531.2094.40.50
Break-Down11.20196.066.60180.09071.2091.10.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.15
  • 0.190
  • 0.0
  • 0.0
  • 1,200
  • 0.0
  • 0.00
  • 25 %
  • 2.69
  • 0.269
  • 34.6
  • 86.6
  • 1,180
  • 0.0
  • 9.00
  • 50 %
  • 3.39
  • 0.358
  • 52.1
  • 91.6
  • 1,167
  • 0.0
  • 18.00
  • 75 %
  • 4.23
  • 0.456
  • 61.3
  • 93.9
  • 1,151
  • 0.0
  • 27.40
  • 100 %
  • 5.21
  • 0.568
  • 65.7
  • 94.7
  • 1,130
  • 0.0
  • 37.20
  • 125 %
  • 6.49
  • 0.704
  • 66.2
  • 94.4
  • 1,101
  • 0.0
  • 47.80
