/Products/Electric Motors/Single Phase/Marathon/Ventilation Fan/X912 Marathon 1HP Ventilation Fan Electric Motor, 1725RPM
Click Image to Expand

Product ID: X912

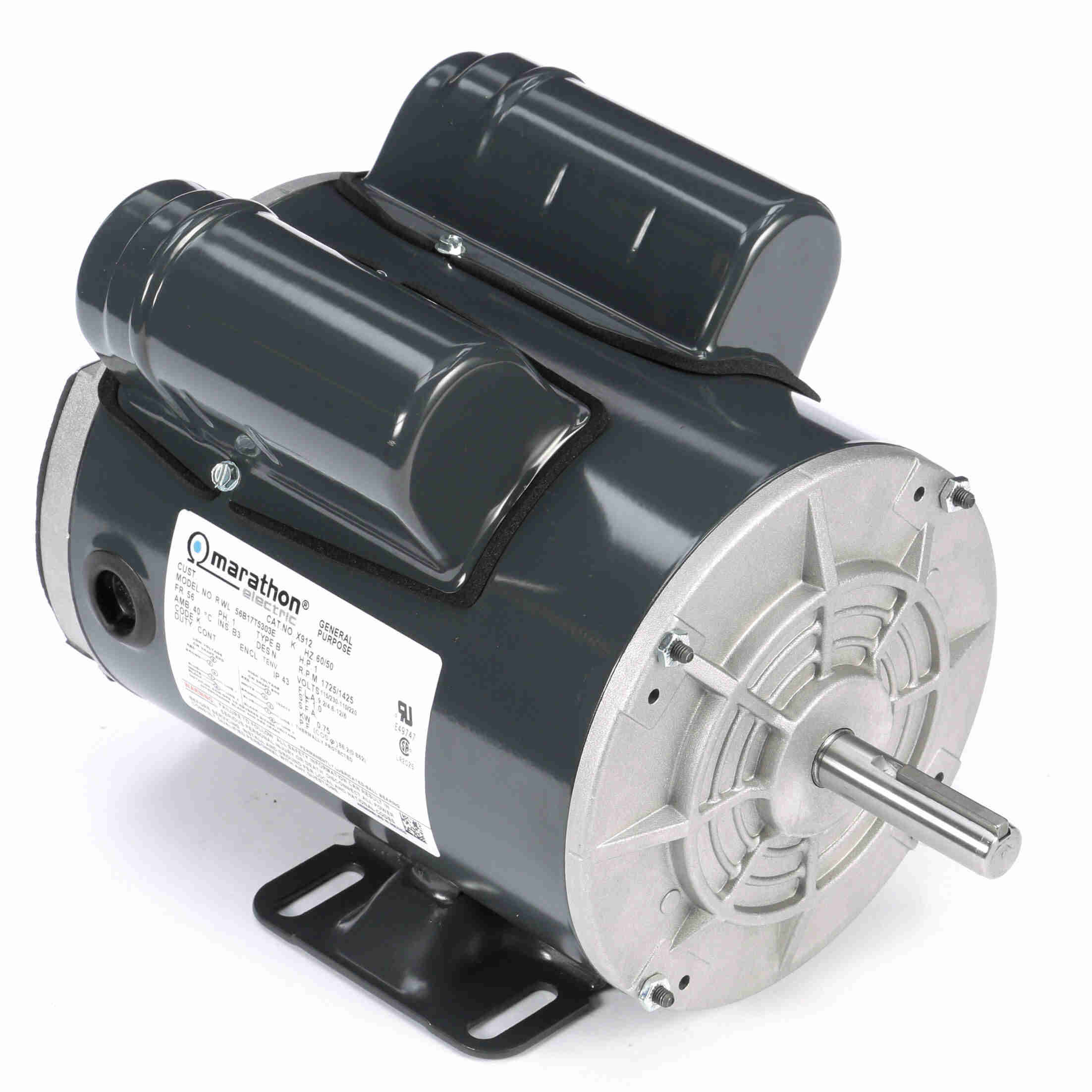

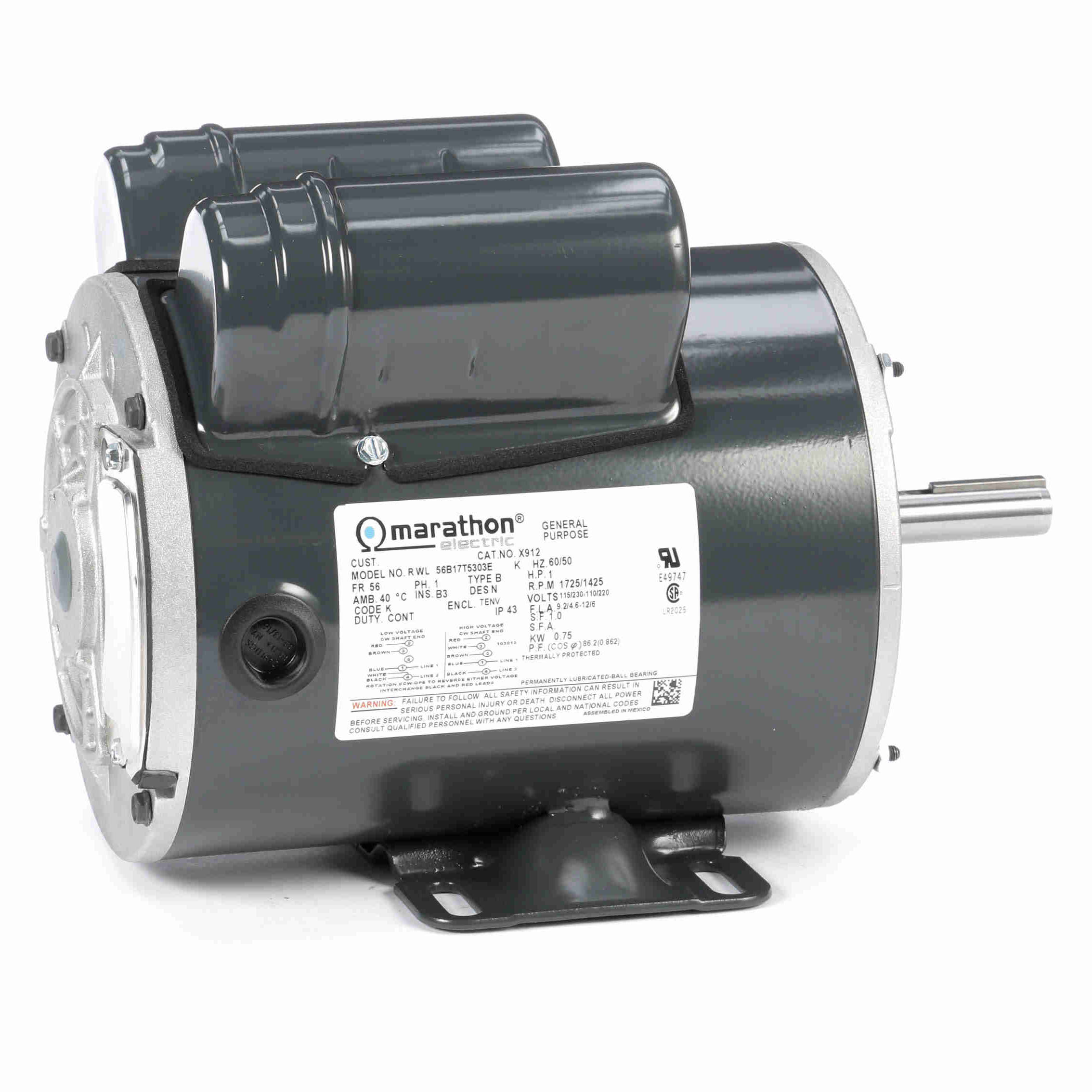

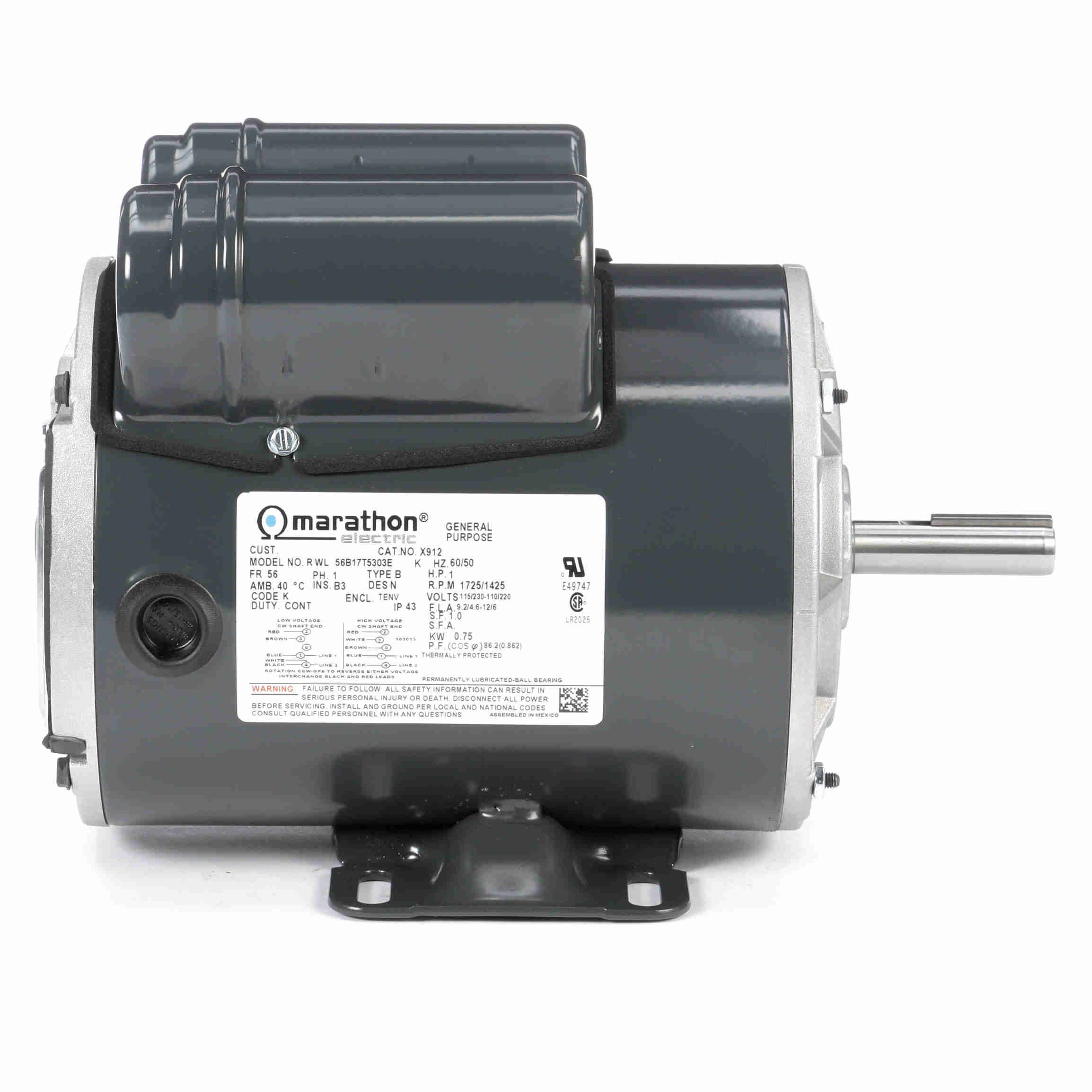

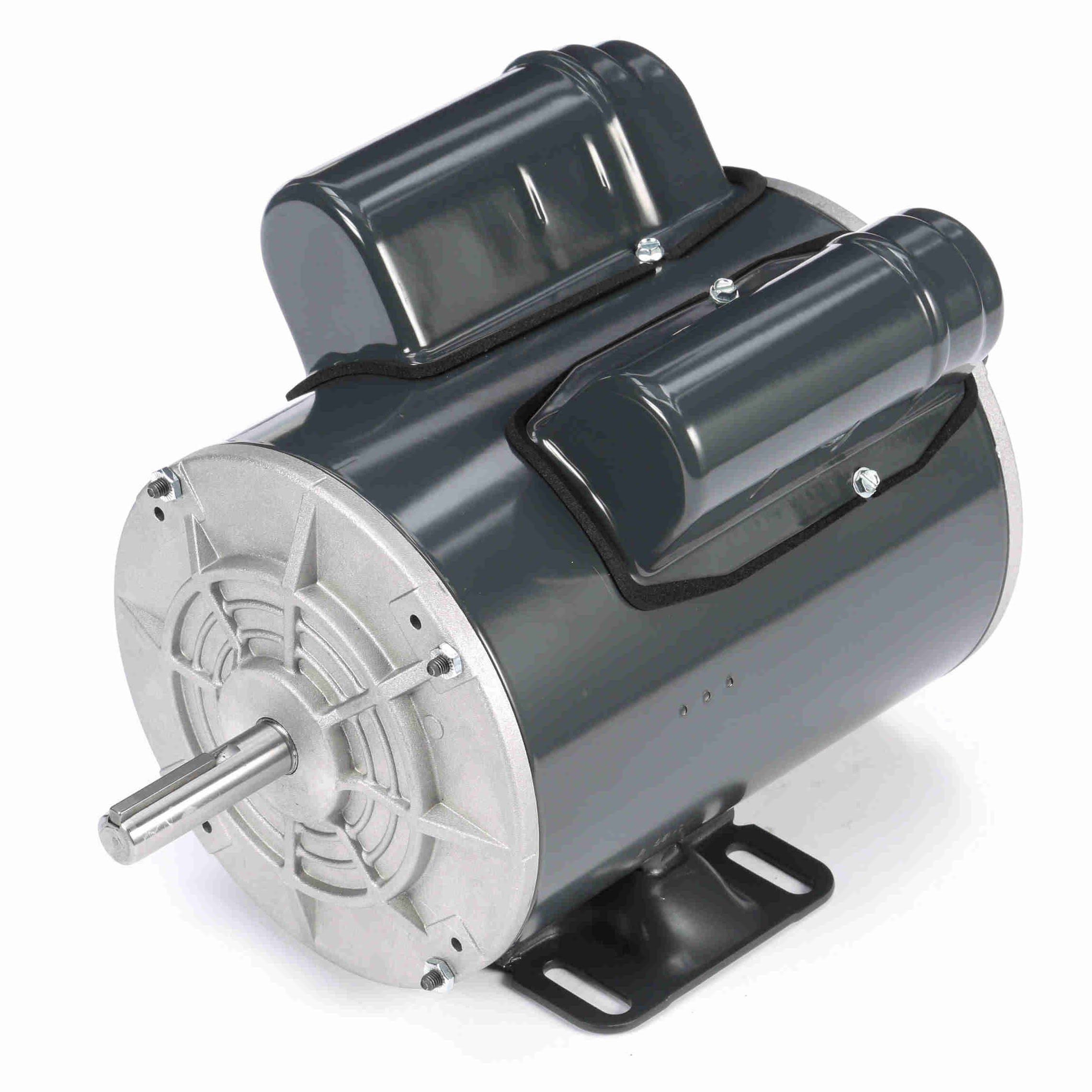

X912 Marathon 1HP Ventilation Fan Electric Motor, 1725RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: X912

Selected accessories will also be added to cart
$649.97 / Each
Quantity:
TEAO, 56 Frame, 115/230V Single Phase 50/60Hz, Rigid Base, 056B17T5303

Features

Features
  • Capacitor start/capacitor run design
  • Automatic reset thermal protector for higher efficiency
  • Suitable for belted loads
  • Fully gasketed
  • Continuous duty
  • Capacitor start/capacitor run design for reduced amperage

General Specifications

General Specifications
Model :056B17T5303 Catalog No :X912
Part Description :1,1725,TEAO,56,1/60/50/115/230-110/220 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1 HP Output KW :0.75 kW
Frequency :60 Hz Voltage :115/230 V
Current :9.2/4.6 A Speed :1725 RPM
Service Factor :1 Phase :1
Efficiency :81.1 % Duty :Continous
Insulation Class :B Design Code :N
KVA Code :K Frame :56
Enclosure :Totally Enclosed Non Ventilated Overload Protector :Automatic Lock Rotor Only
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :11.44 in Frame Length :7.56 in
Shaft Diameter :0.625 in Shaft Extension :2.32 in
Assembly/Box Mounting :F1 Only UPC :722856028099
Weight :32.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down17.70129.001,5143.401.00
Pull-Up36.6091.401646.801.00
Locked-Rotor36.60117.8006.801.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.95
  • 0.130
  • 0.0
  • 29.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 2.27
  • 0.308
  • 60.8
  • 59.0
  • 1,789
  • 0.0
  • 11.80
  • 50 %
  • 2.93
  • 0.499
  • 75.0
  • 74.0
  • 1,778
  • 0.0
  • 23.70
  • 75 %
  • 3.72
  • 0.702
  • 79.8
  • 82.0
  • 1,767
  • 0.0
  • 35.70
  • 100 %
  • 4.63
  • 0.918
  • 81.1
  • 86.2
  • 1,755
  • 0.0
  • 47.80
  • 115 %
  • 5.00
  • 0.972
  • 77.0
  • 86.0
  • 1,748
  • 0.0
  • 55.68
  • 125 %
  • 5.68
  • 1.150
  • 81.0
  • 88.0
  • 1,741
  • 0.0
  • 60.30
  • 150 %
  • 6.89
  • 1.410
  • 79.3
  • 89.0
  • 1,723
  • 0.0
  • 73.10
  • 175 %
  • 8.33
  • 1.710
  • 76.4
  • 89.3
  • 1,700
  • 0.0
  • 86.60
  • 200 %
  • 10.20
  • 2.100
  • 71.1
  • 89.5
  • 1,665
  • 0.0
  • 101.00
