/Products/Electric Motors/Single Phase/Marathon/Ventilation Fan/X029 Marathon 1/2HP Ventilation Fan Electric Motor, 1075RPM
Click Image to Expand

Product ID: X029

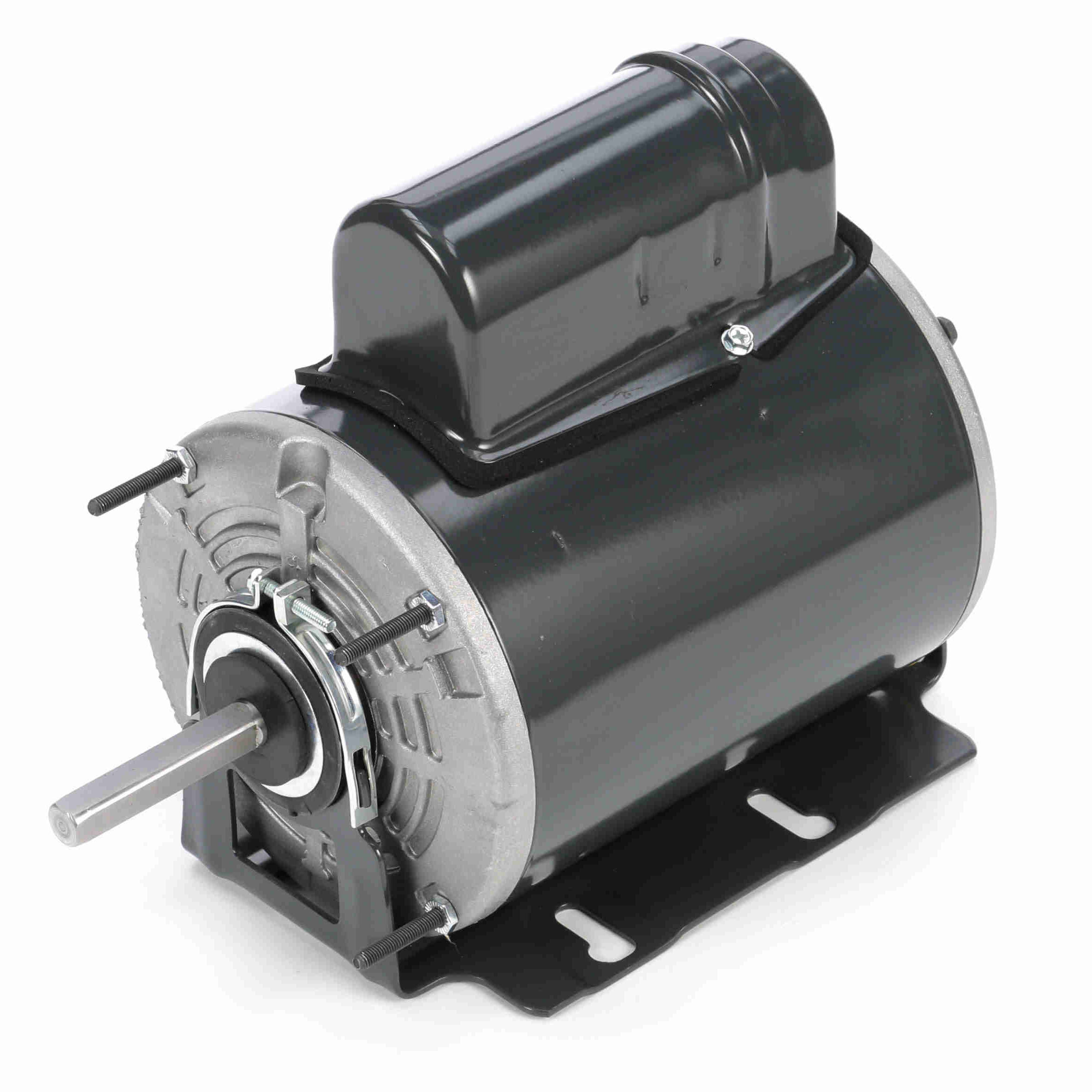

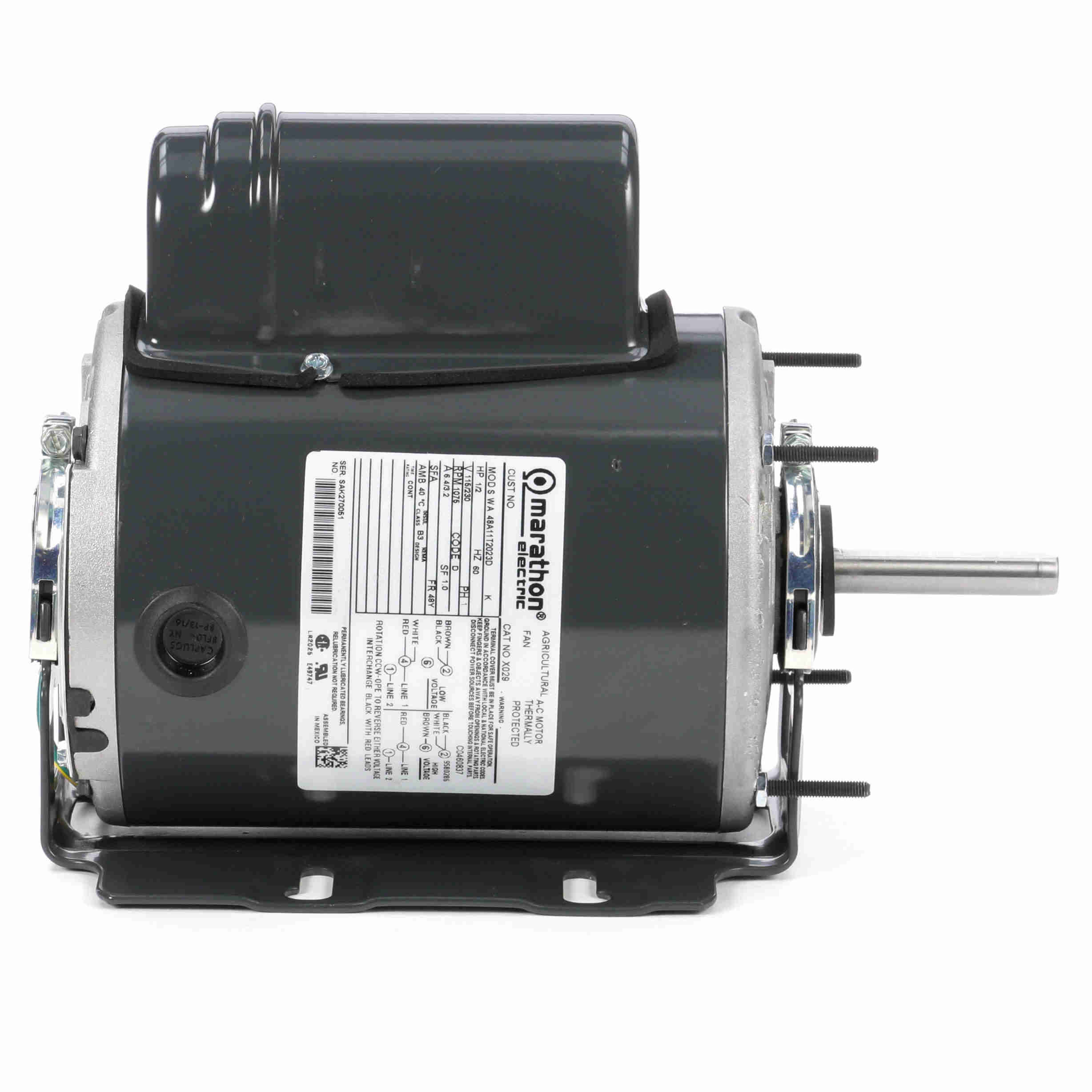

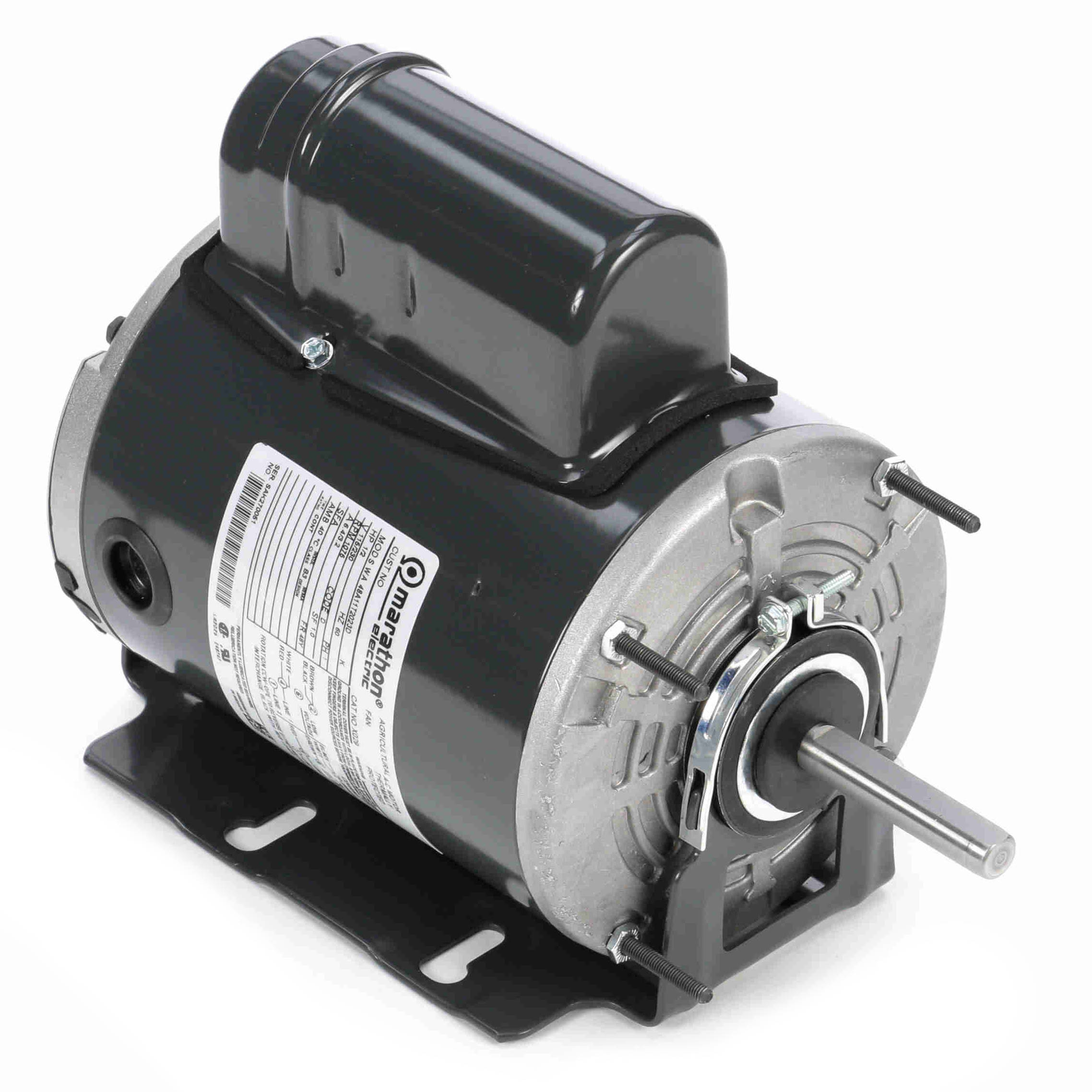

X029 Marathon 1/2HP Ventilation Fan Electric Motor, 1075RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: X029

Temporarily out of stock
Selected accessories will also be added to cart
$229.97 / Each
Quantity:
TENV, 48Y Frame, 115/230V Single Phase 60Hz, Resilient Base - Extended Studs, 048A11T2023

Features

Features
  • Suitable for belted loads
  • Automatic reset thermal protector
  • Fully gasketed

General Specifications

General Specifications
Model : Catalog No :C582
Part Description :1,1725,TEAO,56,1/60/230/115 Category :Belt Drive Fan
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1.0 HP Output KW :0.75 kW
Frequency :60 Hz Voltage :230/115 V
Current :4.8/9.6 A Speed :1725 RPM
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :T56 Enclosure :Totally Enclosed Air Over
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start, Capacitor Run, Low Starting Torque, Single Or Dual Voltage Starting Method :Across The Line
Poles :4 Rotation :Reversible Counterclockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :12.44 in
Frame Length :6.50 in Shaft Diameter :0.625 in
Shaft Extension :1.94 in UPC :786674016270
Weight :39.00 LB

Speed & Load Characteristics
