/Products/Electric Motors/Single Phase/Marathon/Ventilation Fan/X026 Marathon 1/2HP Ventilation Fan Electric Motor, 1625RPM
Click Image to Expand

Product ID: X026

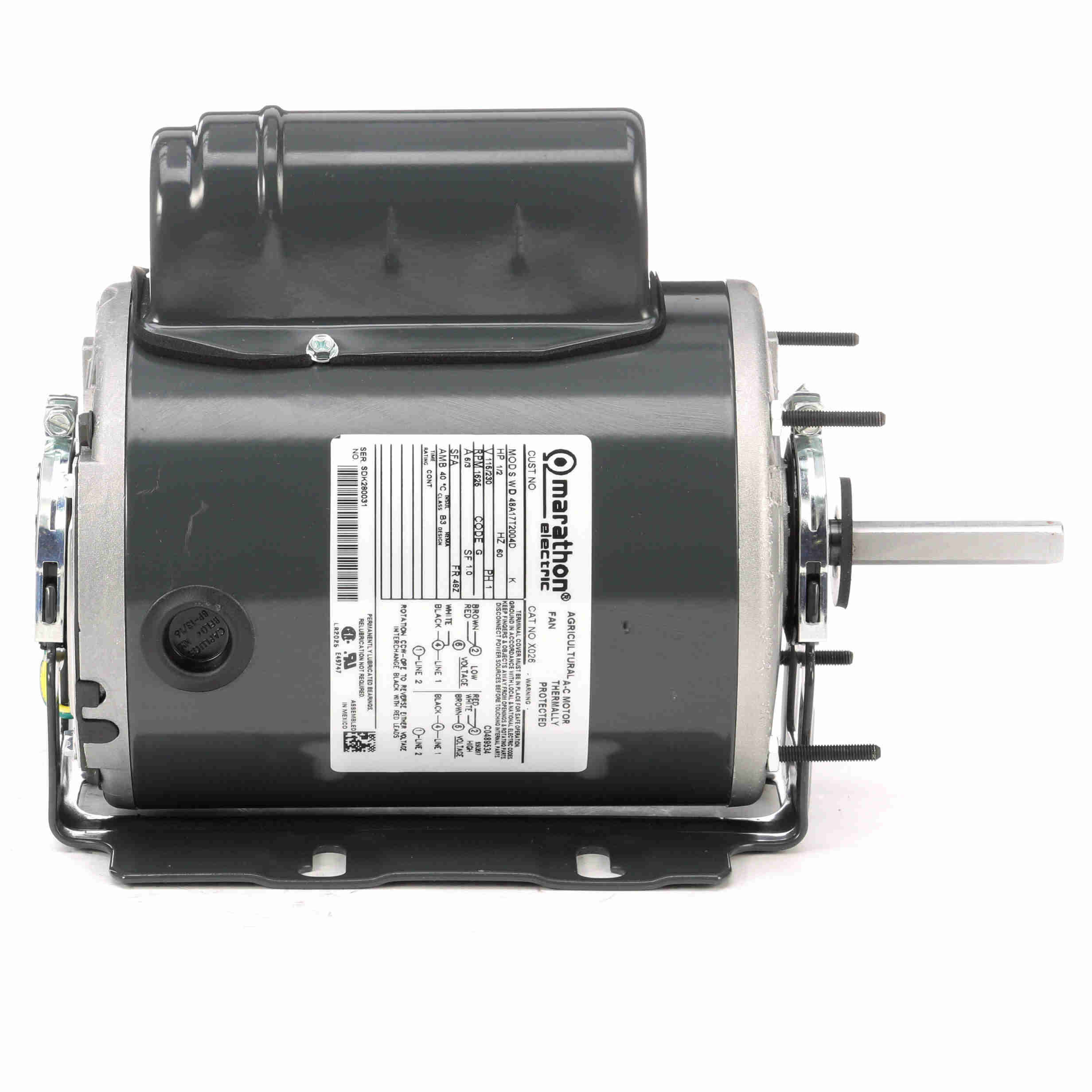

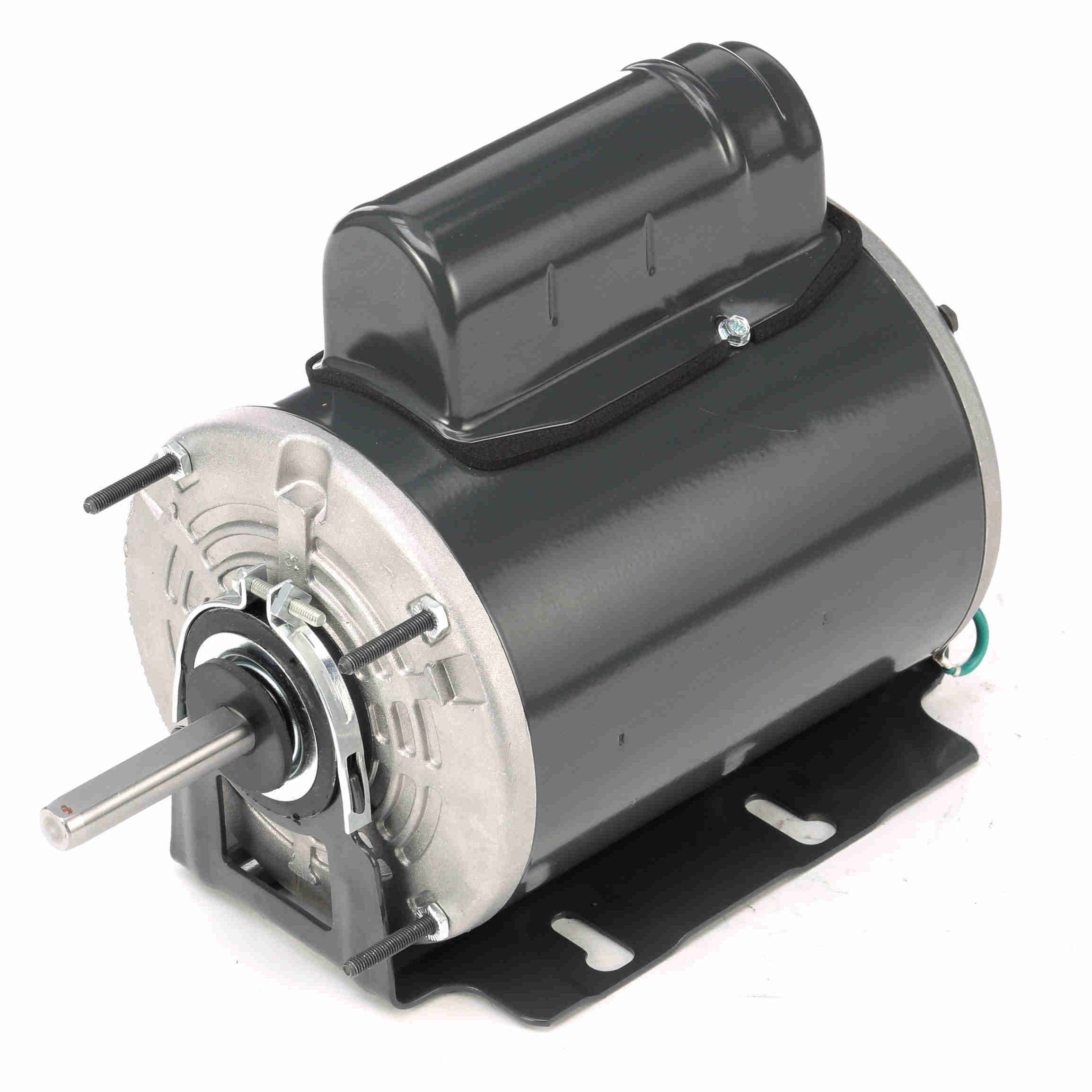

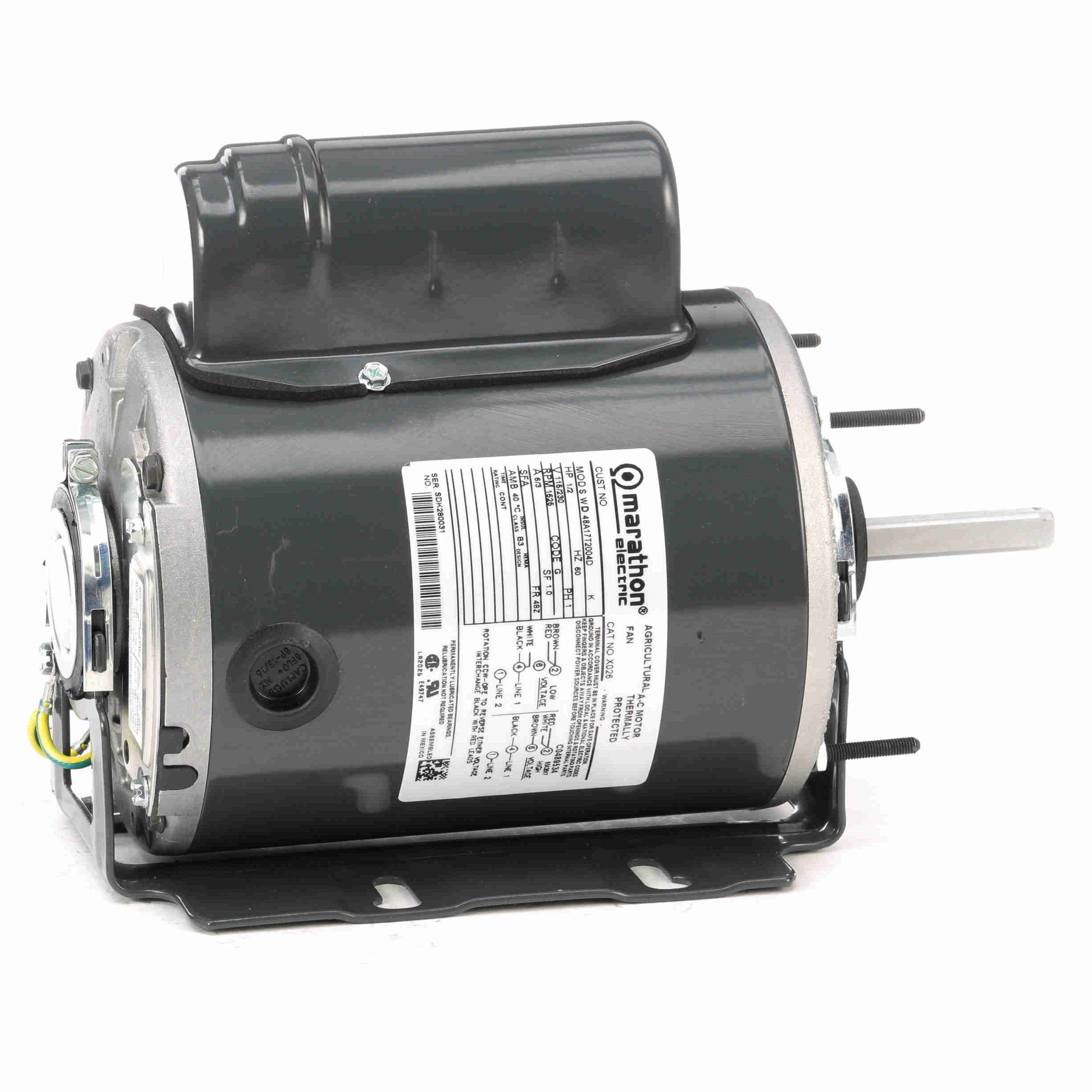

X026 Marathon 1/2HP Ventilation Fan Electric Motor, 1625RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: X026

Selected accessories will also be added to cart
$349.97 / Each
Quantity:
TENV, 48Z Frame, 115/230VAC Single Phase 60Hz, 048A17T2004, Resilient Base - Extended Studs, Rolled Steel, 1/2" Shaft

Features

Features
  • Extended thru-bolts
  • Fully gasketed
  • 48/56 Frame mounting holes
  • Continuous duty
  • Automatic reset thermal protector
  • 1/2” dia. x 2-1/2” long shaft with two flats, 90º apart

General Specifications

General Specifications
Model :048A17T2004 Catalog No :X026
Part Description :1/2,1625,TENV,48Z,1/60/115/230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.50 HP Output KW :0.37 kW
Frequency :60 Hz Voltage :115/230 V
Current :6.0/3.0 A Speed :1625 RPM
Service Factor :1 Phase :1
Efficiency :70 % Duty :Continuous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :G Frame :48Z
Enclosure :Totally Enclosed Air Over Overload Protector :Automatic Lock Rotor Only
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Resilient Base - Extended Studs Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :10.84 in Frame Length :6.25 in
Shaft Diameter :0.500 in Shaft Extension :2.56 in
Assembly/Box Mounting :F1 Only UPC :722856028013
Weight :22.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load3.00100.024.70100.01,7020.520.00.50
Locked-Rotor11.40380.018.0073.002.200.00.50
Pull-Up11.40380.017.7072.0202.200.00.50
Break-Down7.70257.062.70254.01,2641.600.00.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.92
  • 0.159
  • 0.0
  • 0.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 1.98
  • 0.237
  • 0.0
  • 0.0
  • 1,776
  • 0.0
  • 6.00
  • 50 %
  • 2.18
  • 0.323
  • 0.0
  • 0.0
  • 1,753
  • 0.0
  • 12.00
  • 75 %
  • 2.47
  • 0.417
  • 0.0
  • 0.0
  • 1,730
  • 0.0
  • 18.30
  • 100 %
  • 3.00
  • 0.521
  • 70.0
  • 79.5
  • 1,702
  • 0.0
  • 24.70
  • 125 %
  • 3.30
  • 0.635
  • 0.0
  • 0.0
  • 1,670
  • 0.0
  • 31.50
  • 150 %
  • 3.82
  • 0.768
  • 0.0
  • 0.0
  • 1,629
  • 0.0
  • 38.70
  • 175 %
  • 4.56
  • 0.937
  • 0.0
  • 0.0
  • 1,572
  • 0.0
  • 46.80
