/Products/Electric Motors/Single Phase/Marathon/Ventilation Fan/X025 Marathon 1/3HP Ventilation Fan Electric Motor, 1625RPM
Click Image to Expand

Product ID: X025

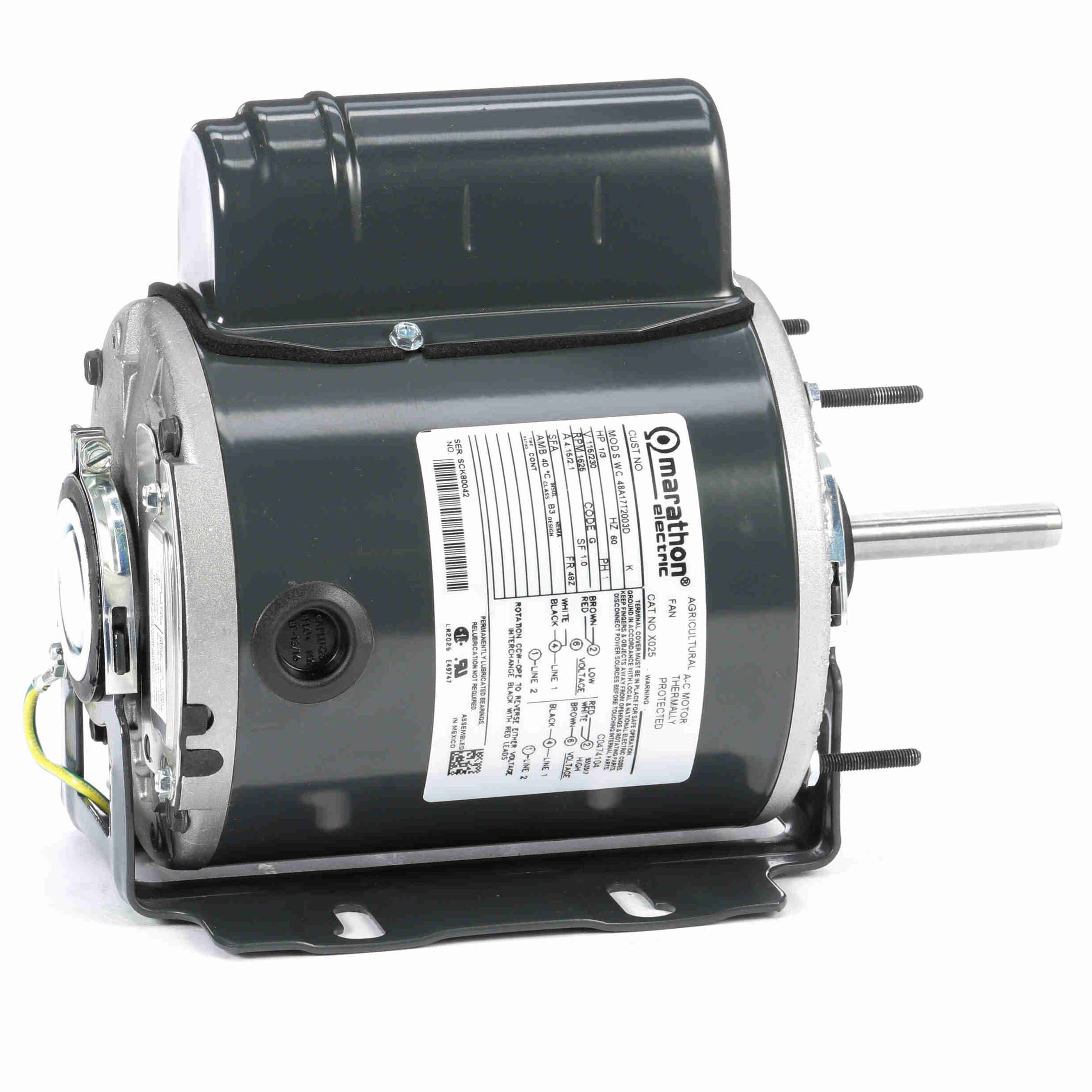

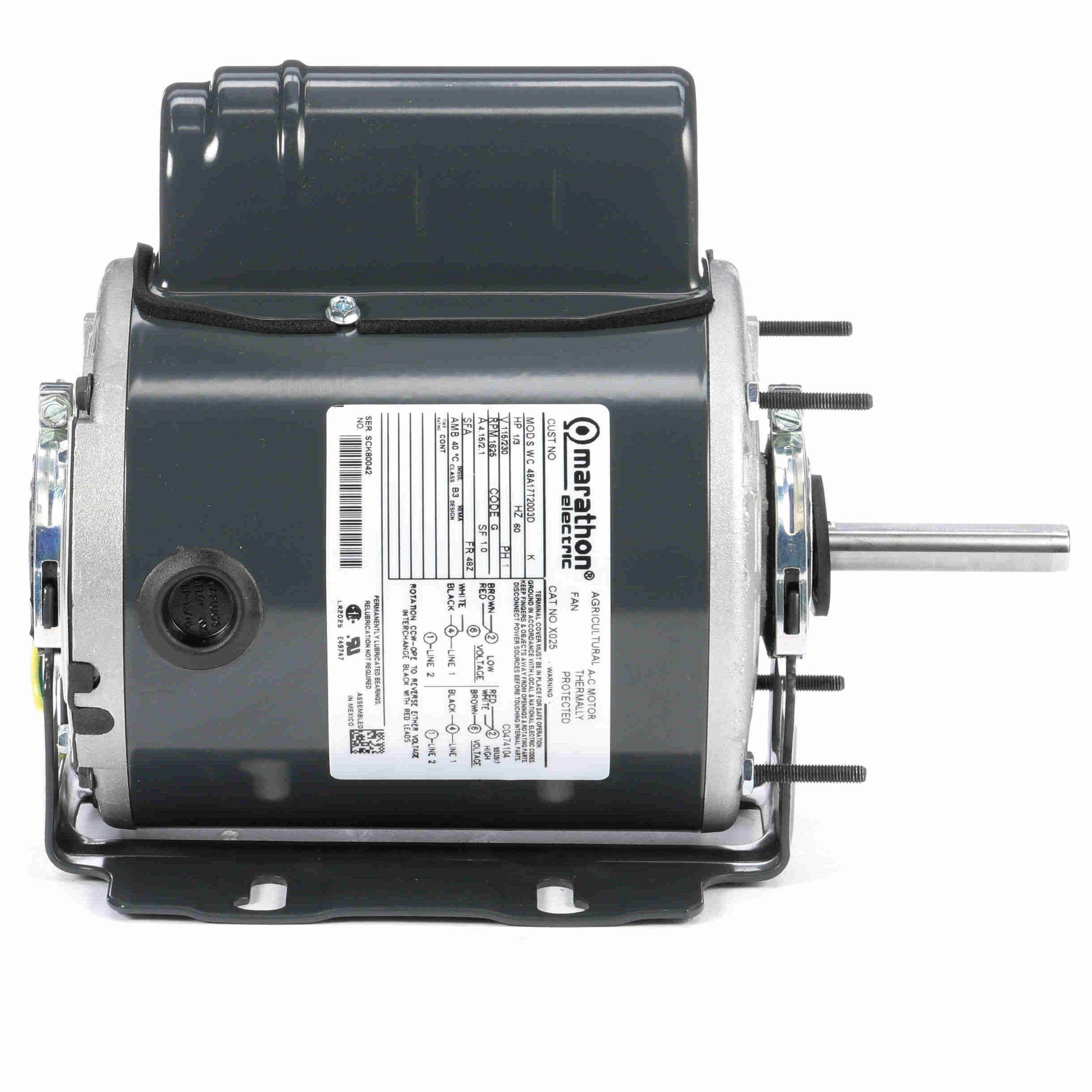

X025 Marathon 1/3HP Ventilation Fan Electric Motor, 1625RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: X025

Selected accessories will also be added to cart
$319.97 / Each
Quantity:
TENV, 48Z Frame, 115/230V Single Phase 60Hz, 048A17T2003, Resilient Base - Extended Studs, Rolled Steel, 1/2" Shaft

Features

Features
  • Extended thru-bolts
  • Fully gasketed
  • 48/56 Frame mounting holes
  • Continuous duty
  • Automatic reset thermal protector
  • 1/2” dia. x 2-1/2” long shaft with two flats, 90º apart

General Specifications

General Specifications
Model :048A17T2003 Catalog No :X025
Part Description :1/3,1625,TENV,48Z,1/60/115/230 Category :Single Phase
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :0.33 HP Output KW :0.25 kW
Frequency :60 Hz Voltage :115/230 V
Current :4.2/2.1 A Speed :1625 RPM
Service Factor :1 Phase :1
Efficiency :68.5 % Duty :Continuous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :G Frame :48Z
Enclosure :Totally Enclosed Air Over Overload Protector :Automatic Lock Rotor Only
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Resilient Base - Extended Studs Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :10.09 in Frame Length :5.50 in
Shaft Diameter :0.500 in Shaft Extension :2.56 in
Assembly/Box Mounting :F1 ONLY UPC :722856028006
Weight :18.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down5.60269.042.40259.01,3361.130.00.33
Pull-Up8.50409.08.7954.0331.570.00.33
Locked-Rotor8.40404.09.5758.001.570.00.33
Full Load2.08100.016.40100.01,7120.360.00.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.47
  • 0.106
  •
  •
  • 1,800
  •
  • 0.00
  • 25 %
  • 1.52
  • 0.164
  •
  •
  • 1,778
  •
  • 3.98
  • 50 %
  • 1.65
  • 0.226
  •
  •
  • 1,758
  •
  • 7.97
  • 75 %
  • 1.85
  • 0.293
  •
  •
  • 1,736
  •
  • 12.20
  • 100 %
  • 2.20
  • 0.364
  • 70.0
  • 79.0
  • 1,712
  • 0.0
  • 16.40
  • 125 %
  • 2.38
  • 0.444
  •
  •
  • 1,683
  •
  • 20.80
  • 150 %
  • 2.76
  • 0.538
  •
  •
  • 1,644
  •
  • 25.60
  • 175 %
  • 3.26
  • 0.652
  •
  •
  • 1,593
  •
  • 30.80
