Product ID: PESW-B9V24AX-R58

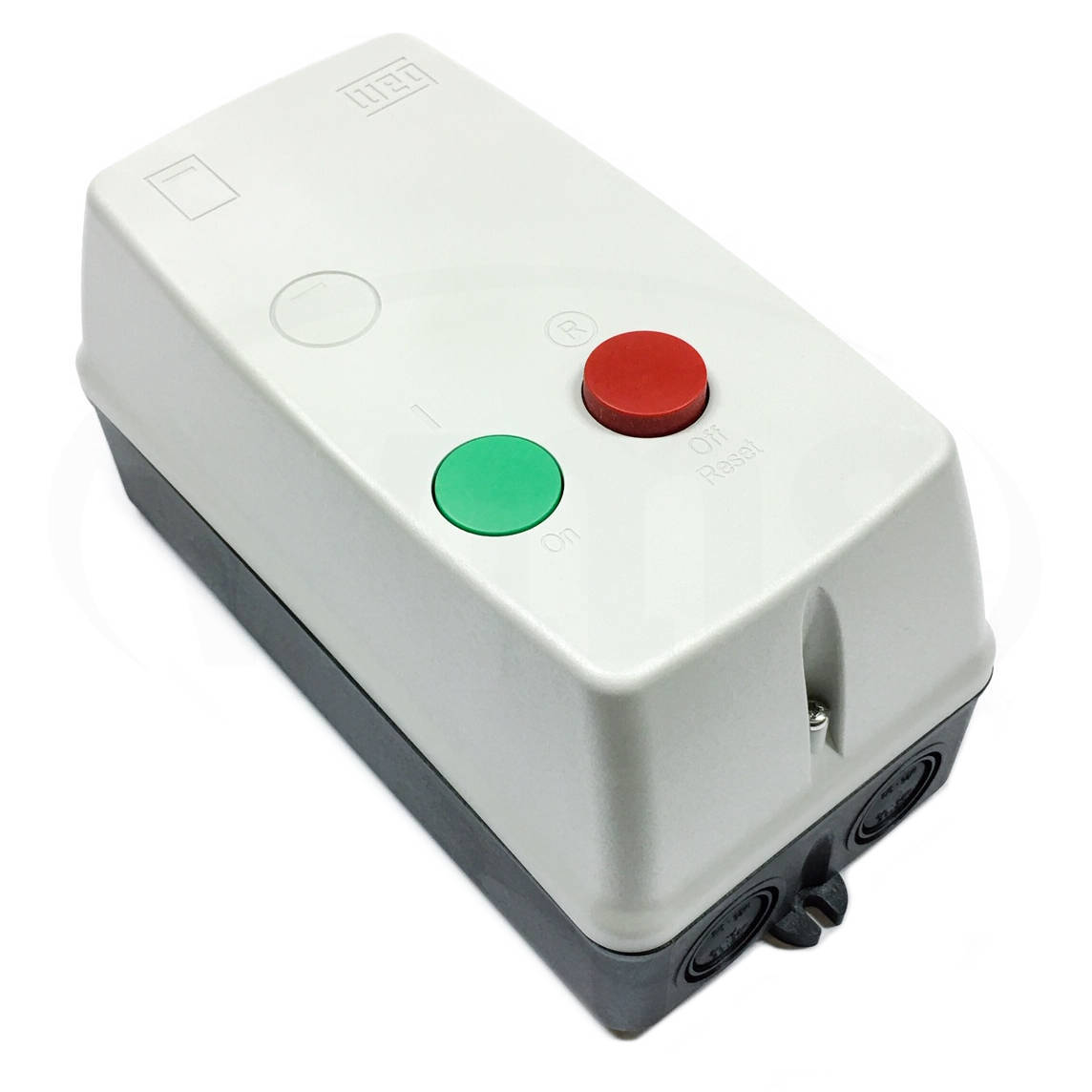

Weg Enclosed Starter PESW-B9V24AX-R58

MFG: WEG Electric Corporation
MFG Part Number: PESW-B9V24AX-R58

Selected accessories will also be added to cart

$102.90 / Each

Quantity:

3-Phase, Start/Stop + Reset Pushbutton, NEMA 4X Enclosure, 208-230VAC Coil, 13455469

Details
Purchase Components

Description

The PESW-B is WEG’s latest offering in a NEMA 4X Non Metallic Enclosure, Non-Reversing and Non-Combination Motor Starter. These starters feature components that meet IEC design standards and UL horsepower ratings while incorporating replaceable WEG CWB contactors and RW27-2D overload relays. These magnetic starters are ideal to protect and operate motors, ensuring smooth and reliable operation year after year.

Specifications

Manufacturer	WEG
Catalog Number	PESW-B9V24AX-R58 13455469
Enclosure	NEMA 4X Non-metallic
Coil Voltage	180-208VAC 50Hz 208-240VAC 60Hz
Overload Setting Range	1.2-1.8 Amps
Max UL Horsepower	3/4 HP @ 460VAC 1 HP @ 575VAC
Control	Start + Stop/Reset Buttons
Box	05
Poles	3-Pole (3-Phase)
Type	Non-Reversing Non-Combination Across the Line
UPC	7909322174860

Standard Features

NEMA 4X Enclosure with Knockouts
Fast Motor Acceleration and High Initial Motor Torque
Bi-metallic Overload Relays – Class 10
Adjustable Trip Current
Selectable Manual or Automatic Reset
High Horsepower in Four Compact Sizes
Phase Loss Protection
Ambient Temperature Compensated
East to Setup and Install
c UL us

Dimensions

øA	5.5mm 0.2165"
B	219.0mm 8.622"
C	112.0mm 4.4331"
D	114.0mm 4.4882"
E	229.5mm 9.0354"
Provision for Cable Gland Fitting	Top: 2 x ½" -3/4" PG13.5 Bottom: 2 x ½" – ¾" PG13.5 Back: 4 x ½" PG13.5

Manufacturer Info

Start Type	Direct Threephase Start
Maximum power rating	NAO APLICAVEL
Rated operational voltage	Ue=Uc
Supply voltage	180-208V 50Hz / 208-240V 60Hz
Starter key operation	A-On-Off Button
Degree of protection	TYPE4X
STARTERS COMPLEMENTS	Does Not Contain

NOMINAL RATED CURRENT (AC-3)	9A (B)
OVERLOAD RELAY	RW27-2D3-D018
MEASURING TOOL AND ACCESSORIES	Not Applicable
BUTTON TYPE	Unspecified
BUTTON COLOR	Not Specified
Connection Type	Not Applicable
