Product ID: PESW-B32V24AX-R68

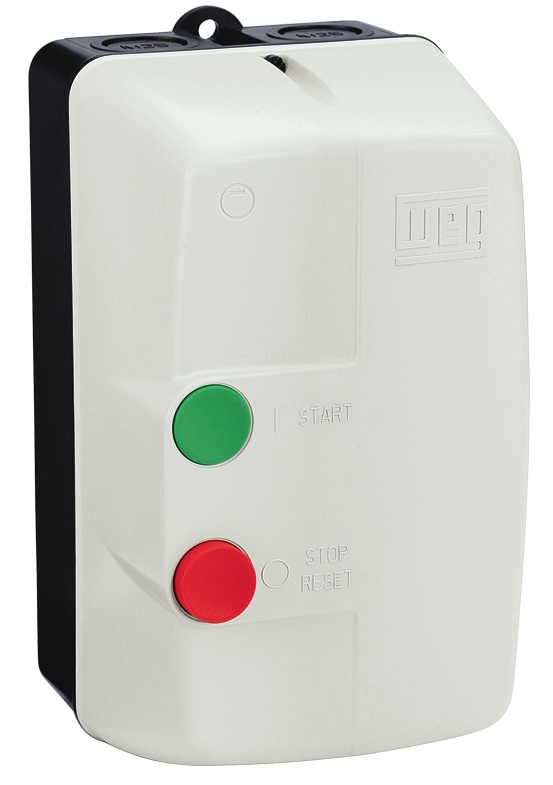

Weg Enclosed Starter PESW-B32V24AX-R68

MFG: WEG Electric Corporation
MFG Part Number: PESW-B32V24AX-R68

Available Stock: 2

Selected accessories will also be added to cart

$146.02 / Each

Quantity:

3-Phase, NEMA 4X, 208-230V Coil, 22-32A Range, Start/Stop + Reset Pushbutton, 13438783

Details
Purchase Components

Description

The PESW-B is WEG’s latest offering in a NEMA 4X Non Metallic Enclosure, Non-Reversing and Non-Combination Motor Starter. These starters feature components that meet IEC design standards and UL horsepower ratings while incorporating replaceable WEG CWB contactors and RW27-2D overload relays. These magnetic starters are ideal to protect and operate motors, ensuring smooth and reliable operation year after year.

Specifications

Manufacturer	WEG
Catalog Number	PESW-B32V24AX-R68 13438783
Enclosure	NEMA 4X Non-metallic
Coil Voltage	180-208VAC 50Hz 208-240VAC 60Hz
Overload Setting Range	22-32 Amps
Max UL Horsepower	10 HP @ 200VAC 10 HP @ 230VAC 20 HP @ 460VAC 25 HP @ 575VAC
Control	Start + Stop/Reset Buttons
Box	06
Poles	3-Pole (3-Phase)
Type	Non-Reversing Non-Combination Across the Line
UPC	7909322140438

Standard Features

NEMA 4X Enclosure with Knockouts
Fast Motor Acceleration and High Initial Motor Torque
Bi-metallic Overload Relays – Class 10
Adjustable Trip Current
Selectable Manual or Automatic Reset
High Horsepower in Four Compact Sizes
Phase Loss Protection
Ambient Temperature Compensated
East to Setup and Install
c UL us

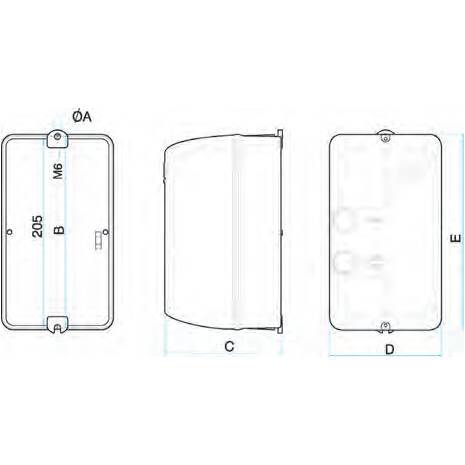

Dimensions

øA	6.5mm 0.3"
B	205.0mm 8.1"
C	126.0mm 5.0"
D	120.0mm 4.7"
E	210mm 8.3"
Provision for Cable Gland Fitting	Bottom: 2 x ½" – ¾" PG13.5 Back: ø22mm (0.9in)

Manufacturer Info

Start Type	Direct Threephase Start
Maximum power rating	NAO APLICAVEL
Rated operational voltage	Ue=Uc
Supply voltage	180-208V 50Hz / 208-240V 60Hz
Starter key operation	A-On-Off Button
Degree of protection	TYPE4X
STARTERS COMPLEMENTS	Does Not Contain

NOMINAL RATED CURRENT (AC-3)	32A (B)

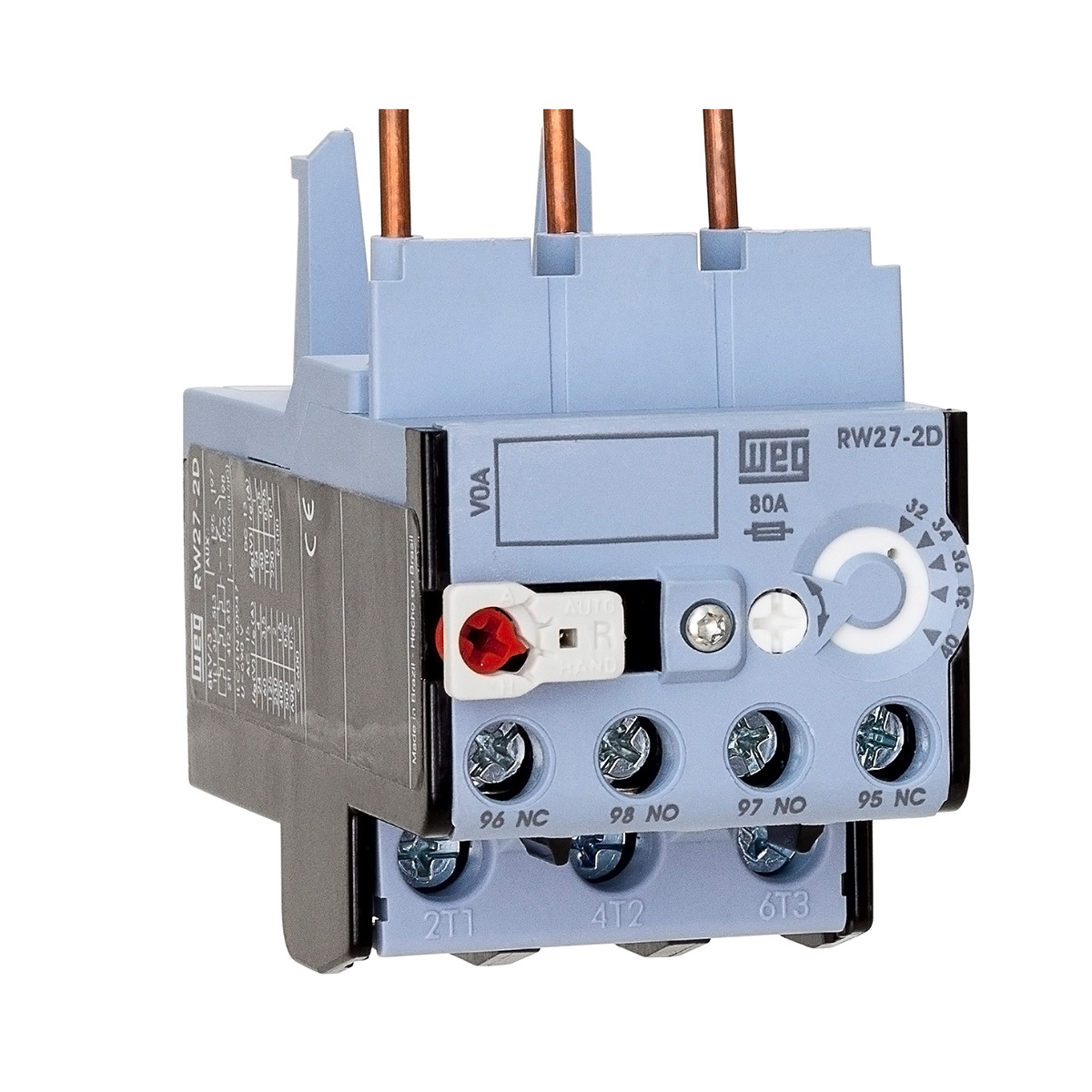

OVERLOAD RELAY	RW27-2D3-U032
MEASURING TOOL AND ACCESSORIES	Not Applicable
BUTTON TYPE	Unspecified
BUTTON COLOR	Not Specified
Connection Type	Not Applicable
