Product ID: PESW-B12V24EX-R64

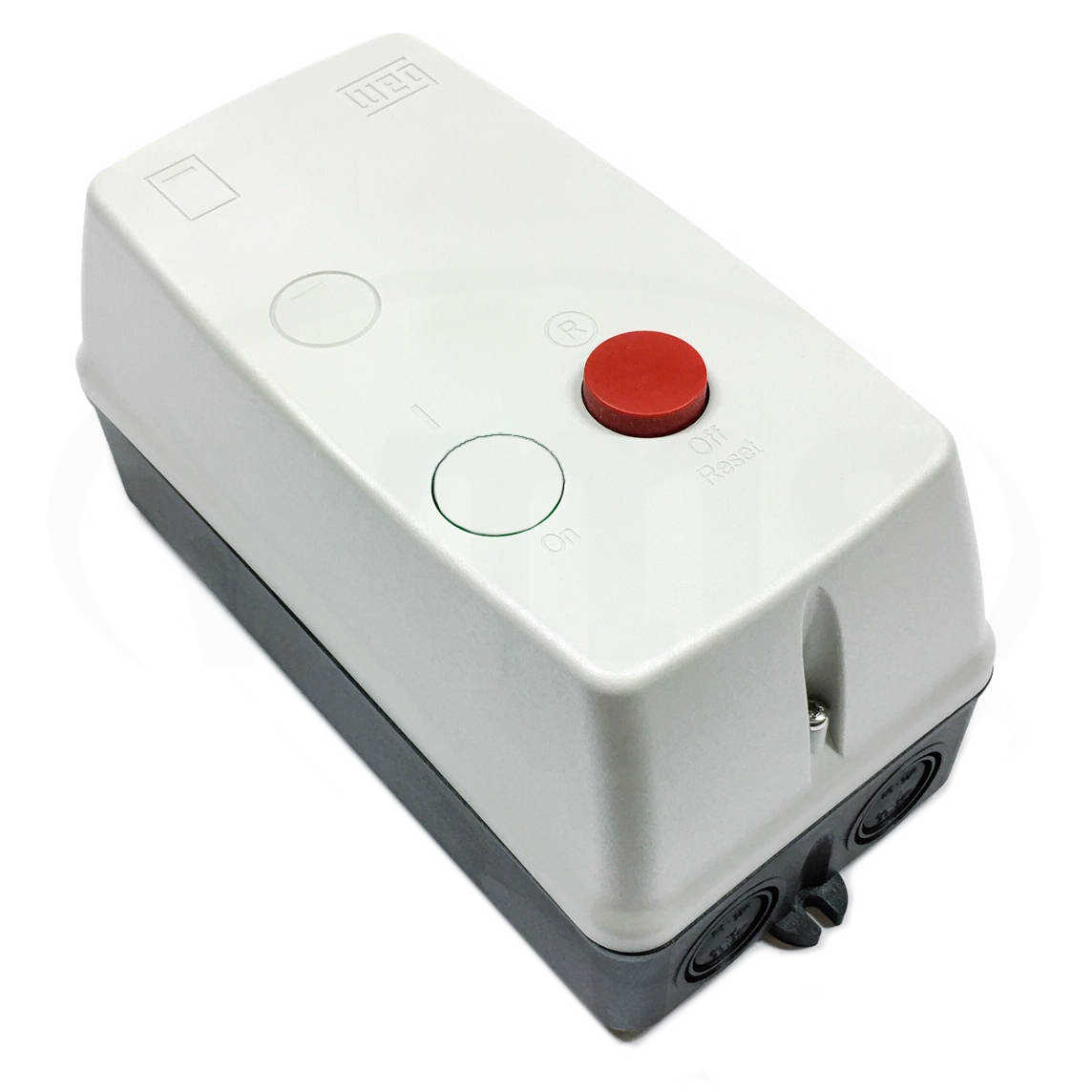

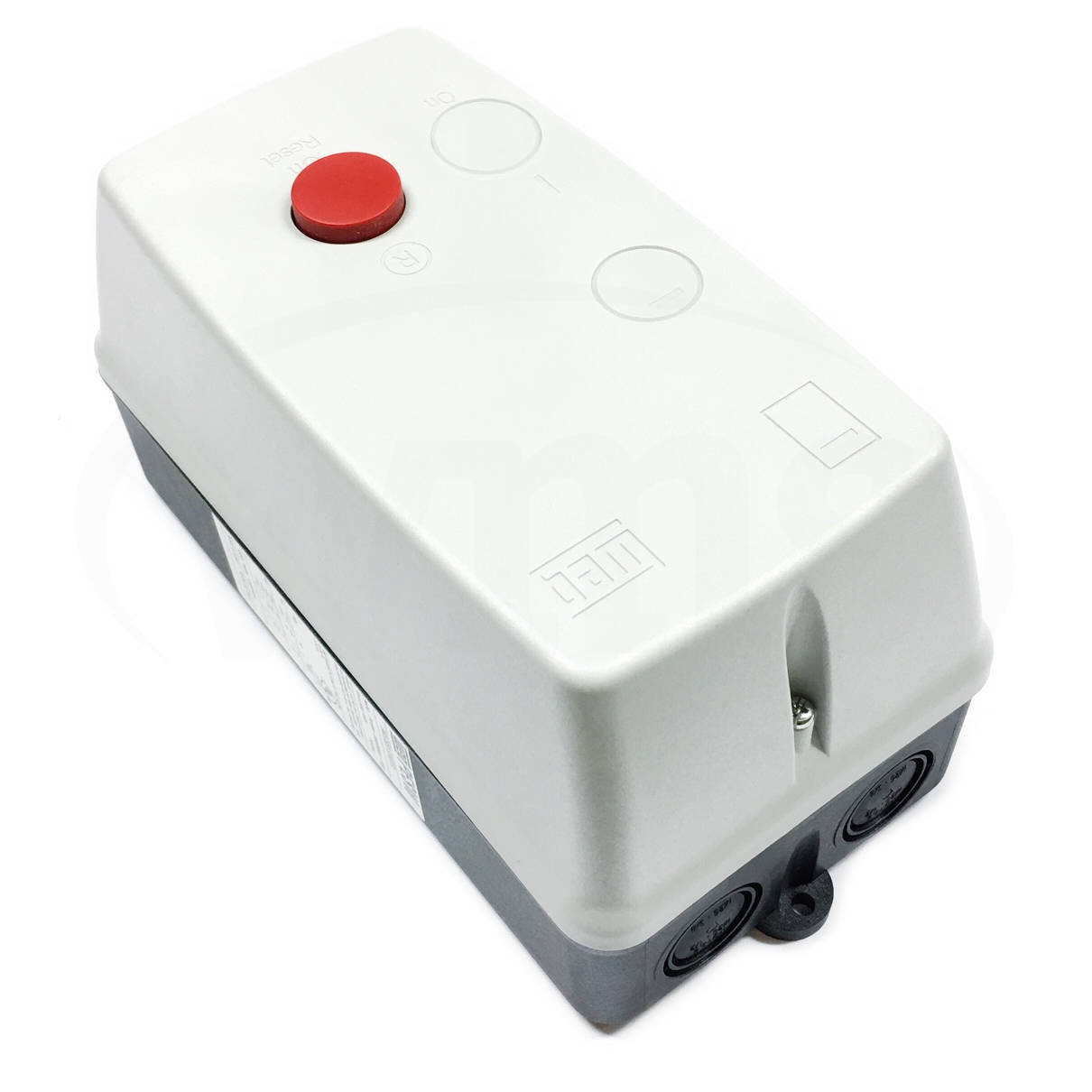

Weg Enclosed Starter PESW-B12V24EX-R64

MFG: WEG Electric Corporation
MFG Part Number: PESW-B12V24EX-R64

Selected accessories will also be added to cart

$85.26 / Each

Quantity:

3HP @ 200 - 230V, 7-1/2HP @ 460V, 8.0 - 12.5AMP Thermal, 208 - 240V Coil

Details
Purchase Components

Description

The PESW-B is WEG’s latest offering in a NEMA 4X Non Metallic Enclosure, Non-Reversing and Non-Combination Motor Starter. These starters feature components that meet IEC design standards and UL horsepower ratings while incorporating replaceable WEG CWB contactors and RW27-2D overload relays. These magnetic starters are ideal to protect and operate motors, ensuring smooth and reliable operation year after year.

Specifications

Manufacturer	WEG
Catalog Number
Enclosure	NEMA 4X Non-metallic
Coil Voltage
Overload Setting Range	Amps
Max UL Horsepower	HP @ 200VAC HP @ 230VAC HP @ 460VAC HP @ 575VAC
Control	Start + Stop/Reset Buttons
Box	05
Poles	3-Pole (3-Phase)
Type	Non-Reversing Non-Combination Across the Line
UPC

Standard Features

NEMA 4X Enclosure with Knockouts
Fast Motor Acceleration and High Initial Motor Torque
Bi-metallic Overload Relays – Class 10
Adjustable Trip Current
Selectable Manual or Automatic Reset
High Horsepower in Four Compact Sizes
Phase Loss Protection
Ambient Temperature Compensated
East to Setup and Install
c UL us

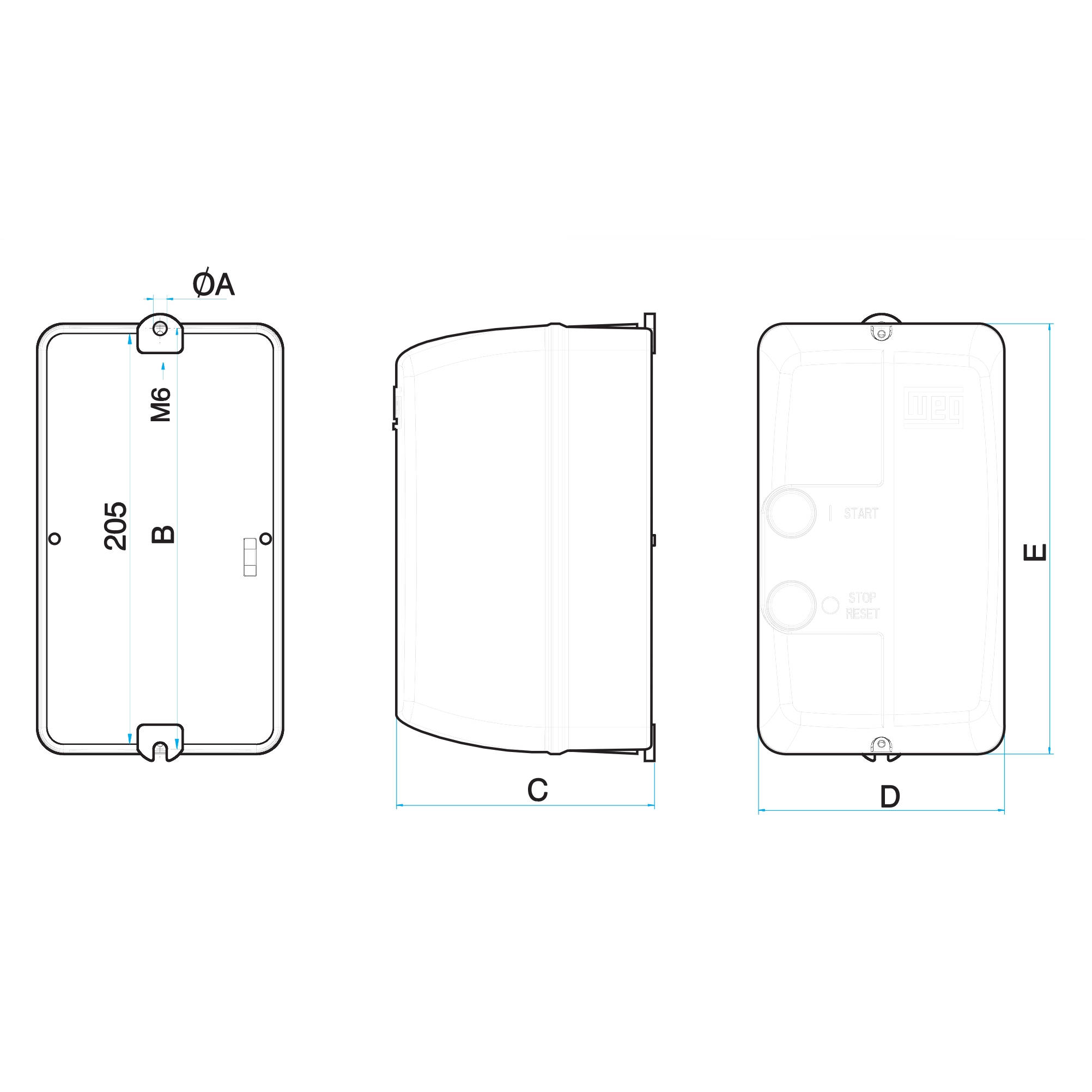

Dimensions

øA	5.5mm 0.2165"
B	219.0mm 8.622"
C	112.0mm 4.4331"
D	114.0mm 4.4882"
E	229.5mm 9.0354"

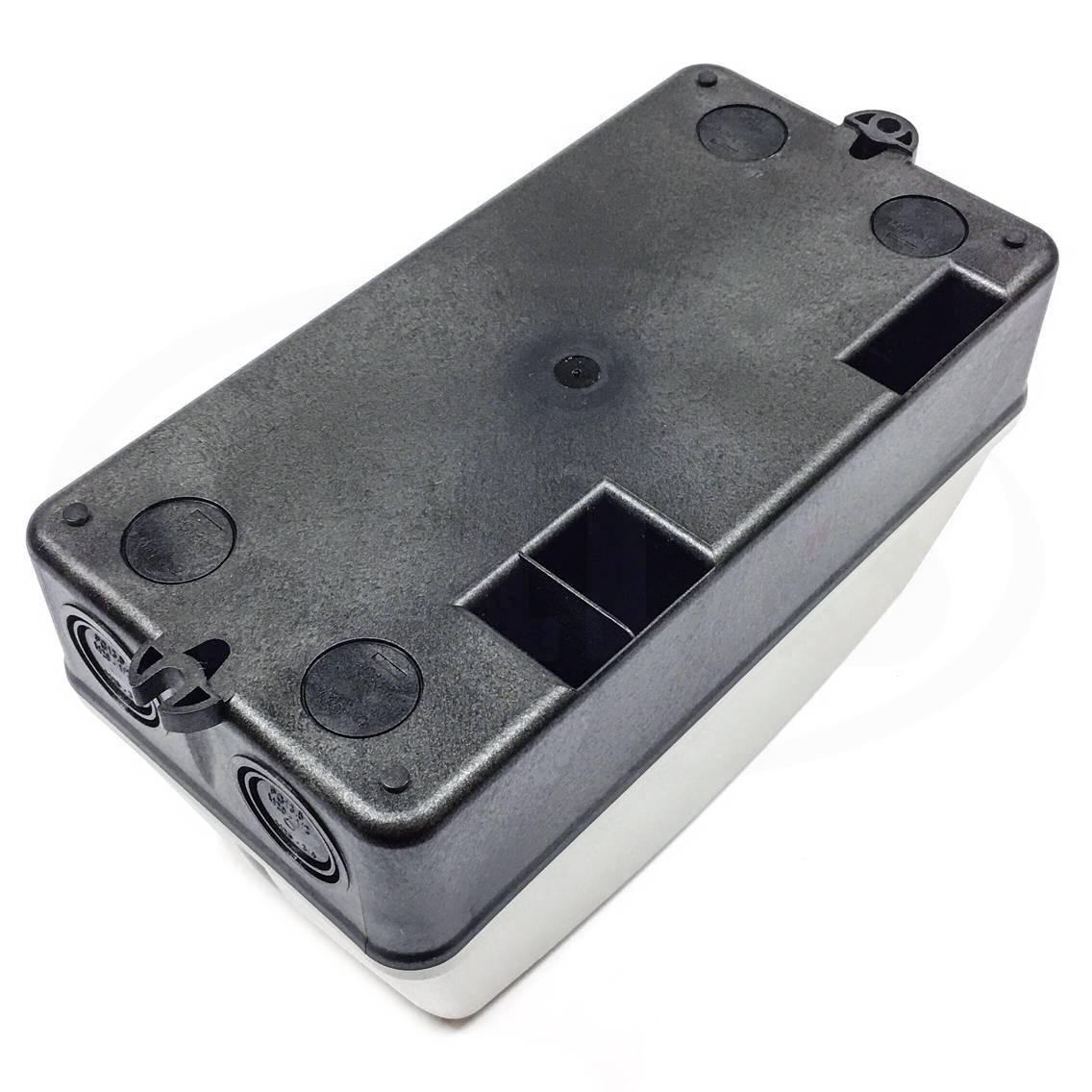

Provision for Cable Gland Fitting	Top: 2 x ½" -3/4" PG13.5 Bottom: 2 x ½" – ¾" PG13.5 Back: 4 x ½" PG13.5
