Product ID: ESWS-40V24E-RM35

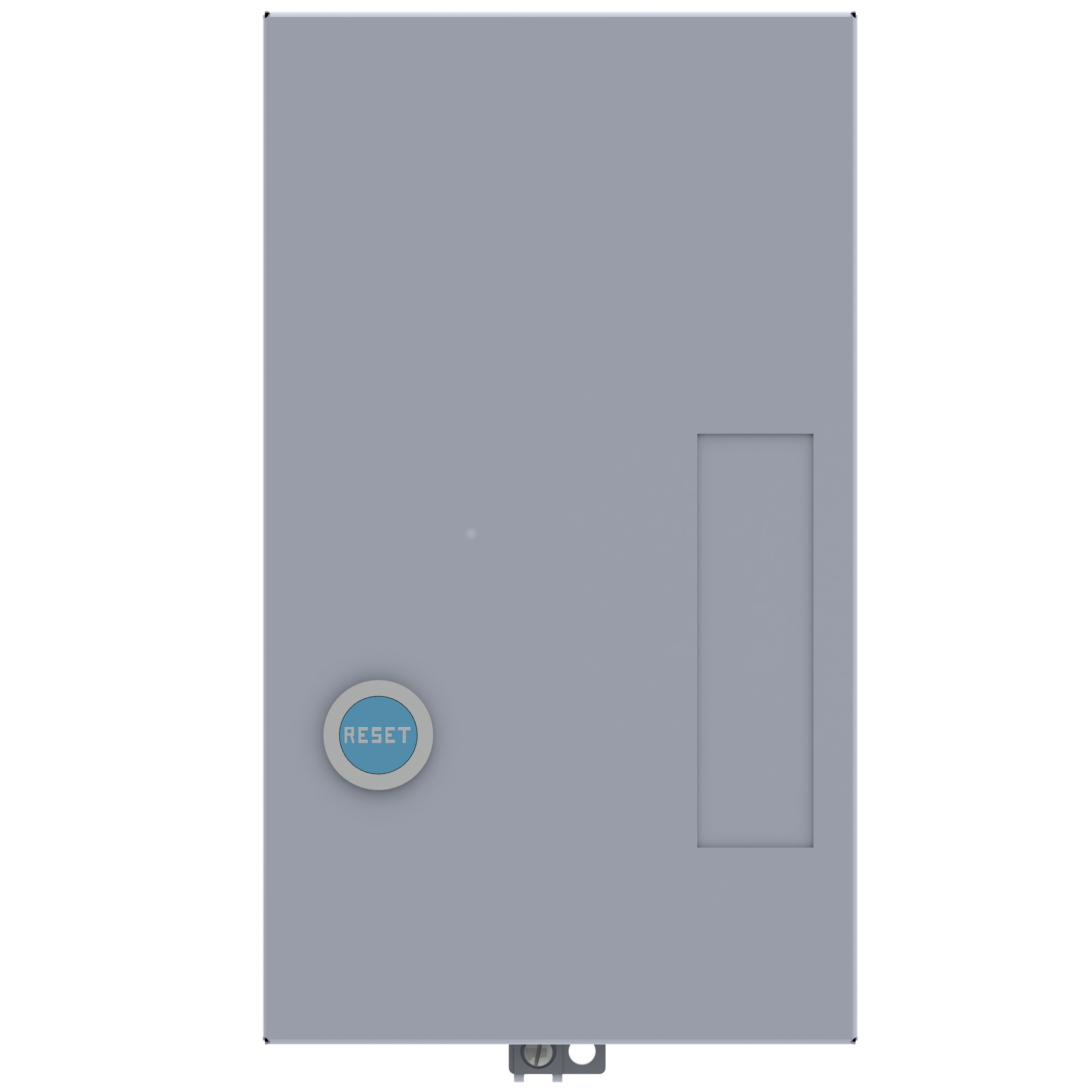

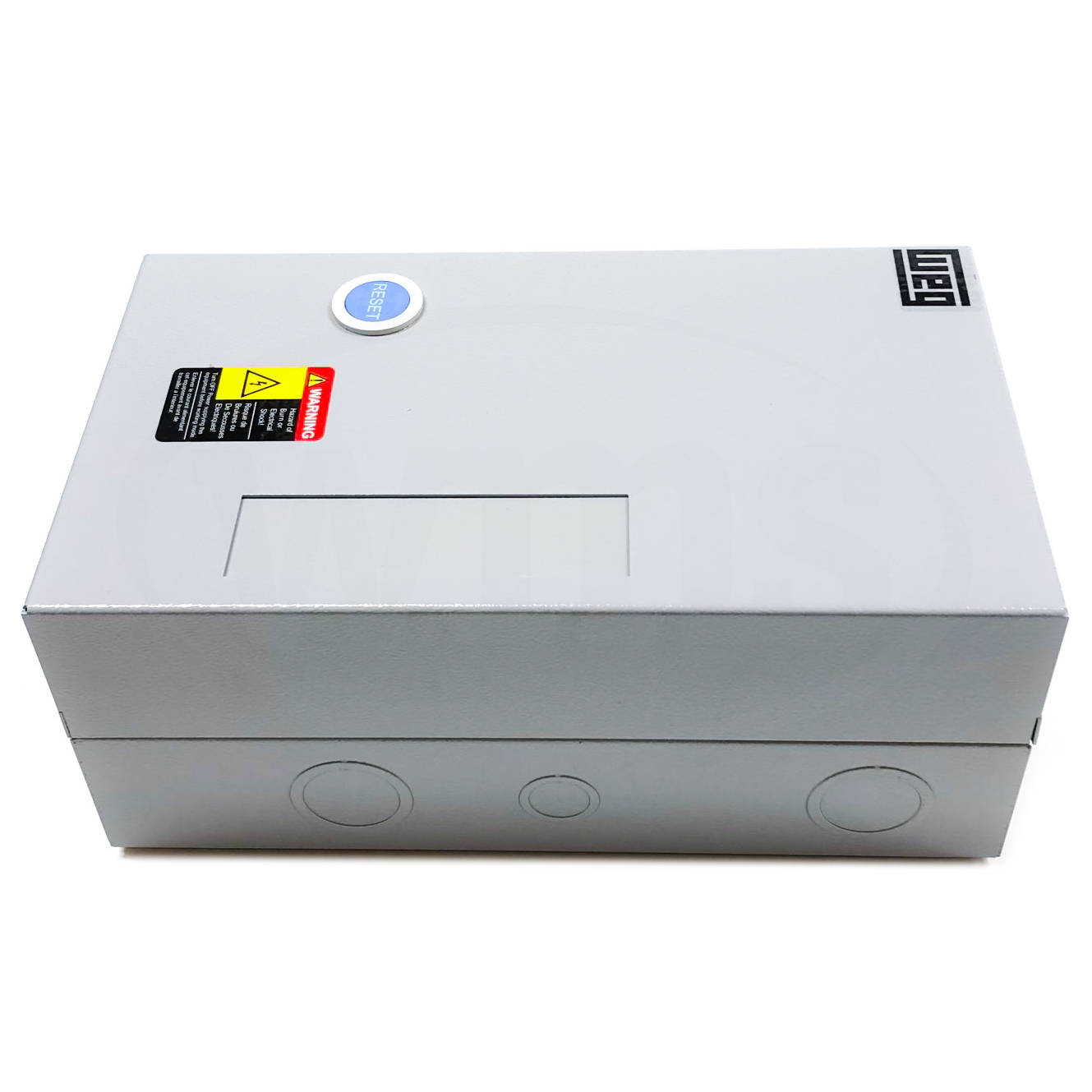

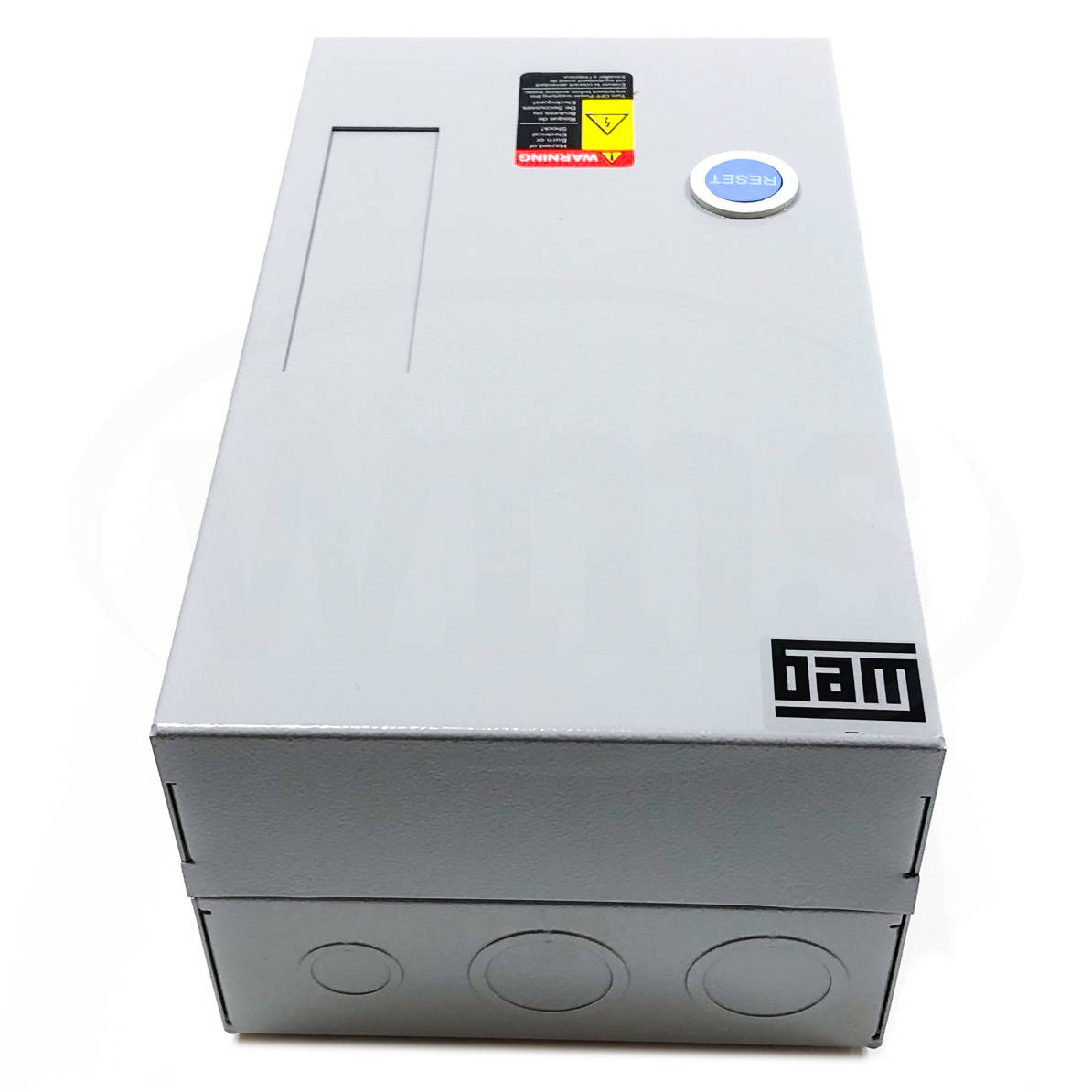

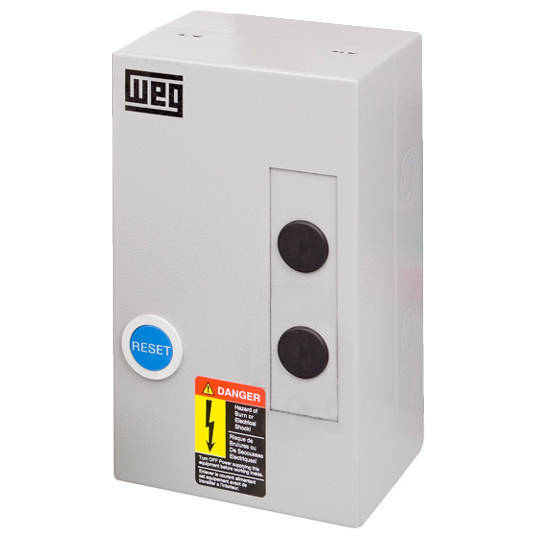

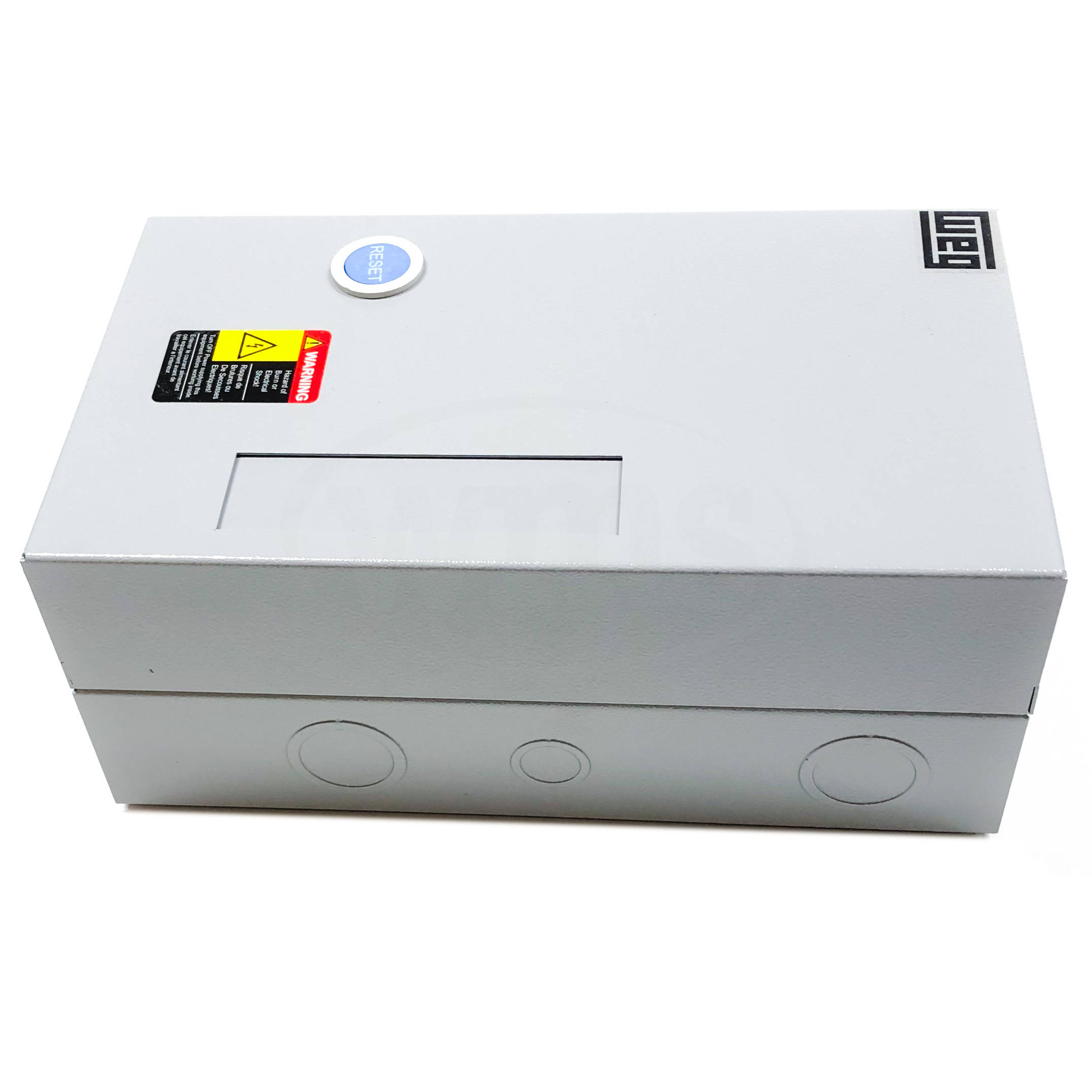

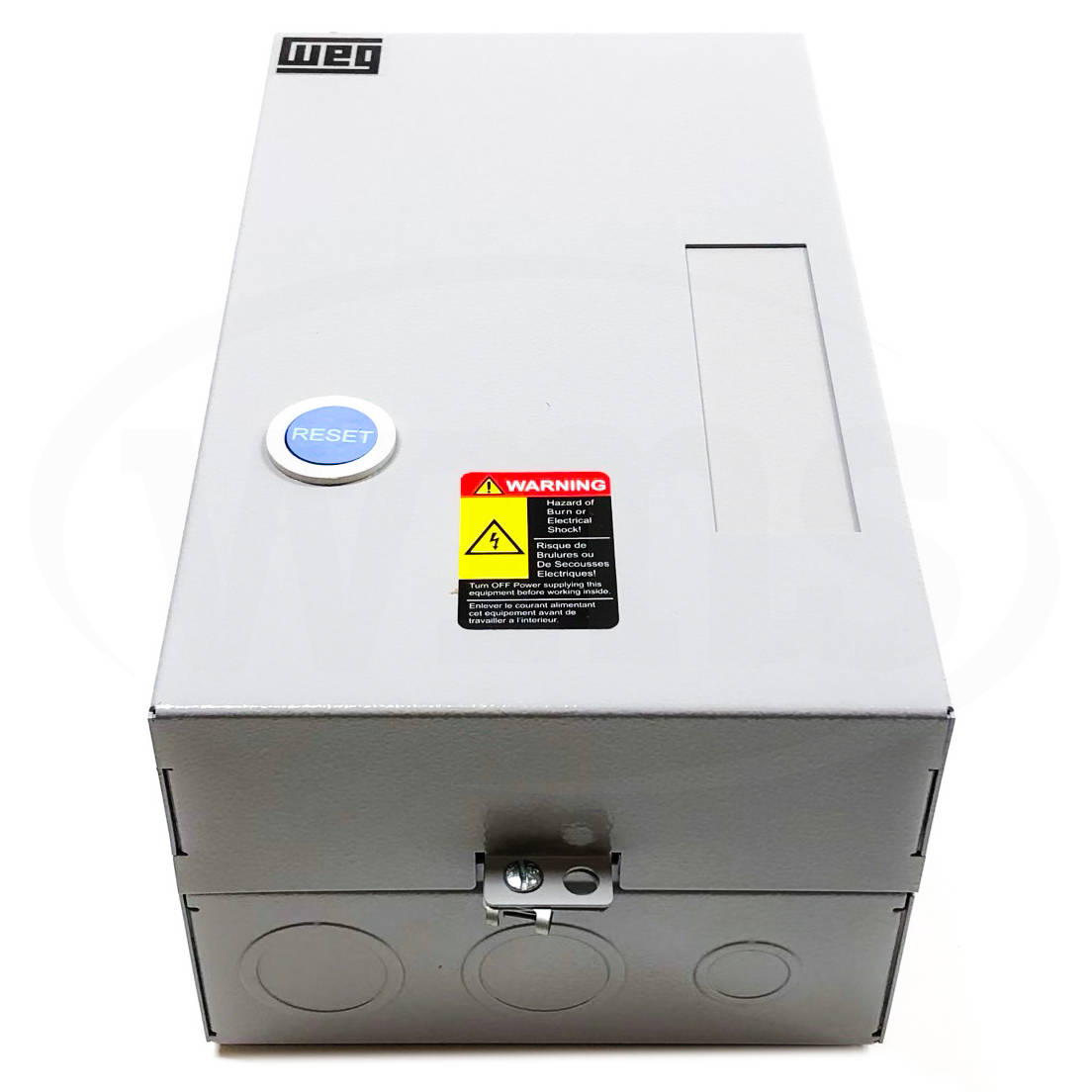

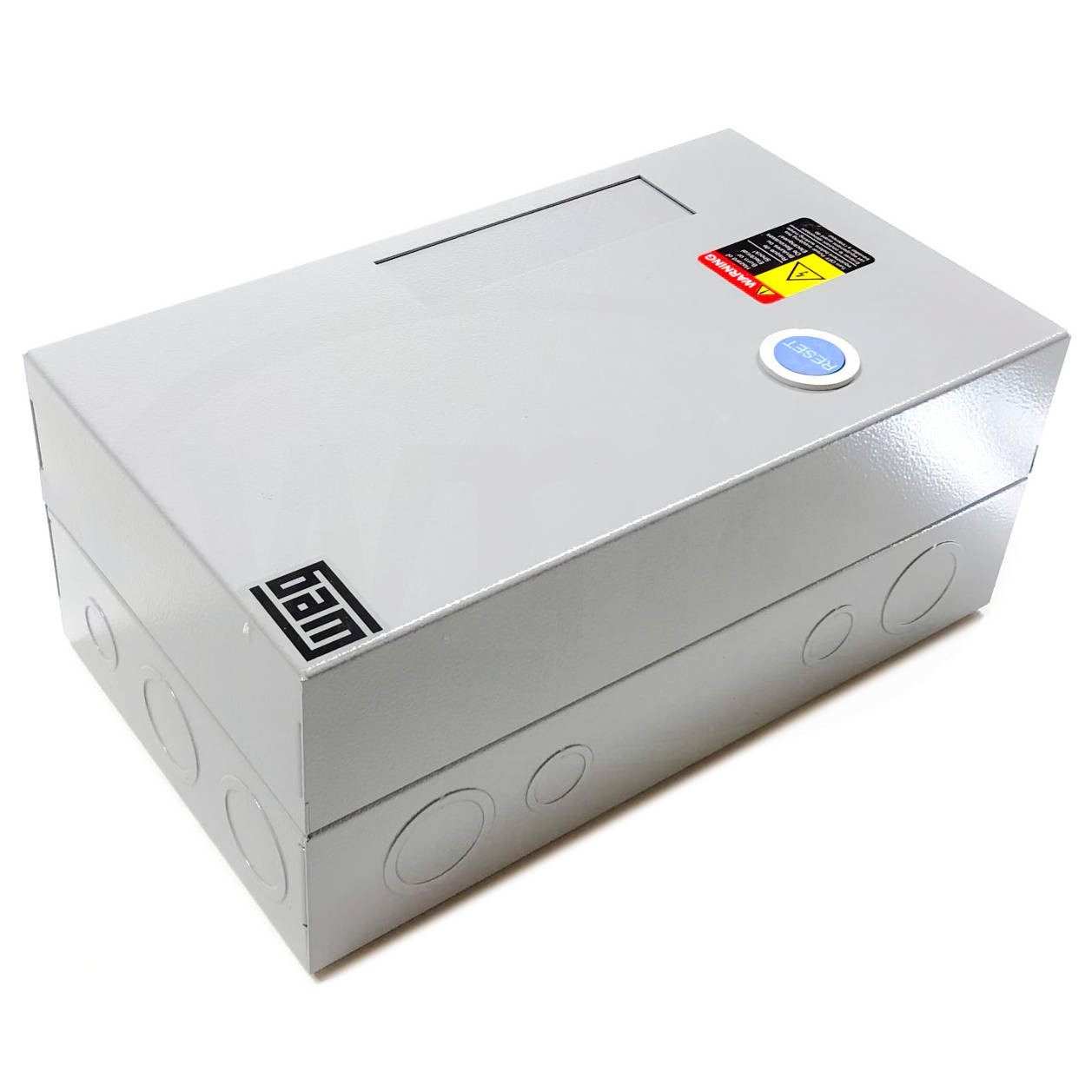

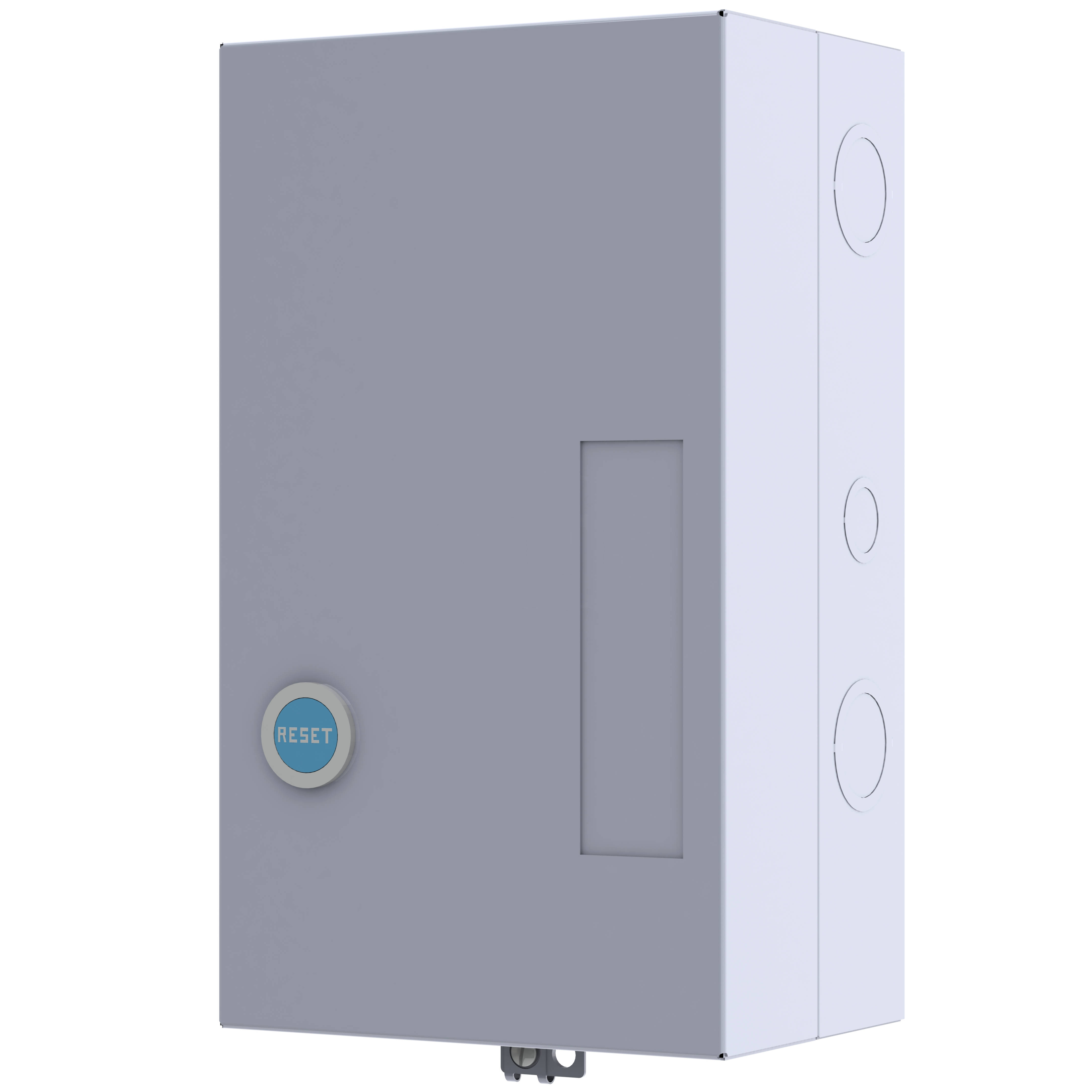

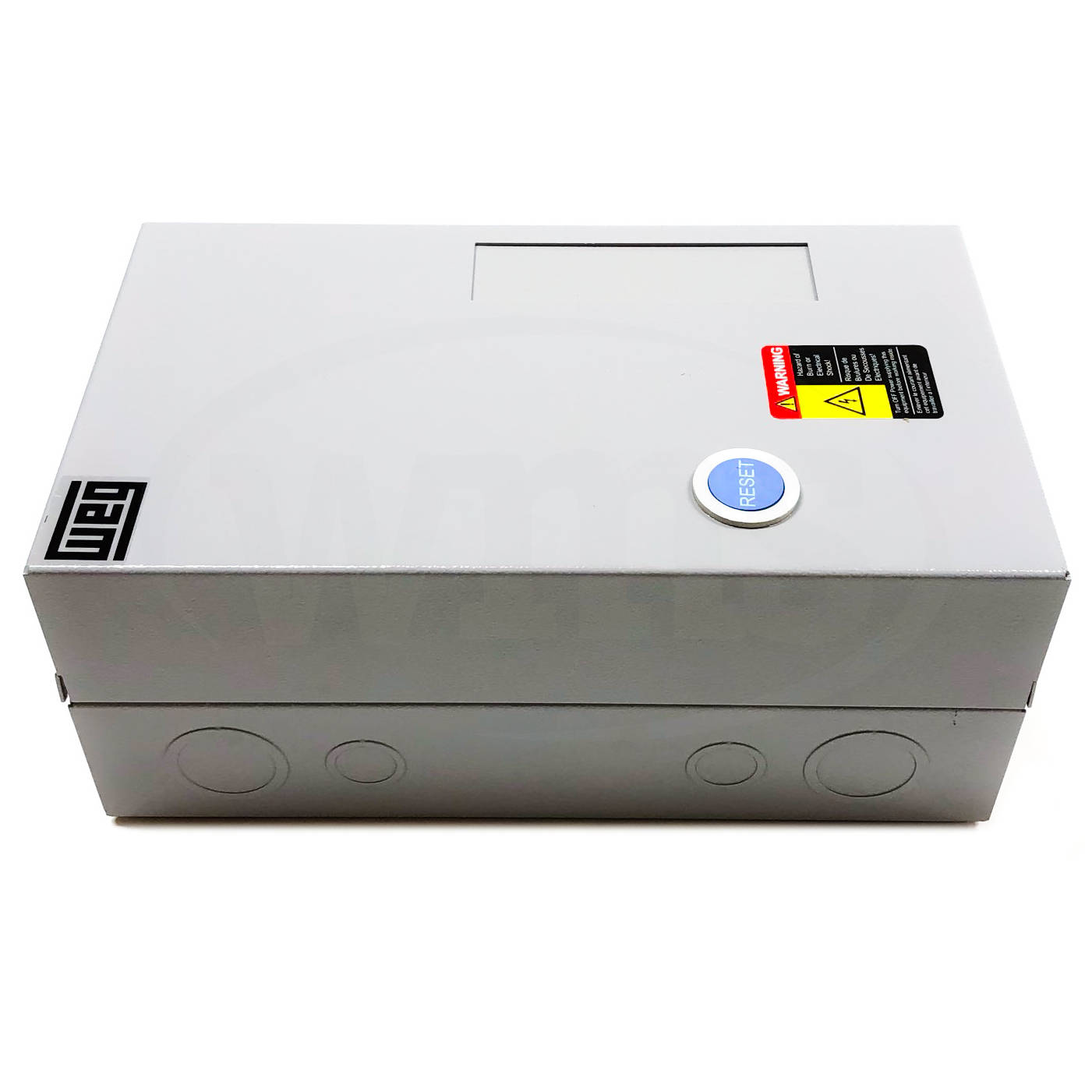

Weg Enclosed Starter, ESWS-40V24E-RM35

MFG: WEG Electric Corporation
MFG Part Number: ESWS-40V24E-RM35

Selected accessories will also be added to cart
$147.96 / Each
Quantity:
3HP @ 115V, 7-1/2HP @ 230V, 25 - 40AMP Thermal, 208 - 240V Coil

Description

WEG enclosed magnetic starters for Compressor applications

WEG non-combination magnetic starters use WEG CWB series UL listed, HP rated, IEC contactors and overloads factory installed in a Nema 1 or Nema 4X enclosure. These starters come pre-wired for automatic pressure switch operation and are also available with a selector switch for On/Auto use. Available from ¼ to 25 HP, they are designed for years of heavy duty operation

Specifications

Manufacturer WEG
Catalog Number 10726028
ESWS-40V24E-RM35
Enclosure NEMA 1
Metallic
Coil Voltage 180-208VAC 50Hz
208-240VAC 60Hz
Overload Setting Range 25-40 Amps
Max UL Horsepower 3 HP @ 115VAC
7.5 HP @ 230VAC
Control Reset Button
Box M06
Poles 2-Pole (Single Phase)
Type Non-Reversing
Non-Combination
Across the Line
UPC 7894171770779

Dimensions

H 13.0"
W 7.5"
D 5.6"

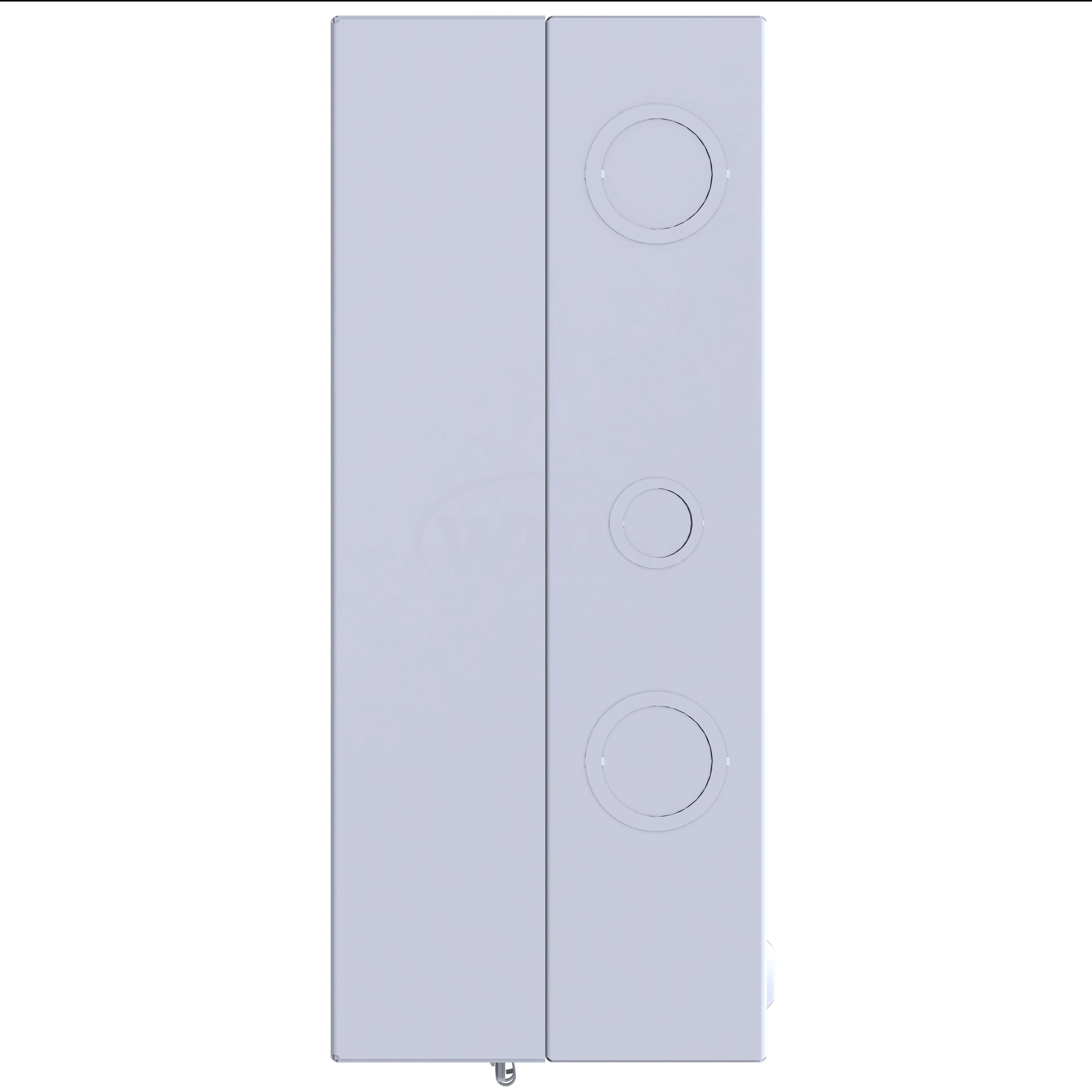

Provision for Cable Gland Fitting Top: (1) 1/2" or 3/4", (2) 1" or 1-1/4"
Bottom: (1) 1/2" or 3/4", (2) 1" or 1-1/4"
Side: (3) 1/2" or 3/4", (4) 1" or 1-1/4"
Back: None
