Product ID: ESW-B80D15E-R74

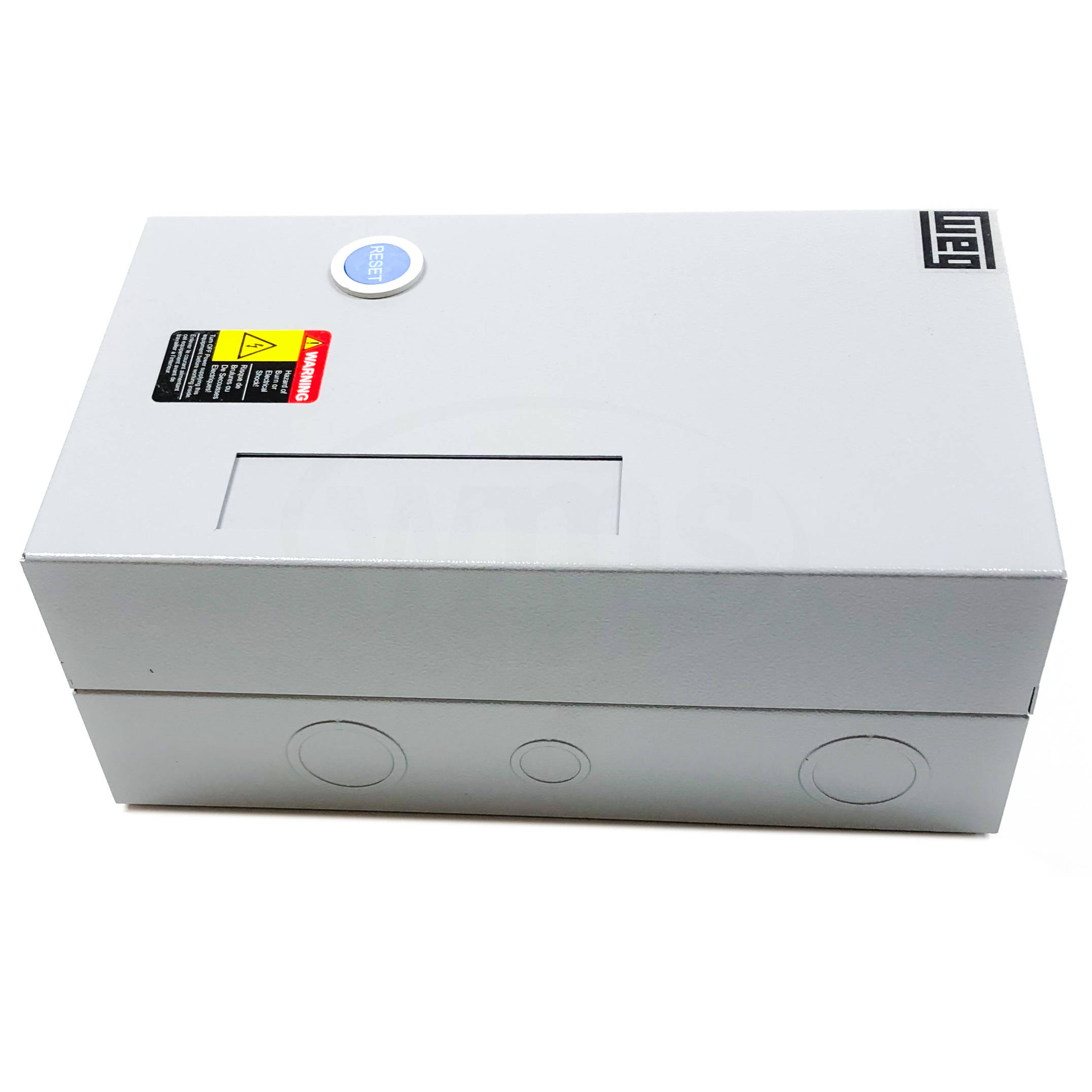

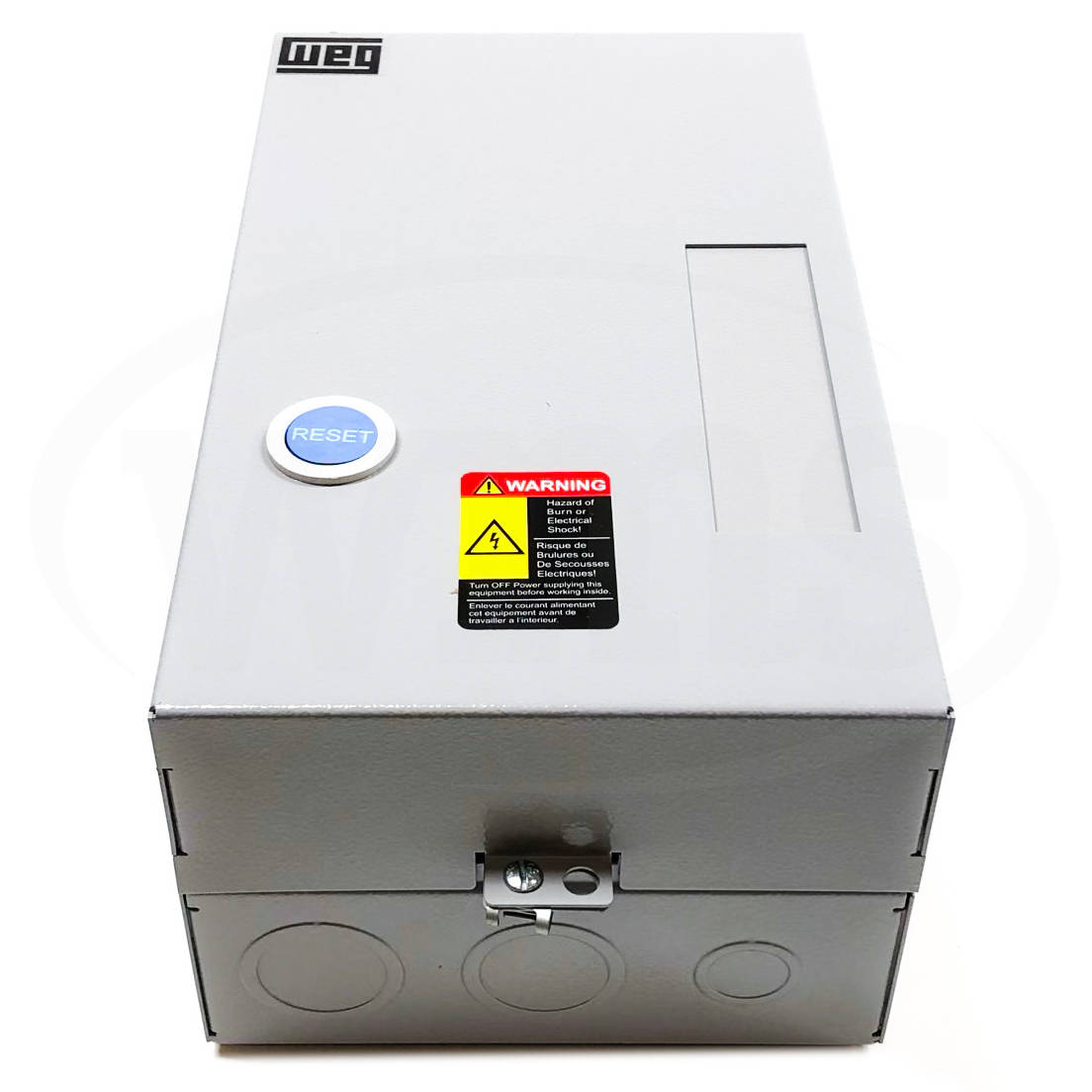

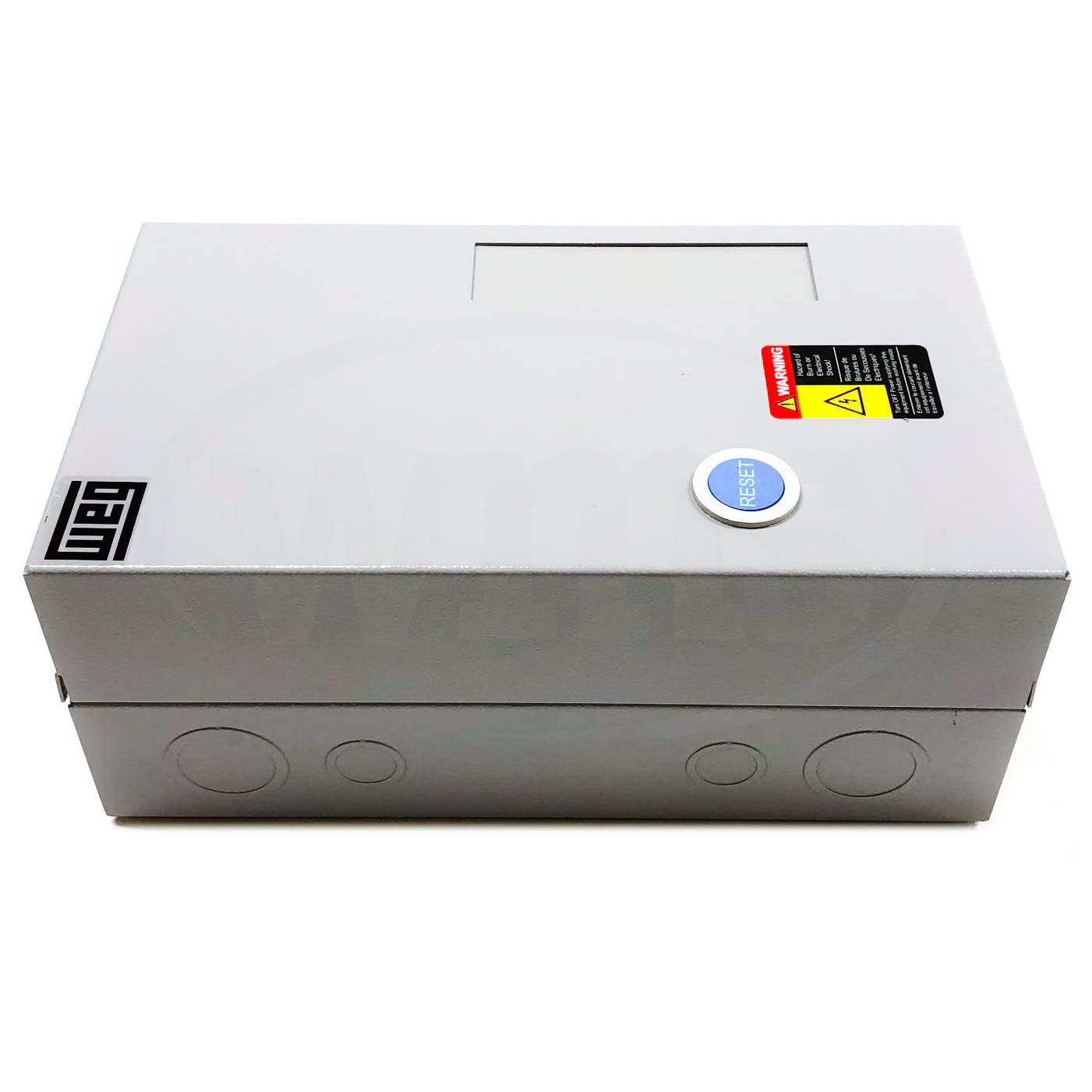

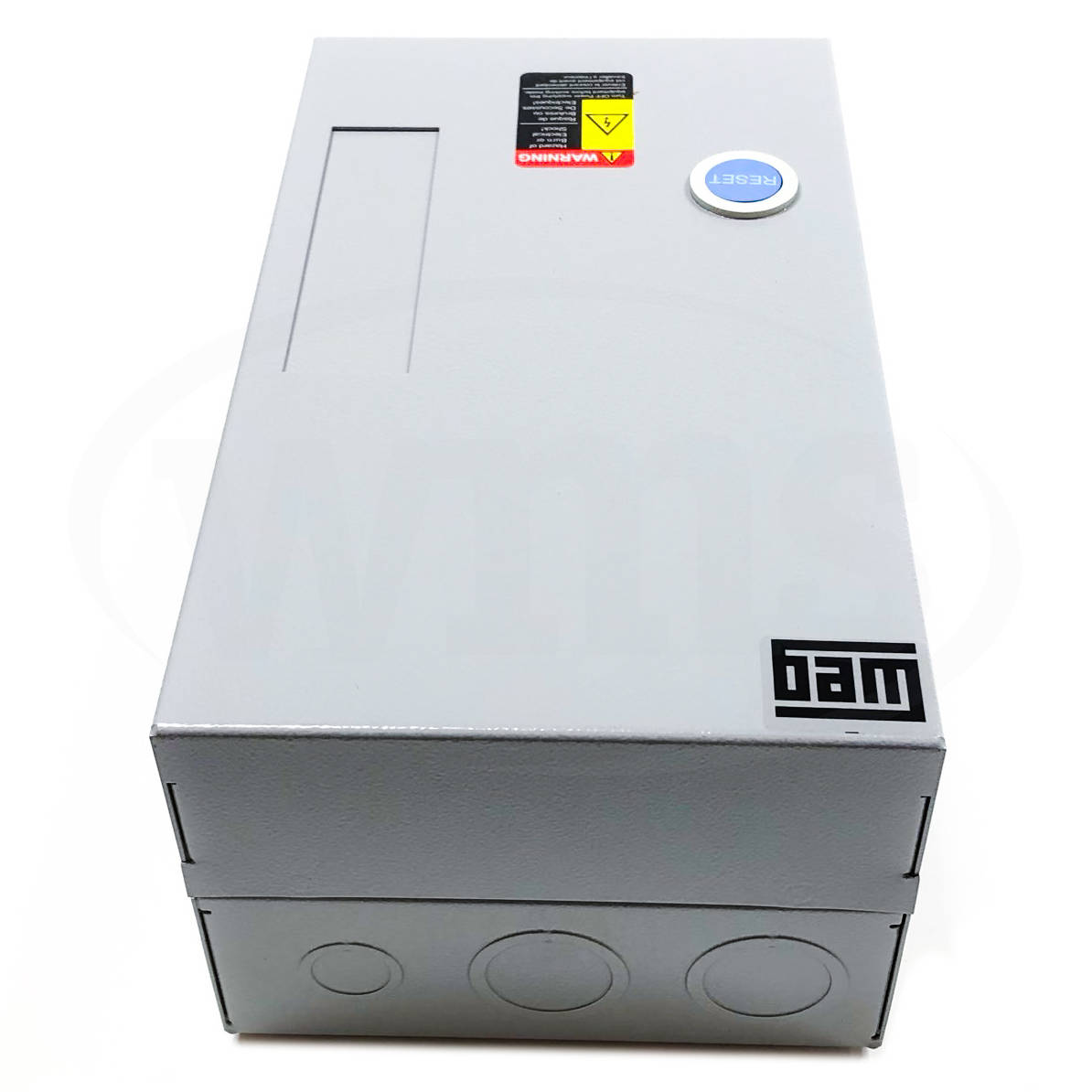

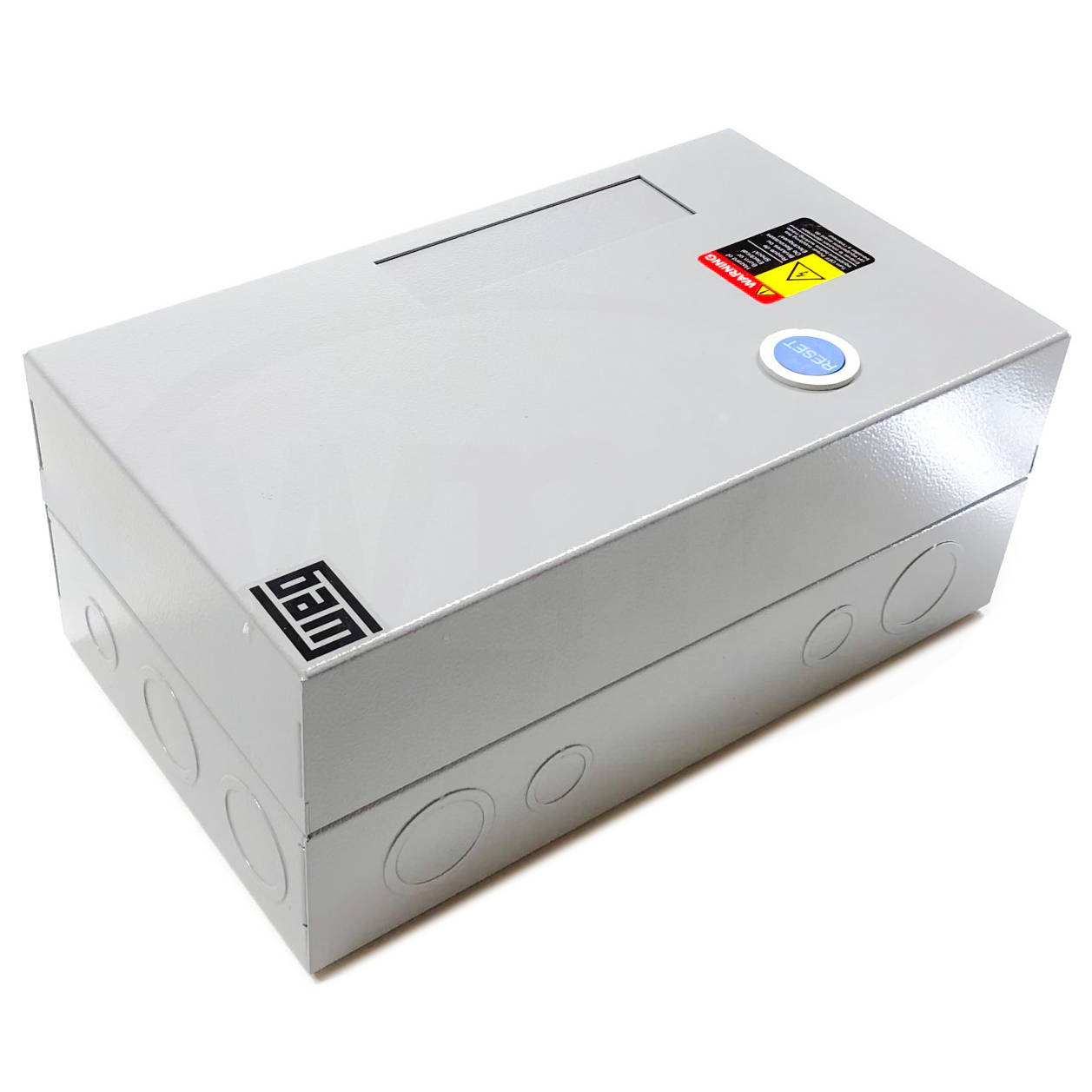

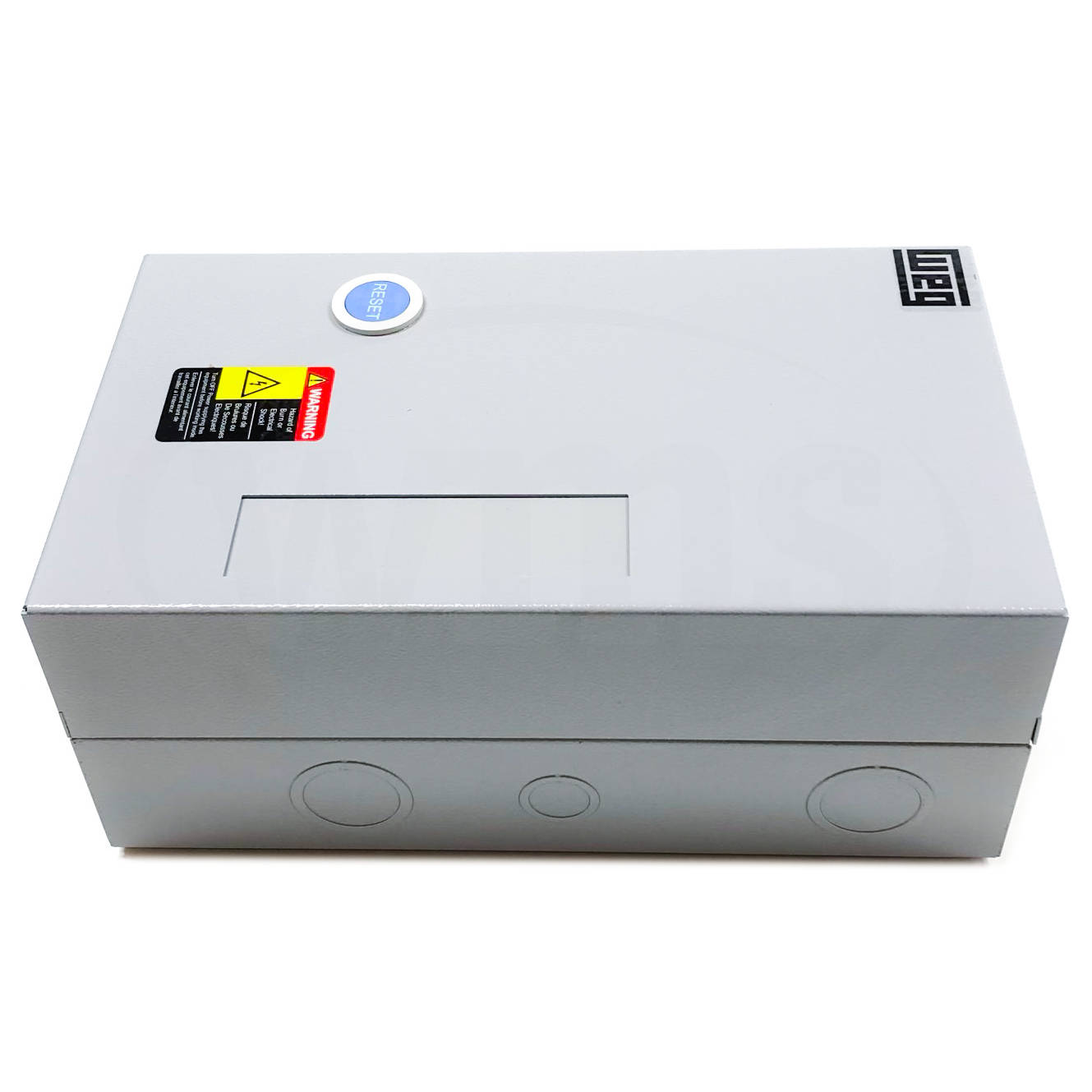

Weg Enclosed Starter, ESW-B80D15E-R74

MFG: WEG Electric Corporation
MFG Part Number: ESW-B80D15E-R74

Selected accessories will also be added to cart
$227.34 / Each
Quantity:
Reset Pushbutton Only, Compressor Duty, 110VAC 50Hz 120VAC 60Hz Coil, 10724521

Description

WEG enclosed magnetic starters for Compressor applications

WEG non-combination magnetic starters use WEG CWB series UL listed, HP rated, IEC contactors and overloads factory installed in a Nema 1 or Nema 4X enclosure. These starters come pre-wired for automatic pressure switch operation and are also available with a selector switch for On/Auto use. Available from ¼ to 25 HP, they are designed for years of heavy duty operation

Specifications

Manufacturer WEG
Catalog Number 10724521
ESW-80V18E-R41
Enclosure NEMA 1
Metallic
Coil Voltage 110VAC 50Hz
120VAC 60Hz
Overload Setting Range 57 - 70 Amps
Max UL Horsepower 20 HP @ 208VAC
25 HP @ 230VAC
50 HP @ 460VAC
60 HP @ 575VAC
Control Reset Button
Box M06
Poles 3-Pole (3-Phase)
Type Non-Reversing
Non-Combination
Across the Line
UPC 7894171770120

Dimensions

H 13.0"
W 7.5"
D 5.6"
Provision for Cable Gland Fitting Top: (1) 1/2" or 3/4", (2) 1" or 1-1/4"
Bottom: (1) 1/2" or 3/4", (2) 1" or 1-1/4"
Side: (3) 1/2" or 3/4", (4) 1" or 1-1/4"
Back: None
