OVERVIEW

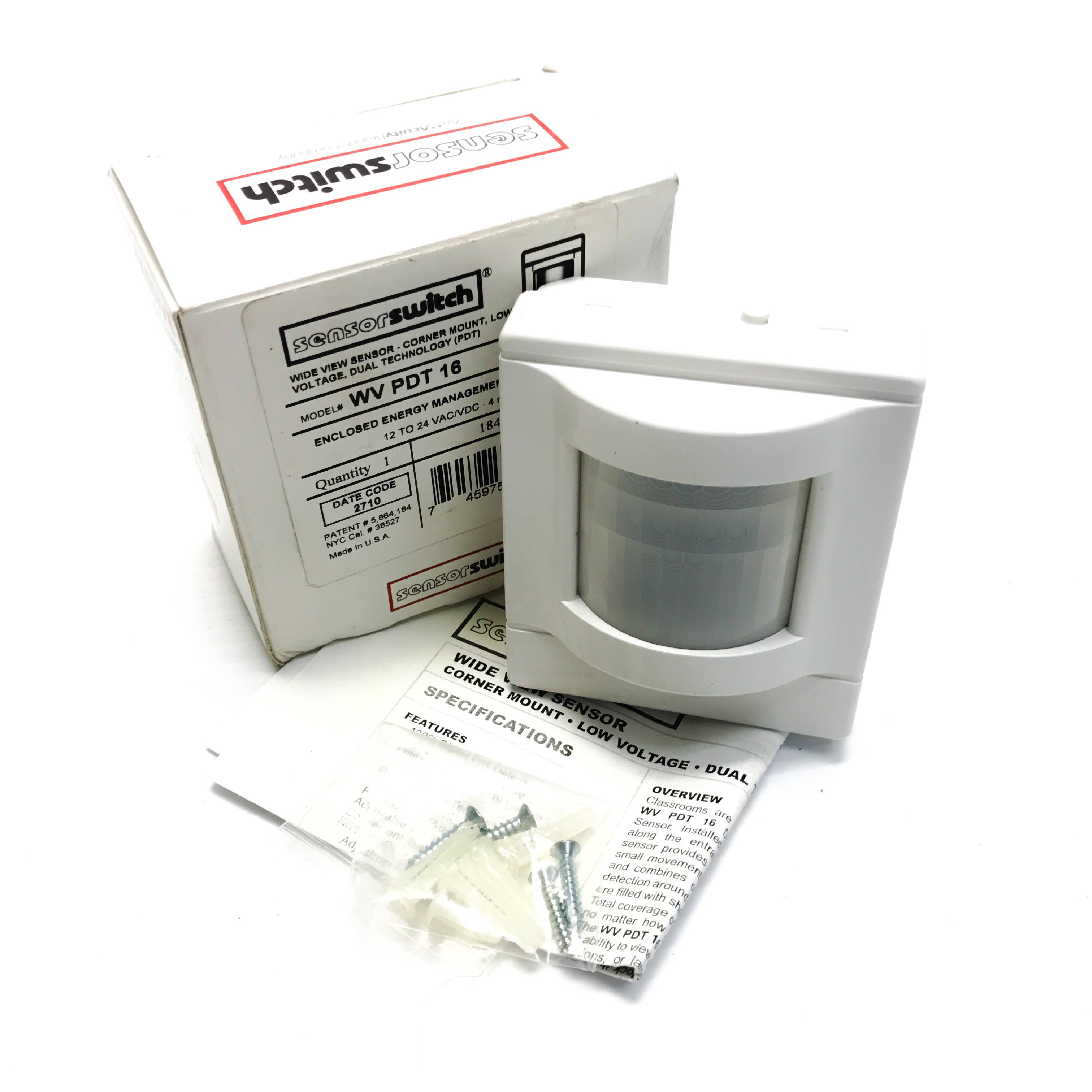

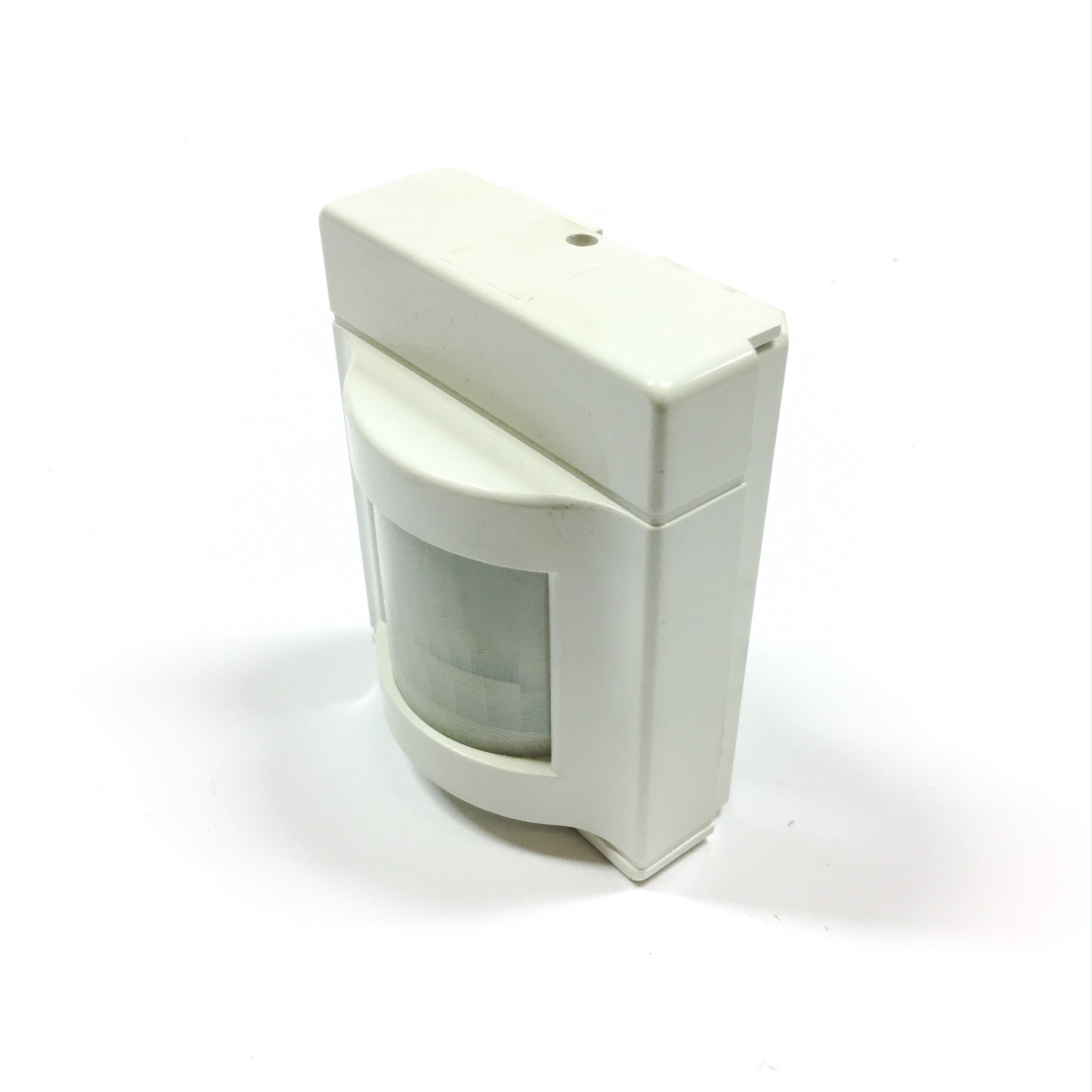

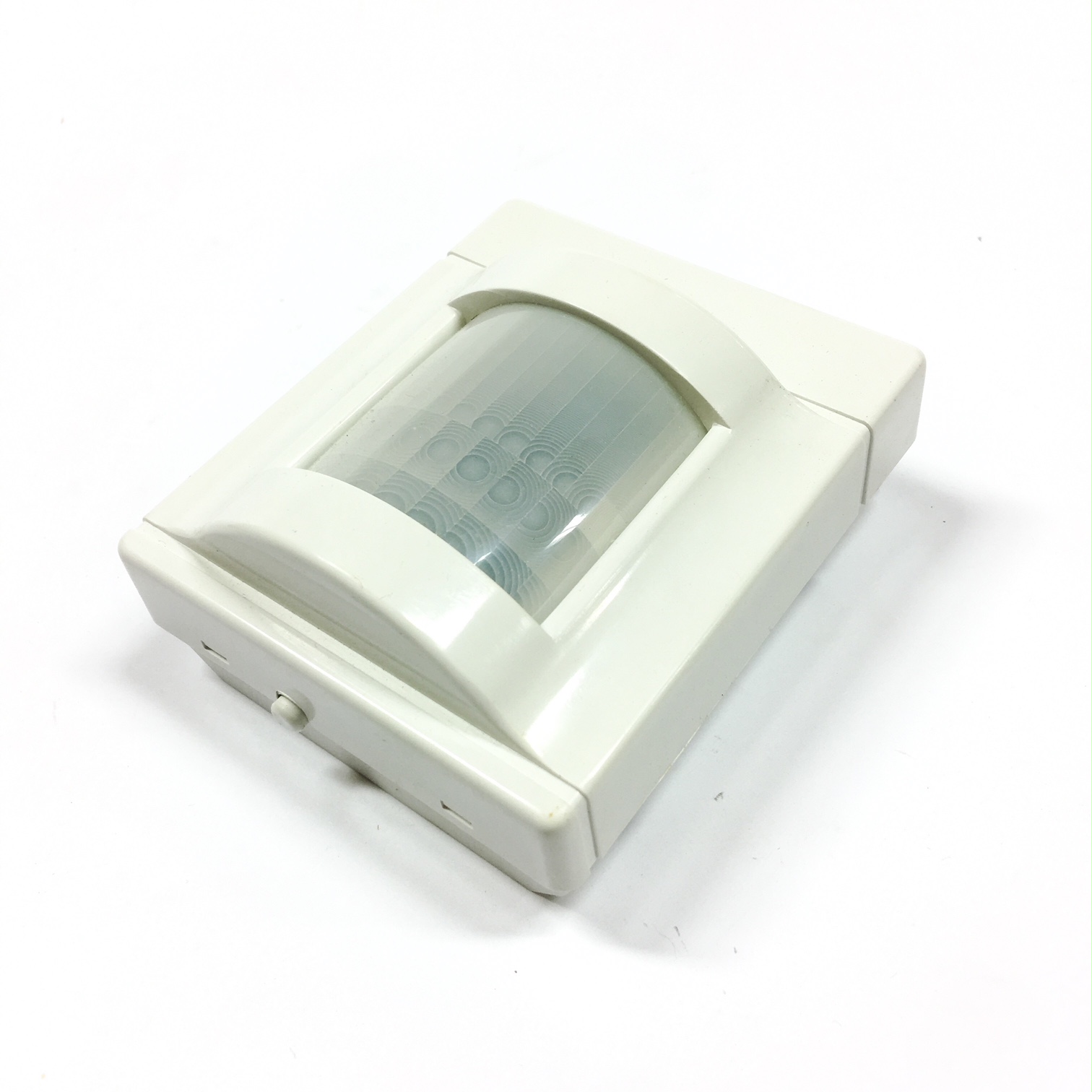

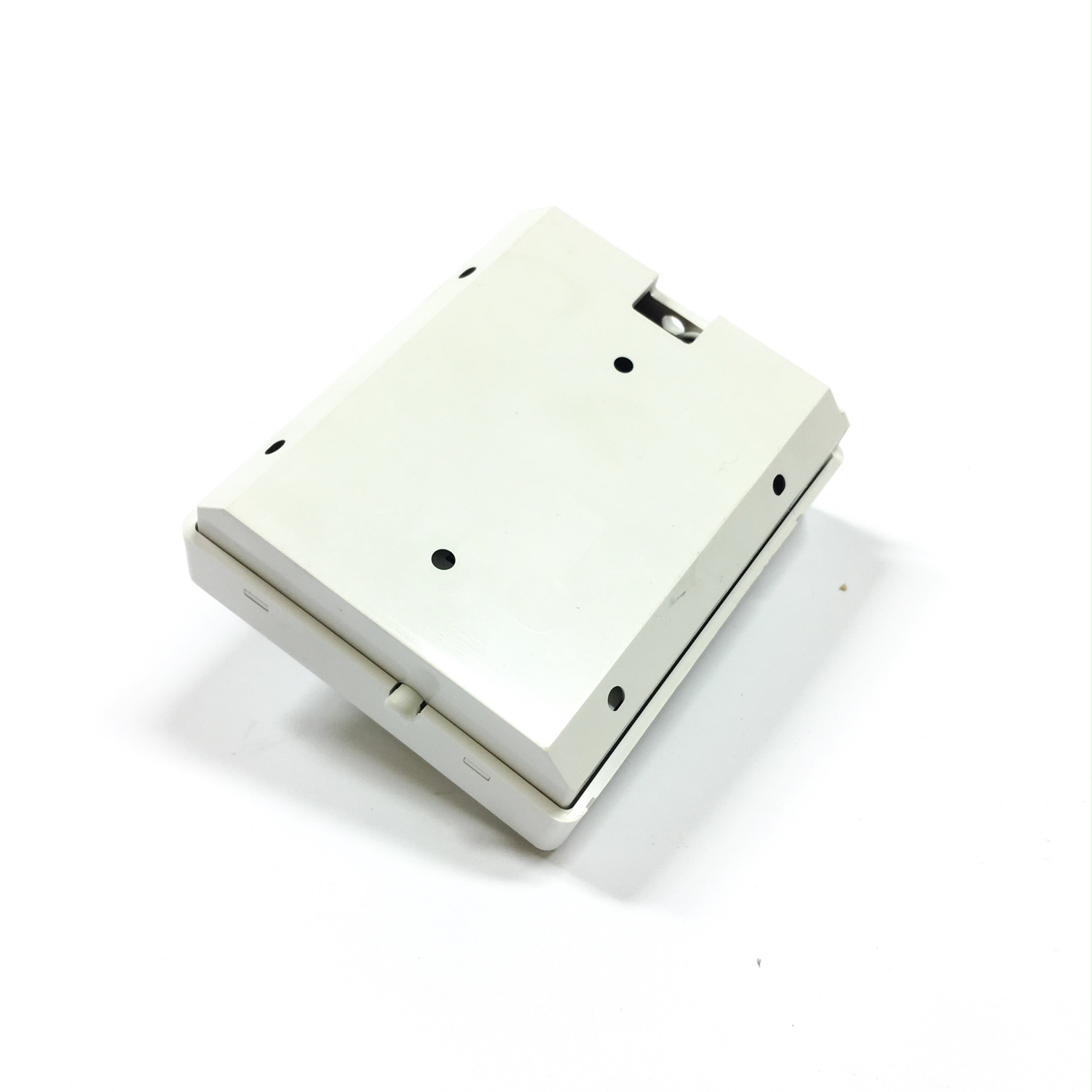

Classrooms are the ideal application for the WV PDT 16 Dual Technology Wide View Sensor. Installed in the corner of the room along the entrance wall, this inconspicuous sensor provides
line of sight PIR detection of small movements up to 40 ft (12.19 m) away, and combines overlapping Microphonics™ for detection around obstructions. Many classrooms are filled with shelving, projects, or lab benches. Total coverage of the room is always maintained no matter how cluttered the space becomes. The WV PDT 16 is also used in corridors due to its ability to view up to 70 ft (21.34 m) for walking motions, or large open storage areas where obstructions
may block the PIR’s ability to view. For large lecture halls, multiple WV PDT 16s may be wired
together, or along with any other low voltage sensors.
FEATURES
• 100% Digital PIR Detection, Excellent RF Immunity
• 120º by 40 ft (12.19 m) Coverage for Small Motion
• Patented Dual Technology with PIR / Microphonics Detection
• Adjustable Time Delay
• Push-Button Programmable
• Convenient Test Mode
• No Field Calibration or Sensitivity Adjustments Required
• 100 hr Lamp Burn-in Time

Specifications:
Size: 3.0” H x 3.6” W x 1.75” D (7.62 cm x 9.14 cm x 4.45 cm)
Weight: 5 oz
Mounting: Directly to corner or to ceiling using WV BR bracket
Color: White

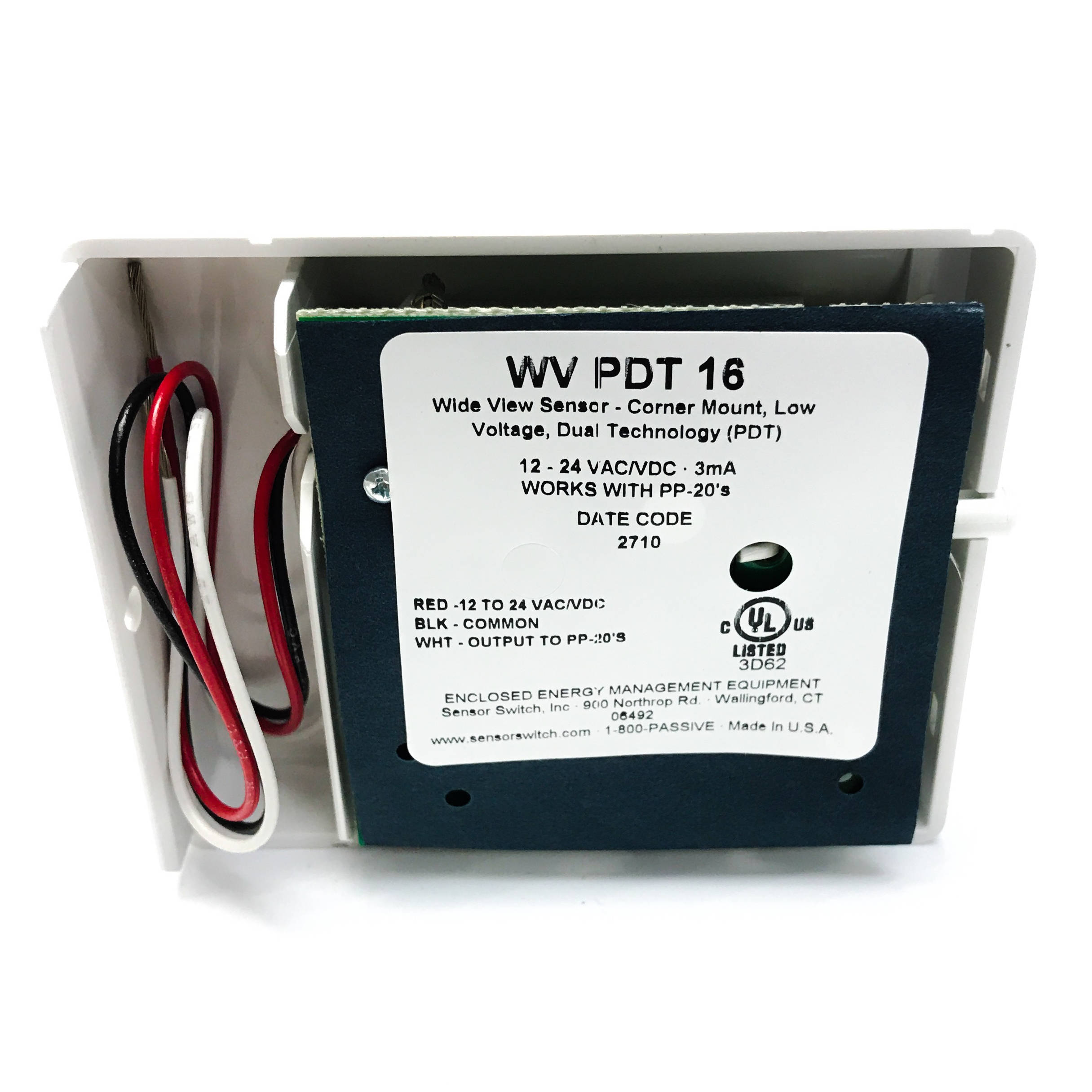

Operating Voltage: 12-24 VAC/VDC
Current Draw: Standard, 4 mA w/ R option, 16 mA
Recommended Power Pack: PP20
