/Products/Ball Bearings/Bearing Retainer Lock Washers/W-10 Bearing Retainer Lock Washer
Click Image to Expand

Product ID: W-10

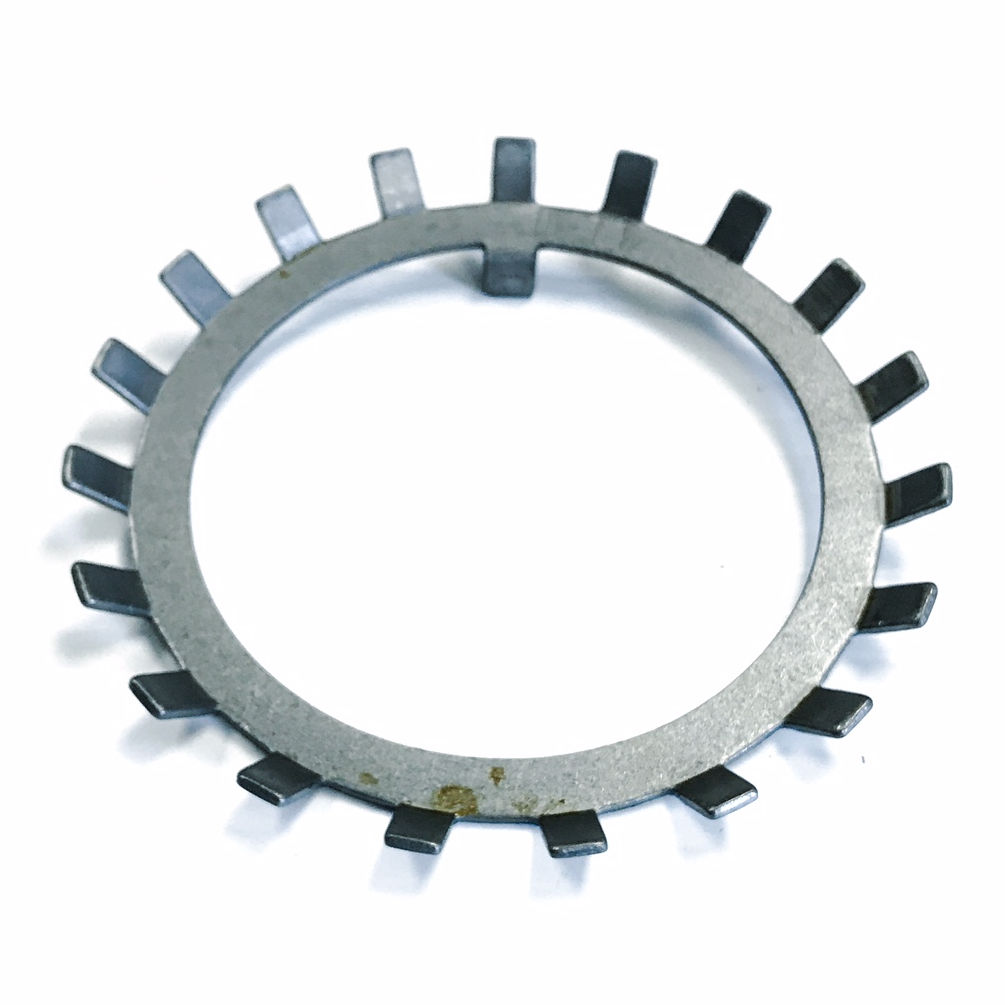

W-10 Bearing Retainer Lock Washer

Temporarily out of stock
Selected accessories will also be added to cart
$2.72 / Each

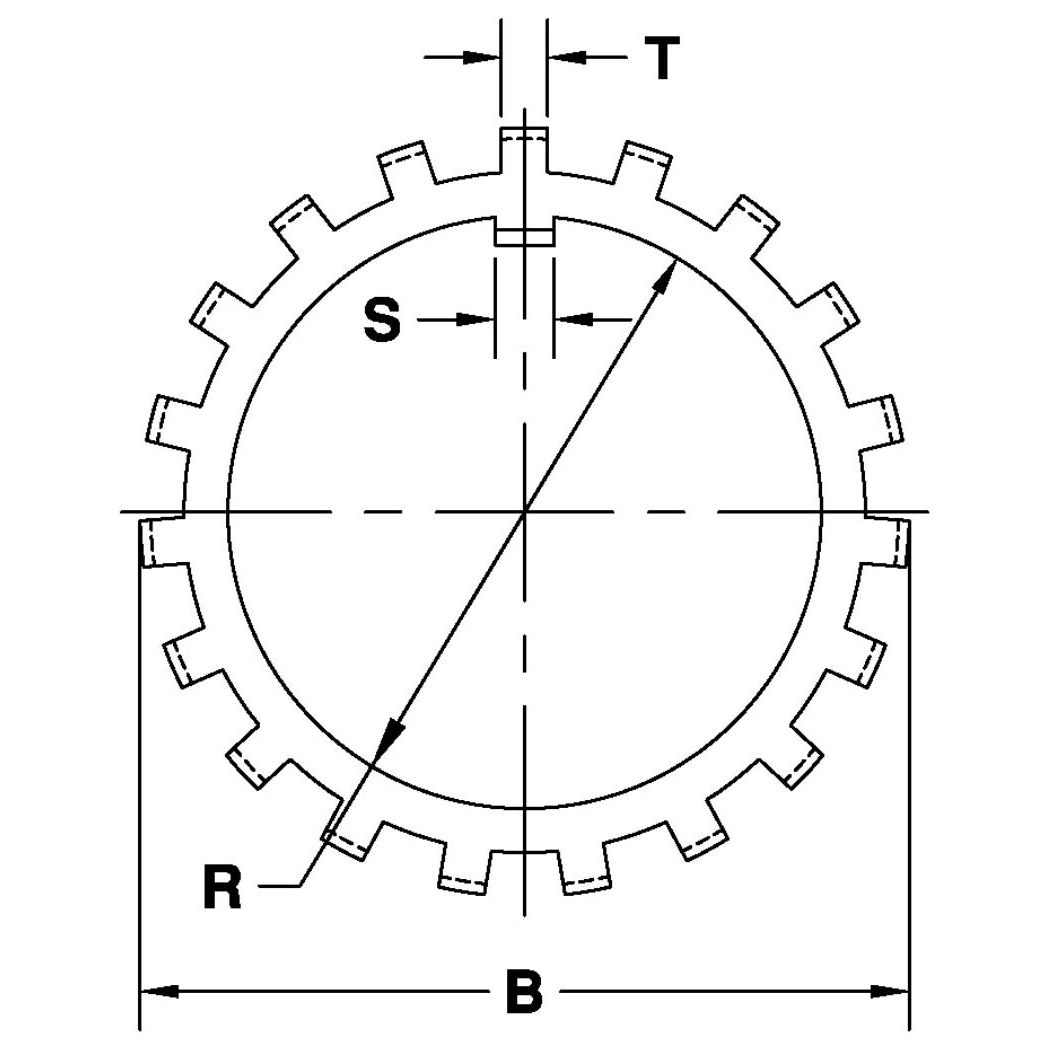

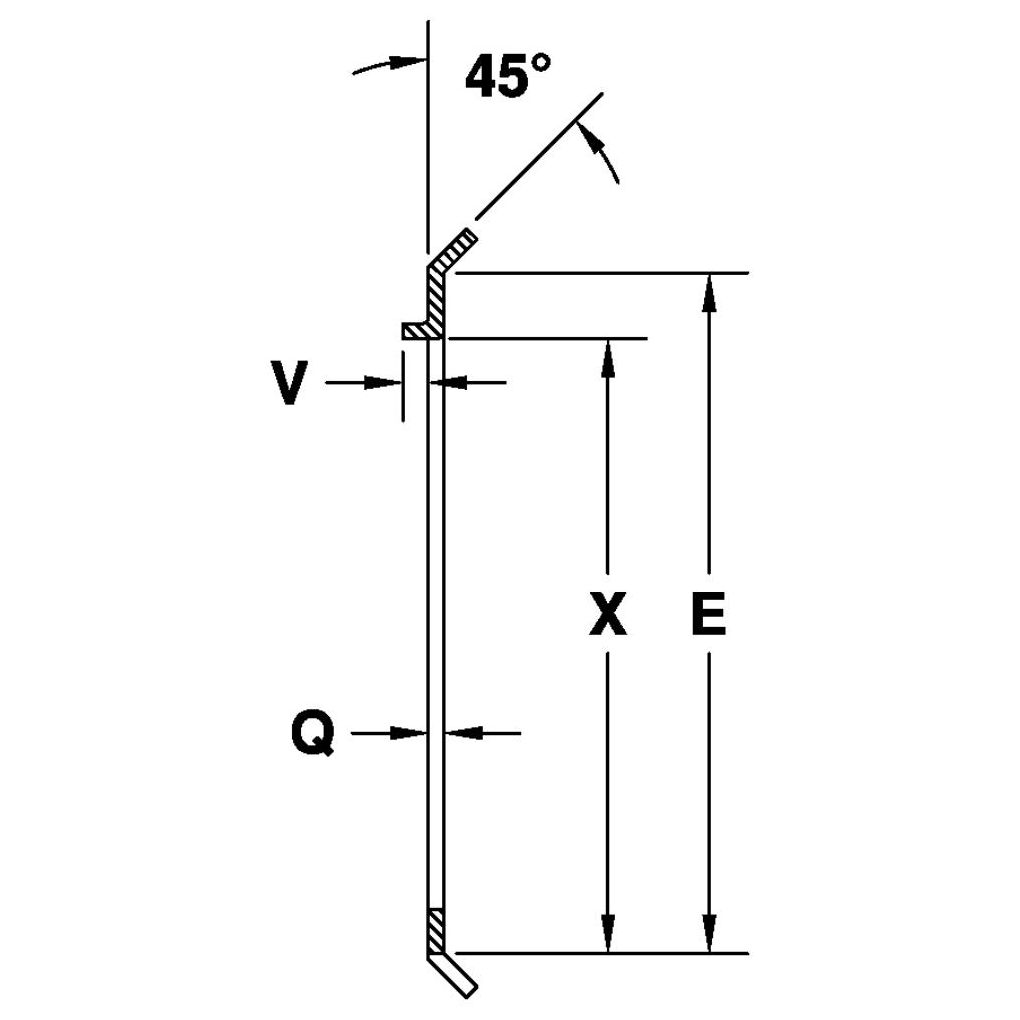

Specifications

Lockwasher Number(s) W-10
W10
Bore (R) 1.992" Minimum
Face Diameter (E) 2.438" Minimum
Diameter over Tangs (B) 2.922" Maximum
Key Width (S) 0.290" Maximum
Inside Dimension (X) 1.884" Minimum
Number of Tangs 17
Projection (V) 0.125" Minimum
Tang Width (T) 0.234" Maximum
Tang Thickness (Q) 0.048" Minimum
Tang Angle 45°
Applicable Weight 0.045 lbs
Bearing Retainer Nut N-10
