/Products/Electric Motors/Single Phase/Baldor/Washdown/VWDL3507 Baldor 3/4HP Washdown Electric Motor, 1725RPM

Product ID: VWDL3507

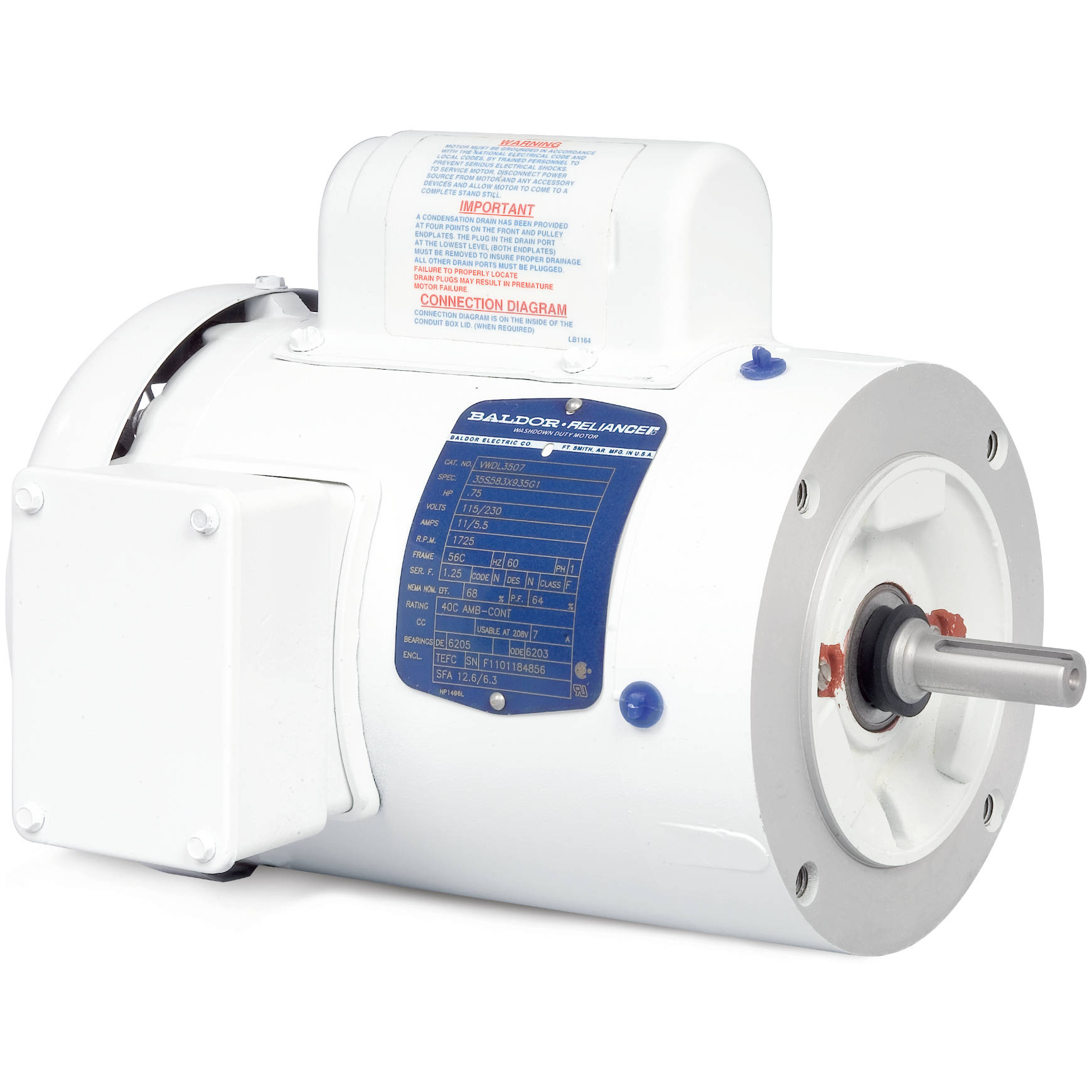

VWDL3507 Baldor 3/4HP Washdown Electric Motor, 1725RPM

MFG: Baldor Electric Company
MFG Part Number: VWDL3507

Selected accessories will also be added to cart
$826.97 / Each
Quantity:
TEFC, 56C Frame, 115/230VAC 60Hz Single Phase, Rolled Steel, Round Body, C-Face, 5/8" Keyed Shaft

Specifications

Specs

Catalog Number VWDL3507
Enclosure TEFC
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Output @ Frequency .750 HP @ 60 HZ
Phase 1
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
115.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 11.000 A @ 115.0 V
5.500 A @ 230.0 V
7.000 A @ 208.0 V
Design Code N
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 68.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 5.5 a
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No Heater
Insulation Class F
Inverter Code Not Inverter
KVA Code N
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 6 @ 18 AWG
Motor Type 3520L
Mounting Arrangement F1
Number of Poles 4
Overall Length 12.25 IN
Power Factor 64
Product Family Wash Down
Pulley End Bearing Type Sealed Bearing
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.25
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1725 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Applications

Features

Nameplate

Nameplate

CAT.NO. VWDL3507
SPEC. 35S583X935G1
HP .75
VOLTS 115/230
AMP 11/5.5
RPM 1725
FRAME 56C HZ 60 PH 1
SER.F. 1.25 CODE N DES N CLASS F
NEMA-NOM-EFF 68 PF 64
RATING 40C AMB-CONT
CC USABLE AT 208V 7
DE 6205 ODE 6203
ENCL TEFC SN
SFA 12.6/6.3
NP1496L

Performance

Performance

Performance at 230 V, 60 Hz, 0.75 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 2.89 Ohms A Ph / 1.47 Ohms B Ph
Temp. Rise @ Rated Load 70° C
Temp. Rise @ S.F. Load 89° C
Start Configuration DOL
Break-Down Torque 6.38 LB-FT
Pull-Up Torque 5.88 LB-FT
Locked-Rotor Torque 8.13 LB-FT
Starting Current 34.6 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 17.0 33.0 47.0 59.0 67.0 75.0 82.0 75.0
Efficiency 0.0 47.4 62.0 68.0 69.7 69.6 59.7 69.6
Speed (RPM) 1,798 1,784 1,773 1,760 1,746 1,730 1,699 1,730
Line Amps 3.90 3.90 4.20 4.60 5.10 5.80 7.30 5.80
