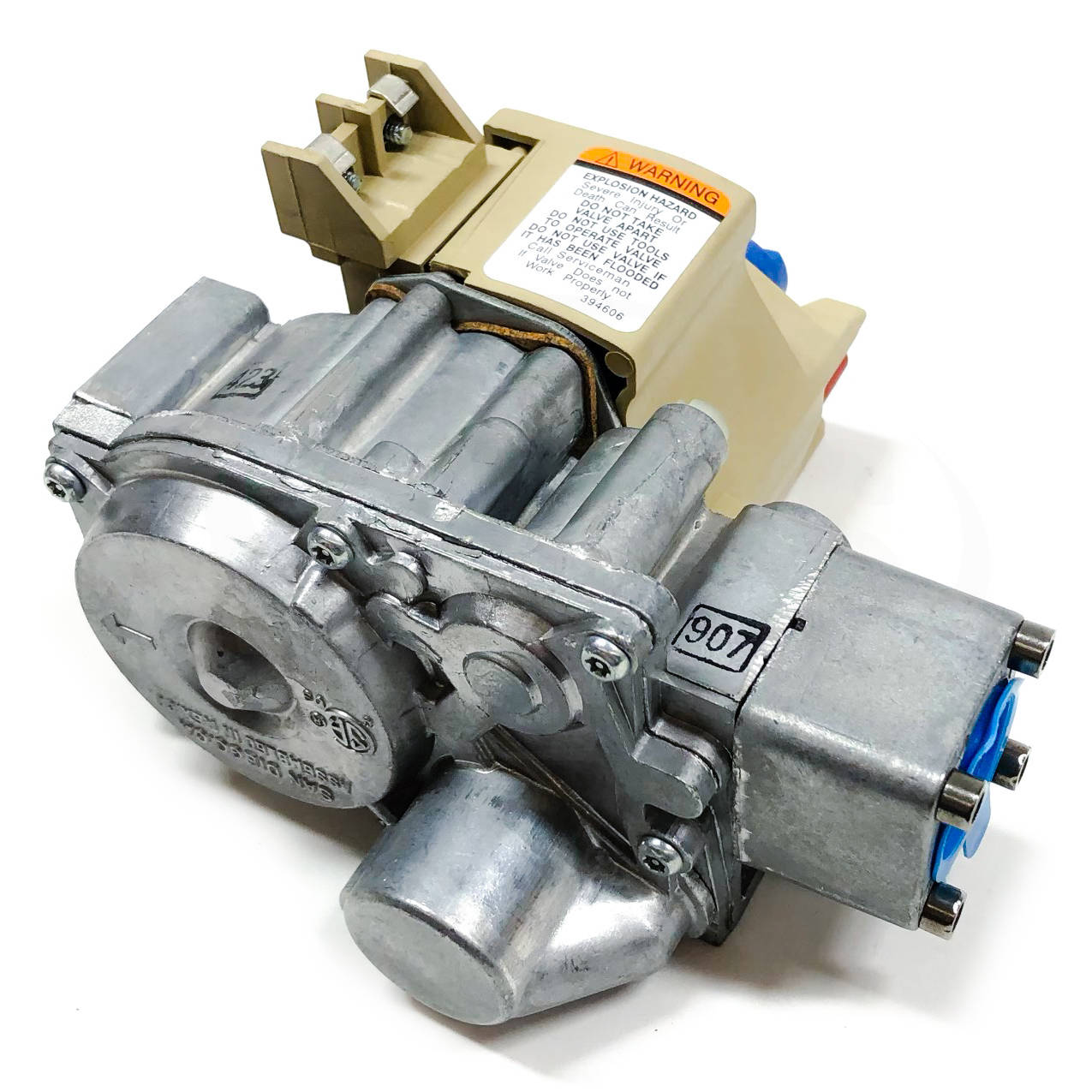

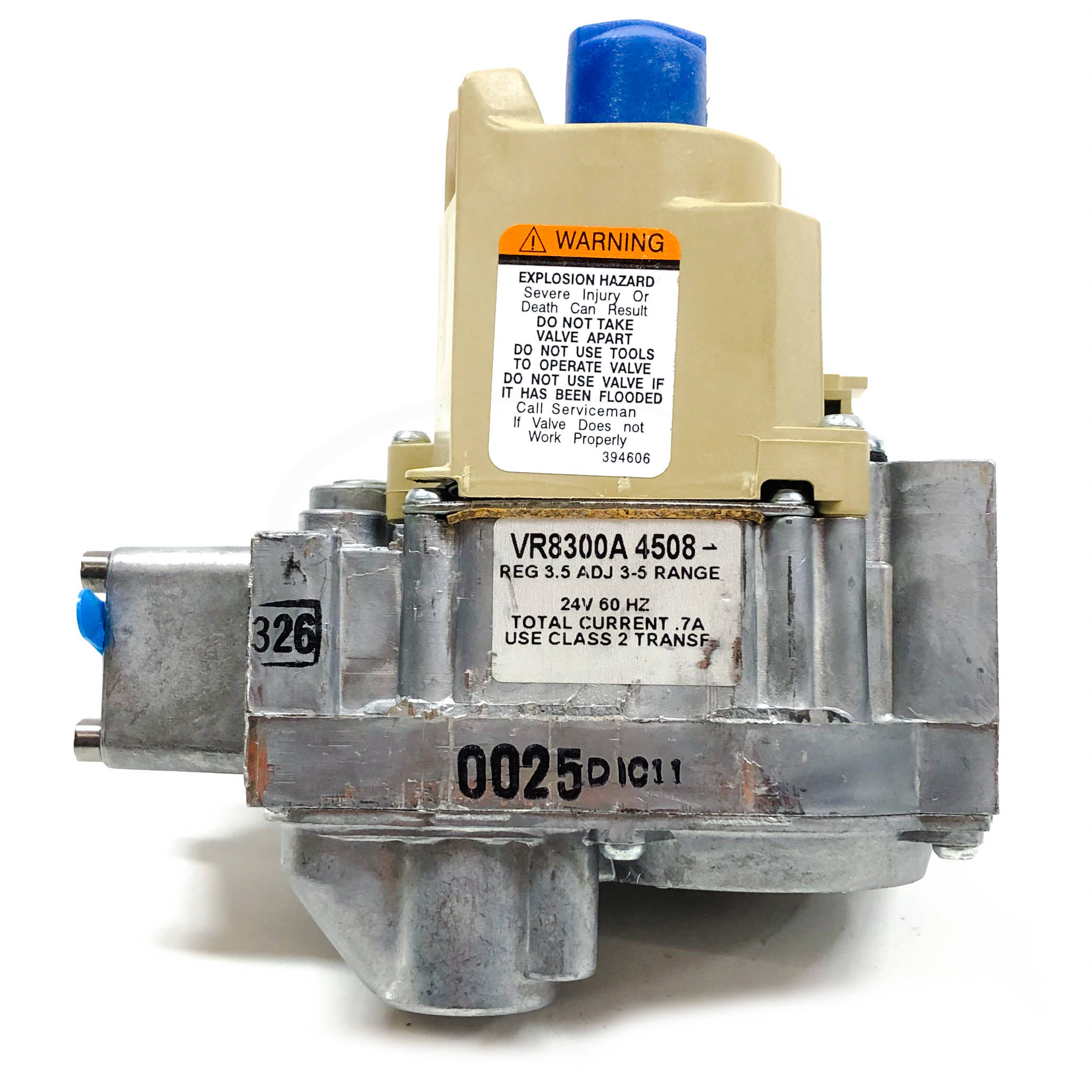

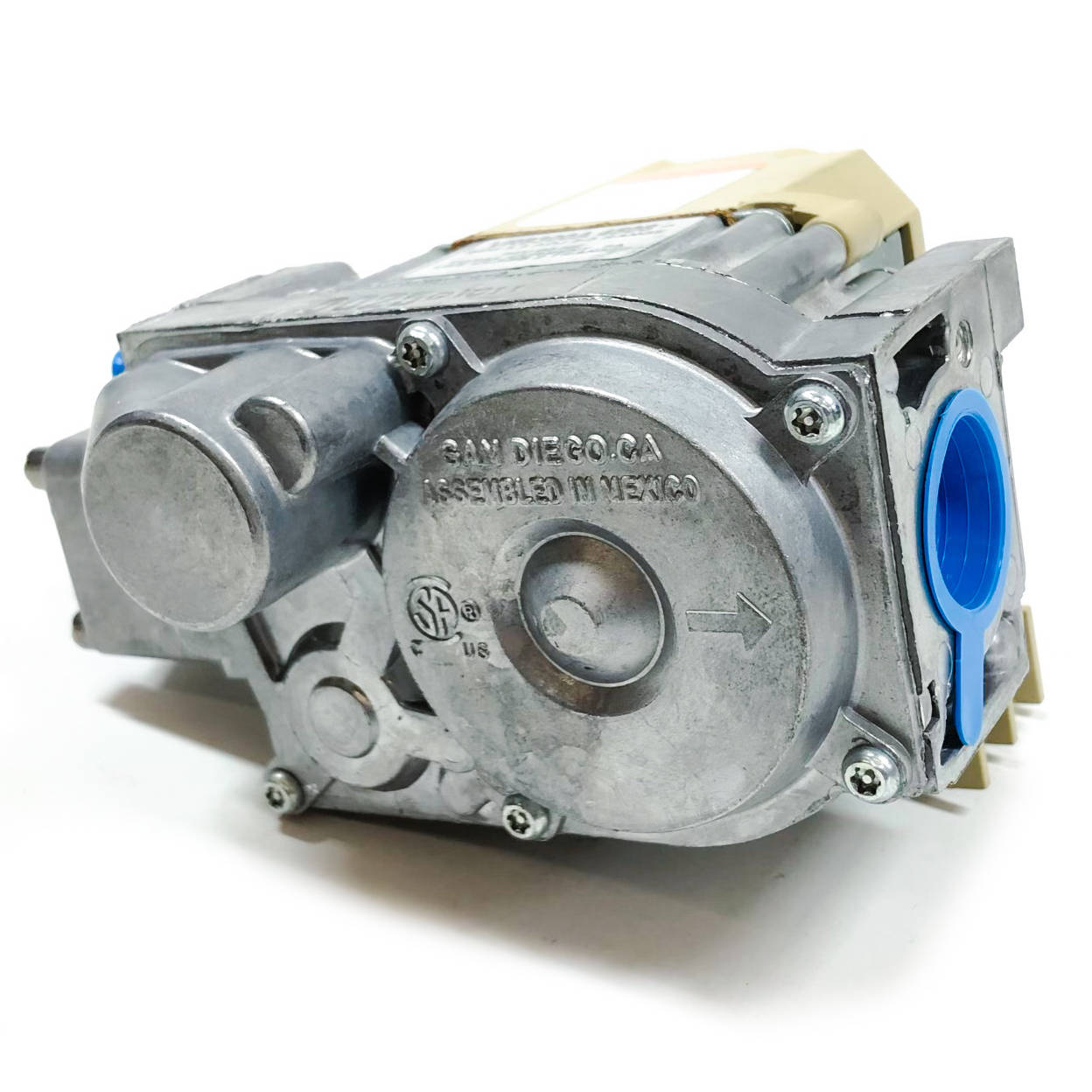

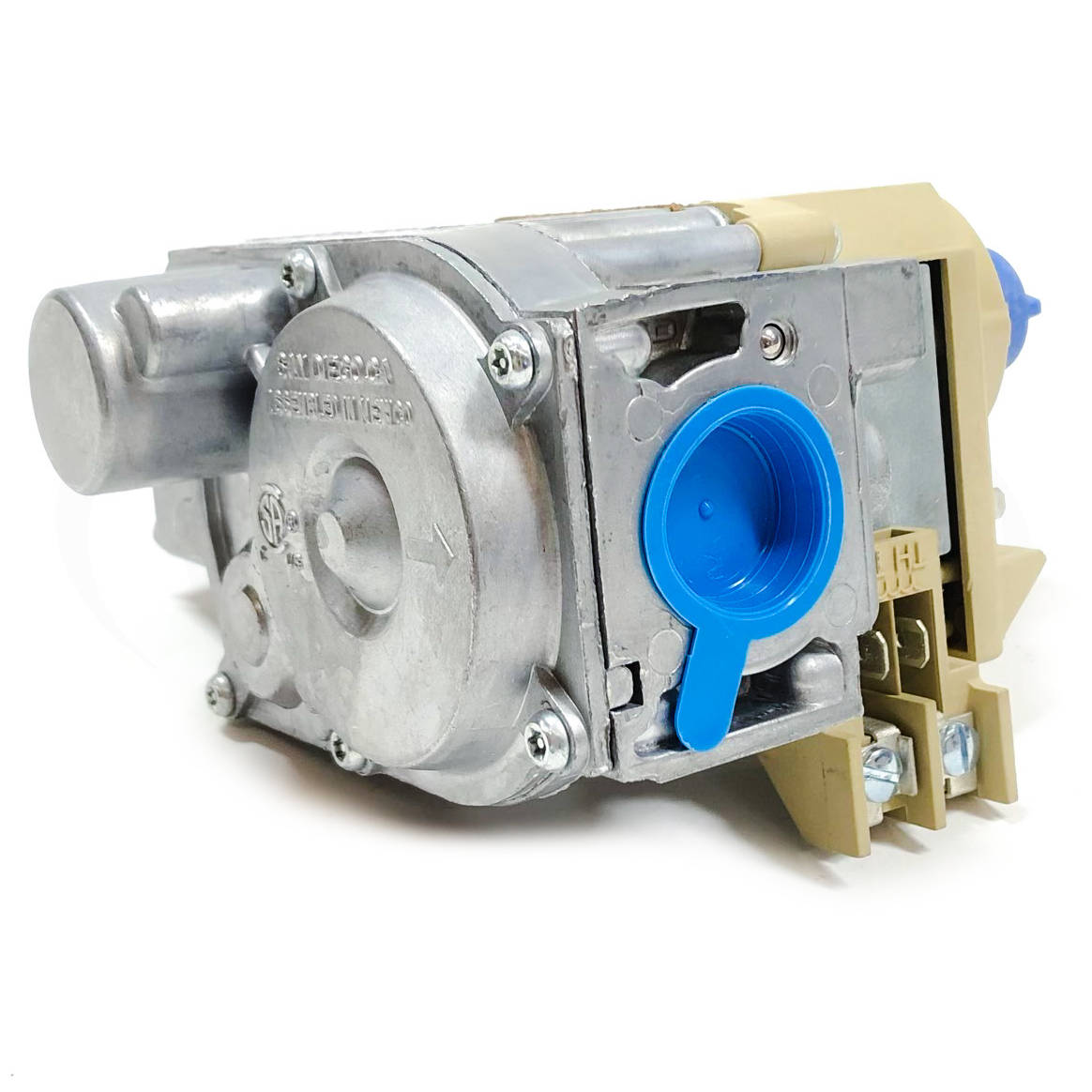

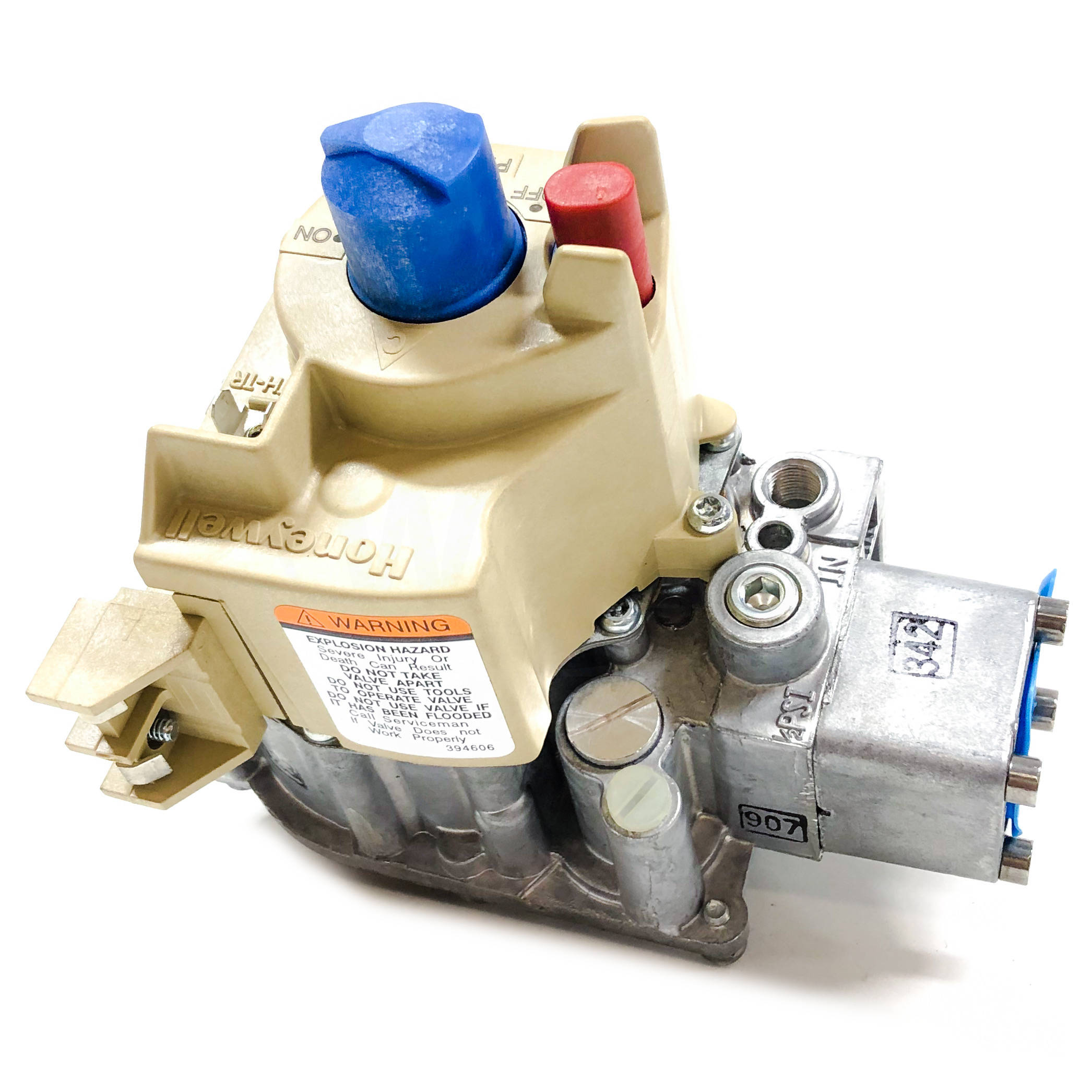

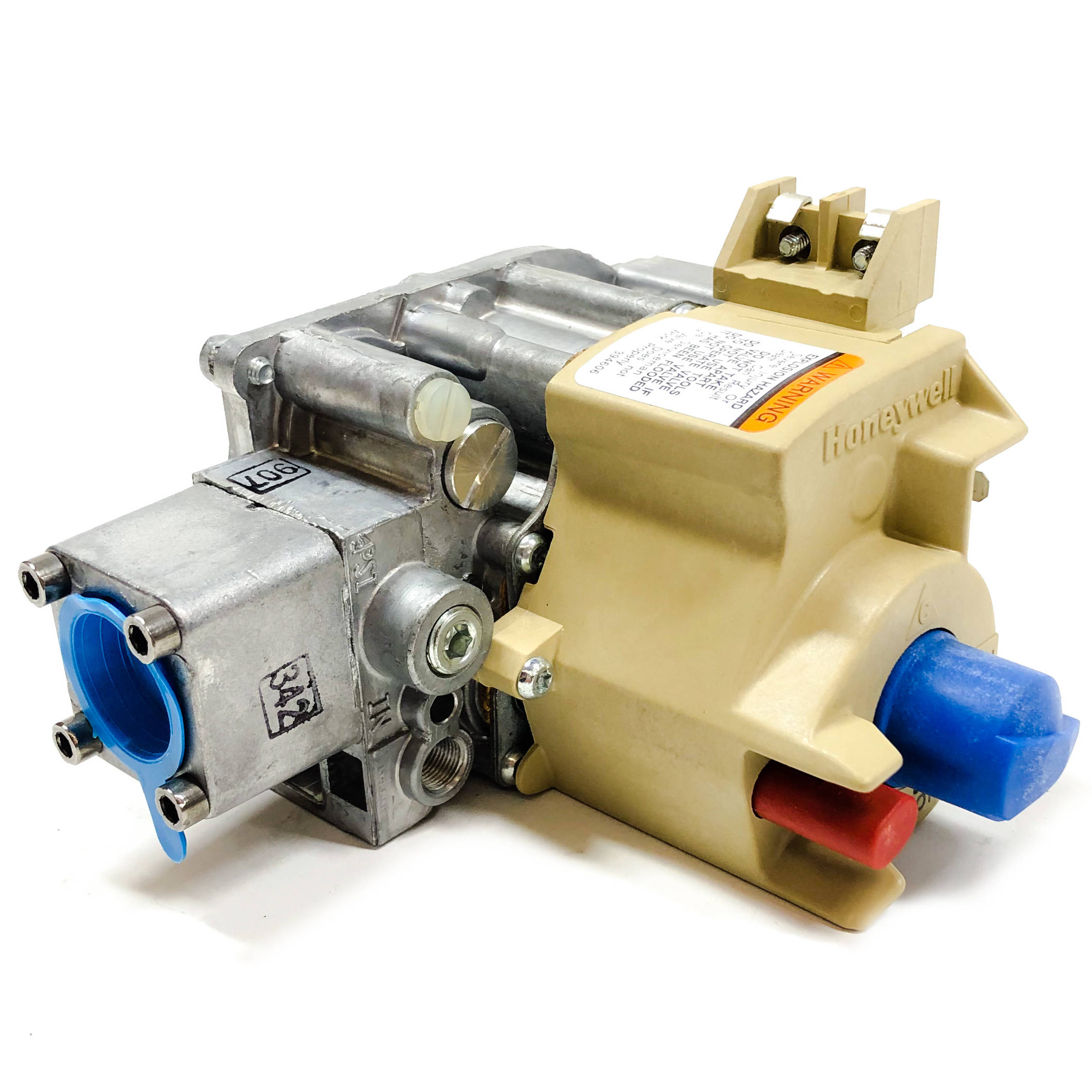

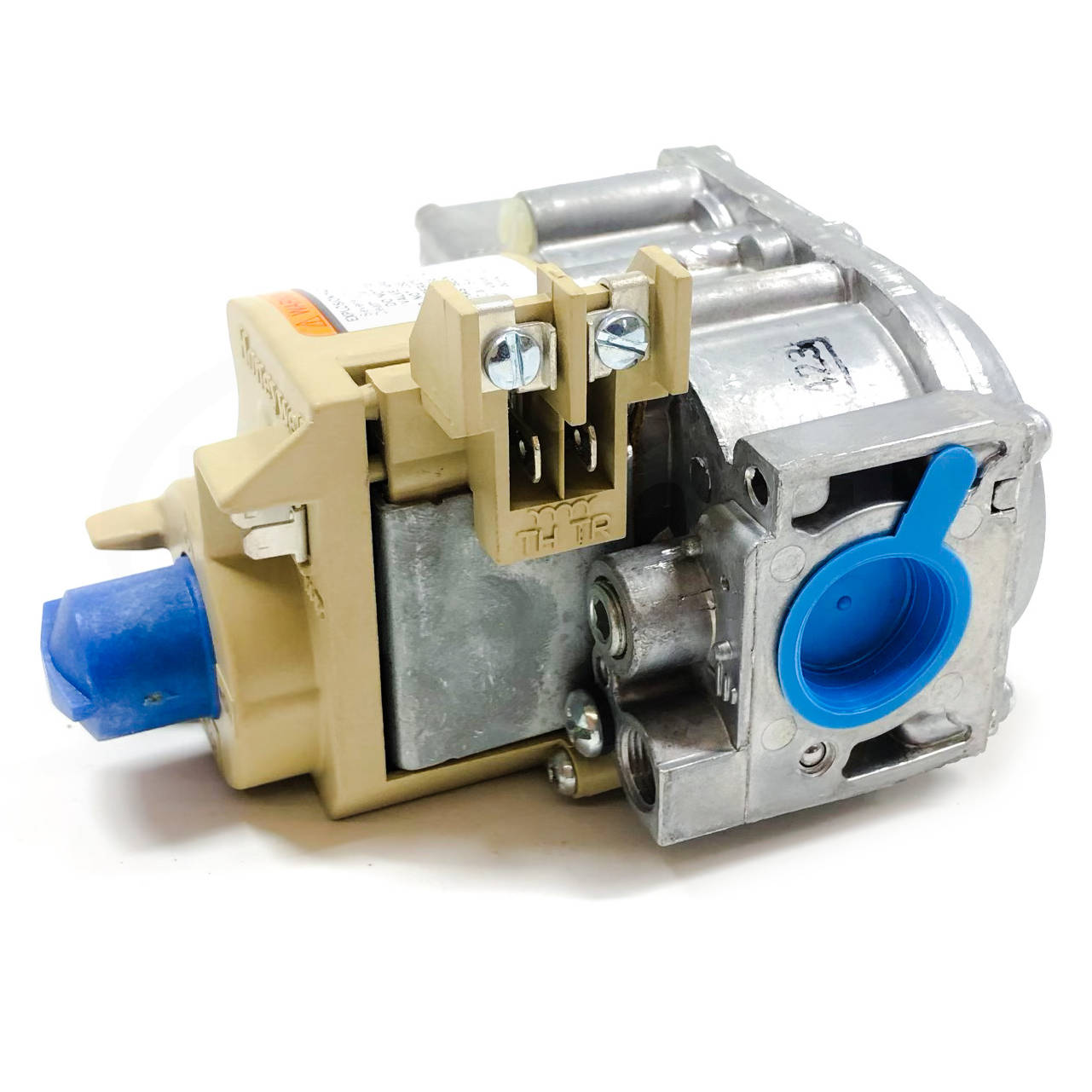

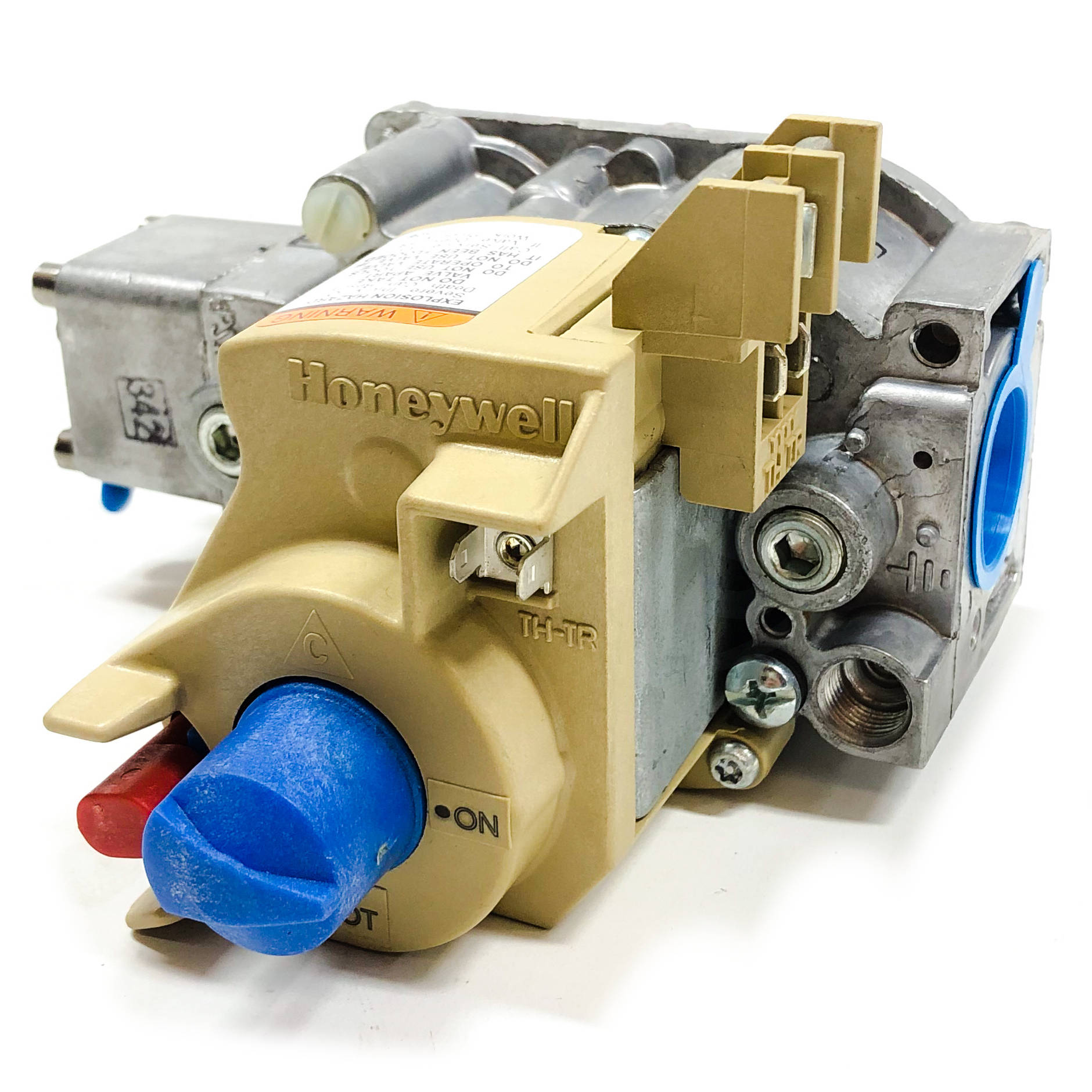

VR8300A4508 Honeywell Dual Valve Standing Pilot Combination Gas Control

Overview:
Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

Features:
• Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment.
• Compact size.
• Provides two automatic valves.
• Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends.
• Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
• Meets codes requiring dual safety shut-off.

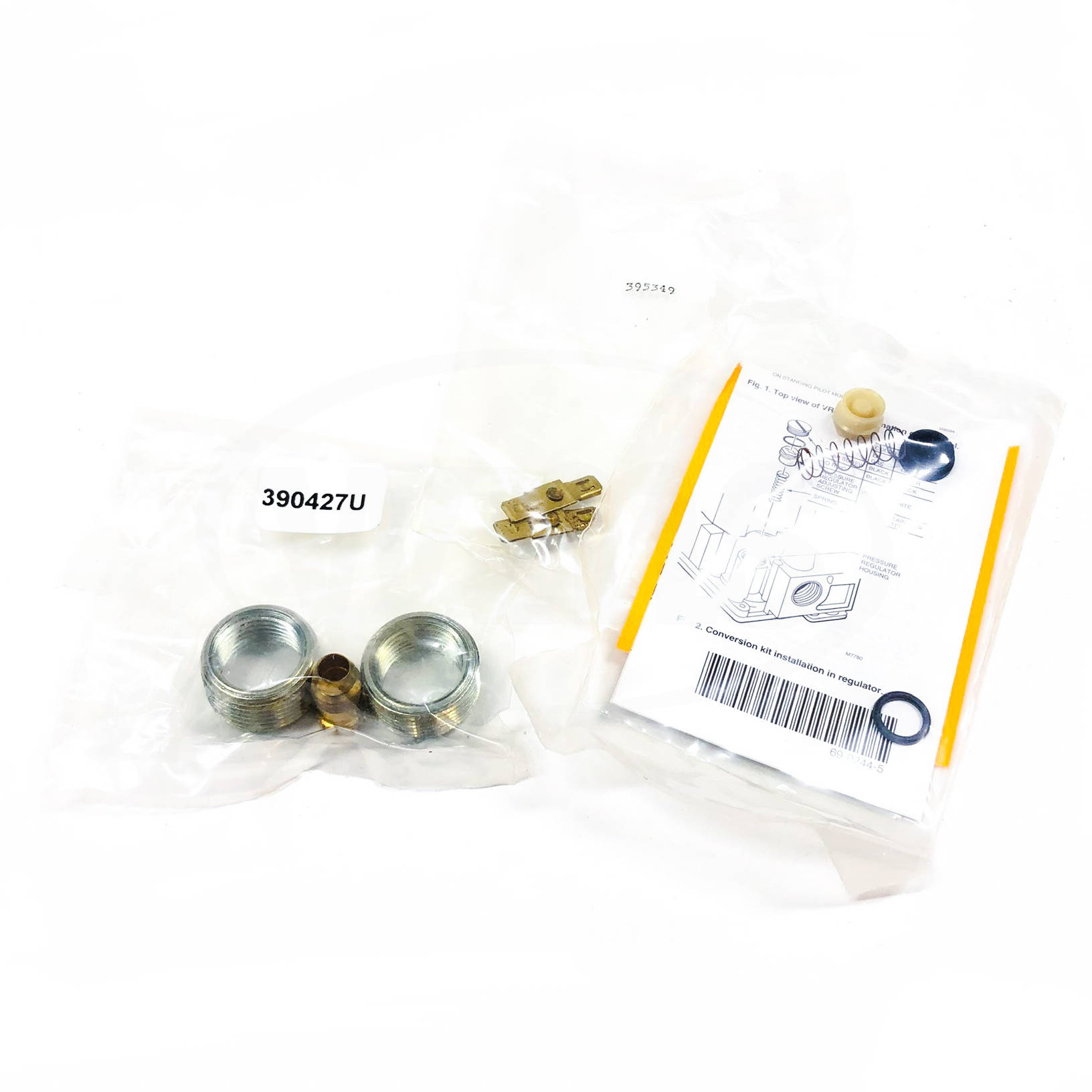

• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
• All adjustments, wiring connections and pilot outlet are accessible from top of control.
• Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
• Compatible with ECO connector.
• LITE-RITE (OFF-PILOT-ON) lighting sequence.
