Johnson Controls
Actuated Valve Assemblies, VG7000 Pneumatic Control Valves Series

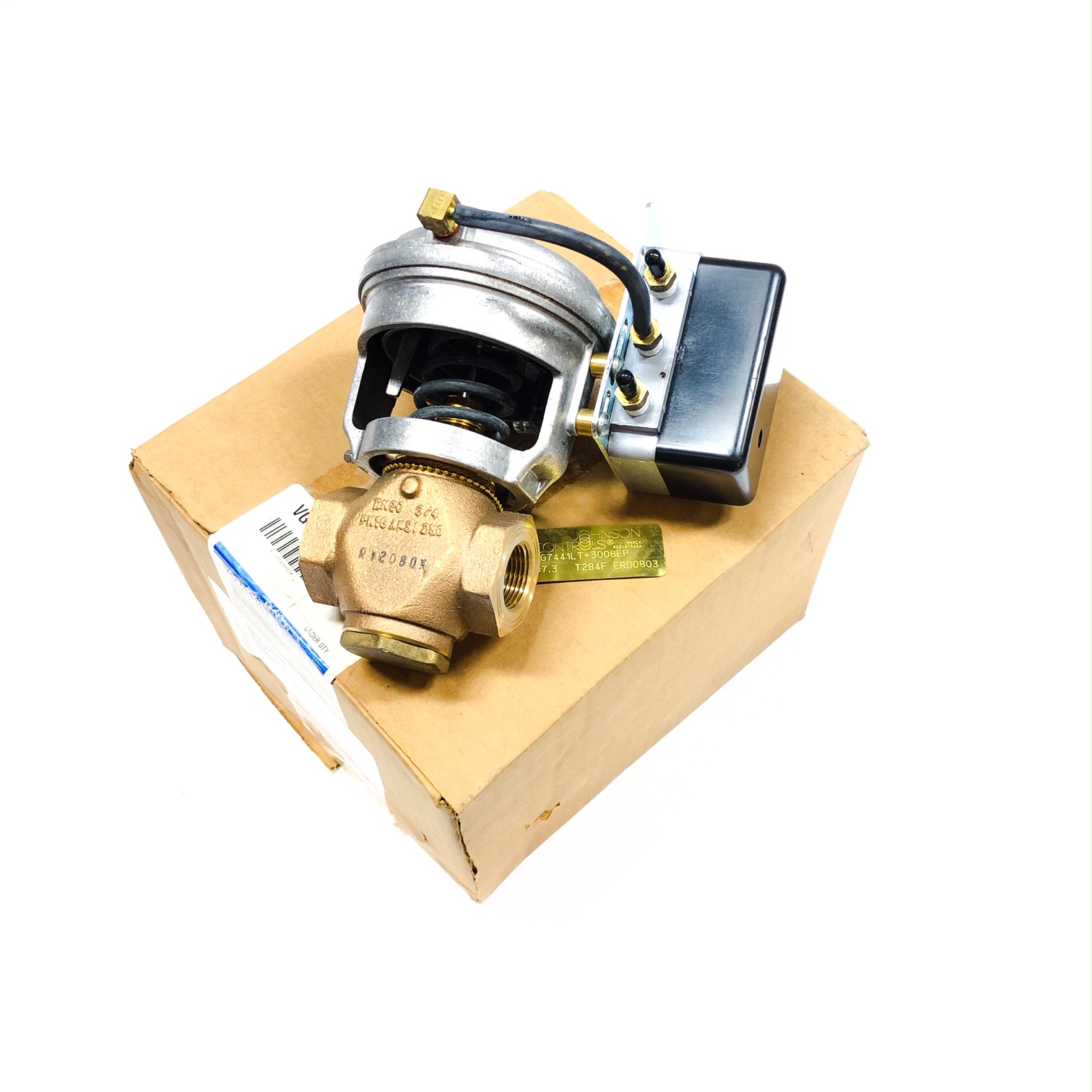

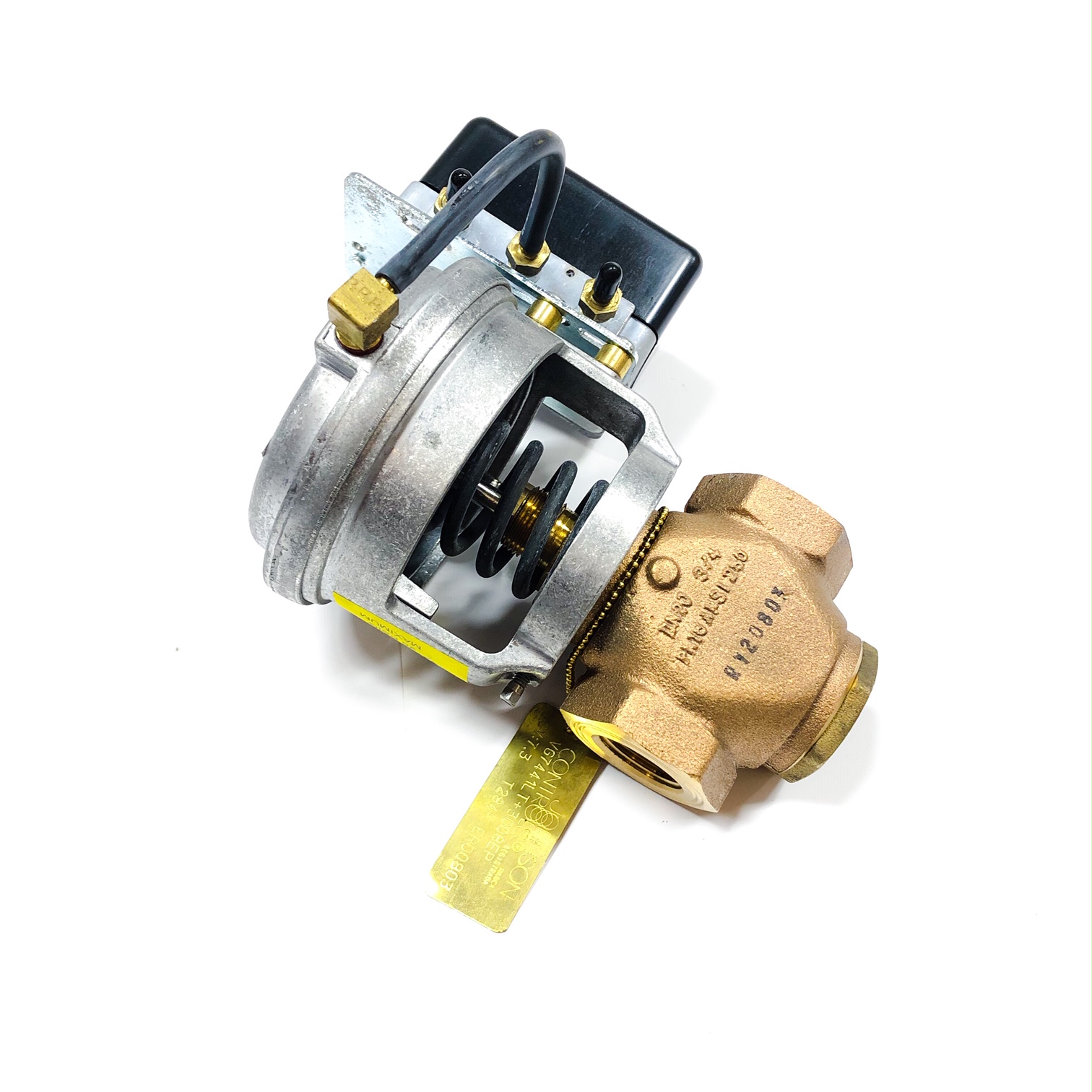

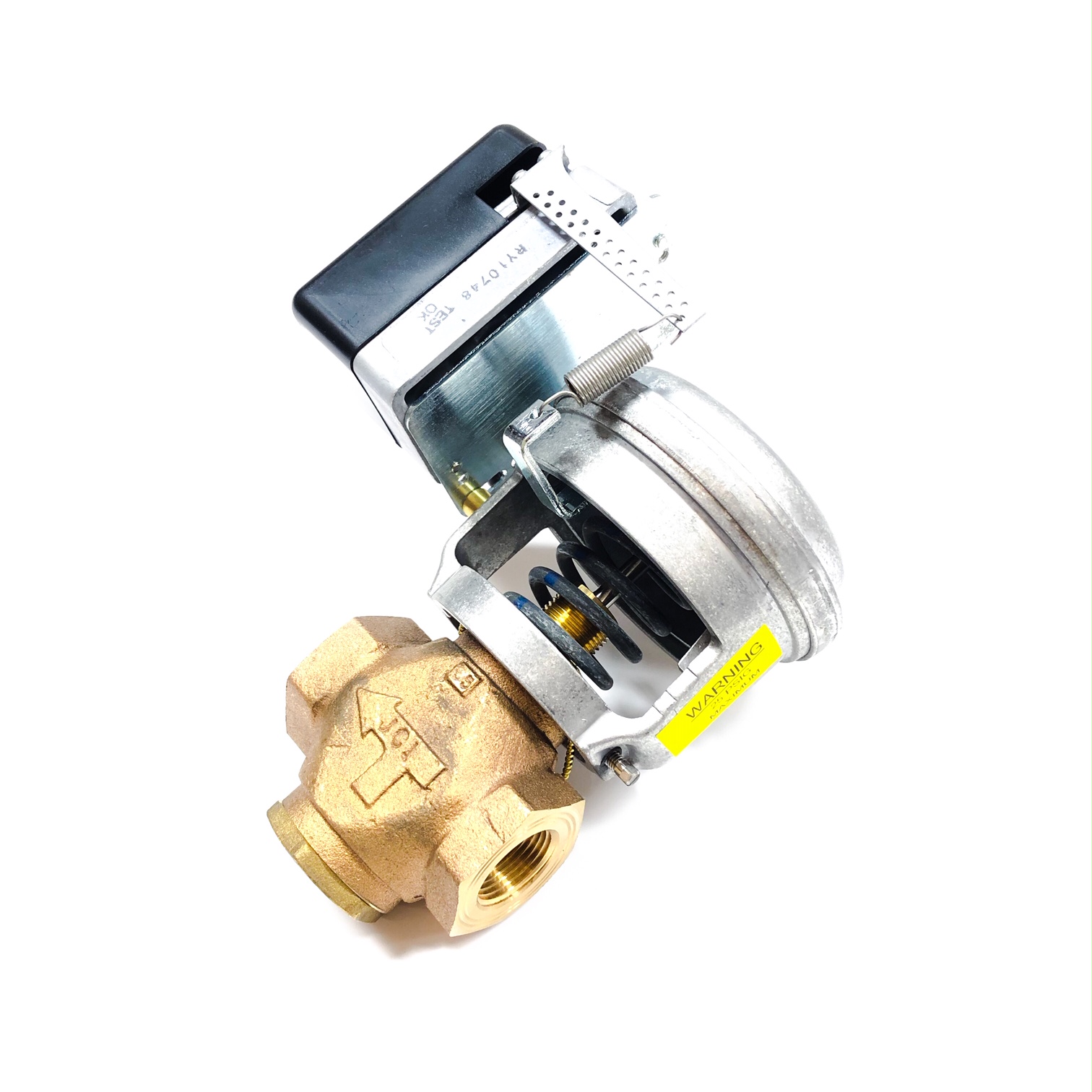

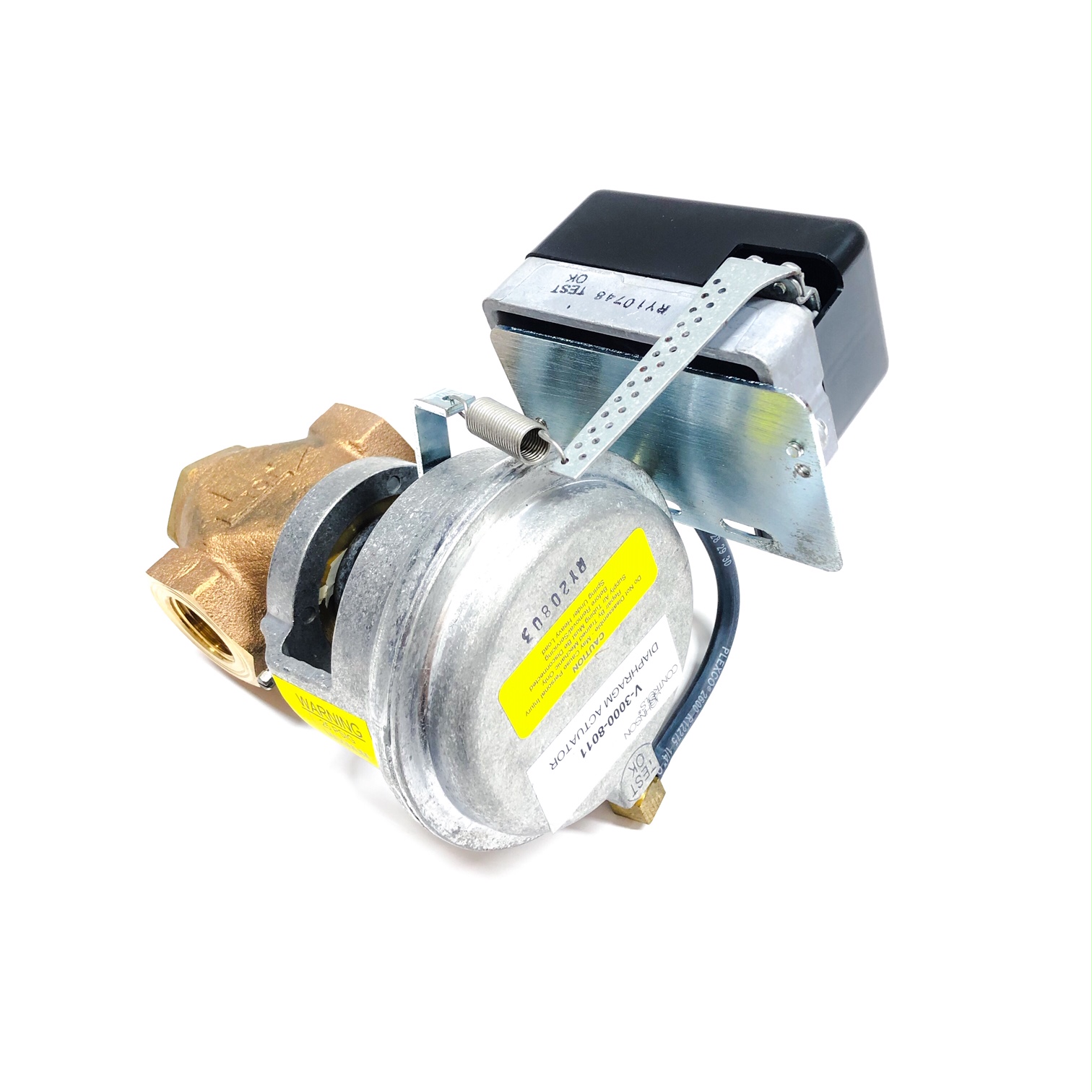

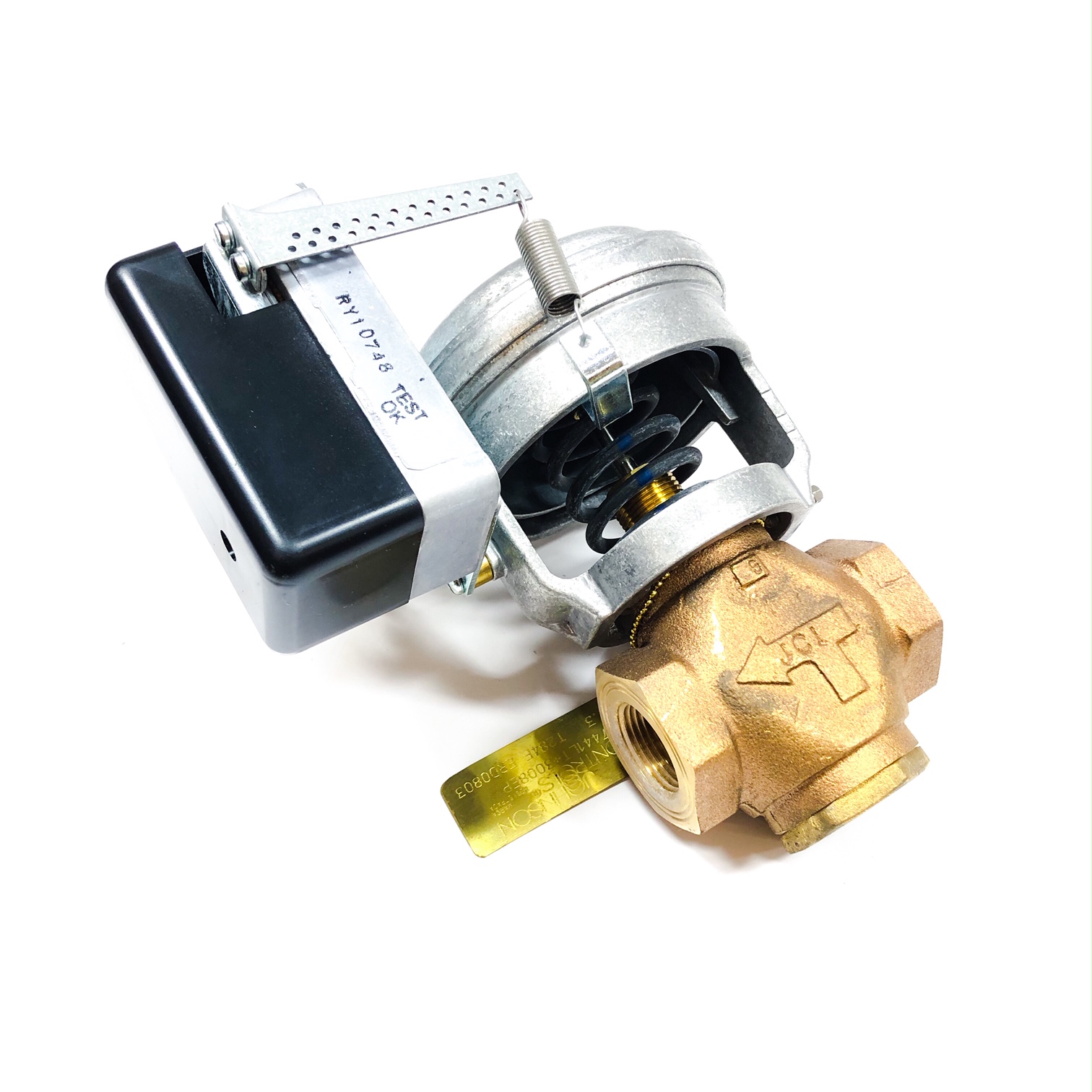

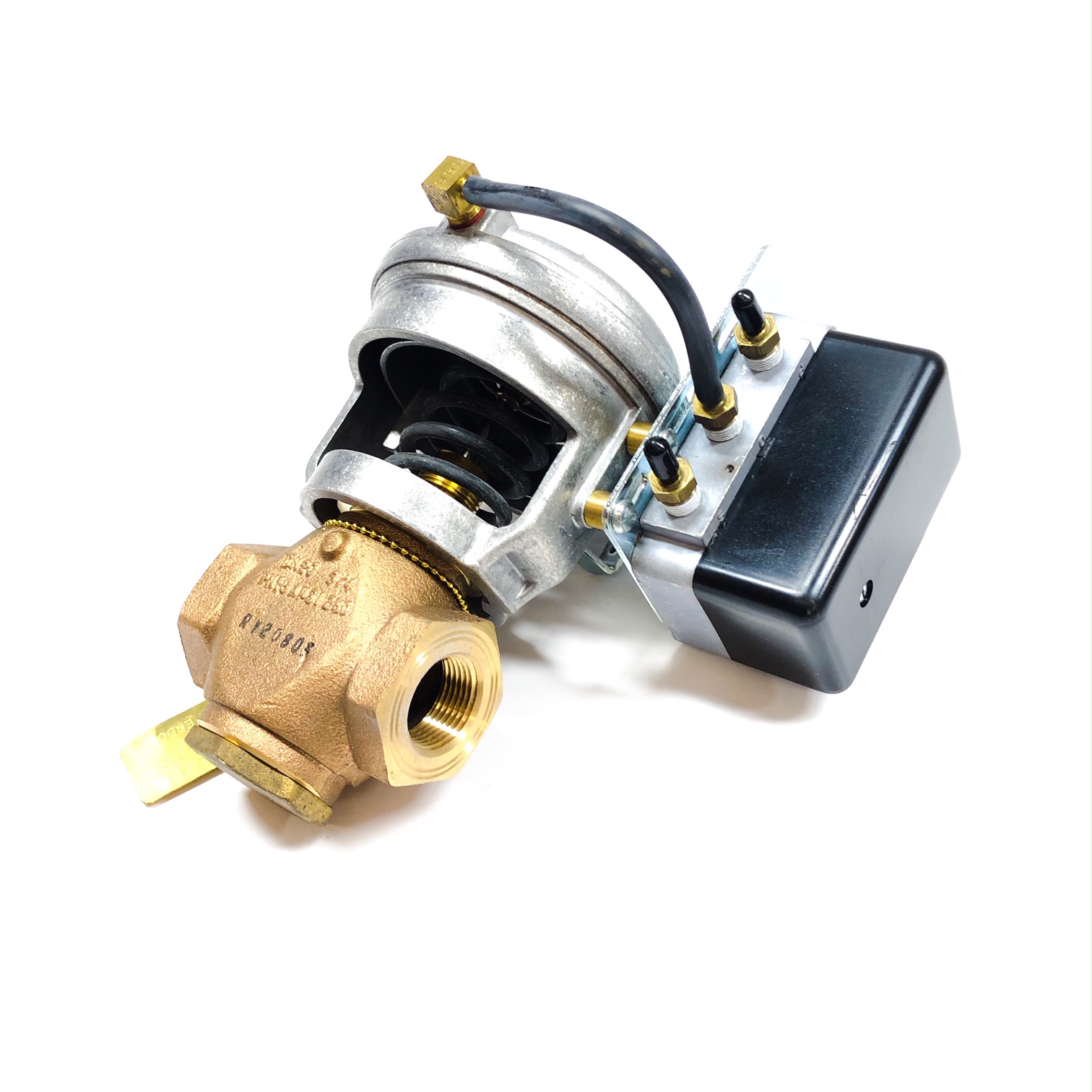

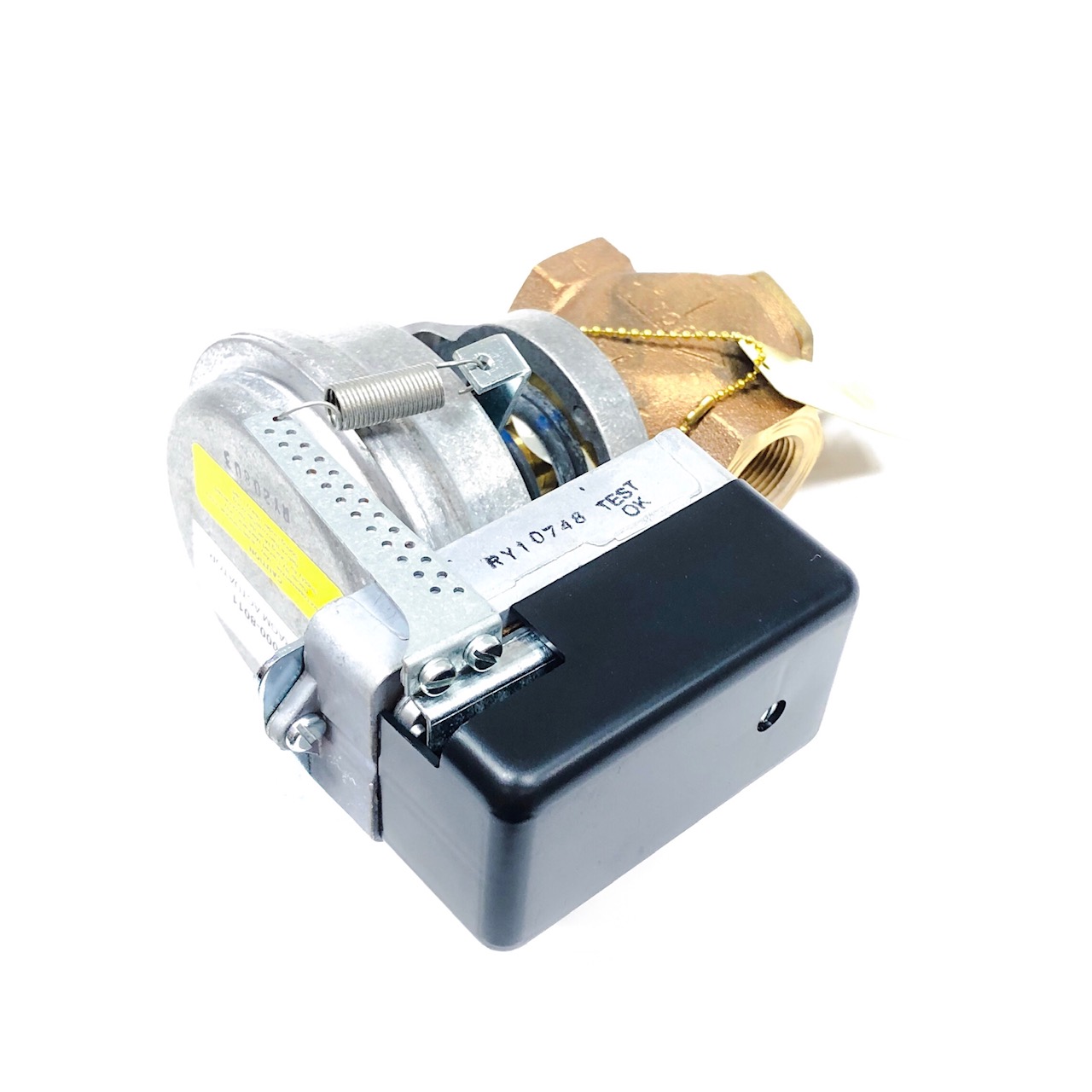

Item# VG7441LT+3008EP - Nc3/4 Npt7.3 W/P 9-13#

VG7000 Pneumatic Control Valves Series Information

Complete Family of 1/2 through 2 in. Bronze Valves, Brass and Stainless Steel Trim, with Several Styles of Electric and Pneumatic Actuators

Flexible Features and Options Ordering Matrix Suits Your Specific Application via Thousands of Easy-to-Select, Factory-Assembled Combinations.

Standard Johnson Controls® Ring Pack Packings Provides Industry-Leading Reliability and Operating Life.

Testing for Tight Shutoff of Every Valve Provides Energy Conservation and Ensures Occupant Comfort.

Standard Bonnet and Stem Design Allows Easy Field Retrofit, Easy Field Mounting, and Interchangeability of Actuators with the Use of Standardized Mounting Kits.

VG7000 Series Bronze Control Valves are designed primarily to regulate the flow of water and steam in response to the demand of a controller in Heating, Ventilating, and Air Conditioning (HVAC) systems. These valves are available in Normally Open (N.O.), Normally Closed (N.C.), and three-way mixing configurations. Both electric and pneumatic actuators are available for factory or field mounting.

SPECIFICATIONS:
Item Number: VG7441LT+3008EP
Brand: Johnson Controls
Item Category:HVAC Valves
Subcategory: Actuated Valve Assemblies
Series: VG7000 Pneumatic Control Valves
Pipe Size: 0.75 Inches
Body Pattern: Two-Way
Valve Style: Control
Actuator Control Style: Pneumatic
Fail-Safe Mode: Spring Normally Closed
Flow Capacity: Cv 7.3
Connection Type: Threaded
Max Static Pressure: 400 psi
Flow Characteristic: Equal Percentage
Trim Material: Brass
Medium Temperature Range: 35 to 248 Degrees F
Comments: 9 to 13 psi Spring Range
