/Products/Electric Motor Parts/Shaft Seals/VA-110 Dichtomatik 105MM V-Ring Shaft Seal
Click Image to Expand

Product ID: VA-110

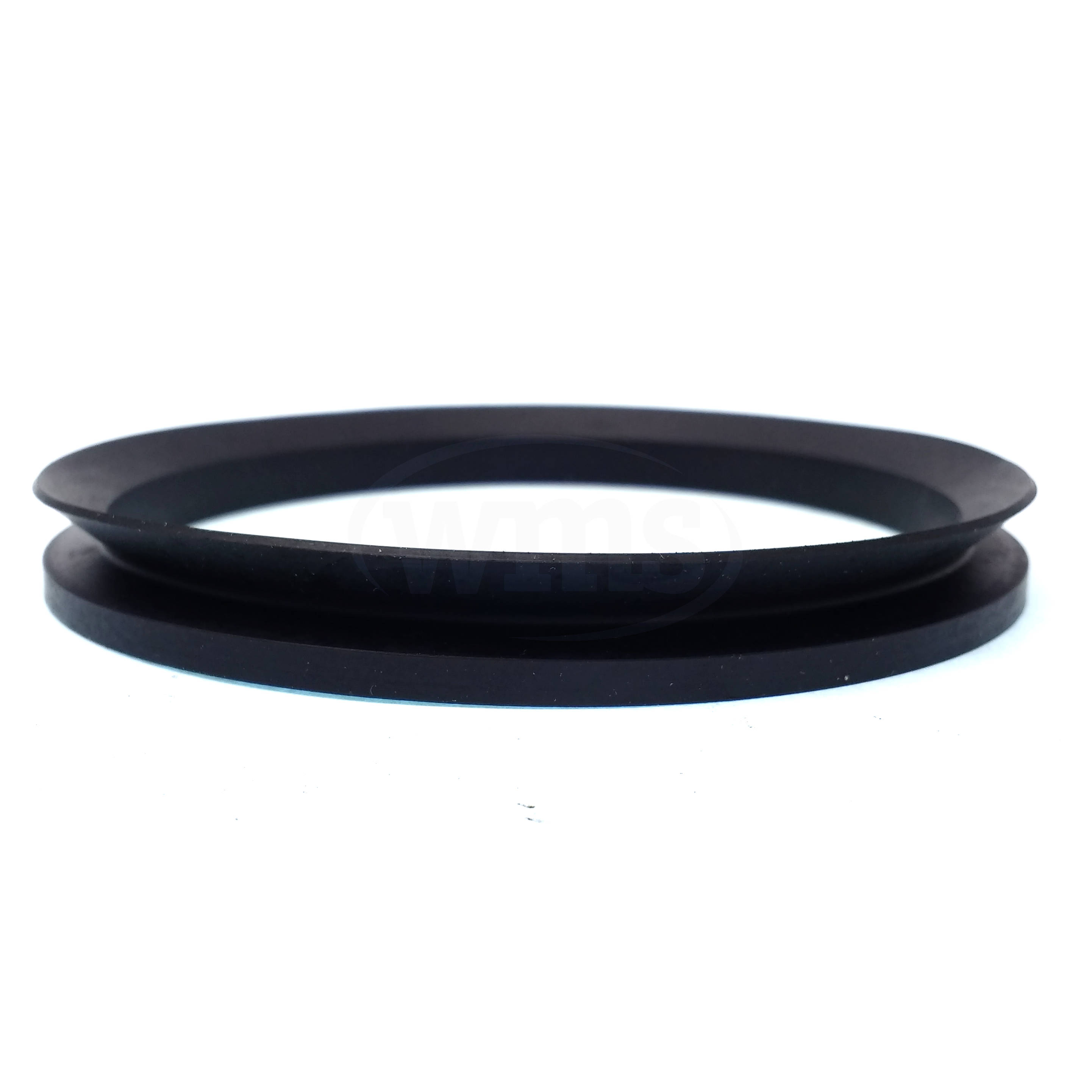

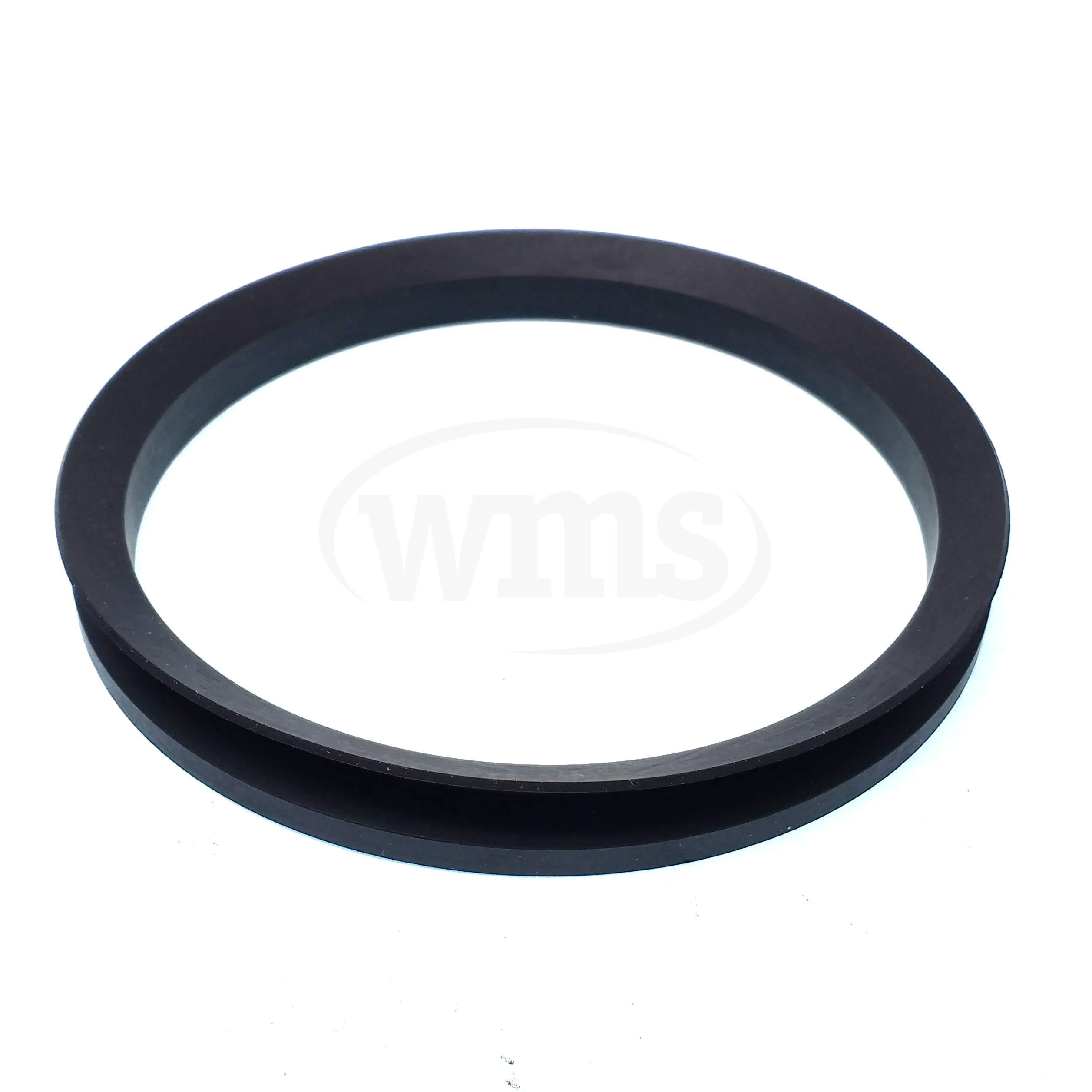

VA-110 Dichtomatik 105MM V-Ring Shaft Seal

MFG: TCM/Dichtomatik
MFG Part Number: VA-110-BX

Available Stock: 3
Selected accessories will also be added to cart
$24.60 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-110
VA-110-BX

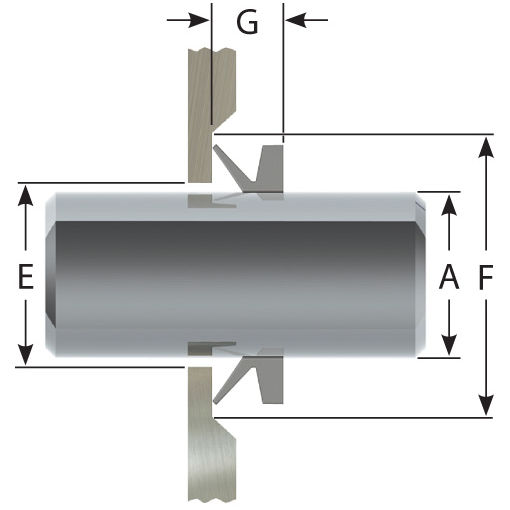

Shaft Diameter 105.00 - 115.00 mm
Seal Inside Diameter “B” 99.00 mm
Seal Outside Diameter “C” 113.00 mm
Seal Height “D” 12.80 mm
Housing Inside Diameter “E” ”A” + 4.00 mm
Housing Outside Diameter “F” ”A” + 21.00 mm
Housing Width “G” 10.50 mm ± 1.50 mm
UPC 750886191582
Weight 0.08 lbs
Country of Origin Taiwan
