/Products/Electric Motor Parts/Shaft Seals/VA-100 100MM Dichtomatik V-Ring Shaft Seal
Click Image to Expand

Product ID: VA-100

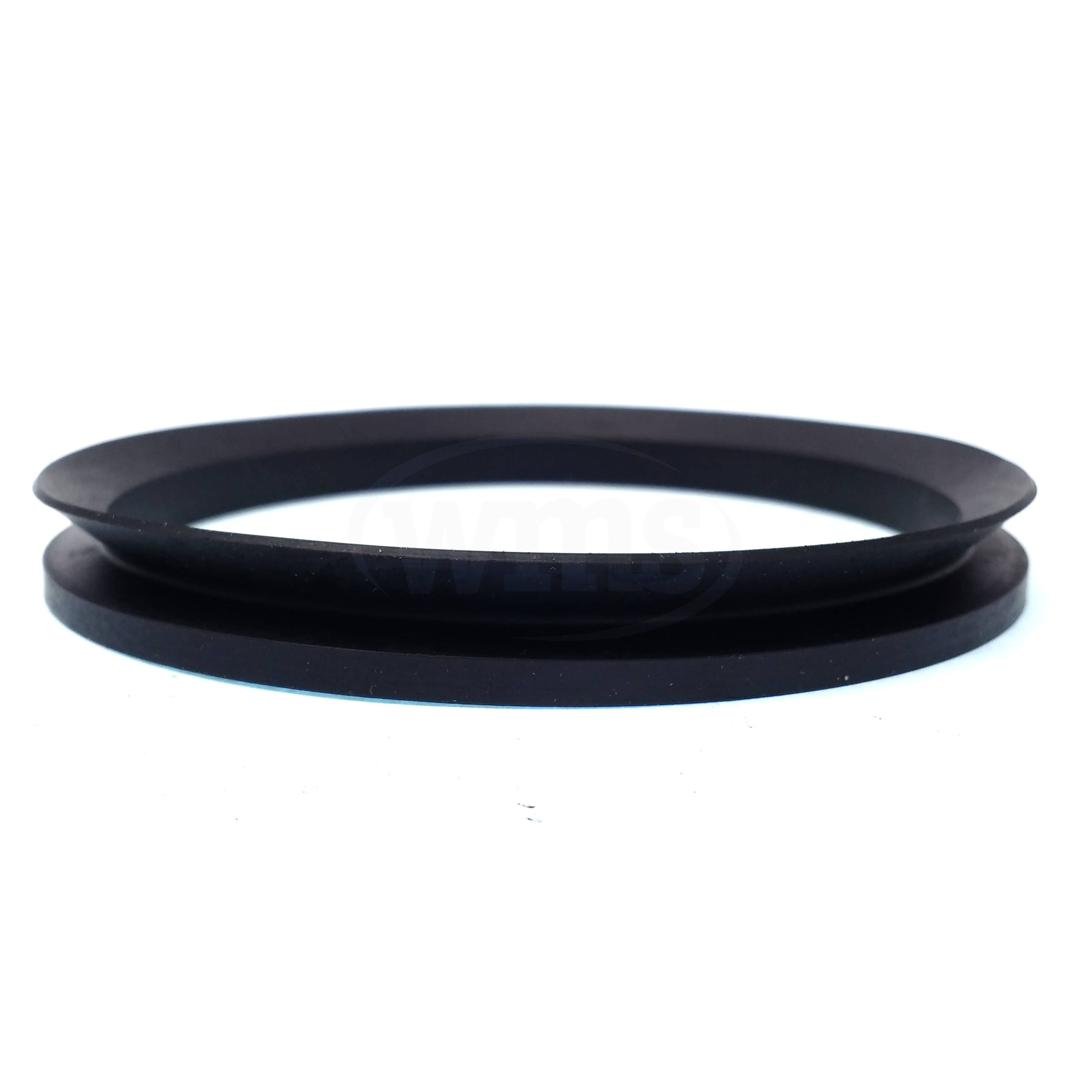

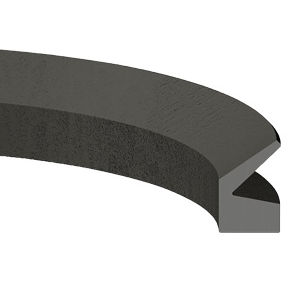

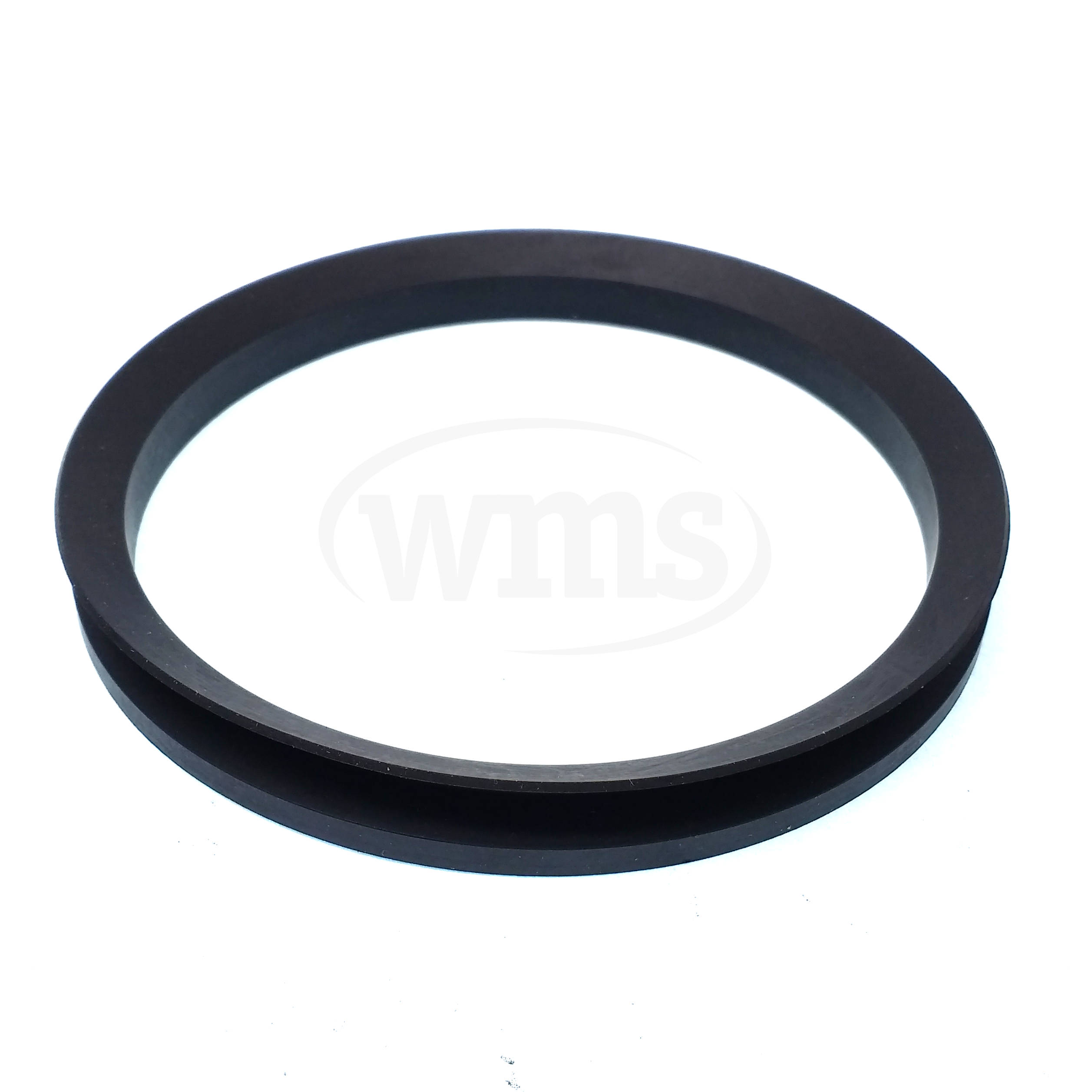

VA-100 100MM Dichtomatik V-Ring Shaft Seal

MFG: TCM/Dichtomatik
MFG Part Number: VA-100-BX

Available Stock: 2
Selected accessories will also be added to cart
$21.74 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-100
VA-100-BX

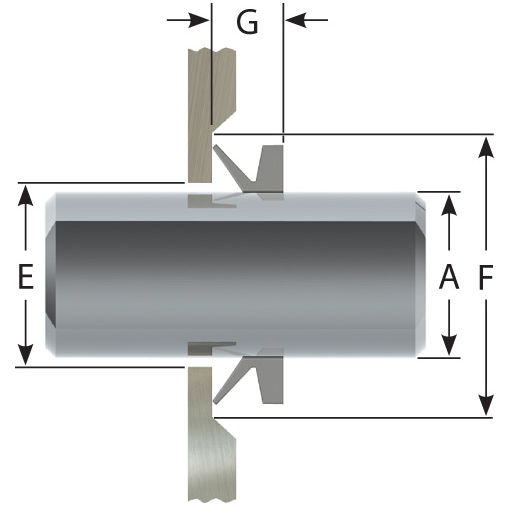

Shaft Diameter 98.00 - 105.00 mm
Seal Inside Diameter “B” 90.00 mm
Seal Outside Diameter “C” 102.00 mm
Seal Height “D” 11.00 mm
Housing Inside Diameter “E” ”A” + 4.00 mm
Housing Outside Diameter “F” ”A” + 18.00 mm
Housing Width “G” 9.00 mm ± 1.20 mm
UPC 750886191551
Weight 0.08 lbs
Country of Origin Taiwan
