/Products/Electric Motor Parts/Shaft Seals/VA-095 Dichtomatik 95MM V-Ring Shaft Seal
Click Image to Expand

Product ID: VA-095

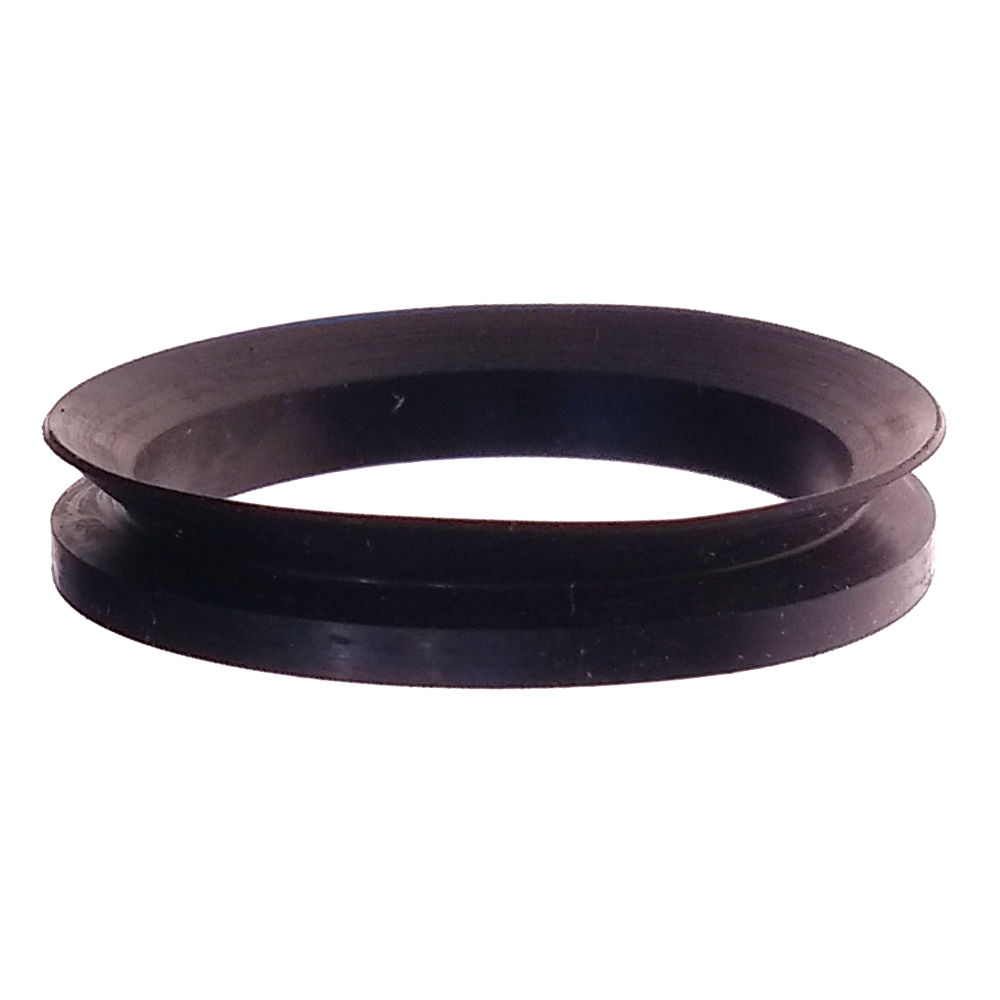

VA-095 Dichtomatik 95MM V-Ring Shaft Seal

MFG: TCM/Dichtomatik
MFG Part Number: VA-095-BX

Available Stock: 3
Selected accessories will also be added to cart
$29.90 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-095
VA-095-BX

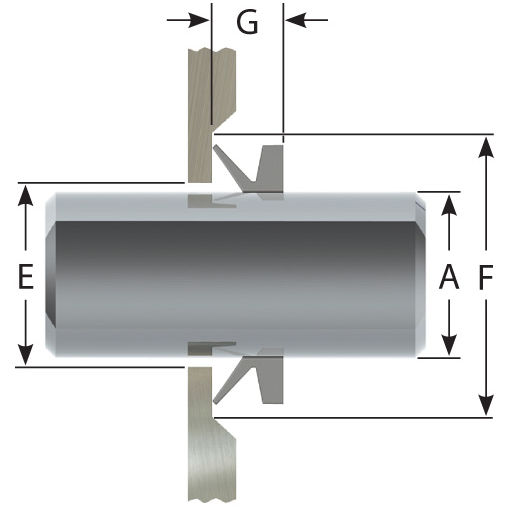

Shaft Diameter 93.00 - 98.00 mm
Seal Inside Diameter “B” 85.00 mm
Seal Outside Diameter “C” 97.00 mm
Seal Height “D” 11.00 mm
Housing Inside Diameter “E” ”A” + 4.00 mm
Housing Outside Diameter “F” ”A” + 18.00 mm
Housing Width “G” 9.00 mm ± 1.20 mm
UPC 750886191520
Weight 0.07 lbs
Country of Origin Taiwan
