/Products/Electric Motor Parts/Shaft Seals/VA-090 Dichtomatik 90MM V-Ring Shaft Seal
Click Image to Expand

Product ID: VA-090

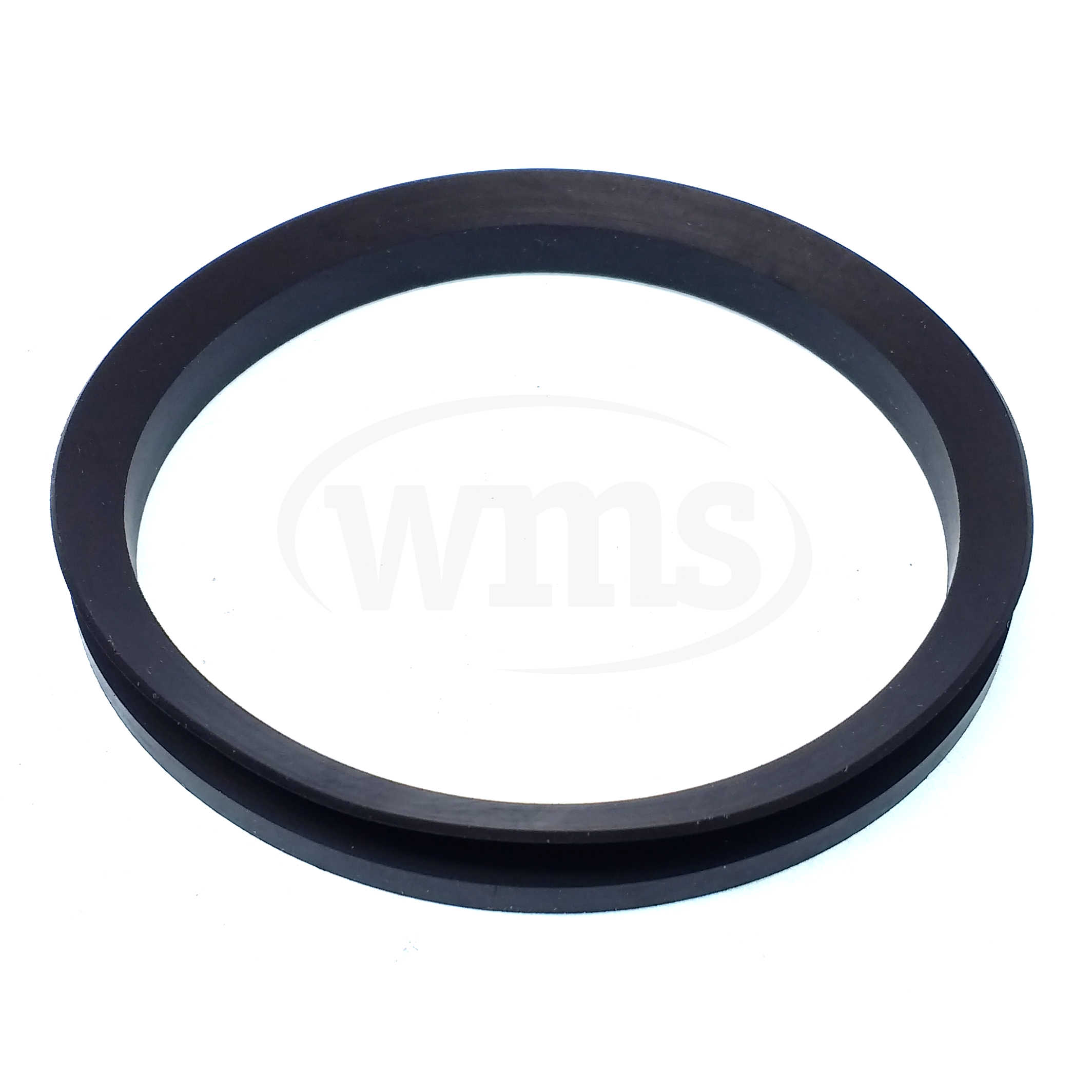

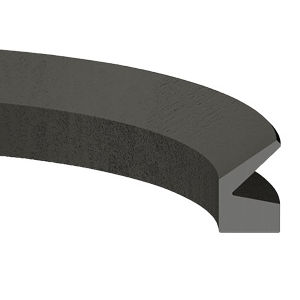

VA-090 Dichtomatik 90MM V-Ring Shaft Seal

MFG: TCM/Dichtomatik

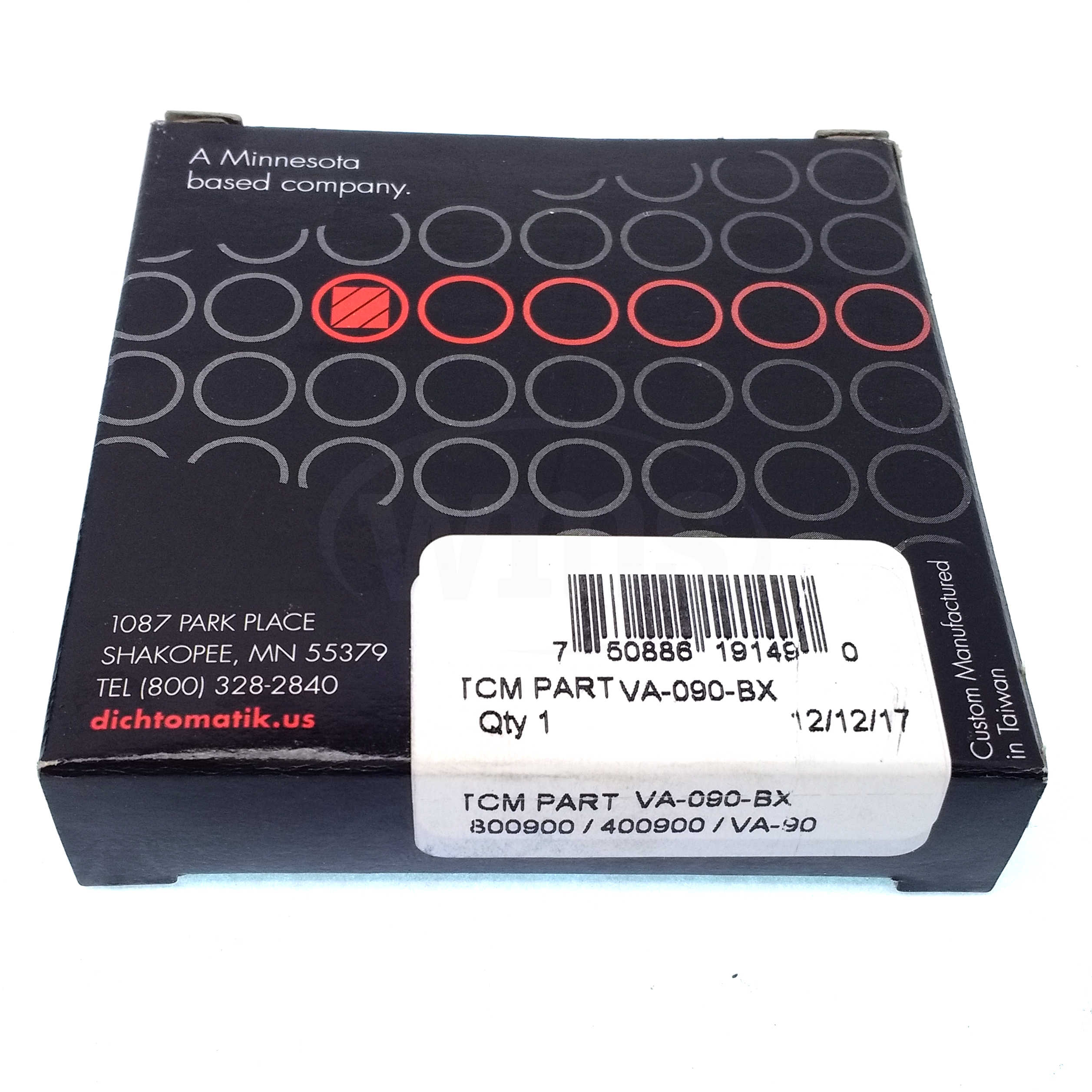

MFG Part Number: VA-090-BX

Available Stock: 4
Selected accessories will also be added to cart
$20.22 / Each
Quantity:

Specifications

Brand TCM Dichtomatik, Americas
Part Number VA-090
VA-090-BX

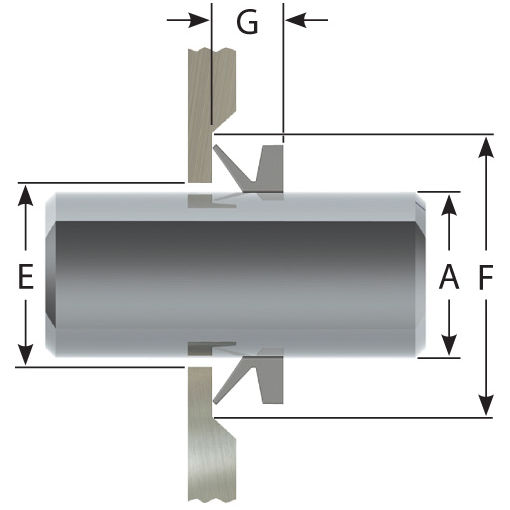

Shaft Diameter 88.00 - 93.00 mm
Seal Inside Diameter “B” 81.00 mm
Seal Outside Diameter “C” 93.00 mm
Seal Height “D” 11.00 mm
Housing Inside Diameter “E” ”A” + 4.00 mm
Housing Outside Diameter “F” ”A” + 18.00 mm
Housing Width “G” 9.00 mm ± 1.20 mm
UPC 750886191490
Weight 0.06 lbs
Country of Origin Taiwan
